Scheamtic diagram

FCC ID APB55592-02A2T

Remote Control Toy Transmitter

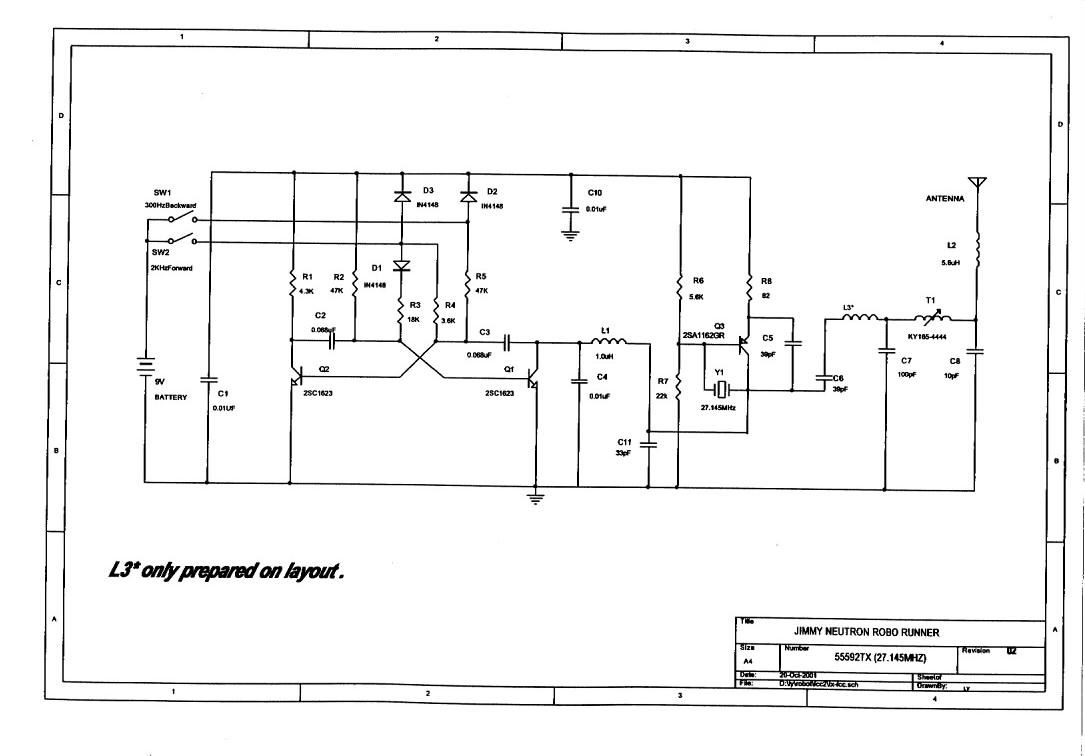

Mattel Toys A Division of Mattel Inc

1. FCC ID
2. Mattel Toys A Division of Mattel Inc
3. APB55592-02A2T
4. Scheamtic diagram

Document ID #180897
