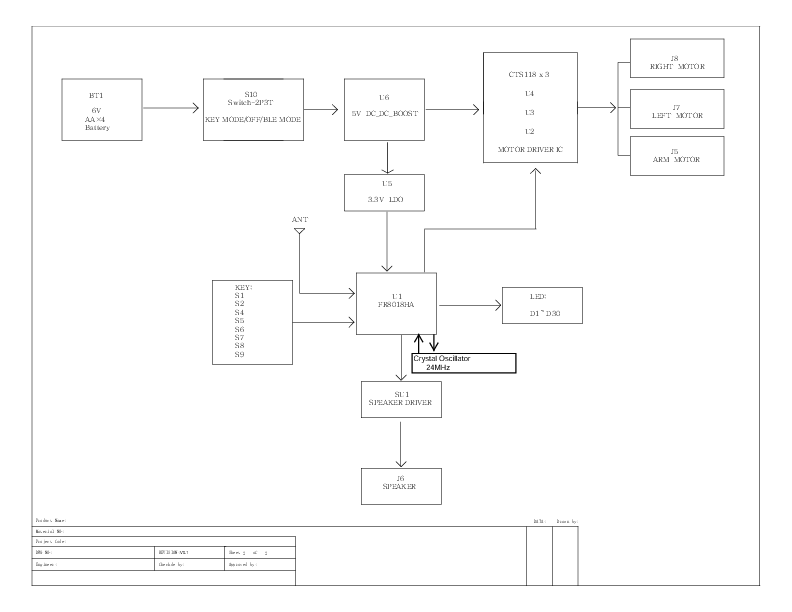

AMT375525 Innobot Master Kit Block Diagram - FCC ID 2A32JAMT375525

FCC ID 2A32JAMT375525

Block Diagram

Innobot Master Kit

by Amazing Toys Limited

Document preview loads when visible.

Document Details

FCC ID2A32JAMT375525
Document ID5845428
Document TypeBlock Diagram
DescriptionBlock Diagram
Document TitleBlock
ApplicantAmazing Toys Limited
Equipment ClassInnobot Master Kit
Product CodeAMT375525
Application IDBSPj9xuQugikrDp4KRrl8w==
Application PurposeOriginal Equipment
Application Date2022-04-26
Frequency Range2402-2480 MHz
FRN0031757149
Test FirmIntertek Testing Services Hong Kong Ltd.
Certified ByKenneth Wong Assistant Supervisor
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2022-04-26
Available2022-04-26
Created2022-04-25
Modified2022-04-25
Pages1
File TypeAdobe Acrobat PDF
File Size68608
File SHA-2568fa598f4d88248e23b7335da11e857e23fd1ffe42f271abd34c40bb7069f2f1b
PDF Metadata Authorkennethw
PDF Metadata ProducerGPL Ghostscript 9.07 kennethw
FCC.gov SourcesFCC.gov 5845428
