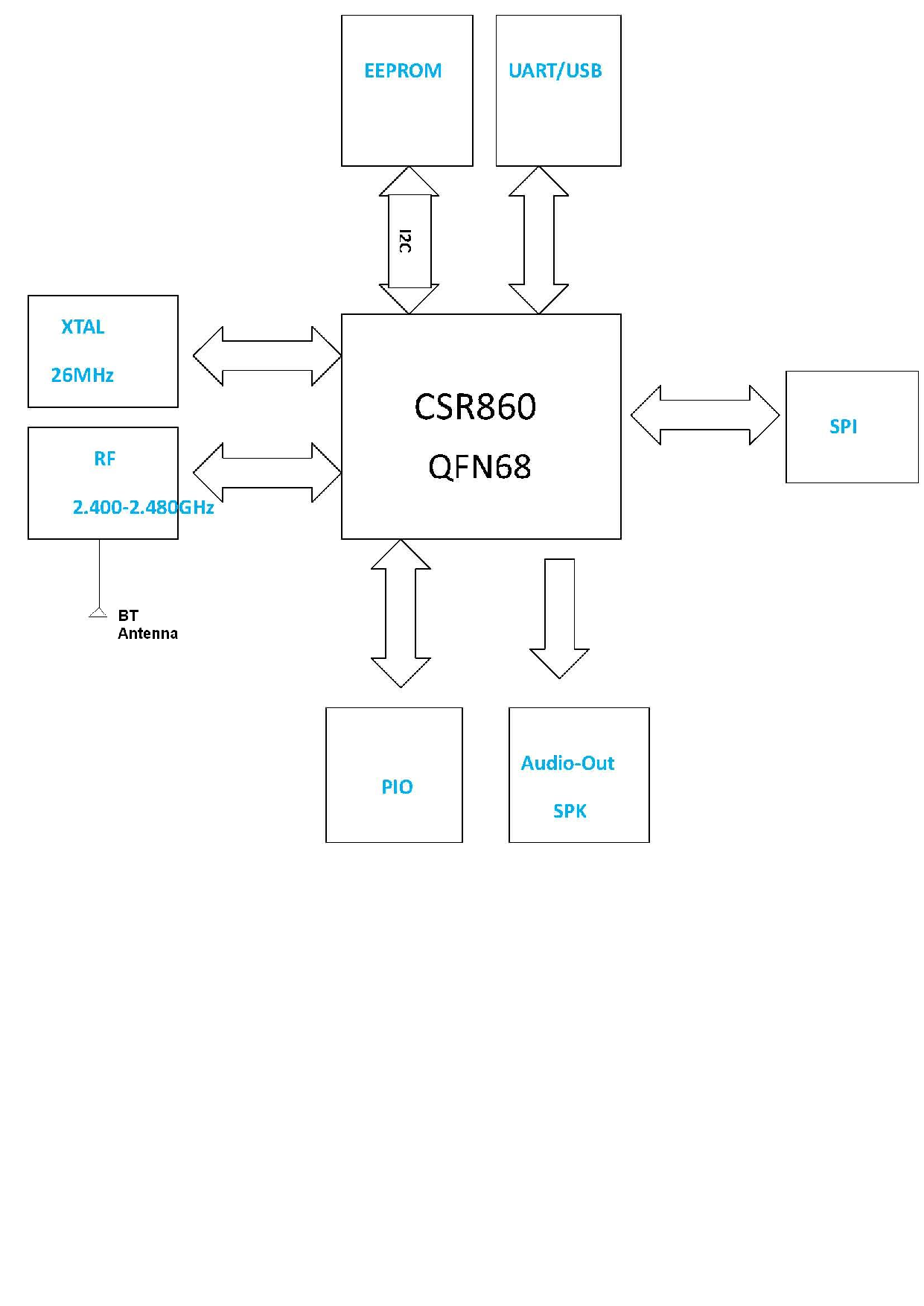

WD1 BLUETOOTH SPEAKER Block Diagram - FCC ID 2AA88WD-1

FCC ID 2AA88WD-1

Block Diagram

BLUETOOTH SPEAKER

by GTB Global Trade Berlin GmbH

Document preview loads when visible.

Document Details

FCC ID2AA88WD-1
Document ID2205702
Document TypeBlock Diagram
DescriptionBlock Diagram
ApplicantGTB Global Trade Berlin GmbH
Equipment ClassBLUETOOTH SPEAKER
Product CodeWD1
Application IDhCPeyfQ5lmkP6JASDtA63Q==
Application PurposeOriginal Equipment
Application Date2014-03-04
Frequency Range2402-2480 MHz
FRN0023074743
Test FirmShenzhen CTL Testing Technology Co., Ltd.
Certified ByHANS CLAUSSEN MANAGING DIRECTOR
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2014-03-04
Available2014-03-04
Created2014-03-03
Modified2014-03-03
Pages1
File TypeAdobe Acrobat PDF
File Size130331
File SHA-2567150b11cd9cb5ef2a67d690707c0d574012876c45dee9cff3e5b1110eff58a80
PDF Metadata ProducerAdobe Acrobat 7.0 Image Conversion Plug-in Adobe Acrobat 7.0
FCC.gov SourcesFCC.gov 2205702
