CAPHG53 Fashion 2 Plus Test Setup Photos - FCC ID 2AAE9CAPHG53
FCC ID 2AAE9CAPHG53
Test setup
Fashion 2 Plus
Document preview loads when visible.
Document Details
| FCC ID | 2AAE9CAPHG53 |
|---|---|
| Document ID | 4136100 |
| Document Type | Test Setup Photos |

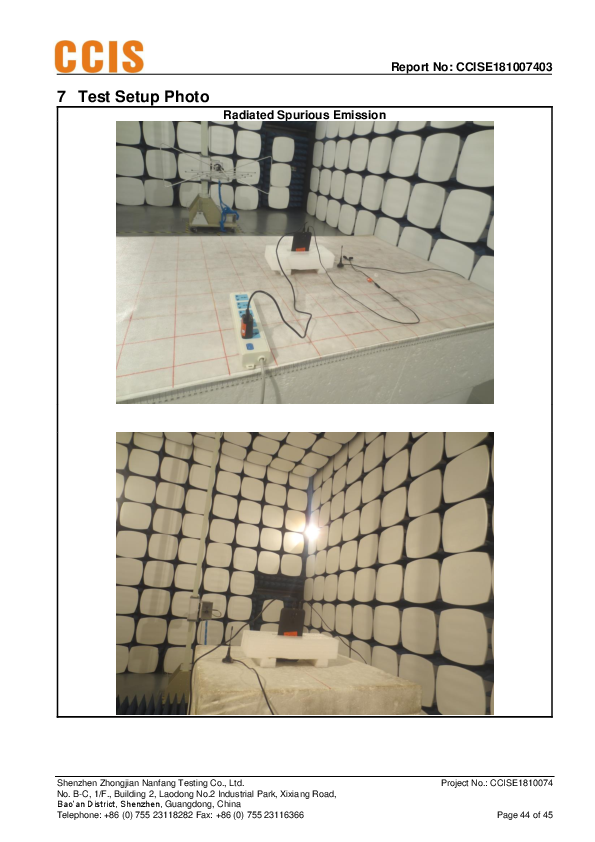

| Description | Test setup |
| Document Title | HD 271 S1 |
| Applicant | GNJ Manufacturing Inc. |
| Equipment Class | Fashion 2 Plus |
| Product Code | CAPHG53 |
| Application ID | Bcc1K63tLv8LBPVJ/UQ6cw== |
| Application Purpose | Original Equipment |
| Application Date | 2019-01-21 |
| Frequency Range | 1712.4-1752.6 MHz |
| FRN | 0022736110 |
| Test Firm | JianYan Testing Group Shenzhen Co., Ltd. |
| Certified By | Bruce Zhang EMC Laboratory Manager |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | No |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | Yes |
| Composite Part | No |
| Submitted | 2019-01-21 |
| Available | 2019-01-21 |
| Created | 2019-01-07 |
| Modified | 2019-01-07 |
| Pages | 2 |
| File Type | Adobe Acrobat PDF |
| File Size | 246220 |
| File SHA-256 | cf590728498afc84eb95fa477ff53bf056bfa3d30cd1caf1def0ef3728d7c112 |
| PDF Metadata Author | LAB02 |
| PDF Metadata Producer | LAB02 Microsoft® Word 2010 |
| FCC.gov Sources | FCC.gov 4136100 |
