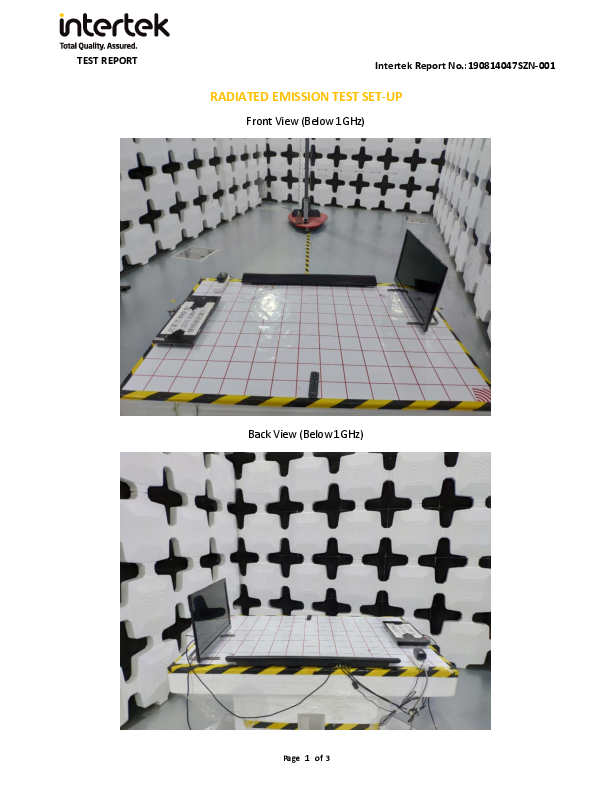

MNARENA35BAR Soundbar Test Setup Photos - FCC ID 2AAIN-MNARENA-35BAR

FCC ID 2AAIN-MNARENA-35BAR

Test Setup Photos

Soundbar

by ACOUSTMAX INTERNATIONAL CO., LTD

Document preview loads when visible.

Document Details

FCC ID2AAIN-MNARENA-35BAR
Document ID4484706
Document TypeTest Setup Photos
DescriptionTest Setup Photos
ApplicantACOUSTMAX INTERNATIONAL CO., LTD
Equipment ClassSoundbar
Product CodeMNARENA35BAR
Application IDlFAzWvKvJ5Szp/8Nzf9sMw==
Application PurposeOriginal Equipment
Application Date2019-10-19
Frequency Range2402-2480 MHz
FRN0022783641
Test FirmIntertek Testing Services Shenzhen Ltd. Longhua Br
Certified ByWilliam Chen Assistant Manager
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartYes
Submitted2019-10-19
Available2019-10-19
Created2019-10-16
Modified2019-10-16
Pages3
File TypeAdobe Acrobat PDF
File Size743511
File SHA-256a6d5c4f2574d1b8b4cb673fabd7f8a7b96019e2111aaab3579043eee94e9b28f
PDF Metadata AuthorWinkey Wang Intertek
PDF Metadata ProducerMicrosoft® Word for Office 365 Winkey Wang Intertek
FCC.gov SourcesFCC.gov 4484706
