FCC ID 2AALA1327C
REMOTE CONTROL FOR RC DRONE
by Shantou City Hengdi Industry Co., Ltd
Grantee Code: 2AALA Product Code: 1327C
Latest application date: 2016-07-27
Device Images
FCC ID Device Details
| FCC ID | 2AALA1327C |
|---|---|
| Mirrors | fcc.id | gov | fccid.ai |
| Grantee Code | 2AALA |
| Product Code | 1327C |
| Applicant Business | Shantou City Hengdi Industry Co., Ltd 🇨🇳 |
| Related Domains |  xiongye-gd.com |
| Equipment Class | REMOTE CONTROL FOR RC DRONE |
| Test Firm | Dongguan Precise Testing Service Co., Ltd. |
Operating Frequencies
| Frequency Range | Application Purpose | Final Action Date |
|---|---|---|
| 2405-2475 MHz | Original Equipment | 2016-07-27 |
Exhibits
| Document | Type | Available | File |
|---|---|---|---|
| 15_1327C UserMan.pdf | Users Manual | 2016-07-27 | PDF 2.9 MB |
| 09_1327C IntPho.pdf | Internal Photos | 2016-07-27 | PDF 707.7 KB |
| 08_1327C ExtPho.pdf | External Photos | 2016-07-27 | PDF 1 MB |

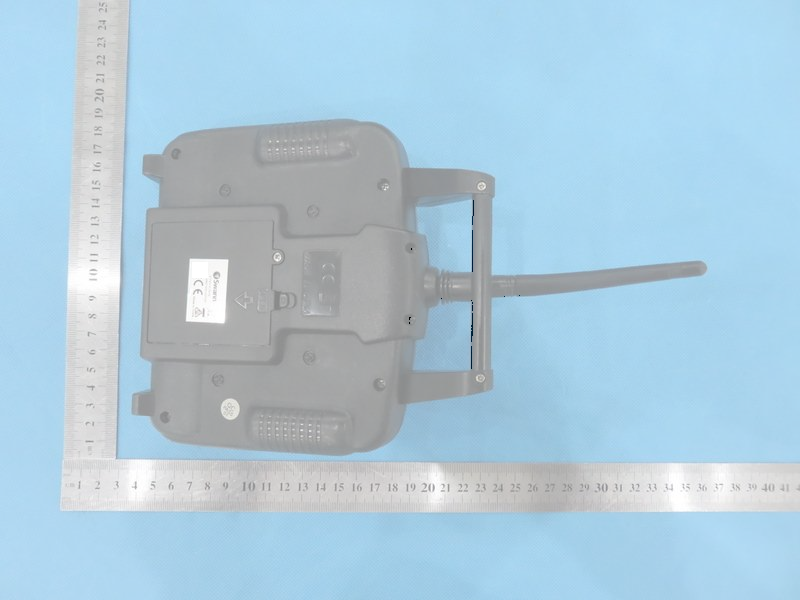

| 06-07_1327C LabelSmpl-Loc.pdf | ID Label/Location Info | 2016-07-27 | PDF 738.7 KB |
| 17_1327C AntSpec.pdf | Operational Description | 2016-07-27 | PDF 12.5 KB |

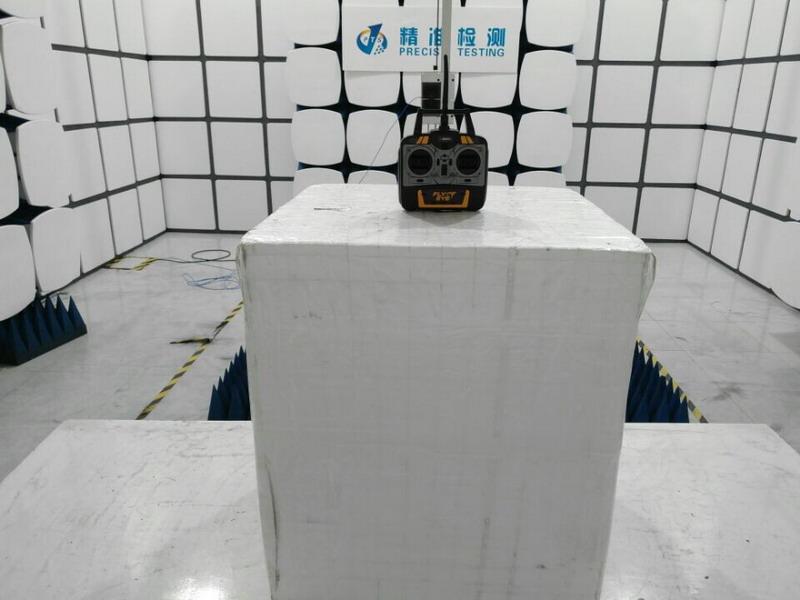

| 10_1327C TSup.pdf | Test Setup Photos | 2016-07-27 | PDF 103.4 KB |
| 14_1327C TestRpt.pdf | Test Report | 2016-07-27 | PDF 2.6 MB |
| 18_1327C RFExp.pdf | RF Exposure Info | 2016-07-27 | PDF 86.9 KB |
| 12_1327C BlkDia.pdf Metadata only | Block Diagram | PDF 239.2 KB | |
| 13_1327C Schem.pdf Metadata only | Schematics | PDF 159.2 KB | |
| 11_1327C OpDes.pdf Metadata only | Operational Description | PDF 161.1 KB | |
| 16_1327C PartsLst.pdf Metadata only | Parts List/Tune Up Info | PDF 164 KB |
Application Information
| Application ID | 1RVkaOvrZZRtc2aO0GoG2g== |
|---|---|
| Final Action Date | 2016-07-27 |
| Application Purpose | Original Equipment |
| Applicant FRN | 0022876510 |
| Model | 1327C |
| Frequency Range | 2405-2475 MHz |
| Equipment Class | DXX - Part 15 Low Power Communication Device Transmitter |
| Device Description | REMOTE CONTROL FOR RC DRONE |
| Responsible Party | Lorenzo Cai, General Manager, oem@xiongye-gd.com , +86-754-85867153 |
| Test Firm | Chris Du, Dongguan Precise Testing Service Co., Ltd., chris.du@pts-testing.com  , 86-769-8928-2919 |
| TCB Email | joergkusig@eurofins.com  |
| TCB Scope | A2: Low Power Transmitters (except Spread Spectrum) and radar detectors operating above 1 GHz |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | Yes |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | No |
| Composite Part | No |
| Cognitive Radio | No |
| Authorization Waiver | No |
| Authorization Waiver Approved | No |
| Section 5301 Certification | Yes |
| Related OET Knowledge DataBase Inquiry | No |
Applications
| Application ID | Date | Purpose |
|---|---|---|
| 1RVkaOvrZZRtc2aO0GoG2g== | 2016-07-27 | Original Equipment |
Equipment Authorization
| Frequency | Output | Rules |
|---|---|---|
| 2405-2475 MHz | 0.0007000 | 15C |
Grants
TCB Grant - Application 1RVkaOvrZZRtc2aO0GoG2g==
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
Eurofins Product Service GmbH Storkower Strasse 38c D-15526 Reichenwalde, Germany |
Date of Grant: 07/27/2016 Application Dated: 07/27/2016 |
| Shantou City Hengdi Industry Co., Ltd |
| West of NingchuanBei Road and South of |
| Huancui Roda, Guangyi St, Chenghai District |
| Shantou, Guangdong, China |
| Attention: Lorenzo Cai , General Manager |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | 2AALA1327C |
| Name of Grantee: | Shantou City Hengdi Industry Co., Ltd |
| Equipment Class: | Part 15 Low Power Communication Device Transmitter |
| Notes: | REMOTE CONTROL FOR RC DRONE |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 15C | 2405.0 - 2475.0 | 0.0007 |
EAS Grant - Application 1RVkaOvrZZRtc2aO0GoG2g==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
Shantou City Hengdi Industry Co., Ltd West of NingchuanBei Road and South of Huancui Roda, Guangyi St, Chenghai District Shantou, Guangdong, China |
Date of Grant: 07/27/2016 Application Dated: 07/27/2016 |
| Attention: Lorenzo Cai , General Manager |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | 2AALA1327C |
| Name of Grantee: | Shantou City Hengdi Industry Co., Ltd |
| Equipment Class: | Part 15 Low Power Communication Device Transmitter |
| Notes: | REMOTE CONTROL FOR RC DRONE |
| Modular Type: | Does not apply |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 15C | 2405.0 - 2475.0 | 0.0007 |
| Mail To: |
