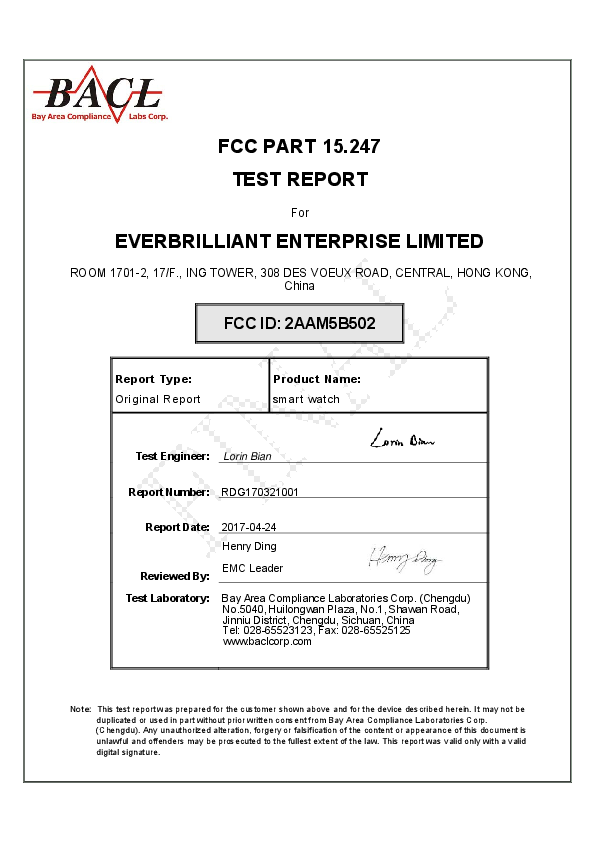

FCC PART 15.247
TEST REPORT
For
EVERBRILLIANT ENTERPRISE LIMITED
ROOM 1701-2, 17/F., ING TOWER, 308 DES VOEUX ROAD, CENTRAL, HONG KONG,
China
FCC ID: 2AAM5B502
Report Type:
Product Name:
Original Report
smart watch
Test Engineer:
Report Number:
Report Date:
Lorin Bian
RDG170321001
2017-04-24
Henry Ding
Reviewed By:
Test Laboratory:
EMC Leader
Bay Area Compliance Laboratories Corp. (Chengdu)
No.5040, Huilongwan Plaza, No.1, Shawan Road,
Jinniu District, Chengdu, Sichuan, China
Tel: 028-65523123, Fax: 028-65525125
www.baclcorp.com
Note: This test report was prepared for the customer shown above and for the device described herein. It may not be
duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp.
(Chengdu). Any unauthorized alteration, forgery or falsification of the content or appearance of this document is
unlawful and offenders may be prosecuted to the fullest extent of the law. This report was valid only with a valid
digital signature.
Bay Area Compliance Laboratories Corp. (Chengdu)
TABLE OF CONTENTS
GENERAL INFORMATION ........................................................................................................................................4
PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ................................................................................4
OBJECTIVE ..................................................................................................................................................................4
RELATED SUBMITTAL(S)/GRANT(S) ............................................................................................................................4
TEST METHODOLOGY .................................................................................................................................................4
MEASUREMENT UNCERTAINTY ...................................................................................................................................5
TEST FACILITY .............................................................................................................................................................5
SYSTEM TEST CONFIGURATION ...........................................................................................................................6
DESCRIPTION OF TEST CONFIGURATION ...................................................................................................................6
EQUIPMENT MODIFICATIONS ......................................................................................................................................6
EUT EXERCISE SOFTWARE ........................................................................................................................................6
EXTERNAL CABLE .......................................................................................................................................................7
BLOCK DIAGRAM OF TEST SETUP ..............................................................................................................................8
SUMMARY OF TEST RESULTS ...............................................................................................................................9
FCC §15.247 (i) & §1.1310 & §2.1093- RF EXPOSURE.........................................................................................10
APPLICABLE STANDARD ............................................................................................................................................10
FCC §15.203 - ANTENNA REQUIREMENT ..........................................................................................................11
APPLICABLE STANDARD ............................................................................................................................................11
ANTENNA CONNECTOR CONSTRUCTION ..................................................................................................................11
FCC §15.207 (a) – AC LINE CONDUCTED EMISSIONS....................................................................................12
APPLICABLE STANDARD ............................................................................................................................................12
EUT SETUP ...............................................................................................................................................................12
EMI TEST RECEIVER SETUP ....................................................................................................................................12
TEST PROCEDURE ....................................................................................................................................................13
CORRECTED AMPLITUDE & MARGIN CALCULATION .................................................................................................13
TEST EQUIPMENT LIST AND DETAILS .......................................................................................................................14
TEST RESULTS SUMMARY ........................................................................................................................................14
TEST DATA ................................................................................................................................................................14
FCC §15.209, §15.205 & §15.247(d) - SPURIOUS EMISSIONS .......................................................................17
APPLICABLE STANDARD ............................................................................................................................................17
EUT SETUP ...............................................................................................................................................................17
EMI TEST RECEIVER & SPECTRUM ANALYZER SETUP ...........................................................................................18
TEST PROCEDURE ....................................................................................................................................................18
CORRECTED AMPLITUDE & MARGIN CALCULATION .................................................................................................18
TEST EQUIPMENT LIST AND DETAILS .......................................................................................................................19
TEST RESULTS SUMMARY ........................................................................................................................................19
TEST DATA ................................................................................................................................................................19
FCC §15.247(a) (2) – 6 dB EMISSION BANDWIDTH .........................................................................................21
APPLICABLE STANDARD ............................................................................................................................................21
TEST PROCEDURE ....................................................................................................................................................21
TEST EQUIPMENT LIST AND DETAILS .......................................................................................................................21
TEST DATA ................................................................................................................................................................21
FCC §15.247(b) (3) - MAXIMUM CONDUCTED OUTPUT POWER .................................................................24
APPLICABLE STANDARD ............................................................................................................................................24
TEST PROCEDURE ....................................................................................................................................................24
Report No.: RDG170321001
Page 2 of 32
Bay Area Compliance Laboratories Corp. (Chengdu)
TEST EQUIPMENT LIST AND DETAILS .......................................................................................................................24
TEST DATA ................................................................................................................................................................25
FCC §15.247(d) – 100 kHz BANDWIDTH OF FREQUENCY BAND EDGE ....................................................27
APPLICABLE STANDARD ............................................................................................................................................27
TEST PROCEDURE ....................................................................................................................................................27
TEST EQUIPMENT LIST AND DETAILS .......................................................................................................................27
TEST DATA ................................................................................................................................................................28
FCC §15.247(e) - POWER SPECTRAL DENSITY ...............................................................................................30
APPLICABLE STANDARD ............................................................................................................................................30
TEST PROCEDURE ....................................................................................................................................................30
TEST EQUIPMENT LIST AND DETAILS .......................................................................................................................30
TEST DATA ................................................................................................................................................................30
Report No.: RDG170321001
Page 3 of 32
Bay Area Compliance Laboratories Corp. (Chengdu)
GENERAL INFORMATION
Product Description for Equipment under Test (EUT)
The EVERBRILLIANT ENTERPRISE LIMITED’s product, model number: B502
(FCC ID: 2AAM5B502) (the "EUT") in this report was a smart watch, which was measured
approximately: 24.4 cm (L) × 3.7 cm (W) × 1.1 cm (H), rated input voltage: DC3.7V battery or DC
5V from USB port.
*All measurement and test data in this report was gathered from final production sample, serial number:
170321001 (assigned by the BACL, Chengdu). It may have deviation from any other sample. The EUT
supplied by the applicant was received on 2017-03-21, and EUT conformed to test requirement.
Objective
This report is prepared on behalf of EVERBRILLIANT ENTERPRISE LIMITED in accordance
with Part 2, Subpart J, Part 15, Subparts A, and C of the Federal Communications Commission’s
rules.
The tests were performed in order to determine the compliance of the EUT with FCC Part 15Subpart C, section 15.203, 15.205, 15.209 and 15.247 rules.
Related Submittal(s)/Grant(s)
No related submittal(s)/grant(S).
Test Methodology
All measurements contained in this report were conducted with ANSI C63.10-2013, American
National Standard of Procedures for Compliance Testing of Unlicensed Wireless Devices.
All emissions measurement was performed and Bay Area Compliance Laboratories Corp.
(Chengdu). The radiated testing was performed at an antenna-to-EUT distance of 3 meters.
Report No.: RDG170321001
Page 4 of 32
Bay Area Compliance Laboratories Corp. (Chengdu)
Measurement Uncertainty
Parameter
Occupied Channel Bandwidth
RF output power, conducted
Power Spectral Density,
conducted
Unwanted Emissions, radiated
Temperature
Humidity
DC and low frequency voltages
Duty Cycle
AC Power Lines Conducted
Emission
Measurement Uncertainty
±5 %
±0.62dB
±0.62 dB
30M~200MHz: 4.7 dB for Horizontal, 4.7 dB for Vertical
200M~1GHz:6.0 dB for Horizontal, 6.0 for Vertical
1G~6GHz: 5.13 dB, 6G~18GHz: 5.47 dB
±1℃
±5%
±0.4%
1%
3.17 dB (150 kHz to 30 MHz)
Test Facility
The test site used by BACL to collect test data is located in the No.5040, Huilongwan Plaza,
No.1, Shawan Road, Jinniu District, Chengdu, Sichuan, China.
Test site at BACL has been fully described in reports submitted to the Federal Communication
Commission (FCC). The details of these reports have been found to be in compliance with the
requirements of Section 2.948 of the FCC Rules on April 24, 2015. The facility also complies
with the radiated and AC line conducted test site criteria set forth in ANSI C63.4-2014.
The Federal Communications Commission has the reports on file and is listed under FCC
Registration No.: 560332. The test site has been approved by the FCC for public use and is
listed in the FCC Public Access Link (PAL) database.
Report No.: RDG170321001
Page 5 of 32
Bay Area Compliance Laboratories Corp. (Chengdu)
SYSTEM TEST CONFIGURATION
Description of Test Configuration
The system was configured for testing in testing mode, which was provided by manufacturer.
For Bluetooth LE mode, 40 channels are provided for testing:
…
Frequency
(MHz)
2402
2404
…
…
..
19
Channel
20
…
…
Frequency
(MHz)
2442
…
…
…
…
…
…
2440
38
39
2478
2480
Channel
EUT was tested with channel 0, 19 and 39.
Equipment Modifications
No modification was made to the EUT tested.
EUT Exercise Software
The software “Nrfgo” was used for testing, which was provided by manufacturer. the maximum
power with maximum duty cycle was configured as default setting:
The duty cycle as below:
Test mode
BLE
Report No.: RDG170321001
Ton
(ms)
0.406
Ton+off
(ms)
0.623
Duty Cycle
(%)
65%
Page 6 of 32
Bay Area Compliance Laboratories Corp. (Chengdu)
External Cable
Cable
Description
Shielding
Type
Ferrite
Core
Length
(m)
USB Cable
Yes
No
0.8
Report No.: RDG170321001
From Port
Adapter
To
EUT
Page 7 of 32
Bay Area Compliance Laboratories Corp. (Chengdu)
Block Diagram of Test Setup
Report No.: RDG170321001
Page 8 of 32
Bay Area Compliance Laboratories Corp. (Chengdu)
SUMMARY OF TEST RESULTS
FCC Rules
Description of Test
Result
FCC §15.247 (i) & §1.1310 &
§2.1093
RF Exposure
Compliant
§15.203
Antenna Requirement
Compliant
§15.207 (a)
AC Line Conducted Emissions
Compliant
§15.205, §15.209,
§15.247(d)
Spurious Emissions
Compliant
§15.247 (a)(2)
6 dB Emission Bandwidth
Compliant
§15.247(b)(3)
Maximum conducted output power
Compliant
§15.247(d)
100 kHz Bandwidth of Frequency Band
Edge
Compliant
§15.247(e)
Power Spectral Density
Compliant
Report No.: RDG170321001
Page 9 of 32
Bay Area Compliance Laboratories Corp. (Chengdu)
FCC §15.247 (i) & §1.1310 & §2.1093- RF EXPOSURE
Applicable Standard
According to§15.247(i) and §1.1310, systems operating under the provisions of this section shall
be operated in a manner that ensure that the public is not exposed to radio frequency energy
level in excess of the Commission’s guideline.
According to KDB447498 D01 General RF Exposure Guidance v06
The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation
distances ≤ 50 mm are determined by:
[(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance,
mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where
• f(GHz) is the RF channel transmit frequency in GHz
• Power and distance are rounded to the nearest mW and mm before calculation
• The result is rounded to one decimal place for comparison
• 3.0 and 7.5 are referred to as the numeric thresholds in the step 2 below
The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm
and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test
separation distance is < 5 mm, a distance of 5 mm according to 5) in section 4.1 is applied to
determine SAR test exclusion.
Measurement Result
The max conducted power including tune-up tolerance is -3.0 dBm (0.5 mW).
[(max. power of channel, mW)/(min. test separation distance, mm)][√f(GHz)]
= 0.5/5*(√2.480) = 0.2<3.0
So the SAR evaluation is not necessary.
Report No.: RDG170321001
Page 10 of 32
Bay Area Compliance Laboratories Corp. (Chengdu)
FCC §15.203 - ANTENNA REQUIREMENT
Applicable Standard
According to § 15.203, an intentional radiator shall be designed to ensure that no antenna other
than that furnished by the responsible party shall be used with the device. The use of a
permanently attached antenna or of an antenna that uses a unique coupling to the intentional
radiator shall be considered sufficient to comply with the provisions of this section. The
manufacturer may design the unit so that a broken antenna can be replaced by the user, but the
user of a standard antenna jack or electrical connector is prohibited. The structure and
application of the EUT were analyzed to determine compliance with section §15.203 of the rules.
§15.203 state that the subject device must meet the following criteria:
a. Antenna must be permanently attached to the unit.
b. Antenna must use a unique type of connector to attach to the EUT.
Unit must be professionally installed, and installer shall be responsible for verifying that the
correct antenna is employed with the unit.
Antenna Connector Construction
The EUT has one internal antenna, and the antenna gain is 0 dBi, fulfill the requirement of this
section. Please refer to the EUT photos.
Result: Compliance.
Report No.: RDG170321001
Page 11 of 32
Bay Area Compliance Laboratories Corp. (Chengdu)
FCC §15.207 (a) – AC LINE CONDUCTED EMISSIONS
Applicable Standard
FCC§15.207(a)
EUT Setup
The setup of EUT was according to ANSI C63.10-2013 measurement procedure. The
specification used was with the FCC Part 15.207 limits.
The power cables and external I/O cables were draped along the test table and formed a bundle
30 to 40 cm long in the middle.
The spacing between the peripherals was 10 cm.
The adapter was connected to the LISN with AC 120V/60Hz powe.
EMI Test Receiver Setup
The EMI test receiver was set to investigate the spectrum from 150 kHz to 30 MHz.
During the conducted emission test, the EMI test receiver was set with the following
configurations:
Report No.: RDG170321001
Frequency Range
IF B/W
150 kHz – 30 MHz
9 kHz
Page 12 of 32
Bay Area Compliance Laboratories Corp. (Chengdu)
Test Procedure
Maximizing procedure was performed on the six (6) highest emissions of the EUT.
All data was recorded in the Quasi-peak and average detection mode.
Corrected Amplitude & Margin Calculation
The basic equation is as follows:
VC = VR + AC + VDF
Herein,s
VC: corrected voltage amplitude
VR: reading voltage amplitude
Ac: attenuation caused by cable loss
VDF: voltage division factor of AMN or ISN
The “Margin” column of the following data tables indicates the degree of compliance within the
applicable limit. For example, a margin of 7dB means the emission is 7dB below the maximum
limit. The equation for margin calculation is as follows:
Margin = Limit – Corrected Amplitude
Report No.: RDG170321001
Page 13 of 32
Bay Area Compliance Laboratories Corp. (Chengdu)
Test Equipment List and Details
Manufacturer
Description
Model Number
Serial
Number
Calibration
Date
Calibration
Due Date
Rohde & Schwarz
EMI Test
Receiver
ESCS 30
836858/0016
2016-12-02
2017-12-01
Rohde & Schwarz
L.I.S.N.
ENV216
100018
2016-12-02
2017-12-01
Rohde & Schwarz
PULSE LIMITER
ESH3Z2
DE14781
2016-10-31
2017-10-30
N/A
Conducted
Cable
NO.5
N/A
2016-11-10
2017-11-09
R&S
Test Software
EMC32
Version8.53.0
N/A
N/A
* Statement of Traceability: BACL (Chengdu) attested that all calibrations have been performed,
traceable to National Primary Standards and International System of Units (SI).
Test Results Summary
According to the recorded data in following table, the EUT complied with the FCC Part 15.207.
Test Data
Environmental Conditions
Temperature:
20 C
Relative Humidity:
56 %
ATM Pressure:
96.1 kPa
The testing was performed by Lorin Bian on 2017-03-27.
Report No.: RDG170321001
Page 14 of 32
Bay Area Compliance Laboratories Corp. (Chengdu)
Test Mode: Transmitting
AC120V/60Hz, Line
80
70
Quasi-Peak Limit
60
Average Limit
Level in dBμ
50
40
30
20
10
150k
300
400 500
800 1M
2M
3M
4M 5M 6
8 10M
20M
30M
Frequency in Hz
Frequency
(MHz)
QuasiPeak
(dBuV)
Bandwidth
(kHz)
Line
Corr.
(dB)
Margin
(dB)
Limit
(dBuV)
Comment
0.476287
0.558572
0.786832
1.073601
1.310256
1.731709
36.5
38.9
34.4
33.8
33.2
31.5
9.000
9.000
9.000
9.000
9.000
9.000
L1
L1
L1
L1
L1
L1
19.7
19.7
19.7
19.7
19.7
19.7
19.9
17.1
21.6
22.2
22.8
24.5
56.4
56.0
56.0
56.0
56.0
56.0
Compliance
Compliance
Compliance
Compliance
Compliance
Compliance
Frequency
(MHz)
QuasiPeak
(dBuV)
Bandwidth
(kHz)
Line
Corr.
(dB)
Margin
(dB)
Limit
(dBuV)
Comment
0.483938
0.558572
0.999305
1.239175
1.289541
12.005609
25.7
27.4
23.7
28.9
28.1
28.1
9.000
9.000
9.000
9.000
9.000
9.000
L1
L1
L1
L1
L1
L1
19.7
19.7
19.7
19.7
19.7
20.0
20.6
18.6
22.3
17.1
17.9
21.9
46.3
46.0
46.0
46.0
46.0
50.0
Compliance
Compliance
Compliance
Compliance
Compliance
Compliance
Report No.: RDG170321001
Page 15 of 32
Bay Area Compliance Laboratories Corp. (Chengdu)
AC120V/60Hz, Neutral
80
70
Quasi-Peak Limit
60
Average Limit
Level in dBμ
50
40
30
20
10
150k
300
400 500
800 1M
2M
3M
4M 5M 6
8 10M
20M
30M
Frequency in Hz
Frequency
(MHz)
QuasiPeak
(dBuV)
Bandwidth
(kHz)
Line
Corr.
(dB)
Margin
(dB)
Limit
(dBuV)
Comment
0.491712
0.563041
0.945093
1.239175
1.289541
10.738330
31.8
34.0
25.2
36.1
36.9
30.5
9.000
9.000
9.000
9.000
9.000
9.000
19.6
19.6
19.7
19.6
19.6
19.9
24.3
22.0
30.8
19.9
19.1
29.5
56.1
56.0
56.0
56.0
56.0
60.0
Compliance
Compliance
Compliance
Compliance
Compliance
Compliance
Frequency
(MHz)
QuasiPeak
(dBuV)
Bandwidth
(kHz)
Line
Corr.
(dB)
Margin
(dB)
Limit
(dBuV)
Comment
0.491712
0.563041
0.900972
0.952654
1.239175
1.289541
19.5
21.5
21.1
22.2
30.5
30.1
9.000
9.000
9.000
9.000
9.000
9.000
19.6
19.6
19.7
19.7
19.6
19.6
26.6
24.5
24.9
23.8
15.5
15.9
46.1
46.0
46.0
46.0
46.0
46.0
Compliance
Compliance
Compliance
Compliance
Compliance
Compliance
Report No.: RDG170321001
Page 16 of 32
Bay Area Compliance Laboratories Corp. (Chengdu)
FCC §15.209, §15.205 & §15.247(d) - SPURIOUS EMISSIONS
Applicable Standard
FCC §15.247 (d); §15.209; §15.205;
EUT Setup
Below 1GHz:
Above 1GHz:
The radiated emission tests were performed in the 3 meters chamber test site, using the setup
accordance with the ANSI C63.10-2013. The specification used was the FCC 15.209, and FCC
15.247 limits.
The external I/O cables were draped along the test table and formed a bundle 30 to 40 cm long
in the middle.
The spacing between the peripherals was 10 cm.
Report No.: RDG170321001
Page 17 of 32
Bay Area Compliance Laboratories Corp. (Chengdu)
EMI Test Receiver & Spectrum Analyzer Setup
The system was investigated from 30 MHz to 25 GHz.
During the radiated emission test, the EMI test receiver & Spectrum Analyzer Setup were set
with the following configurations:
30MHz-1000MHz:
Detector
QP
RBW
120 kHz
Video B/W
300 kHz
IF B/W
120kHz
1GHz- 25GHz:
Detector
PK
Ave.
Duty cycle
Any
>98%
<98%
RBW
1MHz
1MHz
1MHz
Video B/W
3 MHz
10 Hz
1/T
Note: T is minimum transmission duration
Test Procedure
Maximizing procedure was performed on the highest emissions to ensure that the EUT complied
with all installation combinations.
Data was recorded in Quasi-peak detection mode for frequency range of 30 MHz-1 GHz, peak
and Average detection modes for frequencies above 1 GHz.
Corrected Amplitude & Margin Calculation
The Corrected Amplitude is calculated by adding the Antenna Loss and Cable Loss, and
subtracting the Amplifier Gain from the Meter Reading. The basic equation is as follows:
Corrected Amplitude = Meter Reading + Antenna Loss + Cable Loss - Amplifier Gain
The “Margin” column of the following data tables indicates the degree of compliance with the
applicable limit. For example, a margin of 7dB means the emission is 7dB below the limit. The
equation for margin calculation is as follows:
Margin = Limit –Corrected Amplitude
Report No.: RDG170321001
Page 18 of 32
Bay Area Compliance Laboratories Corp. (Chengdu)
Test Equipment List and Details
Manufacturer
Description
Model
Serial
Number
Calibration
Date
Calibration
Due Date
Agilent
Amplifier
8447D
2944A10442
Rohde & Schwarz
EMI Test Receiver
Broadband
Antenna
Spectrum Analyzer
Horn Antenna
ESCI
100028
2016-12-02
2016-12-02
2017-12-01
2017-12-01
JB3
A121808
2016-04-10
2019-04-09
FSEM30
3115
2016-12-02
2016-12-02
2017-12-01
2017-12-01
Horn Antenna
ARH-4223-02
2014-06-16
2017-06-15
Amplifier
Amplifier
Semi-Anechoic
Chamber
RF Cable
(below 1GHz)
RF Cable
(below 1GHz)
RF Cable
(above 1GHz)
ZVA-183-S+
8449B
100018
003-6076
10077260113024
771001215
3008A00277
2016-05-20
2016-12-02
2017-05-19
2017-12-01
966
N/A
2015-04-24
2018-04-23
NO.1
N/A
2016-11-10
2017-11-09
NO.4
N/A
2016-11-10
2017-11-09
NO.2
N/A
2016-11-10
2017-11-09
Sunol Sciences
Rohde & Schwarz
ETS
Ducommun
Technologies
Mini-circuits
HP
EMCT
N/A
N/A
N/A
* Statement of Traceability: BACL (Chengdu) attested that all calibrations have been performed,
traceable to National Primary Standards and International System of Units (SI).
Test Results Summary
According to the recorded data in following table, the EUT complied with the FCC Title 47, Part
15, Section 15.205, 15.209 and 15.247.
Test Data
Environmental Conditions
Temperature:
Relative Humidity:
ATM Pressure:
20 C
58 %
95.4 kPa
* The testing was performed by Lorin Bian on 2017-03-28.
Test Mode: Transmitting
Report No.: RDG170321001
Page 19 of 32
Bay Area Compliance Laboratories Corp. (Chengdu)
30MHz-25GHz:
Frequency
(MHz)
Receiver
Rx Antenna
Reading
(dBμV)
Detector
Polar
(H/V)
2402
2402
2402
2402
2390
2390
4804
4804
7206
7206
1416
1416
49.4
99.84
65.86
59.44
58.10
51.91
28.15
15.79
33.85
22.70
32.36
21.55
31.04
19.88
48.48
43.81
PK
AV
PK
AV
PK
AV
PK
AV
PK
AV
PK
AV
QP
QP
2440
2440
2440
2440
4880
4880
7320
7320
1394
1394
2187
2187
49.4
99.84
66.02
60.05
58.25
51.74
45.88
35.22
29.24
17.80
40.39
29.85
39.22
27.85
48.75
43.95
PK
AV
PK
AV
PK
AV
PK
AV
PK
AV
PK
AV
QP
QP
2480
2480
2480
2480
2483.5
2483.5
4960
4960
7440
7440
1487
1487
49.4
99.84
65.84
60.48
57.87
61.70
29.25
16.13
34.48
23.86
33.29
22.41
31.48
21.45
49.59
44.37
PK
AV
PK
AV
PK
AV
PK
AV
PK
AV
PK
AV
QP
QP
Report No.: RDG170321001
Factor
(dB)
Cable
loss
(dB)
Amplifier
Gain
(dB)
Low Channel: 2402 MHz
23.53
3.00
0.00
23.53
3.00
0.00
23.53
3.00
0.00
23.53
3.00
0.00
23.57
3.00
0.00
23.57
3.00
0.00
30.77
5.12
26.87
30.77
5.12
26.87
34.71
6.16
26.35
34.71
6.16
26.35
23.88
2.55
26.41
23.88
2.55
26.41
9.10
0.41
28.48
10.71
0.51
28.31
Middle Channel: 2440 MHz
23.40
3.00
0.00
23.40
3.00
0.00
23.40
3.00
0.00
23.40
3.00
0.00
31.02
5.09
26.87
31.02
5.09
26.87
34.94
6.22
26.40
34.94
6.22
26.40
23.82
2.52
26.43
23.82
2.52
26.43
24.26
3.03
26.85
24.26
3.03
26.85
9.10
0.41
28.48
10.71
0.51
28.31
High Channel: 2480 MHz
23.27
2.99
0.00
23.27
2.99
0.00
23.27
2.99
0.00
23.27
2.99
0.00
23.26
2.99
0.00
23.26
2.99
0.00
31.27
5.05
26.88
31.27
5.05
26.88
35.18
6.27
26.45
35.18
6.27
26.45
24.07
2.65
26.34
24.07
2.65
26.34
9.10
0.41
28.48
10.71
0.51
28.31
Corrected
Amplitude
(dBμV/m)
Limit
(dBμV/m)
Margin
(dB)
92.39
85.97
84.63
78.44
54.72
42.36
42.87
31.72
46.88
36.07
31.06
19.9
29.51
26.72
N/A
N/A
N/A
N/A
74
54
74
54
74
54
74
54
40.00
43.50
N/A
N/A
N/A
N/A
19.28
11.64
31.13
22.28
27.12
17.93
42.94
34.1
10.49
16.78
92.42
86.45
84.65
78.14
55.12
44.46
44
32.56
40.3
29.76
39.66
28.29
29.78
26.86
N/A
N/A
N/A
N/A
74
54
74
54
74
54
74
54
40.00
43.50
N/A
N/A
N/A
N/A
18.88
9.54
30
21.44
33.7
24.24
34.34
25.71
10.22
16.64
92.1
86.74
84.13
87.96
55.5
42.38
43.92
33.3
48.29
37.41
31.86
21.83
30.62
27.28
N/A
N/A
N/A
N/A
74
54
74
54
74
54
74
54
40.00
43.50
N/A
N/A
N/A
N/A
18.5
11.62
30.08
20.7
25.71
16.59
42.14
32.17
9.38
16.22
Page 20 of 32
Bay Area Compliance Laboratories Corp. (Chengdu)
FCC §15.247(a) (2) – 6 dB EMISSION BANDWIDTH
Applicable Standard
Systems using digital modulation techniques may operate in the 902–928 MHz, 2400–2483.5
MHz, and 5725–5850 MHz bands. The minimum 6 dB bandwidth shall be at least 500 kHz.
Test Procedure
a) Set RBW = 100 kHz.
b) Set the video bandwidth (VBW) ≥ 3×RBW
c) Detector = Peak.
d) Trace mode = max hold.
e) Sweep = auto couple.
f) Allow the trace to stabilize.
g) Measure the maximum width of the emission that is constrained by the frequencies associated
with the two outermost amplitude points (upper and lower frequencies) that are attenuated by
6 dB relative to the maximum level measured in the fundamental emission.
Signal
Analyzer
EUT
Test Equipment List and Details
Manufacturer
Description
Model
Serial
Number
Calibration
Date
Calibration
Due Date
Rohde & Schwarz
Signal Analyzer
FSIQ26
831929/005
2016-09-21
2017-09-20
N/A
RF Cable
N/A
N/A
Each Time
* Statement of Traceability: BACL (Chengdu) attested that all calibrations have been performed,
traceable to National Primary Standards and International System of Units (SI).
Test Data
Environmental Conditions
Temperature:
Relative Humidity:
ATM Pressure:
19 C
58 %
95.3 kPa
* The testing was performed by Lorin Bian on 2017-03-29.
Report No.: RDG170321001
Page 21 of 32
Bay Area Compliance Laboratories Corp. (Chengdu)
Test Mode: Transmitting
Test Result: Compliant. Please refer to the following table and plots.
Channel
Frequency
(MHz)
6 dB Bandwidth
(MHz)
Limit
(MHz)
Low
Middle
High
2402
2440
2480
0.73
0.74
0.72
≥0.5
≥0.5
≥0.5
Low Channel
Report No.: RDG170321001
Page 22 of 32
Bay Area Compliance Laboratories Corp. (Chengdu)
Middle Channel
High Channel
Report No.: RDG170321001
Page 23 of 32
Bay Area Compliance Laboratories Corp. (Chengdu)
FCC §15.247(b) (3) - MAXIMUM CONDUCTED OUTPUT POWER
Applicable Standard
According to FCC §15.247(b) (3), for systems using digital modulation in the 902-928 MHz,
2400-2483.5 MHz, and 5725-5850 MHz bands: 1 Watt. As an alternative to a peak power
measurement, compliance with the one Watt limit can be based on a measurement of the
maximum conducted output power. Maximum Conducted Output Power is defined as the total
transmit power delivered to all antennas and antenna elements averaged across all symbols in
the signaling alphabet when the transmitter is operating at its maximum power control level.
Power must be summed across all antennas and antenna elements. The average must not
include any time intervals during which the transmitter is off or is transmitting at a reduced power
level. If multiple modes of operation are possible (e.g., alternative modulation methods), the
maximum conducted output power is the highest total transmit power occurring in any mode.
Test Procedure
a) Set the RBW ≥ DTS bandwidth.
b) Set VBW ≥ 3
RBW.
c) Set span ≥ 3 x RBW
d) Sweep time = auto couple.
e) Detector = peak.
f) Trace mode = max hold.
g) Allow trace to fully stabilize.
h) Use peak marker function to determine the peak amplitude level.
Signal
Analyzer
EUT
Test Equipment List and Details
Manufacturer
Description
Model
Serial
Number
Calibration
Date
Calibration
Due Date
Rohde &
Schwarz
Signal Analyzer
FSIQ26
831929/005
2016-09-21
2017-09-20
N/A
RF Cable
N/A
N/A
Each Time
* Statement of Traceability: BACL (Chengdu) attested that all calibrations have been performed,
traceable to National Primary Standards and International System of Units (SI).
Report No.: RDG170321001
Page 24 of 32
Bay Area Compliance Laboratories Corp. (Chengdu)
Test Data
Environmental Conditions
Temperature:
Relative Humidity:
ATM Pressure:
19 C
58.0 %
95.3 kPa
* The testing was performed by Lorin Bian on 2017-03-29.
Test Mode: Transmitting
Test Result: Compliant. Please refer to the following table.
Channel
Frequency
(MHz)
Low
Middle
High
2402
2440
2480
Max Peak
Conducted Output
Power
(dBm)
-3.52
-3.53
-3.53
Limit
(dBm)
30
30
30
Low Channel
Report No.: RDG170321001
Page 25 of 32
Bay Area Compliance Laboratories Corp. (Chengdu)
Middle Channel
High Channel
Report No.: RDG170321001
Page 26 of 32
Bay Area Compliance Laboratories Corp. (Chengdu)
FCC §15.247(d) – 100 kHz BANDWIDTH OF FREQUENCY BAND EDGE
Applicable Standard
In any 100 kHz bandwidth outside the frequency band in which the spread spectrum or digitally
modulated intentional radiator is operating, the radio frequency power that is produced by the
intentional radiator shall be at least 20 dB below that in the 100 kHz bandwidth within the band
that contains the highest level of the desired power, based on either an RF conducted or a
radiated measurement, provided the transmitter demonstrates compliance with the peak
conducted power limits. If the transmitter complies with the conducted power limits based on the
use of RMS averaging over a time interval, as permitted under paragraph (b)(3) of this section,
the attenuation required under this paragraph shall be 30 dB instead of 20 dB. Attenuation below
the general limits specified in §15.209(a) is not required. In addition, radiated emissions which
fall in the restricted bands, as defined in §15.205(a), must also comply with the radiated emission
limits specified in §15.209(a) (see §15.205(c)).
Test Procedure
1. Check the calibration of the measuring instrument using either an internal calibrator or a
known signal from an external generator.
2. Position the EUT without connection to measurement instrument. Turn on the EUT and
connect its antenna terminal to measurement instrument via a low loss cable. Then set it to
any one measured frequency within its operating range, and make sure the instrument is
operated in its linear range.
3. Set RBW to 100 kHz and VBW of spectrum analyzer to 300 kHz with a convenient frequency
span including 100 kHz bandwidth from band edge.
4. Measure the highest amplitude appearing on spectral display and set it as a reference level.
Plot the graph with marking the highest point and edge frequency.
5. Repeat above procedures until all measured frequencies were complete.
Test Equipment List and Details
Manufacturer
Description
Model
Serial
Number
Calibration
Date
Calibration
Due Date
Rohde & Schwarz
Signal Analyzer
FSIQ26
831929/005
2016-09-21
2017-09-20
N/A
RF Cable
N/A
N/A
Each Time
* Statement of Traceability: BACL (Chengdu) attested that all calibrations have been performed,
traceable to National Primary Standards and International System of Units (SI).
Report No.: RDG170321001
Page 27 of 32
Bay Area Compliance Laboratories Corp. (Chengdu)
Test Data
Environmental Conditions
Temperature:
Relative Humidity:
ATM Pressure:
19 C
58 %
95.3 kPa
* The testing was performed by Lorin Bian on 2017-03-29.
Test mode: Transmitting
Test Result: Compliant. Please refer to following plots.
BLE Band Edge,Left Side
Report No.: RDG170321001
Page 28 of 32
Bay Area Compliance Laboratories Corp. (Chengdu)
BLE Band Edge, Right Side
Report No.: RDG170321001
Page 29 of 32
Bay Area Compliance Laboratories Corp. (Chengdu)
FCC §15.247(e) - POWER SPECTRAL DENSITY
Applicable Standard
For digitally modulated systems, the power spectral density conducted from the intentional
radiator to the antenna shall not be greater than 8 dBm in any 3 kHz band during any time
interval of continuous transmission. This power spectral density shall be determined in
accordance with the provisions of paragraph (b) of this section. The same method of determining
the conducted output power shall be used to determine the power spectral density.
Test Procedure
1. Check the calibration of the measuring instrument using either an internal calibrator or a
known signal from an external generator.
2. Position the EUT was set without connection to measurement instrument. Turn on the EUT
and connect its antenna terminal to measurement instrument via a low loss cable. Then set it
to any one measured frequency within its operating range, and make sure the instrument is
operated in its linear range.
3. set the RBW = 3 kHz, VBW = 10 kHz, Set the span to 1.5 times the DTS channel bandwidth.
4. Use the peak marker function to determine the maximum power level in any 3 kHz band
segment within the fundamental EBW.
Test Equipment List and Details
Manufacturer
Description
Model
Serial
Number
Calibration
Date
Calibration
Due Date
Rohde & Schwarz
Signal Analyzer
FSIQ26
831929/005
2016-09-21
2017-09-20
N/A
RF Cable
N/A
N/A
Each Time
* Statement of Traceability: BACL (Chengdu) attested that all calibrations have been performed,
traceable to National Primary Standards and International System of Units (SI).
Test Data
Environmental Conditions
Temperature:
Relative Humidity:
ATM Pressure:
19 C
58 %
95.3 kPa
* The testing was performed by Lorin Bian on 2017-03-29.
Report No.: RDG170321001
Page 30 of 32
Bay Area Compliance Laboratories Corp. (Chengdu)
Test Mode: Transmitting
Test Result: Compliant. Please refer to the following table and plots
Channel
Frequency
(MHz)
PSD
(dBm/3kHz)
Limit
(dBm/3kHz)
Low
Middle
High
2402
2440
2480
-18.93
-19.06
-19.03
≤8
≤8
≤8
Low Channel
Report No.: RDG170321001
Page 31 of 32
Bay Area Compliance Laboratories Corp. (Chengdu)
Middle Channel
High Channel
***** END OF REPORT *****
Report No.: RDG170321001
Page 32 of 32
Download: B502 Smart Watch Test Report RDG170321001_BLE Report EVERBRILLIANT ENTERPRISE LIMITED
Mirror Download [FCC.gov]B502 Smart Watch Test Report RDG170321001_BLE Report EVERBRILLIANT ENTERPRISE LIMITED
Document ID3394766
Application IDEbeLc/C4Q1SWYr/GAk1+lw==
Document DescriptionTest Report
Short Term ConfidentialNo
Permanent ConfidentialNo
SupercedeNo
Document TypeTest Report
Display FormatAdobe Acrobat PDF - pdf
Filesize51.75kB (646819 bits)
Date Submitted2017-05-17 00:00:00
Date Available2017-05-17 00:00:00
Creation Date2017-10-24 17:16:51
Producing SoftwareGPL Ghostscript 9.18
Document Lastmod2017-10-24 17:16:51
Document TitleRDG170321001_BLE Report
Document CreatorPScript5.dll Version 5.2.2
Document Author: bacldg06131

Source Exif Data:
File Type                       : PDF
File Type Extension             : pdf
MIME Type                       : application/pdf
PDF Version                     : 1.5
Linearized                      : No
Page Count                      : 1
XMP Toolkit                     : XMP toolkit 2.9.1-13, framework 1.6
About                           : uuid:458ed2d1-9a8c-11f2-0000-02c7314339d4
Producer                        : GPL Ghostscript 9.18
Modify Date                     : 2017:07:06 17:22:44Z
Create Date                     : 2017:07:06 17:22:44Z
Creator Tool                    : UnknownApplication
Document ID                     : uuid:458ed2d1-9a8c-11f2-0000-02c7314339d4
Format                          : application/pdf
Title                           : Untitled

Facebook Twitter Google+ RSS © FCCID.io 2017
