FCC ID 2AAMXGW1100B
Digital Transmission System
by Ideal Industries, Inc.
Grantee Code: 2AAMX Product Code: GW1100B
Latest application date: 2016-01-08
Device Images
FCC ID Device Details
| FCC ID | 2AAMXGW1100B |
|---|---|
| Mirrors | fcc.id | gov | fccid.ai |
| Grantee Code | 2AAMX |
| Product Code | GW1100B |
| Applicant Business | Ideal Industries, Inc. 🇺🇸 |
| Related Domains |  idealindustries.com |
| Equipment Class | Digital Transmission System |
| Test Firm | BUREAU VERITAS CONSUMER PRODUCTS SERVICES, INC. |
Operating Frequencies
| Frequency Range | Application Purpose | Final Action Date |
|---|---|---|
| 902.7-927.3 MHz | Original Equipment | 2016-01-08 |
Exhibits
| Document | Type | Available | File |
|---|---|---|---|
| User Manual.pdf | Users Manual | 2016-01-08 | PDF 342.4 KB |
| Internal Photo.pdf | Internal Photos | 2016-01-08 | PDF 1.1 MB |
| External Photo.pdf | External Photos | 2016-01-08 | PDF 346.5 KB |
| Label - Label Location.pdf | ID Label/Location Info | 2016-01-08 | PDF 124.1 KB |
| Label - Label Material Spec.pdf | ID Label/Location Info | 2016-01-08 | PDF 370.5 KB |
| Label.pdf | ID Label/Location Info | 2016-01-08 | PDF 291.1 KB |

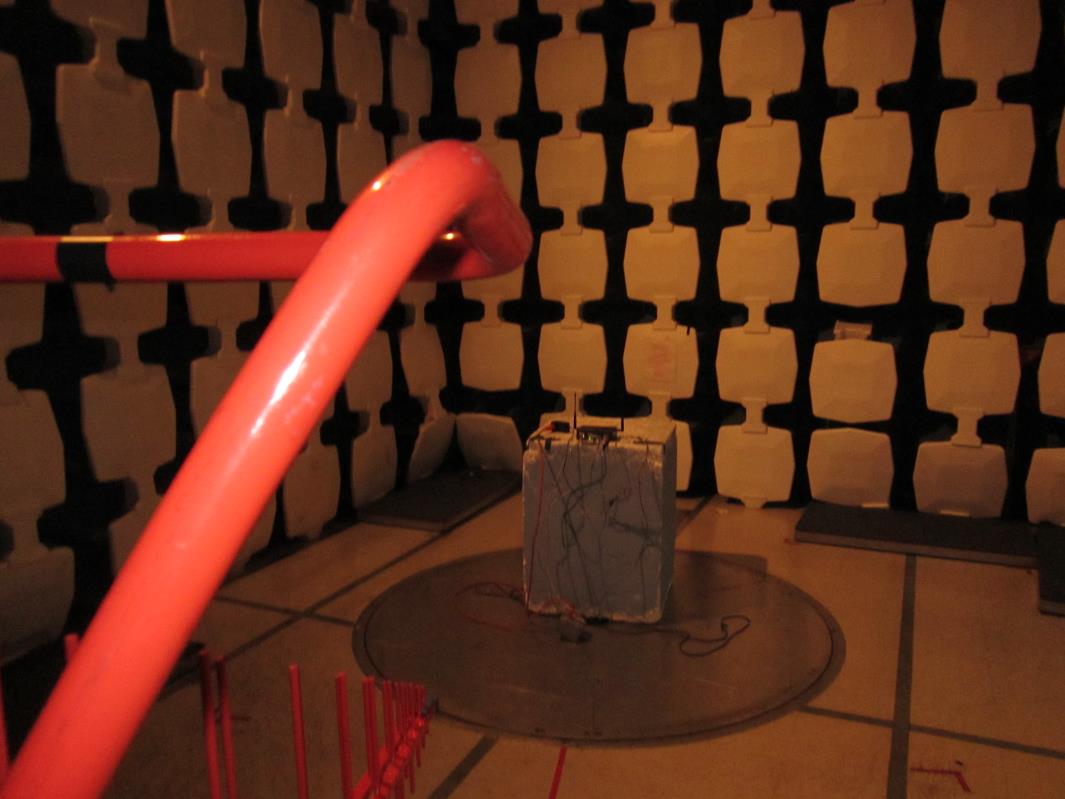

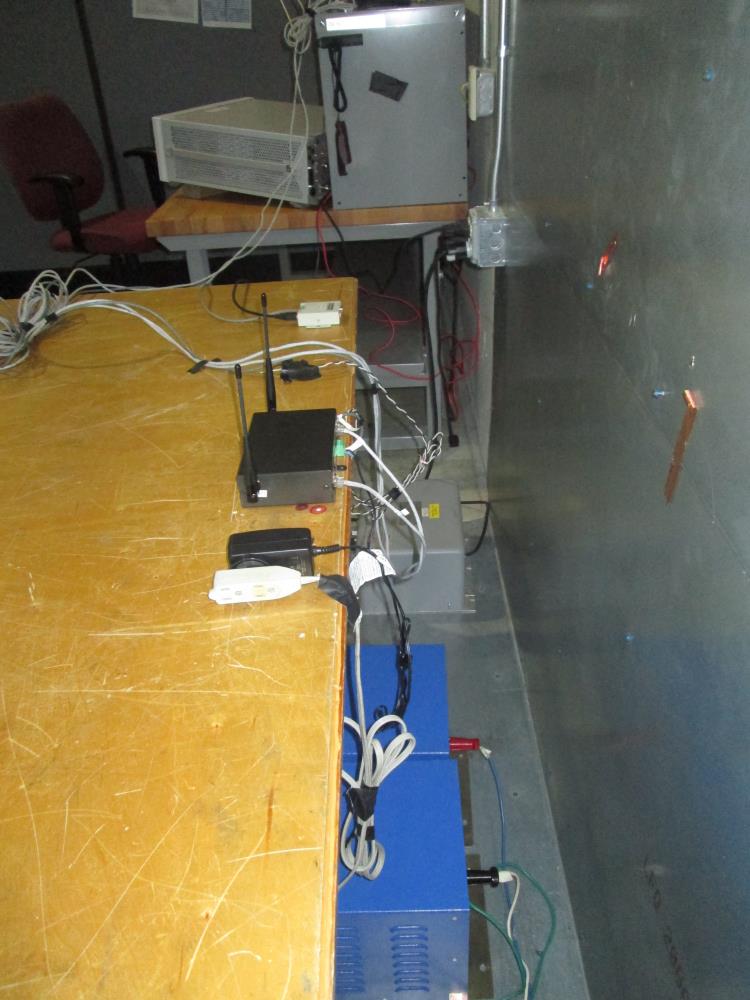

| Test Set up Photo.pdf | Test Setup Photos | 2016-01-08 | PDF 756.6 KB |
| Test Report.pdf | Test Report | 2016-01-08 | PDF 813.7 KB |
| Confidentiality Request Letter.pdf | Cover Letter(s) | 2016-01-08 | PDF 63.5 KB |
| Cover letter - Agents Authorization Letter.pdf | Cover Letter(s) | 2016-01-08 | PDF 70.5 KB |
| RF Exposure Information - MPE prediction calculation.pdf | RF Exposure Info | 2016-01-08 | PDF 23.1 KB |
| Block Diagram.pdf Metadata only | Block Diagram | PDF 112.8 KB | |
| Schematics (Antenna 1).pdf Metadata only | Schematics | PDF 41.6 KB | |
| Schematics (Antenna 2).pdf Metadata only | Schematics | PDF 41.7 KB | |
| Operational Description.pdf Metadata only | Operational Description | PDF 5.9 KB |
Application Information
| Application ID | q1t/FyRD9RvQpwj4/4G1sw== |
|---|---|
| Final Action Date | 2016-01-08 |
| Application Purpose | Original Equipment |
| Applicant FRN | 0002862225 |
| Model | GW1100B |
| Frequency Range | 902.7-927.3 MHz |
| Equipment Class | DTS - Digital Transmission System |
| Device Description | Digital Transmission System |
| Responsible Party | Tim Tunnell, Sr. Electrical Engineer, tim.tunnell@idealindustries.com , 815-895-1295 |
| Agent | Christopher Christopher Christopher, Curtis Straus LLC (A Bureau Veritas Company), christopher.reynolds@us.bureauveritas.com  , 9784868880 |
| Test Firm | Dori Robertson, BUREAU VERITAS CONSUMER PRODUCTS SERVICES, INC., dolores.robertson@us.bureauveritas.com , 978 486 8880 |
| TCB Email | certification@curtis-straus.com  |
| TCB Scope | A4: UNII devices & low power transmitters using spread spectrum techniques |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | Yes |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | No |
| Composite Part | No |
| Cognitive Radio | No |
| Authorization Waiver | No |
| Authorization Waiver Approved | No |
| Section 5301 Certification | Yes |
| Related OET Knowledge DataBase Inquiry | No |
| Grant Comments | Output power listed is conducted. This device must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users and installers must be provided with installation and operating instructions for satisfying RF exposure compliance requirements. |
Applications
| Application ID | Date | Purpose |
|---|---|---|
| q1t/FyRD9RvQpwj4/4G1sw== | 2016-01-08 | Original Equipment |
Equipment Authorization
| Frequency | Output | Rules |
|---|---|---|
| 902.7-927.3 MHz | 0.1963360 | 15C |
Grants
TCB Grant - Application q1t/FyRD9RvQpwj4/4G1sw==
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
Bureau Veritas Consumer Products Services, Inc. One Distribution Center Circle Suite #1 Littleton, MA 01460 |
Date of Grant: 01/08/2016 Application Dated: 01/08/2016 |
| Ideal Industries, Inc. |
| Becker Place |
| Sycamore, IL 60178 |
| Attention: Tim Tunnell , Sr. Electrical Engineer |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | 2AAMXGW1100B |
| Name of Grantee: | Ideal Industries, Inc. |
| Equipment Class: | Digital Transmission System |
| Notes: | Digital Transmission System |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 15C | 902.7 - 927.3 | 0.196336 |
| Output power listed is conducted. This device must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users and installers must be provided with installation and operating instructions for satisfying RF exposure compliance requirements. |
EAS Grant - Application q1t/FyRD9RvQpwj4/4G1sw==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
Ideal Industries, Inc. Becker Place Sycamore, IL 60178 United States |
Date of Grant: 01/08/2016 Application Dated: 01/08/2016 |
| Attention: Tim Tunnell , Sr. Electrical Engineer |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | 2AAMXGW1100B |
| Name of Grantee: | Ideal Industries, Inc. |
| Equipment Class: | Digital Transmission System |
| Notes: | Digital Transmission System |
| Modular Type: | Does not apply |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 15C | 902.7 - 927.3 | 0.196336 |
| Output power listed is conducted. This device must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users and installers must be provided with installation and operating instructions for satisfying RF exposure compliance requirements. |
| Mail To: |
