FCC ID 2AAVWADTS552F-01
Air Data Test Set ADTS552F
by Druck Ltd
Grantee Code: 2AAVW Product Code: ADTS552F01
Latest application date: 2015-09-30
Device Images
FCC ID Device Details
Operating Frequencies
| Frequency Range | Application Purpose | Final Action Date |
|---|---|---|
| 2402-2480 MHz | Original Equipment | 2015-09-30 |
Exhibits
| Document | Type | Available | File |
|---|---|---|---|

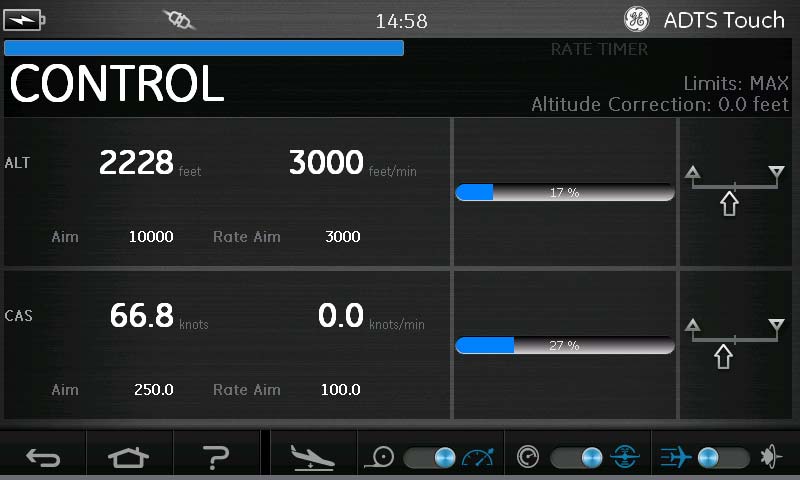

| Users Manual | Users Manual | 2015-09-30 | PDF 1.6 MB |
| Internal Photos | Internal Photos | 2015-09-30 | PDF 1.2 MB |
| External Photos | External Photos | 2015-09-30 | PDF 1.8 MB |
| ID Label | ID Label/Location Info | 2015-09-30 | PDF 327.6 KB |
| ID Label on product | ID Label/Location Info | 2015-09-30 | PDF 276.1 KB |
| ID Label on product packing | ID Label/Location Info | 2015-09-30 | PDF 169.7 KB |
| Test Setup Photos | Test Setup Photos | 2015-09-30 | PDF 98.1 KB |
| Test Report | Test Report | 2015-09-30 | PDF 2.6 MB |
| Letter of Agency | Attestation Statements | 2015-09-30 | PDF 50.9 KB |
| Letter of Confidentiality | Cover Letter(s) | 2015-09-30 | PDF 477.6 KB |
| Method of achieving FHSS | Cover Letter(s) | 2015-09-30 | PDF 371.3 KB |
| RF Exposure | RF Exposure Info | 2015-09-30 | PDF 48.9 KB |
| Block Diagram Metadata only | Block Diagram | PDF 278.7 KB | |
| Block Diagram RX_CHAIN_1 Metadata only | Block Diagram | PDF 131.7 KB | |
| Block Diagram TX_CHAIN_1 Metadata only | Block Diagram | PDF 114.2 KB | |
| WT41_BLOCK_DIAGRAM Metadata only | Block Diagram | PDF 53.7 KB | |
| Schematics Metadata only | Schematics | PDF 1.4 MB | |
| Operational Description Metadata only | Operational Description | PDF 611.6 KB | |
| Parts List Metadata only | Parts List/Tune Up Info | PDF 264.9 KB |
Application Information
| Application ID | yUNtOCUMEvD4lSuppfF8Gg== |
|---|---|
| Final Action Date | 2015-09-30 |
| Application Purpose | Original Equipment |
| Applicant FRN | 0022928626 |
| Model | ADTS552F-01 |
| Frequency Range | 2402-2480 MHz |
| Equipment Class | DSS - Part 15 Spread Spectrum Transmitter |
| Device Description | Air Data Test Set ADTS552F |
| Responsible Party | Matthew T Concannon, Mr, matthew.concannon@ge.com  , +44 116 231 7444 |
| Test Firm | Stewart Barrowclough, Element Materials Technology Warwick Ltd, stewart.barrowclough@element.com  , 01695556666 |
| TCB Email | roy.ediss@tracglobal.com  |
| TCB Scope | A4: UNII devices & low power transmitters using spread spectrum techniques |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | Yes |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | No |
| Composite Part | No |
| Cognitive Radio | No |
| Authorization Waiver | No |
| Authorization Waiver Approved | No |
| Section 5301 Certification | Yes |
| Related OET Knowledge DataBase Inquiry | No |
| Grant Comments | RF Output Power is Conducted. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter, except in accordance with FCC multi-transmitter product guidelines. This equipment supports data transmission rates of 1Mbps, 2Mbps and 3Mbps. |
