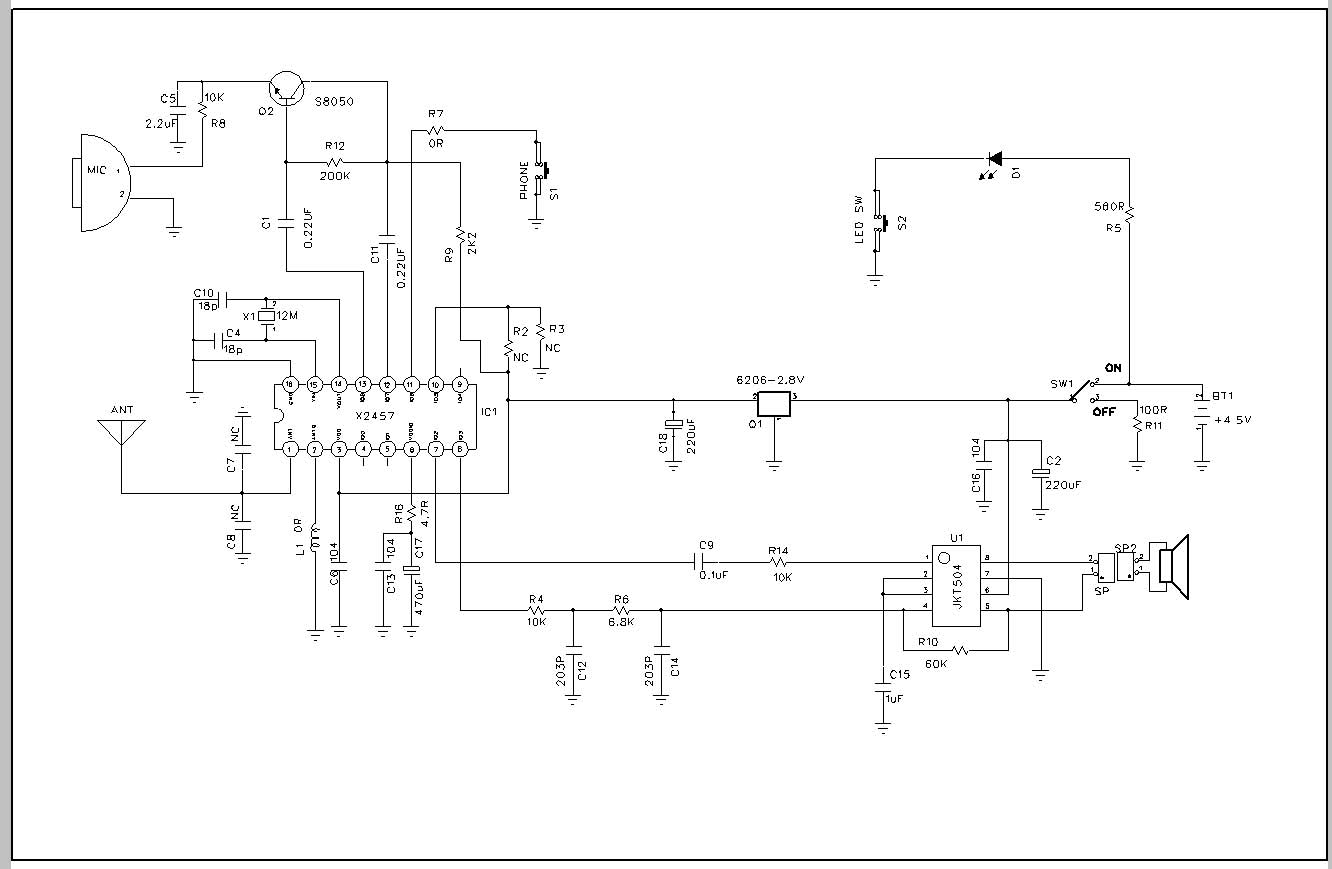

AMP10538 Spy Wrist Talkies Schematics - FCC ID 2AB4XAMP10538

FCC ID 2AB4XAMP10538

Schematics

Spy Wrist Talkies

by Atomic Monkey Products Ltd.

Document preview loads when visible.

Document Details

FCC ID2AB4XAMP10538
Document ID4774737
Document TypeSchematics
DescriptionSchematics
ApplicantAtomic Monkey Products Ltd.
Equipment ClassSpy Wrist Talkies
Product CodeAMP10538
Application IDE8KmIVsmD7zfOpZGBfkV8w==
Application PurposeOriginal Equipment
Application Date2020-06-22
Frequency Range2406.65-2480.65 MHz
FRN0023475817
Test FirmBay Area Compliance Laboratories Corp. (Shenzhen)
Certified ByWilson Mak
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2020-06-22
Available2020-06-22
Created2020-06-05
Modified2020-06-22
Pages1
File TypeAdobe Acrobat PDF
File Size81281
File SHA-256bc31a127a3b02536deeca4785dcae8635bb0c02794fbe3b07e668d5325d4205b
PDF Metadata ProducerAdobe Acrobat 6.0 Adobe Acrobat 6.0 Image Conversion Plug-in
FCC.gov SourcesFCC.gov 4774737
