FCC ID 2AB4ZCTL002

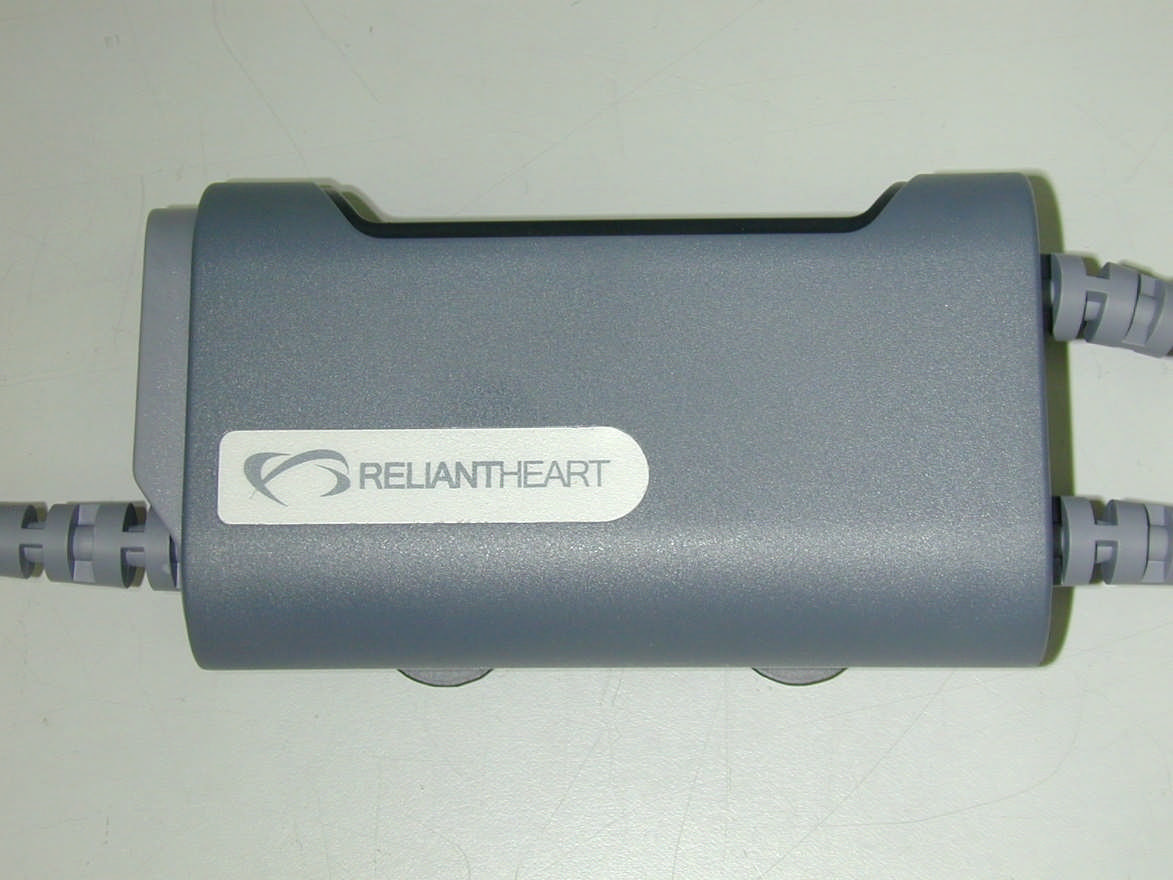

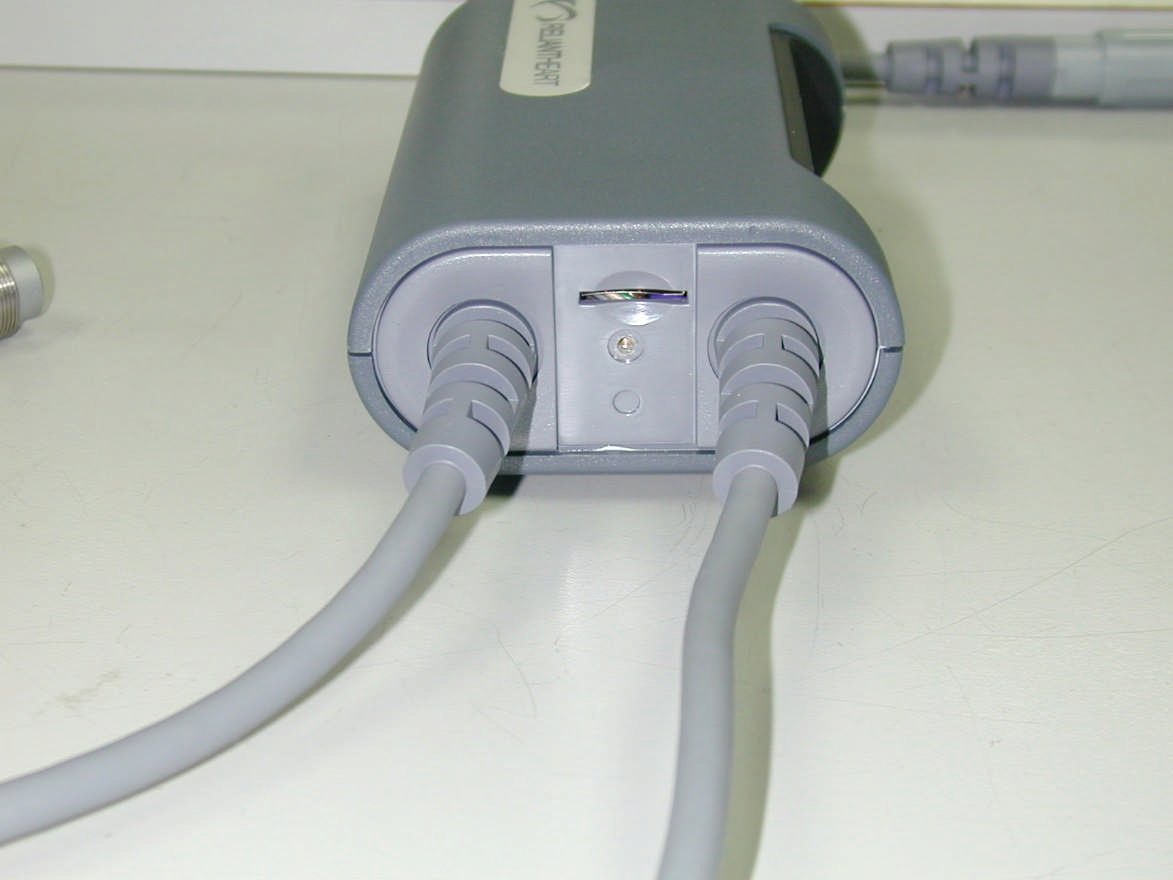

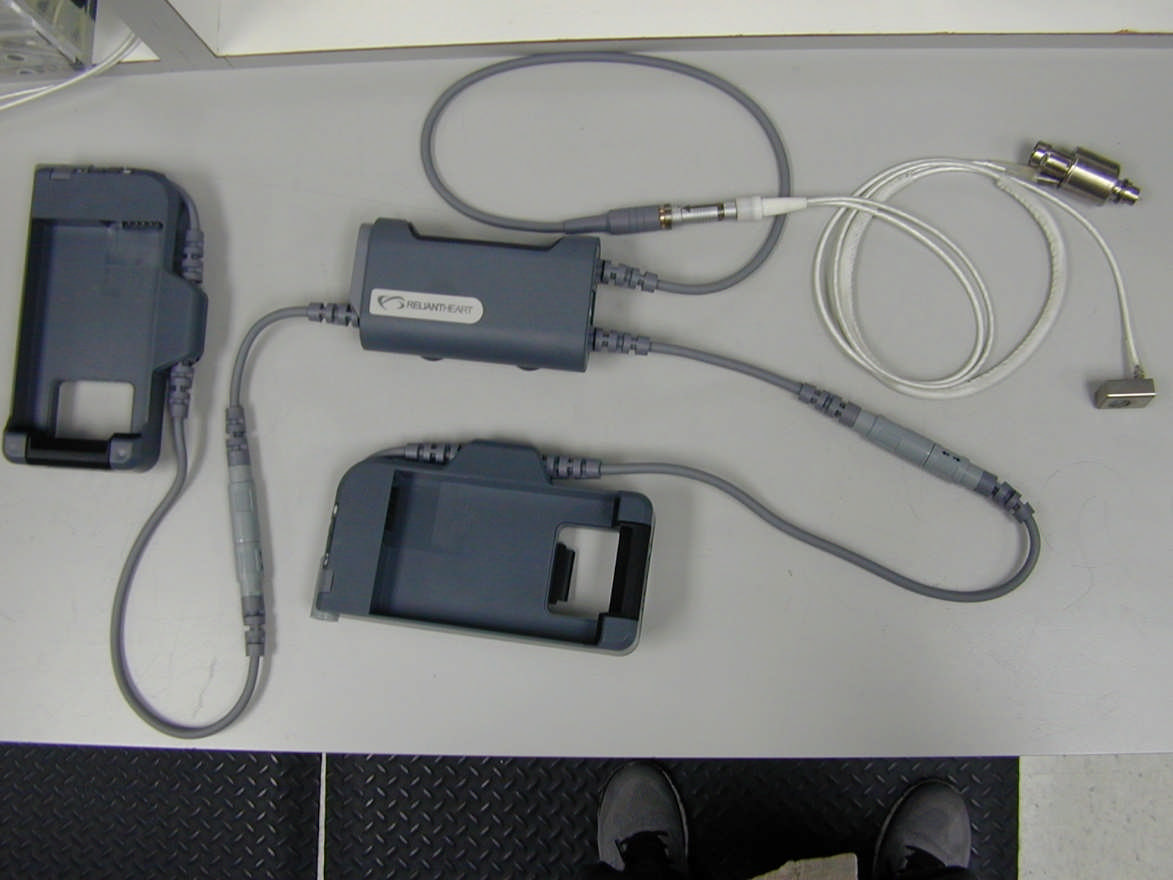

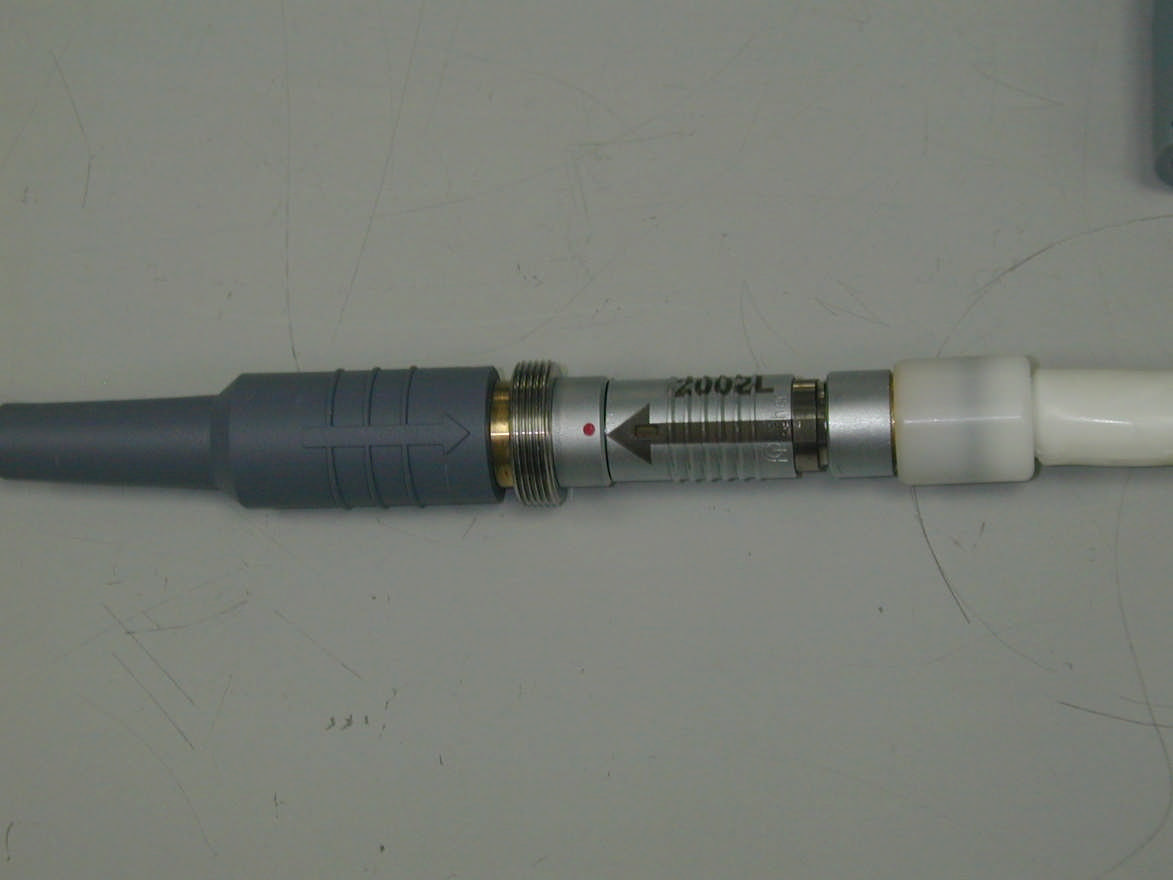

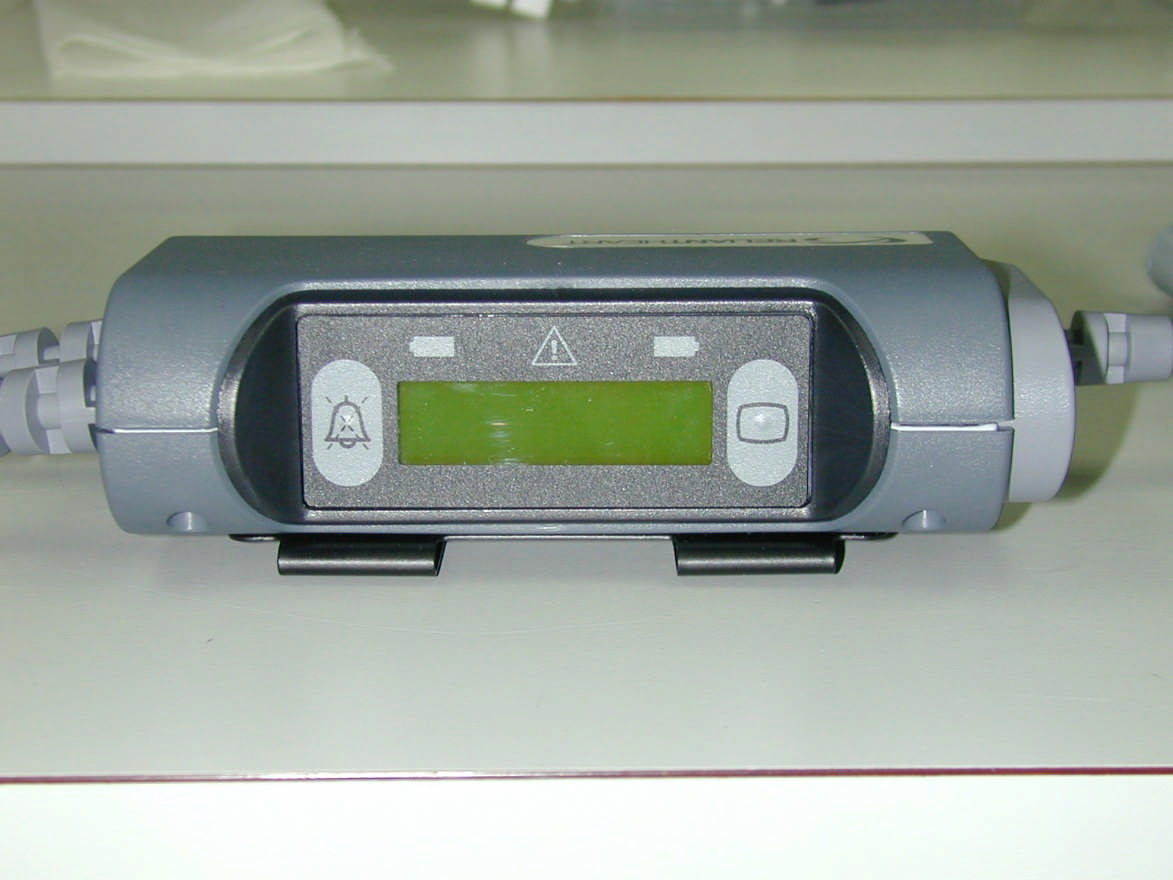

FCC ID 2AB4ZCTL002 External-Photos, 2AB4Z CTL002, 2AB4ZCTL002, 2AB4ZCTLOO2

ReliantHeart Inc. Controller for HeartAssist 5 Left Ventricular Assist Device CTL002

An FCC ID is the product ID assigned by the FCC to identify wireless products in the market. The FCC chooses 3 or 5 character "Grantee" codes to identify the business that created the product. For example, the grantee code for FCC ID: 2AB4ZCTL002 is 2AB4Z. The remaining characters of the FCC ID, CTL002, are often associated with the product model, but they can be random. These letters are chosen by the applicant. In addition to the application, the FCC also publishes internal images, external images, user manuals, and test results for wireless devices. They can be under the "exhibits" tab below.

Purchase on Amazon: Controller for HeartAssist 5 Left Ventricular Assist Device

*Please Check Individual Documents for more images

Application: Controller for HeartAssist 5 Left Ventricular Assist Device
Equipment Class: PCB - PCS Licensed Transmitter
Short Link: fcc.id/2AB4ZCTL002
Sources: FCC.gov | FCC.report
Registered By: ReliantHeart Inc. - 2AB4Z (United States)

App #	Purpose	Date	Unique ID
1	Original Equipment	2015-11-11	qy1+WJ1Z9Y2lc/Bff+NevA==

Operating Frequencies

Colombia Homologation [?]: 2AB4ZCTL002

Frequency Range	Power Output	Tolerance	Emission Designator	Rule Parts	Line Entry
824.2-848.8 MHz	750 mW	2.5ppm	240KGXW	22H	1
824.2-848.8 MHz	250 mW	2.5ppm	248KG7W	22H	2
826.4-846.6 MHz	80 mW	2.5ppm	4M08F9W	22H	3
1.7124-1.7526 GHz	250 mW	2.5ppm	4M06F9W	27	4
1.8502-1.9098 GHz	890 mW	2.5ppm	241KGXW	24E	5
1.8502-1.9098 GHz	560 mW	2.5ppm	252KG7W	24E	6
1.8524-1.9076 GHz	230 mW	2.5ppm	4M10F9W	24E	7

Exhibits

Document	Type	Submitted Available
test report - part 22-24-27 - delta	Test Report Adobe Acrobat PDF (1072 kB)	2015-11-11 2015-11-11
sar miscellaneous info	RF Exposure Info Adobe Acrobat PDF (4574 kB)	2015-11-11 2015-11-11
sar photos	RF Exposure Info Adobe Acrobat PDF (585 kB)	2015-11-11 2015-11-11
sar plots	RF Exposure Info Adobe Acrobat PDF (439 kB)	2015-11-11 2015-11-11
sar report	RF Exposure Info Adobe Acrobat PDF (926 kB)	2015-11-11 2015-11-11
test set-up photos	Test Setup Photos Adobe Acrobat PDF (311 kB)	2015-11-11 2015-11-11
test teport p27 - module	Test Report Adobe Acrobat PDF (653 kB)	2015-11-11 2015-11-11
test teport p22&24 - module	Test Report Adobe Acrobat PDF (1222 kB)	2015-11-11 2015-11-11
user guide	Users Manual Adobe Acrobat PDF (2872 kB)	2015-11-11 2015-11-11
label info	ID Label/Location Info Adobe Acrobat PDF (136 kB)	2015-11-11 2015-11-11
internal photos - module	Internal Photos Adobe Acrobat PDF (329 kB)	2015-11-11 2015-11-11

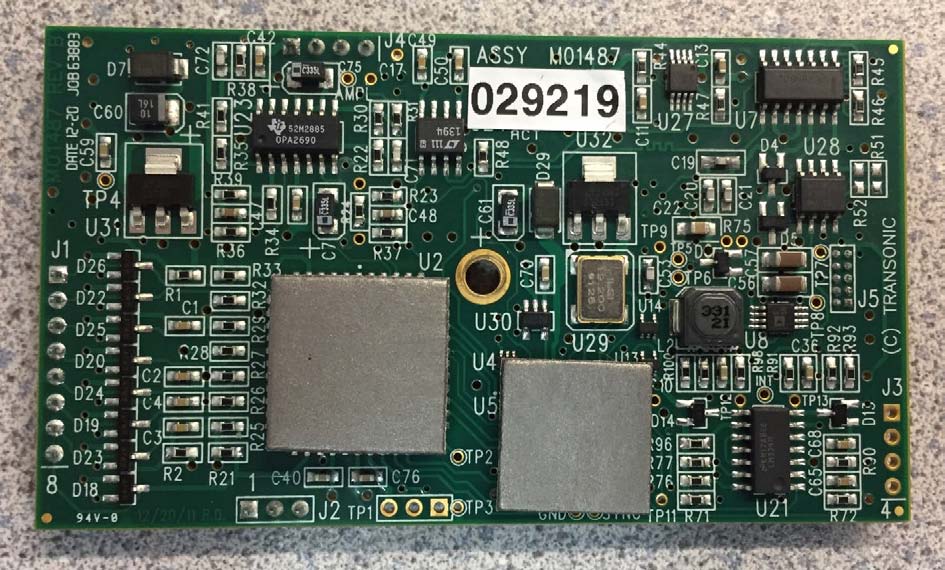

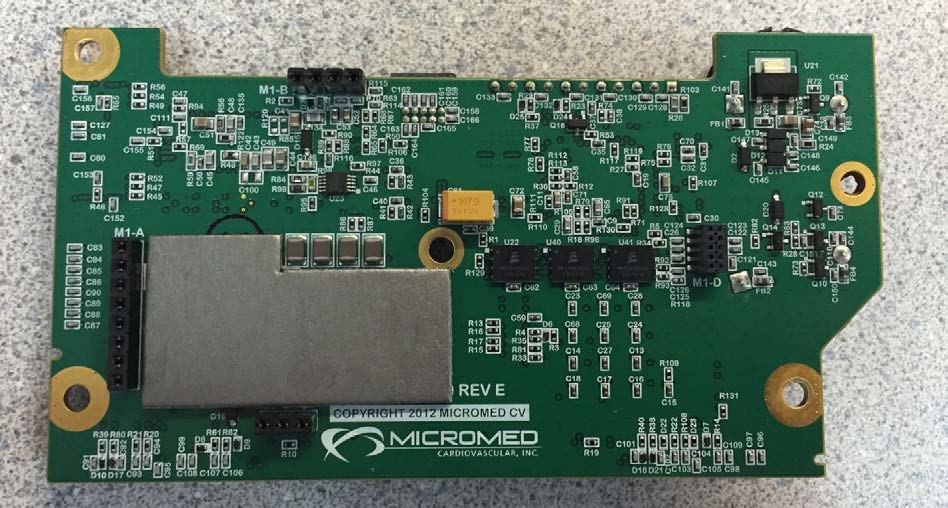

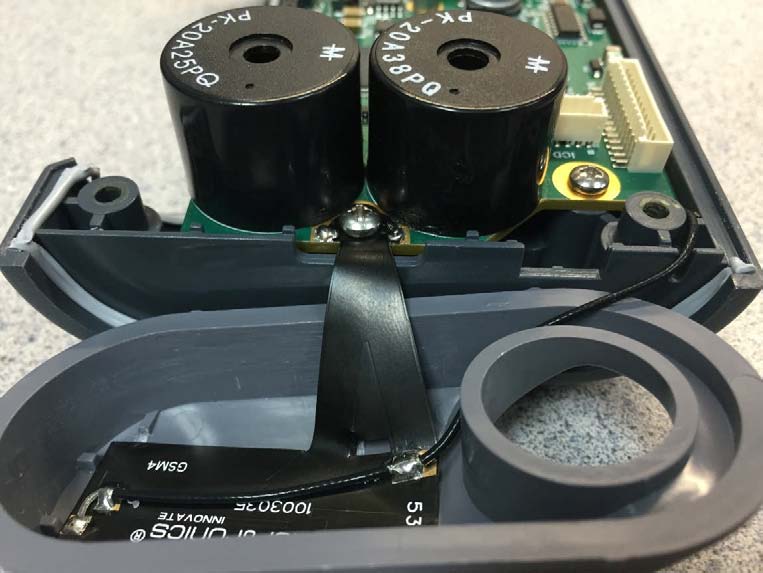

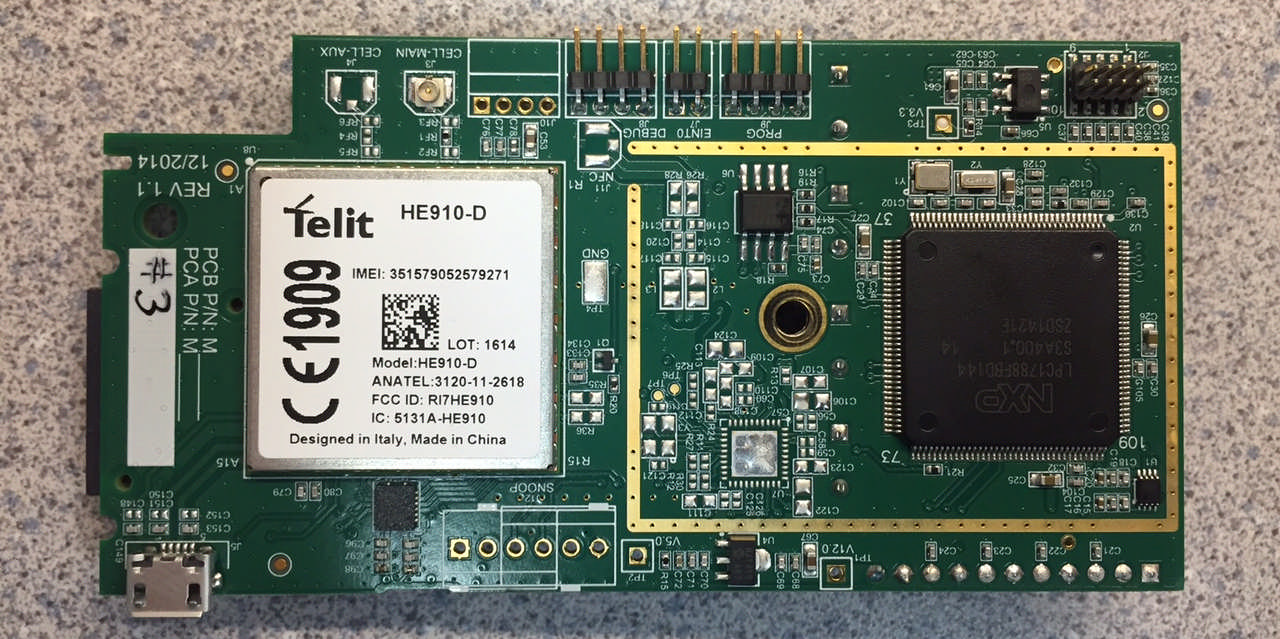

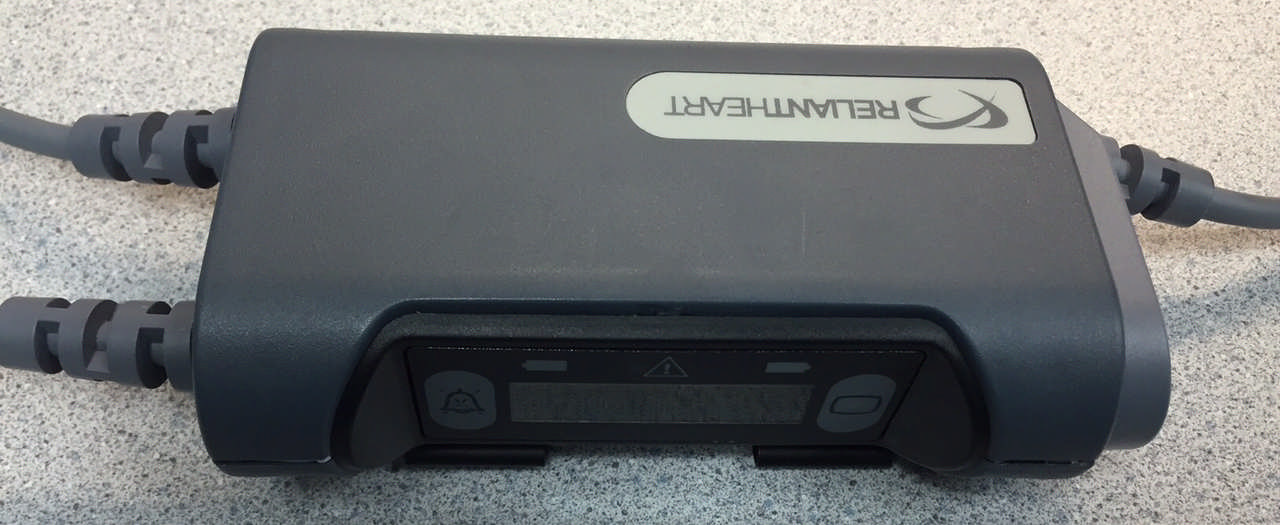

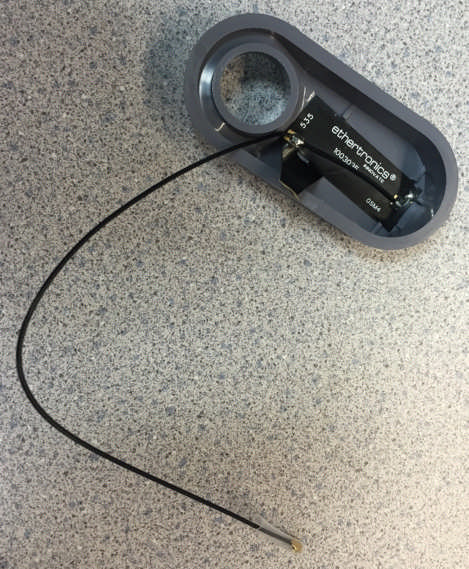

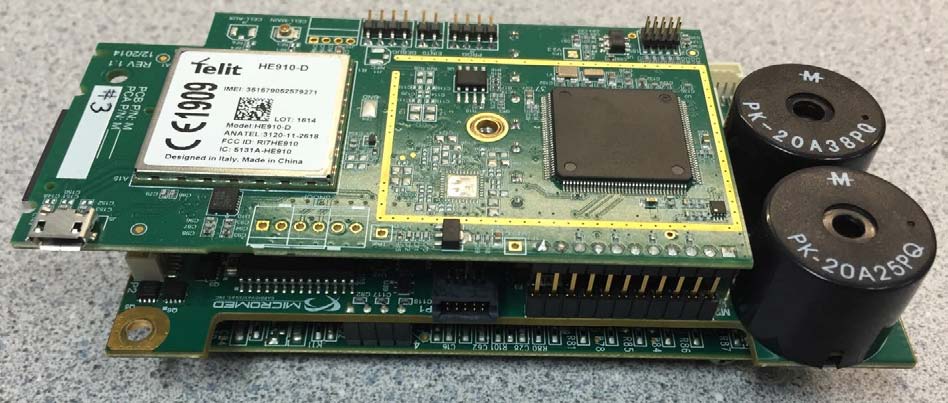

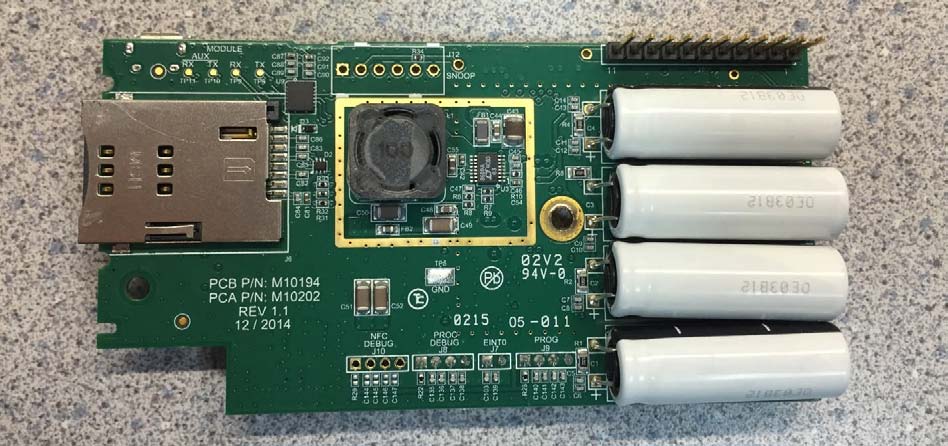

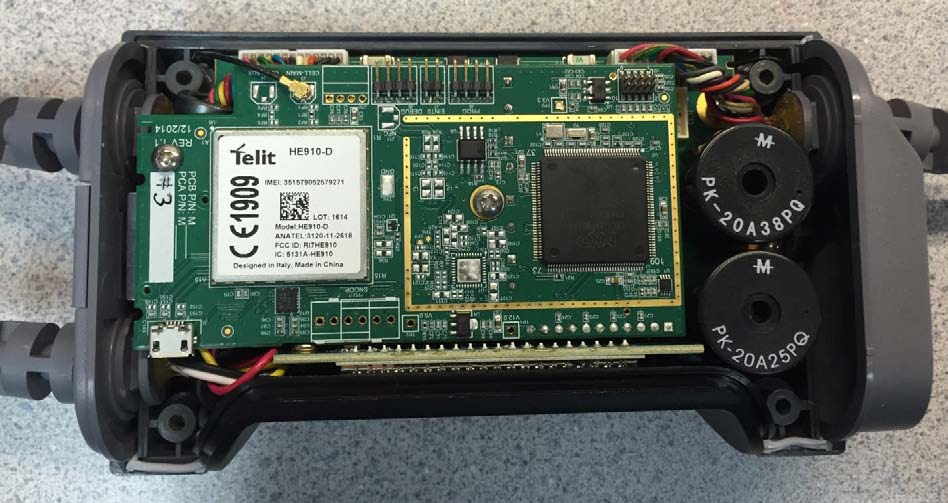

internal photos	Internal Photos Adobe Acrobat PDF (2854 kB)	2015-11-11 2015-11-11

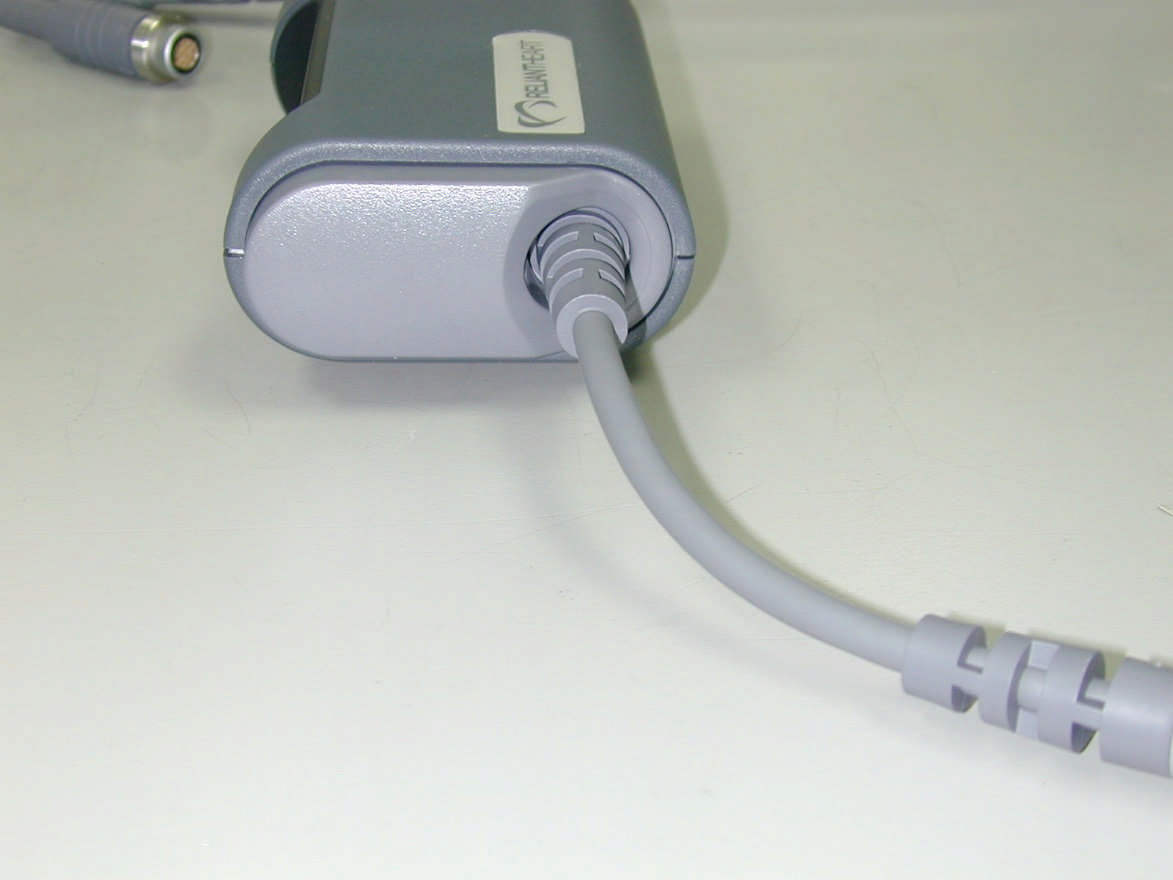

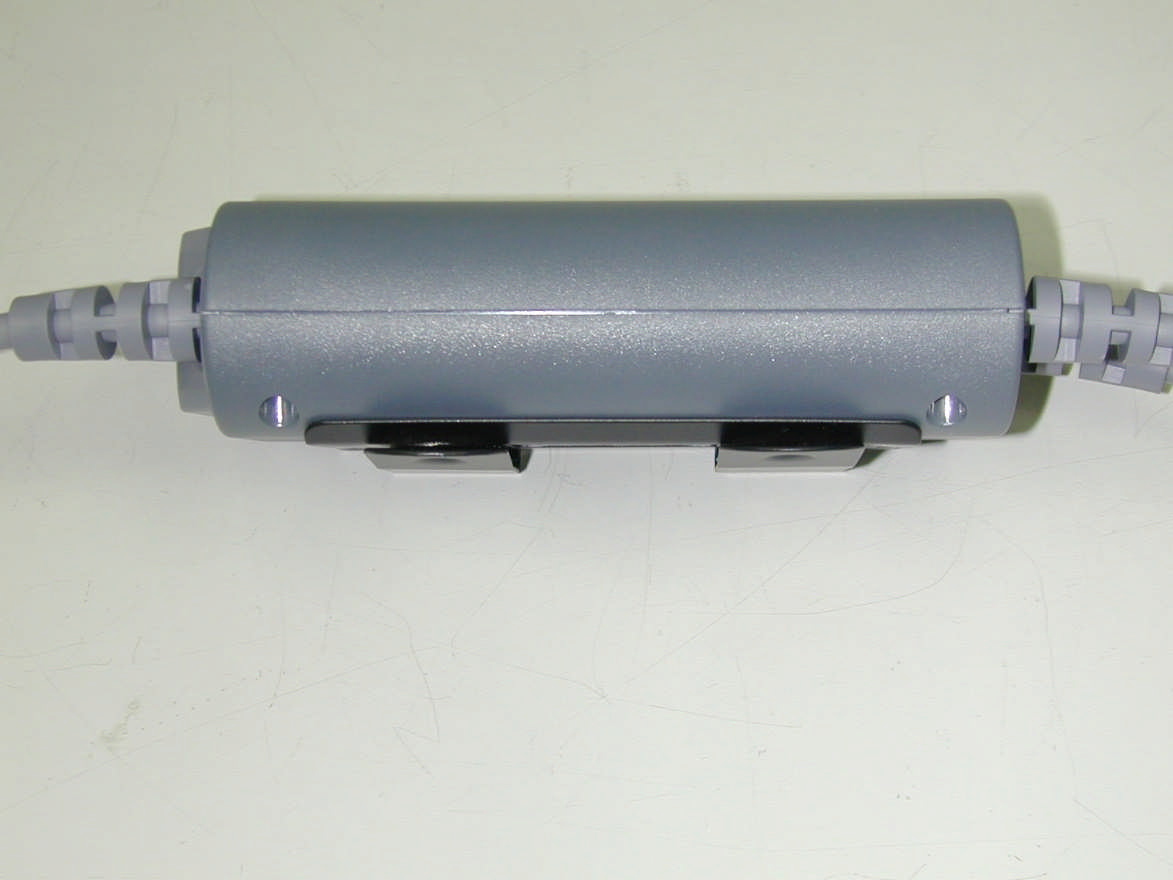

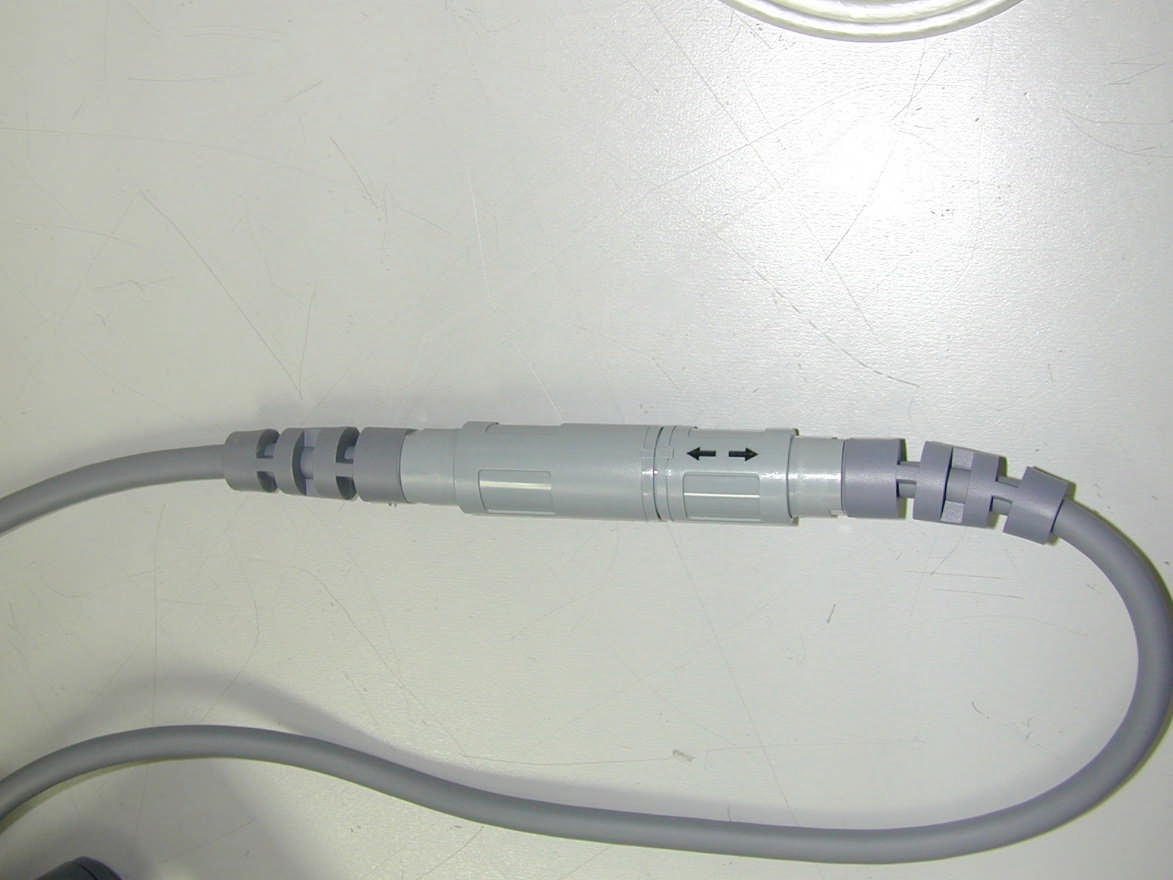

external photos	External Photos Adobe Acrobat PDF (1404 kB)	2015-11-11 2015-11-11
attestation reg non-relevance for medical	Attestation Statements Adobe Acrobat PDF (31 kB)	2015-11-11 2015-11-11
attestation reg validity of module test results	Attestation Statements Adobe Acrobat PDF (42 kB)	2015-11-11 2015-11-11
permanent confidentiality request	Cover Letter(s) Adobe Acrobat PDF (84 kB)	2015-11-11 2015-11-11
schematics	Schematics Adobe Acrobat PDF (399 kB)	2015-11-11
operational and technical description	Operational Description Adobe Acrobat PDF (704 kB)	2015-11-11
technical info module - a	Operational Description Adobe Acrobat PDF (1130 kB)	2015-11-11
block diagram	Block Diagram Adobe Acrobat PDF (270 kB)	2015-11-11
max output power info - tune-up	Parts List/Tune Up Info Adobe Acrobat PDF (211 kB)	2015-11-11
schematics - module	Schematics Adobe Acrobat PDF (1021 kB)	2015-11-11
parts list	Parts List/Tune Up Info Adobe Acrobat PDF (50 kB)	2015-11-11
block diagram - module	Block Diagram Adobe Acrobat PDF (1383 kB)	2015-11-11
technical info module - b	Operational Description Adobe Acrobat PDF (1648 kB)	2015-11-11

Application Forms

Application for Equipment Authorization FCC Form 731 TCB Version

Applicant Information

Applicant's complete, legal business name:	ReliantHeart Inc.
FCC Registration Number (FRN):	0023477615
Alphanumeric FCC ID:	2AB4ZCTL002
Unique Application Identifier:	qy1+WJ1Z9Y2lc/Bff+NevA==
Line one:	8965 Interchange
City:	Houston
State:	Texas
Country:	United States
Zip Code:	77054

TCB Information

TCB Application Email Address:	nikolaus.wahl@cetecom.com
TCB Scope:	B1: Commercial mobile radio services equipment in the following 47 CFR Parts 20, 22 (cellular), 24,25 & 27

FCC ID

Grantee Code:	2AB4Z
Product Code:	CTL002

Person at the applicant's address to receive grant or for contact

Name:	Bryan E Lynch
Title:	CTO

Telephone Number:

+1 713-412-3418

Extension:

Fax Number:	+1 713-665-0963
Email:	blynch@reliantheart.com

Long-Term Confidentiality

Does this application include a request for confidentiality for any portion(s) of the data contained in this application pursuant to 47 CFR § 0.459 of the Commission Rules?: Yes

Short-Term Confidentiality

Does short-term confidentiality apply to this application?: No

If so, specify the short-term confidentiality release date (MM/DD/YYYY format):
Note: If no date is supplied, the release date will be set to 45 calendar days past the date of grant.

Software Defined/Cognitive Radio

Is this application for software defined/cognitive radio authorization? No

Equipment Class

Equipment Class: PCB - PCS Licensed Transmitter
Description of product as it is marketed: (NOTE: This text will appear below the equipment class on the grant):	Controller for HeartAssist 5 Left Ventricular Assist Device

Related OET KnowledgeDataBase Inquiry

Is there a KDB inquiry associated with this application? No

Modular Equipment

Modular Type: Does not apply

Application Purpose

Application is for: Original Equipment

Composite/Related Equipment

Is the equipment in this application a composite device subject to an additional equipment authorization? No

Is the equipment in this application part of a system that operates with, or is marketed with, another device that requires an equipment authorization? No

Test Firm Information

Name of test firm and contact person on file with the FCC:

Firm Name: CETECOM Inc.

First Name: Sabrina

Last Name: Sarne

Telephone Number:

408-586-6249

Extension:

Fax Number: 408 586 6299

E-mail: Sabrina.Sarne@cetecom.com

Grant Comments

Enter any text that you would like to appear at the bottom of the Grant of Equipment Authorization:
Output power listed is ERP for part 22 and EIRP for part 24 and part 27. This device contains functions that are not operational in U.S. Territories. This filing is only applicable for US operations. This device has been tested to be compliant with FCC RF exposure guidelines for body worn operation with zero distance. End users must be informed of the body worn requirements for satisfying RF Exposure compliance. The highest reported SAR for body-worn transmission use condition is 0.68 W/kg.

Set the grant of this application to be deferred to a specified date:
No

Equipment Authorization Waiver

Is there an equipment authorization waiver associated with this application? No

If there is an equipment authorization waiver associated with this application, has the associated waiver been approved and all information uploaded?: No

WILLFUL FALSE STATEMENTS MADE ON THIS FORM ARE PUNISHABLE BY FINE AND IMPRISONMENT (U.S. CODE, TITLE 18, SECTION 1001), AND/OR REVOCATION OF ANY STATION LICENSE OR CONSTRUCTION PERMIT (U.S. CODE, TITLE 47, SECTION 312(a)(1)), AND/OR FORFEITURE (U.S. CODE, TITLE 47, SECTION 503).

SECTION 5301 (ANTI-DRUG ABUSE) CERTIFICATION:

The applicant must certify that neither the applicant nor any party to the application is subject to a denial of Federal benefits, that include FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. § 862 because of a conviction for possession or distribution of a controlled substance. See 47 CFR 1.2002(b) for the definition of a "party" for these purposes.

Does the applicant or authorized agent so certify? Yes

Applicant/Agent Certification:

I certify that I am authorized to sign this application. All of the statements herein and the exhibits attached hereto, are true and correct to the best of my knowledge and belief. In accepting a Grant of Equipment Authorization as a result of the representations made in this application, the applicant is responsible for (1) labeling the equipment with the exact FCC ID specified in this application, (2) compliance statement labeling pursuant to the applicable rules, and (3) compliance of the equipment with the applicable technical rules. If the applicant is not the actual manufacturer of the equipment, appropriate arrangements have been made with the manufacturer to ensure that production units of this equipment will continue to comply with the FCC's technical requirements.

Authorizing an agent to sign this application, is done solely at the applicant's discretion; however, the applicant remains responsible for all statements in this application.

If an agent has signed this application on behalf of the applicant, a written letter of authorization which includes information to enable the agent to respond to the above section 5301 (Anti-Drug Abuse) Certification statement has been provided by the applicant. It is understood that the letter of authorization must be submitted to the FCC upon request, and that the FCC reserves the right to contact the applicant directly at any time.

Signature of Authorized Person Filing: Bryan Lynch

Title of authorized signature: CTO

Grants

TCB	GRANT OF EQUIPMENT AUTHORIZATION	TCB
Certification
Issued Under the Authority of the
Federal Communications Commission
By:

CETECOM Inc.
411 Dixon Landing Road
Milpitas, CA 95035

Date of Grant: 11/11/2015

Application Dated: 11/11/2015

ReliantHeart Inc.

8965 Interchange

Houston, TX 77054

Attention: Bryan Lynch , CTO

NOT TRANSFERABLE

EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below.

FCC IDENTIFIER:	2AB4ZCTL002

Name of Grantee:	ReliantHeart Inc.

Equipment Class:	PCS Licensed Transmitter
Notes:	Controller for HeartAssist 5 Left Ventricular Assist Device

Grant Notes	FCC Rule Parts	Frequency Range (MHZ)	Output Watts	Frequency Tolerance	Emission Designator
	22H	824.2 - 848.8	0.75	2.5 PM	240KGXW
	22H	824.2 - 848.8	0.25	2.5 PM	248KG7W
	22H	826.4 - 846.6	0.08	2.5 PM	4M08F9W
	27	1712.4 - 1752.6	0.25	2.5 PM	4M06F9W
	24E	1850.2 - 1909.8	0.89	2.5 PM	241KGXW
	24E	1850.2 - 1909.8	0.56	2.5 PM	252KG7W
	24E	1852.4 - 1907.6	0.23	2.5 PM	4M10F9W

Output power listed is ERP for part 22 and EIRP for part 24 and part 27.

This device contains functions that are not operational in U.S. Territories. This filing is only applicable for US operations.

This device has been tested to be compliant with FCC RF exposure guidelines for body worn operation with zero distance.

End users must be informed of the body worn requirements for satisfying RF Exposure compliance.

The highest reported SAR for body-worn transmission use condition is 0.68 W/kg.

COPY	FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION	COPY
Certification

ReliantHeart Inc.
8965 Interchange
Houston, TX 77054
United States
