FCC ID 2AB7YDPBTLE24
Charger Communication Module
by Viper Design, LLC
Grantee Code: 2AB7Y Product Code: DPBTLE24
Latest application date: 2016-11-28
Device Images
FCC ID Device Details
| FCC ID | 2AB7YDPBTLE24 |
|---|---|
| Mirrors | fcc.id | gov | fccid.ai |
| Grantee Code | 2AB7Y |
| Product Code | DPBTLE24 |
| Applicant Business | Viper Design, LLC 🇺🇸 |
| Related Domains |  viper-design.com |
| Equipment Class | Charger Communication Module |
| Test Firm | TUV SUD America, Inc. |
Operating Frequencies
| Frequency Range | Application Purpose | Final Action Date |
|---|---|---|
| 2402-2480 MHz | Original Equipment | 2016-11-28 |
Exhibits
| Document | Type | Available | File |
|---|---|---|---|
| Manual | Users Manual | 2016-11-28 | PDF 151.2 KB |

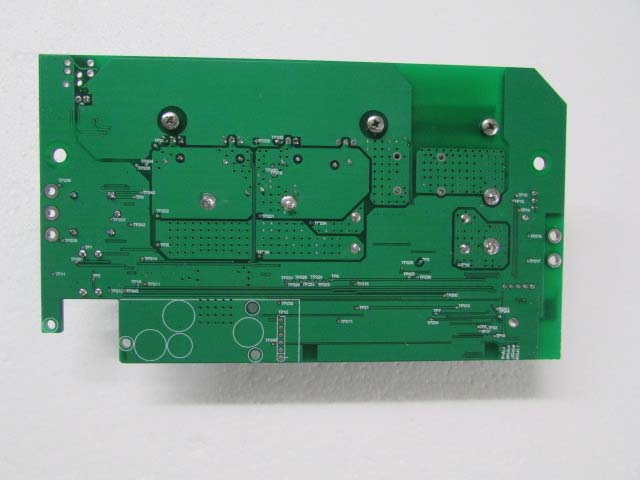

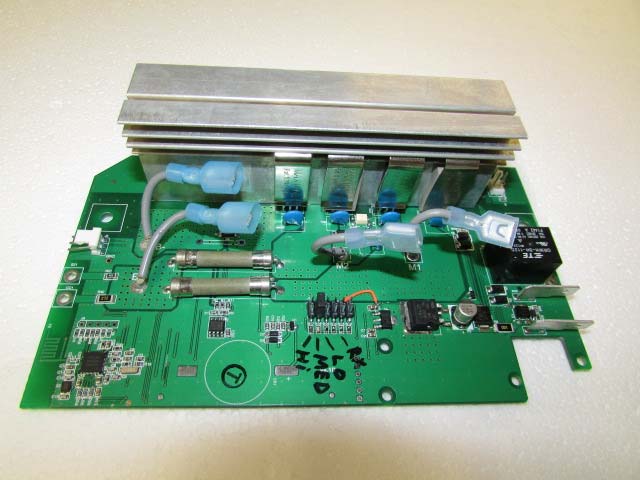

| Internal Photos | Internal Photos | 2016-11-28 | PDF 85.3 KB |

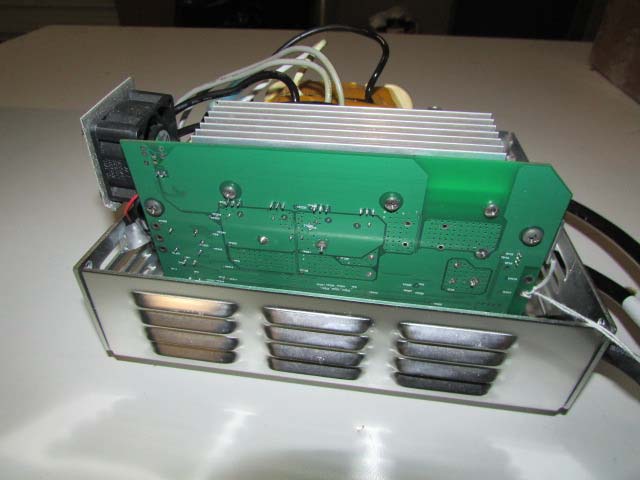

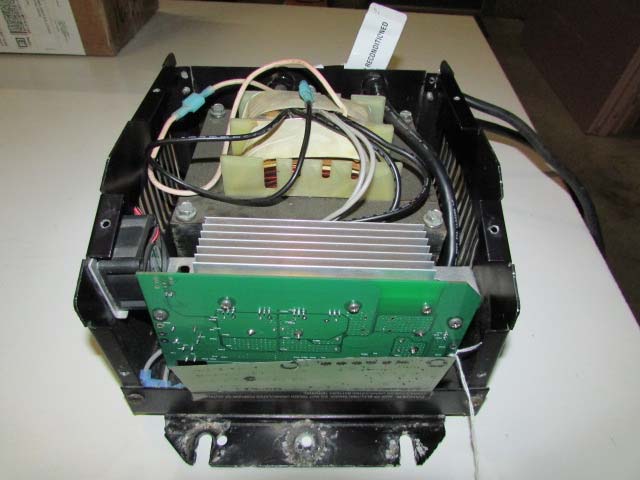

| External Photos | External Photos | 2016-11-28 | PDF 240.4 KB |

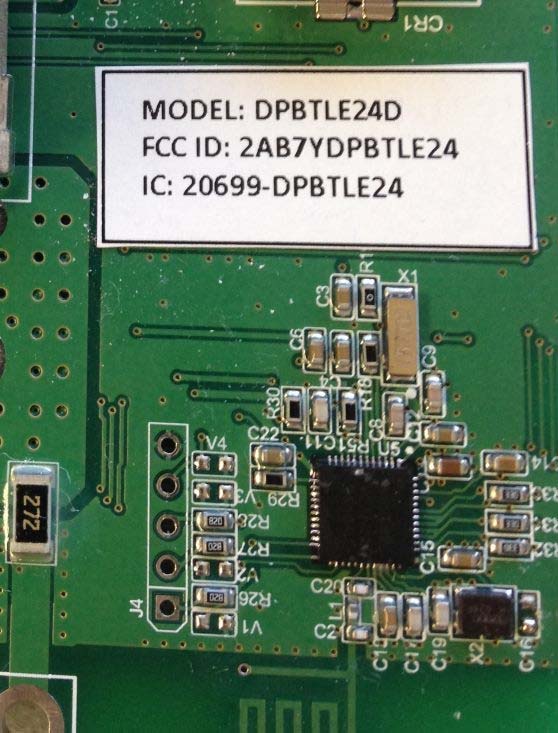

| Label Information | ID Label/Location Info | 2016-11-28 | PDF 84.3 KB |

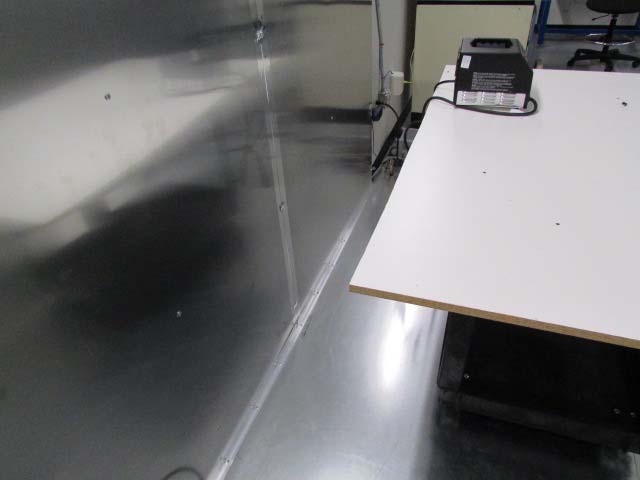

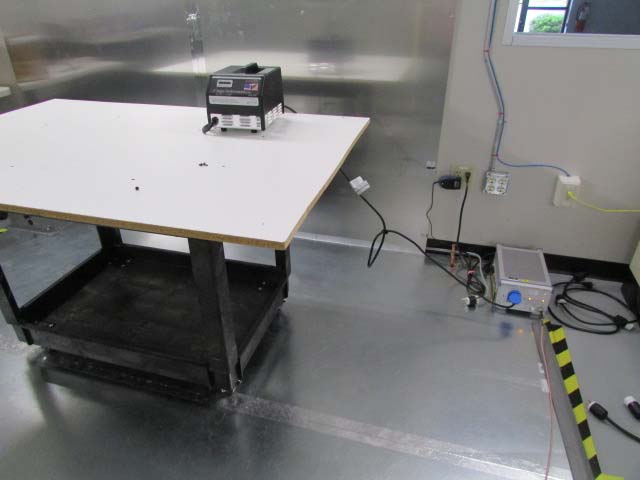

| Test Setup Photos | Test Setup Photos | 2016-11-28 | PDF 179.4 KB |
| Test Report | Test Report | 2016-11-28 | PDF 655.8 KB |
| Agency Agreement | Cover Letter(s) | 2016-11-28 | PDF 46.3 KB |
| Confidentiality Request | Cover Letter(s) | 2016-11-28 | PDF 52.9 KB |
| FCC Cover Letter | Cover Letter(s) | 2016-11-28 | PDF 17.1 KB |
| Modular Approval Letter | Cover Letter(s) | 2016-11-28 | PDF 55.4 KB |
| RF Exposure | RF Exposure Info | 2016-11-28 | PDF 24.4 KB |
| Block Diagram Metadata only | Block Diagram | PDF 21.7 KB | |
| Schematics Metadata only | Schematics | PDF 188.1 KB | |
| Theory of Operation Metadata only | Operational Description | PDF 51.5 KB |
Application Information
| Application ID | LWSLKnwm1tmQ8AKx+ZKG7g== |
|---|---|
| Final Action Date | 2016-11-28 |
| Application Purpose | Original Equipment |
| Applicant FRN | 0023525868 |
| Model | DPBTLE24 |
| Frequency Range | 2402-2480 MHz |
| Equipment Class | DTS - Digital Transmission System |
| Device Description | Charger Communication Module |
| Responsible Party | Brian Kendall Bell, Senior Design Partner, brian@viper-design.com , 6153250966 |
| Agent | Sam Sam Sam, Advanced Compliance Solutions, Inc. |
| Test Firm | Sam Wismer, TUV SUD America, Inc., swismer@tuvam.com  , 770-831-8048 |
| TCB Email | jwoods@acstestlab.com  |
| TCB Scope | A4: UNII devices & low power transmitters using spread spectrum techniques |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | Yes |
| Grant Deferral | No |
| Modular Equipment | Limited Single Modular Approval |
| Composite Device | No |
| Composite Part | No |
| Cognitive Radio | No |
| Authorization Waiver | No |
| Authorization Waiver Approved | No |
| Section 5301 Certification | Yes |
| Related OET Knowledge DataBase Inquiry | No |
| Grant Comments | Limited Modular Approval. Power listed is conducted. The transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. Installers and end-users must be provided with transmitter operation conditions for satisfying RF exposure compliance. Device is limited to integration into host models 4815, 3625OB, and 2425OBLIFT as described in this filing. |
