FCC ID 2ABC5-W0805
Wifi Digital Photo Frame
by SHENZHEN ELECTRON TECHNOLOGY CO.,LTD.
Grantee Code: 2ABC5 Product Code: W0805
Latest application date: 2015-10-22
Device Images
FCC ID Device Details
| FCC ID | 2ABC5-W0805 |
|---|---|
| Mirrors | fcc.id | gov | fccid.ai |
| Grantee Code | 2ABC5 |
| Product Code | W0805 |
| Applicant Business | SHENZHEN ELECTRON TECHNOLOGY CO.,LTD. 🇨🇳 |
| Related Domains |  elclcd.com |
| Equipment Class | Wifi Digital Photo Frame |
| Test Firm | SGS-CSTC Standards Technical Services Co.,Ltd. |
Operating Frequencies
| Frequency Range | Application Purpose | Final Action Date |
|---|---|---|
| 2412-2462 MHz | Original Equipment | 2015-10-22 |
Exhibits
| Document | Type | Available | File |
|---|---|---|---|
| User Manual 1 | Users Manual | 2015-10-22 | PDF 2.4 MB |
| User Manual 2 | Users Manual | 2015-10-22 | PDF 733.3 KB |

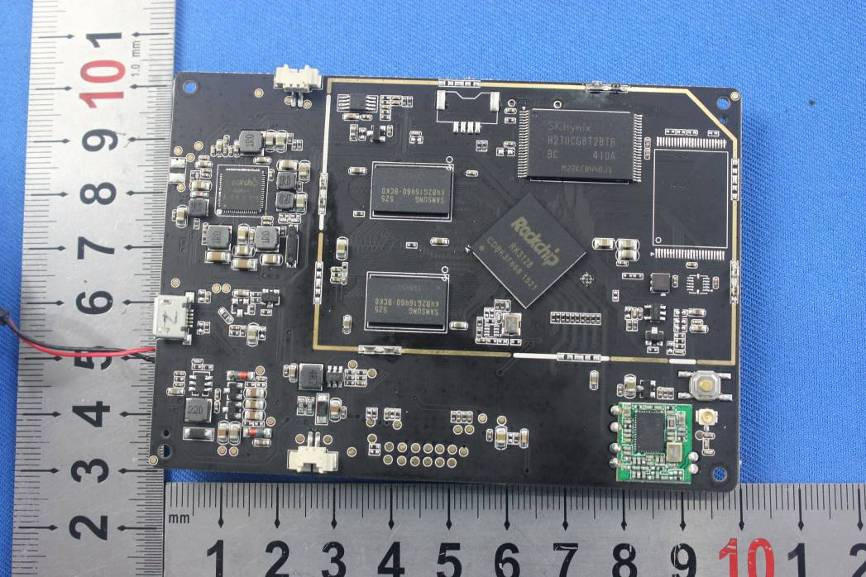

| Internal Photos | Internal Photos | 2015-10-22 | PDF 1.9 MB |
| External Photos | External Photos | 2015-10-22 | PDF 1 MB |
| Label Information Instruction | ID Label/Location Info | 2015-10-22 | PDF 1.3 MB |
| Test Setup Photos | Test Setup Photos | 2015-10-22 | PDF 135.5 KB |
| Test Report WiFi | Test Report | 2015-10-22 | PDF 2.9 MB |
| Authorization Letter | Cover Letter(s) | 2015-10-22 | PDF 182.8 KB |
| Channel Statement | Cover Letter(s) | 2015-10-22 | PDF 188.2 KB |
| Confidentiality Request Letter | Cover Letter(s) | 2015-10-22 | PDF 125.7 KB |
| Model Similarities Letter | Cover Letter(s) | 2015-10-22 | PDF 58.6 KB |
| RF Exposure | RF Exposure Info | 2015-10-22 | PDF 185.3 KB |
| Tune Up Procedure | Parts List/Tune Up Info | 2015-10-22 | PDF 121.9 KB |
| Block Diagram 1 Metadata only | Block Diagram | PDF 331.2 KB | |
| Block Diagram 2 Metadata only | Block Diagram | PDF 3 KB | |
| Circuit Diagram 1 Metadata only | Schematics | PDF 1.5 MB | |
| Circuit Diagram 2 Metadata only | Schematics | PDF 435.3 KB | |
| Operational Description Metadata only | Operational Description | PDF 203.9 KB |
Application Information
| Application ID | IqLEL9vqWBoFWi/zCgU9Nw== |
|---|---|
| Final Action Date | 2015-10-22 |
| Application Purpose | Original Equipment |
| Applicant FRN | 0023141955 |
| Model | W0805 |
| Frequency Range | 2412-2462 MHz |
| Equipment Class | DTS - Digital Transmission System |
| Device Description | Wifi Digital Photo Frame |
| Responsible Party | Yonghong Li, yhli@elclcd.com , 0755-29161269 |
| Test Firm | June Zhang, SGS-CSTC Standards Technical Services Co.,Ltd., June.Zhang@sgs.com  , 8675525328598 |
| TCB Email | TEI@TIMCOENGR.COM  |
| TCB Scope | A4: UNII devices & low power transmitters using spread spectrum techniques |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | Yes |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | No |
| Composite Part | No |
| Cognitive Radio | No |
| Authorization Waiver | No |
| Authorization Waiver Approved | No |
| Section 5301 Certification | Yes |
| Related OET Knowledge DataBase Inquiry | No |
| Grant Comments | Power listed is conducted. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operated in conjunction with any other antenna or transmitter. Users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. This device has a 20 MHz and 40 MHz bandwidth mode. |
