FCC ID 2ABEPTW1066
10.1 inch MID
by Shenzhen Tianzheng Hongye Technology Co.Ltd.
Grantee Code: 2ABEP Product Code: TW1066
Latest application date: 2015-11-23
Device Images
FCC ID Device Details
Operating Frequencies
| Frequency Range | Application Purpose | Final Action Date |
|---|---|---|
| 2402-2480 MHz | Original Equipment | 2015-11-23 |
| 2402-2480 MHz | Original Equipment | 2015-11-23 |
Exhibits
| Document | Type | Available | File |
|---|---|---|---|
| User Manual | Users Manual | 2015-11-23 | PDF 3.4 MB |

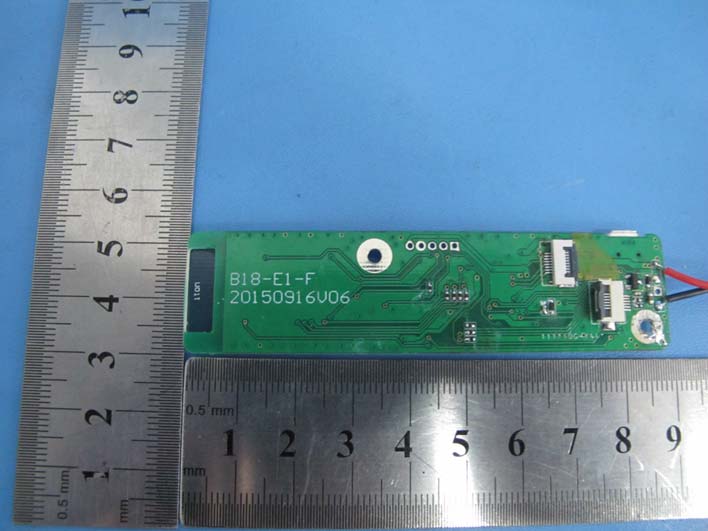

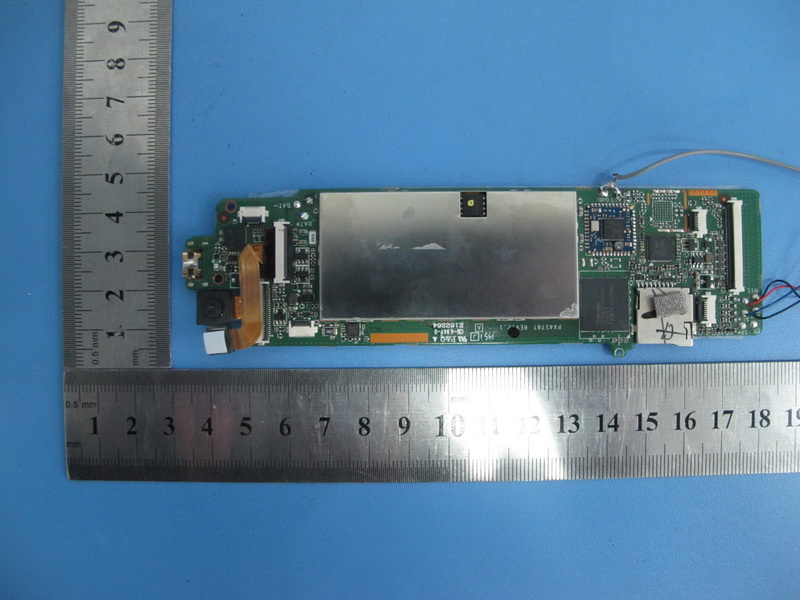

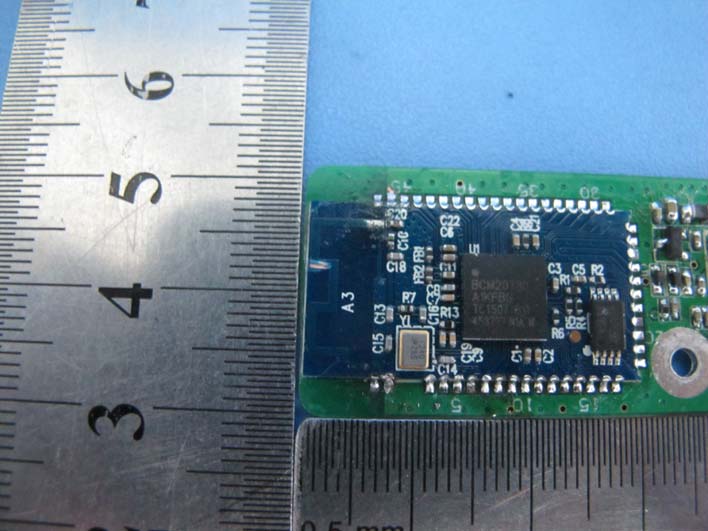

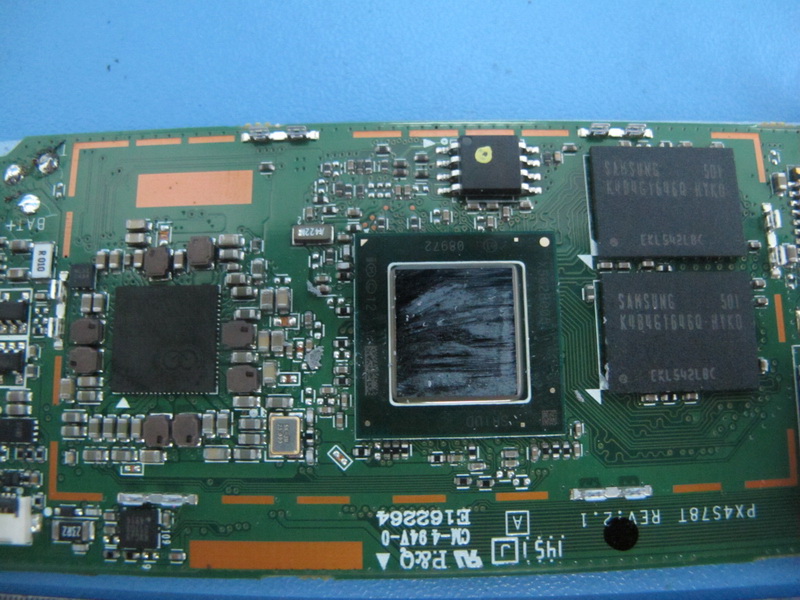

| Int photo | Internal Photos | 2015-11-23 | PDF 483.9 KB |
| Int photo | Internal Photos | 2015-11-23 | PDF 1.5 MB |

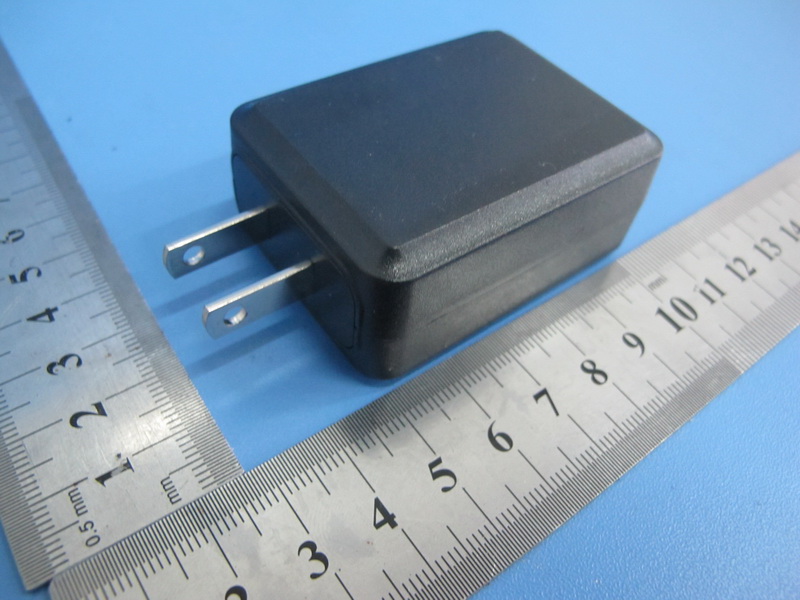

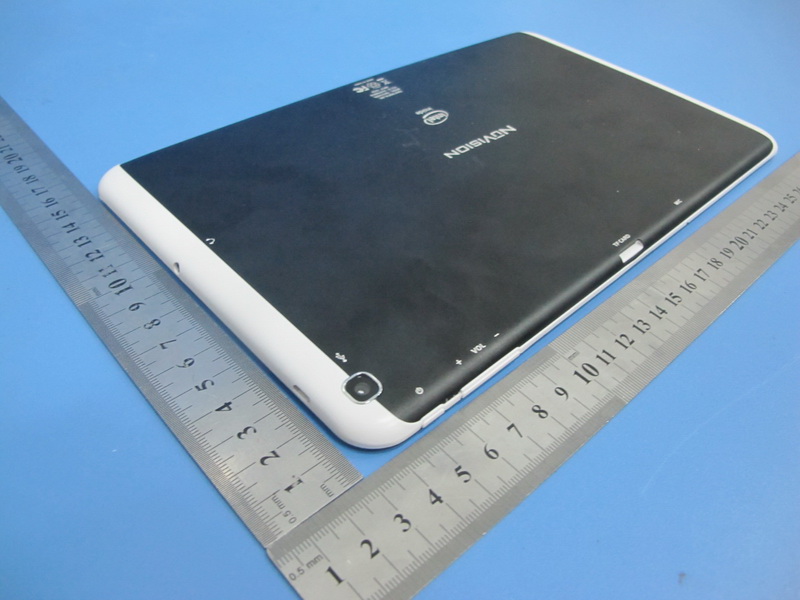

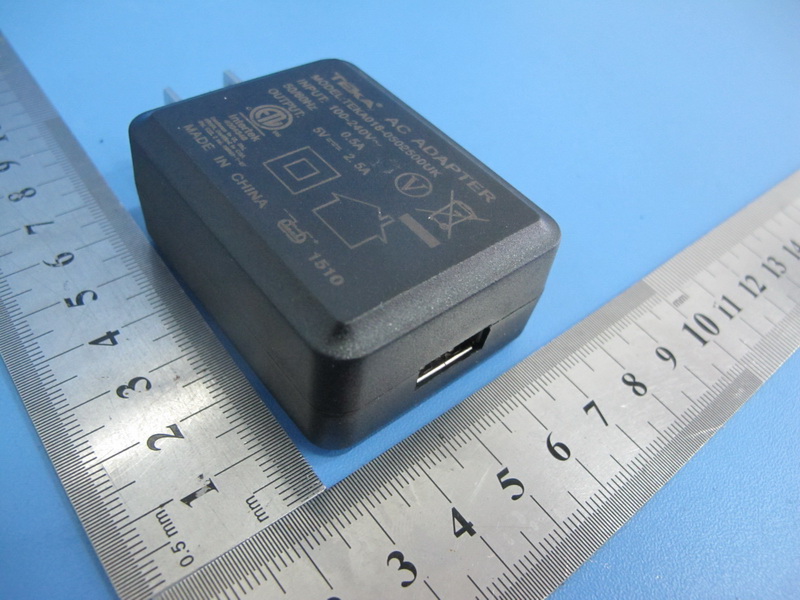

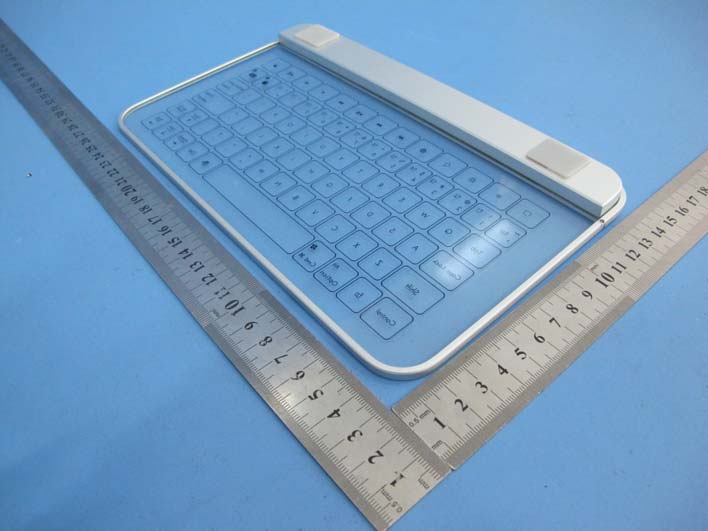

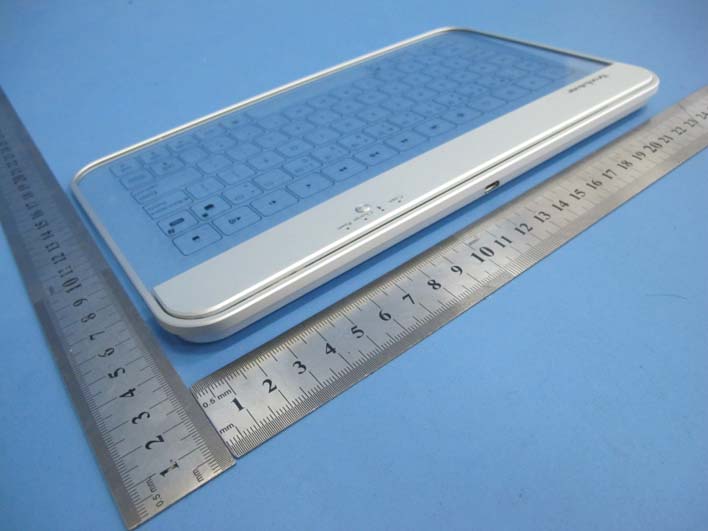

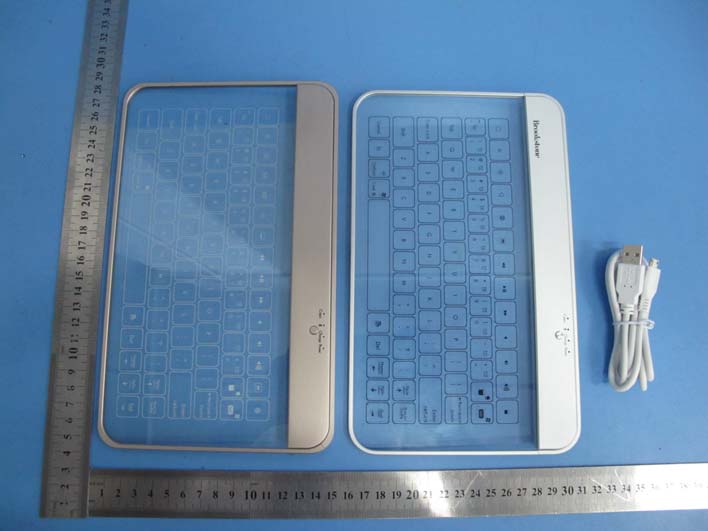

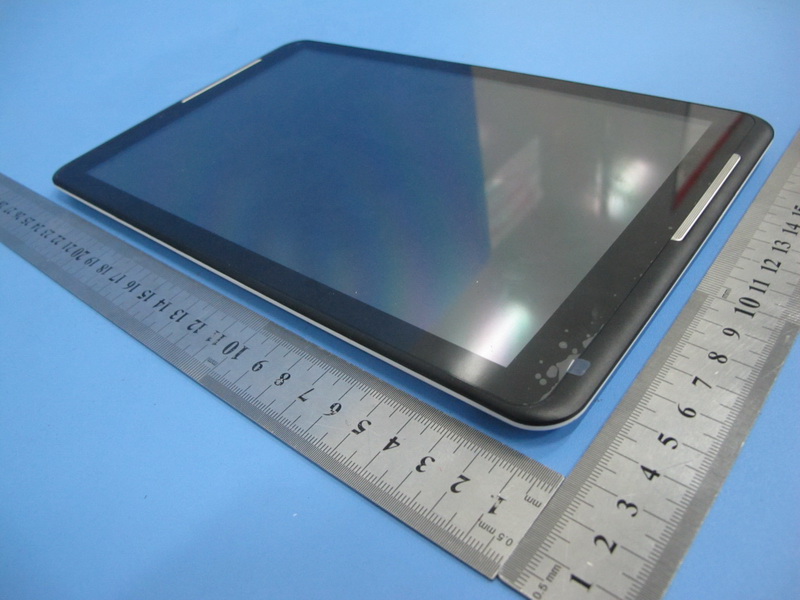

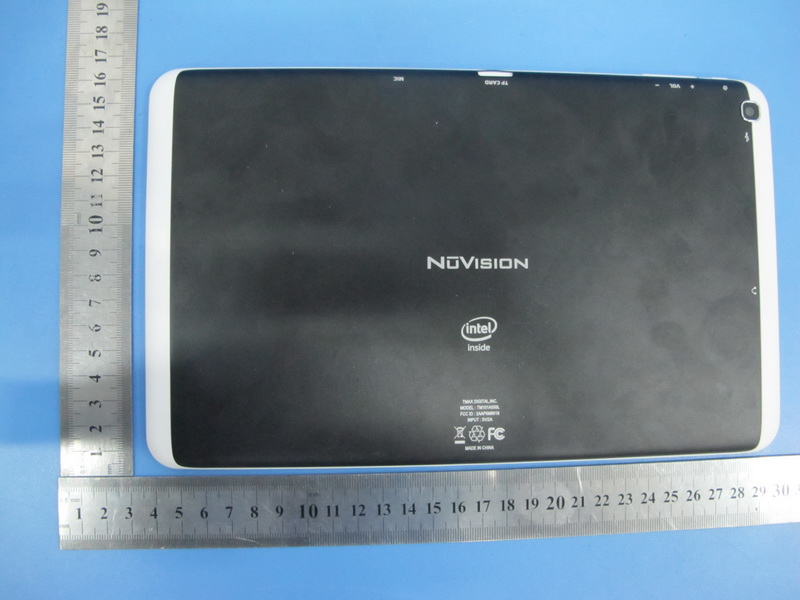

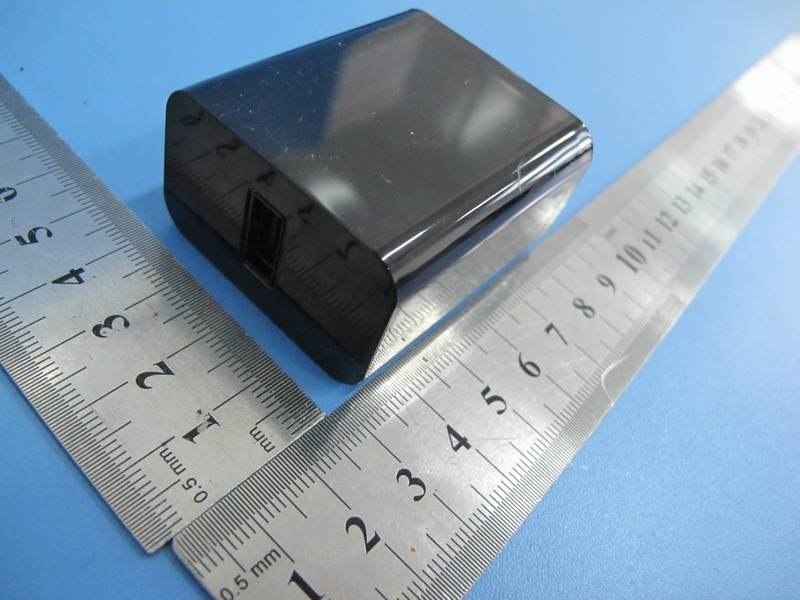

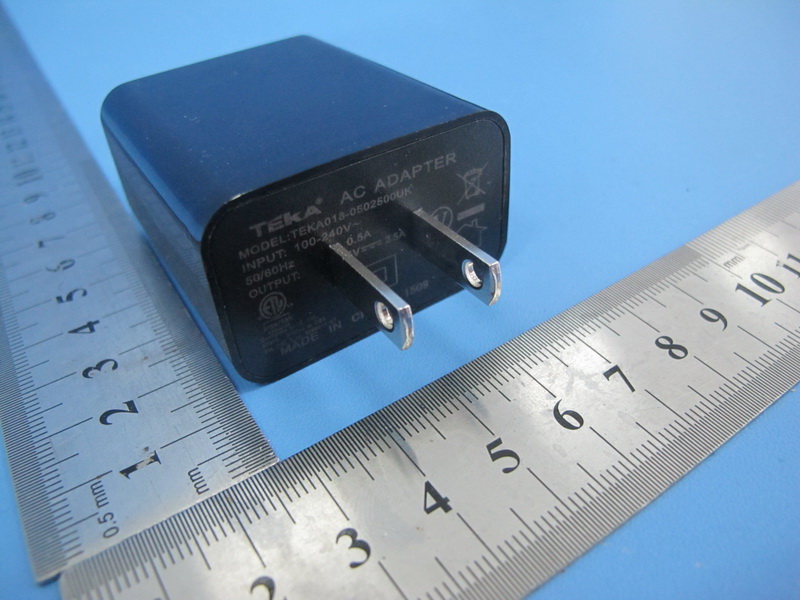

| Ext photo | External Photos | 2015-11-23 | PDF 280.2 KB |

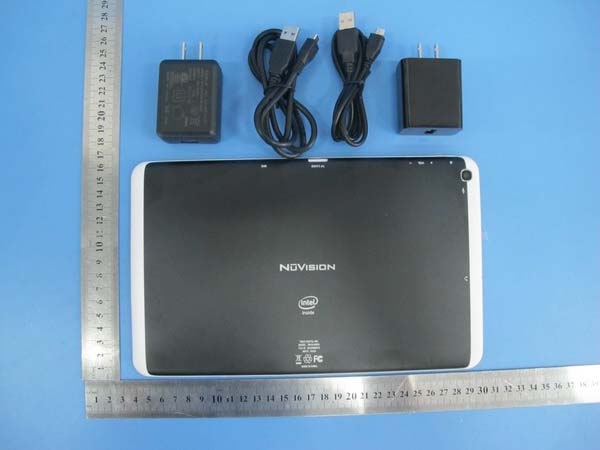

| Ext photo | External Photos | 2015-11-23 | PDF 1 MB |
| ID Label | ID Label/Location Info | 2015-11-23 | PDF 144.1 KB |
| ID Label Location | ID Label/Location Info | 2015-11-23 | PDF 179.9 KB |
| ID Label location | ID Label/Location Info | 2015-11-23 | PDF 179.9 KB |
| Test setup photo | Test Setup Photos | 2015-11-23 | PDF 136.6 KB |
| Test setup photos | Test Setup Photos | 2015-11-23 | PDF 136.6 KB |
| Test Report | Test Report | 2015-11-23 | PDF 1.9 MB |
| Test Report | Test Report | 2015-11-23 | PDF 2.7 MB |
| Test report | Test Report | 2015-11-23 | PDF 3.3 MB |
| DoC Attestation Letter | Cover Letter(s) | 2015-11-23 | PDF 32.9 KB |
| DoC Attestation letter | Cover Letter(s) | 2015-11-23 | PDF 32.9 KB |
| Confidential request letter | Cover Letter(s) | 2015-11-23 | PDF 24.1 KB |
| Model Declaration Letter | Cover Letter(s) | 2015-11-23 | PDF 72.3 KB |
| POA | Cover Letter(s) | 2015-11-23 | PDF 25.3 KB |
| WiFi ch 12 13 | Cover Letter(s) | 2015-11-23 | PDF 71.6 KB |
| RF Exposure | RF Exposure Info | 2015-11-23 | PDF 307.7 KB |
| RF exposure | RF Exposure Info | 2015-11-23 | PDF 307.7 KB |
| Block diagram Metadata only | Block Diagram | PDF 257 KB | |
| SCH Metadata only | Schematics | PDF 363.3 KB | |
| OpDes Metadata only | Operational Description | PDF 79.4 KB |
Application Information
| Application ID | fM5c12T5SPXJyrc0DhD57g== |
|---|---|
| Final Action Date | 2015-11-23 |
| Application Purpose | Original Equipment |
| Applicant FRN | 0023166143 |
| Model | TW1066 |
| Frequency Range | 2402-2480 MHz |
| Equipment Class | DSS - Part 15 Spread Spectrum Transmitter |
| Device Description | 10.1 inch MID |
| Responsible Party | Quanxing Huang, pie05@ttdtz.com  , +86-755-36697316 |
| Test Firm | Justin Zhang, Shenzhen Toby Technology Co., Ltd., toby888@tongbiao.com  , 0086-755-26509301 |
| TCB Email | TCB@siemic.com  |
| TCB Scope | A4: UNII devices & low power transmitters using spread spectrum techniques |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | Yes |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | Yes |
| Composite Part | No |
| Cognitive Radio | No |
| Authorization Waiver | No |
| Authorization Waiver Approved | No |
| Section 5301 Certification | Yes |
| Related OET Knowledge DataBase Inquiry | No |
| Grant Comments | Power listed is the maximum conducted output power. |
Applications
| Application ID | Date | Purpose |
|---|---|---|
| fM5c12T5SPXJyrc0DhD57g== | 2015-11-23 | Original Equipment |
| DcROWxBref3PafRQluvzQg== | 2015-11-23 | Original Equipment |
Equipment Authorization
Grants
TCB Grant - Application fM5c12T5SPXJyrc0DhD57g==
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
Bureau Veritas Consumer Products Services, Inc. 775 Montague Expressway Milpitas, CA 95035 |
Date of Grant: 11/23/2015 Application Dated: 11/23/2015 |
| Shenzhen Tianzheng Hongye Technology Co.Ltd. |
| Building C, Guancheng Science and Technology Park, |
| Zhenxing Road,Carp River Industrial Zone,Gongming, |
| Shenzhen City, China |
| Attention: Quanxing Huang |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | 2ABEPTW1066 |
| Name of Grantee: | Shenzhen Tianzheng Hongye Technology Co.Ltd. |
| Equipment Class: | Part 15 Spread Spectrum Transmitter |
| Notes: | 10.1 inch MID |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| CC | 15C | 2402.0 - 2480.0 | 0.00298 |
| Power listed is the maximum conducted output power. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
EAS Grant - Application fM5c12T5SPXJyrc0DhD57g==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
Shenzhen Tianzheng Hongye Technology Co.Ltd. Building C, Guancheng Science and Technology Park, Zhenxing Road,Carp River Industrial Zone,Gongming, Shenzhen City, China |
Date of Grant: 11/23/2015 Application Dated: 11/23/2015 |
| Attention: Quanxing Huang |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | 2ABEPTW1066 |
| Name of Grantee: | Shenzhen Tianzheng Hongye Technology Co.Ltd. |
| Equipment Class: | Part 15 Spread Spectrum Transmitter |
| Notes: | 10.1 inch MID |
| Modular Type: | Does not apply |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| CC | 15C | 2402.0 - 2480.0 | 0.00298 |
| Power listed is the maximum conducted output power. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
