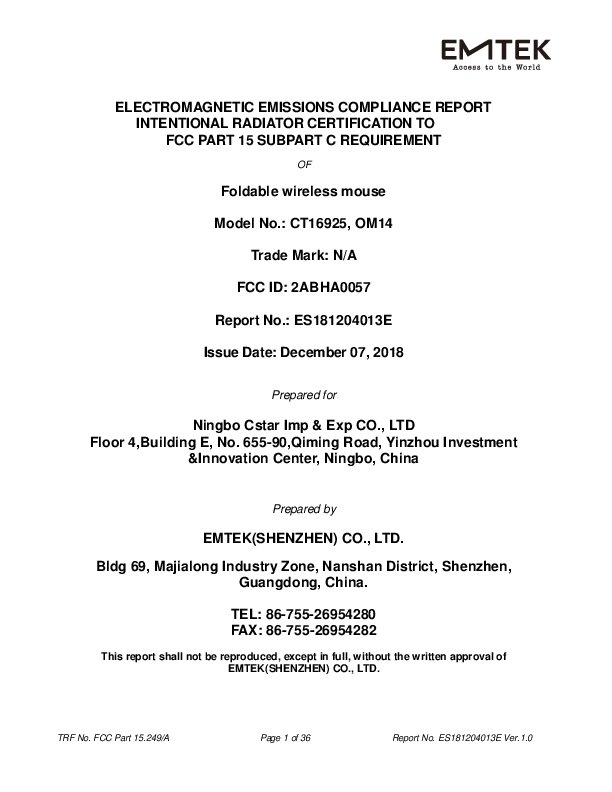

ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT
INTENTIONAL RADIATOR CERTIFICATION TO
FCC PART 15 SUBPART C REQUIREMENT
OF
Foldable wireless mouse
Model No.: CT16925, OM14
Trade Mark: N/A
FCC ID: 2ABHA0057
Report No.: ES181204013E
Issue Date: December 07, 2018
Prepared for
Ningbo Cstar Imp & Exp CO., LTD
Floor 4,Building E, No. 655-90,Qiming Road, Yinzhou Investment
&Innovation Center, Ningbo, China
Prepared by
EMTEK(SHENZHEN) CO., LTD.
Bldg 69, Majialong Industry Zone, Nanshan District, Shenzhen,
Guangdong, China.
TEL: 86-755-26954280
FAX: 86-755-26954282
This report shall not be reproduced, except in full, without the written approval of
EMTEK(SHENZHEN) CO., LTD.
TRF No. FCC Part 15.249/A
Page 1 of 36
Report No. ES181204013E Ver.1.0
VERIFICATION OF COMPLIANCE
Applicant:
Manufacturer:
Ningbo Cstar Imp & Exp CO., LTD
Floor 4,Building E, No. 655-90,Qiming Road, Yinzhou Investment
&Innovation Center, Ningbo, China
Ningbo Cstar Imp & Exp CO., LTD
Floor 4,Building E, No. 655-90,Qiming Road, Yinzhou Investment
&Innovation Center, Ningbo, China
Product Description:
Foldable wireless mouse
Trade Mark:
N/A
Model Number:
CT16925, OM14
We hereby certify that:
The above equipment was tested by EMTEK(SHENZHEN) CO., LTD. The test data,
data evaluation, test procedures, and equipment configurations shown in this report
were made in accordance with the procedures given in ANSI C63.10-2013 and the
energy emitted by the sample EUT tested as described in this report is in compliance
with conducted and radiated emission limits of FCC Rules Part 15.249(2018).
Date of Test :
December 04, 2018 to December 07, 2018
Prepared by :
Yaping Shen/Editor
Reviewer :
Joe Xia/Supervisor
Approved & Authorized Signer :
Lisa Wang/Manager
TRF No. FCC Part 15.249/A
Page 2 of 36
Report No. ES181204013E Ver.1.0
Modified Information
Version
Summary
Revision Date
Report No.
Ver.1.0
Original Report
ES181204013E
TRF No. FCC Part 15.249/A
Page 3 of 36
Report No. ES181204013E Ver.1.0
Table of Contents
1. GENERAL INFORMATION........................................................................................................................... 5
1.1 PRODUCT DESCRIPTION ............................................................................................................................. 5
1.2 TEST FACILITY .......................................................................................................................................... 6
2. TEST CONFIGURATION .............................................................................................................................. 7
3. SUMMARY OF TEST RESULTS .................................................................................................................. 8
4. DESCRIPTION OF TEST MODES ................................................................................................................ 9
5. TEST SYSTEM UNCERTAINTY ................................................................................................................. 10
6. 20DB BANDWIDTH TEST .......................................................................................................................... 11
6.1 MEASUREMENT PROCEDURE .................................................................................................................... 11
6.2 TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ................................................................................ 11
6.3 MEASUREMENT EQUIPMENT USED: ........................................................................................................... 11
6.4 MEASUREMENT RESULTS: ........................................................................................................................ 11
7. BAND EDGE TEST .................................................................................................................................... 14
7.1 MEASUREMENT PROCEDURE .................................................................................................................... 14
7.2 TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ................................................................................ 15
7.3 MEASUREMENT EQUIPMENT USED: ........................................................................................................... 15
7.4 MEASUREMENT RESULTS: ........................................................................................................................ 15
8. RADIATED EMISSION TEST ..................................................................................................................... 21
8.1 MEASUREMENT PROCEDURE .................................................................................................................... 21
8.2 TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ................................................................................ 23
8.3 MEASUREMENT EQUIPMENT USED: ........................................................................................................... 24
8.4 LIMIT: ..................................................................................................................................................... 25
8.5 MEASUREMENT RESULT ........................................................................................................................... 26
8.5 RADIATED MEASUREMENT PHOTOS: .......................................................................................................... 31
9. ANTENNA REQUIREMENT ....................................................................................................................... 32
9.1 LIMIT ...................................................................................................................................................... 32
9.2 RESULT .................................................................................................................................................. 32
Appendix I (Photos of EUT) (9 pages)
TRF No. FCC Part 15.249/A
Page 4 of 36
Report No. ES181204013E Ver.1.0
1. General Information
1.1 Product Description
Characteristics
Description
Product Name
Foldable wireless mouse
Model number
CT16925, OM14
(Note: These models are same except model number and
appearance, here the model CT16925 was selected for full test.)
Input rating
Battery 2*1.5V
Test Power Supply
Battery 2*1.5V
Modulation
GFSK
Operating Frequency
Range
2405-2475MHz
Number of Channels
13
Antenna Type
Internal antenna
Antenna Gain
0 dBi
TRF No. FCC Part 15.249/A
Page 5 of 36
Report No. ES181204013E Ver.1.0
1.2 Test Facility
Site Description
EMC Lab.
Accredited by CNAS, 2016.10.24
The certificate is valid until 2022.10.28
The Laboratory has been assessed and proved to be in
compliance with CNAS-CL01:2006 (identical to ISO/IEC
17025:2005)
The Certificate Registration Number is L2291.
Accredited by TUV Rheinland Shenzhen 2016.5.19
The Laboratory has been assessed according to the
requirements ISO/IEC 17025.
Accredited by FCC, August 03, 2017
Designation Number: CN1204
Test Firm Registration Number: 882943
Accredited by Industry Canada, November 24, 2015
The Certificate Registration Number is 4480A.
Accredited by A2LA, July 31, 2017
The Certificate Number is 4321.01.
Name of Firm
EMTEK(SHENZHEN) CO., LTD.
Site Location
Bldg 69, Majialong Industry Zone, Nanshan District,
Shenzhen, Guangdong, China.
TRF No. FCC Part 15.249/A
Page 6 of 36
Report No. ES181204013E Ver.1.0
2. Test Configuration
EUT
Table 2-1 Equipment Used in Tested System
Item
Equipment
Trade Mark
Model No.
FCC ID
Note
1.
Foldable
wireless mouse
N/A
CT16925
2ABHA0057
EUT
Note:
(1)
Unless otherwise denoted as EUT in『Remark』column , device(s) used in tested
system is a support equipment.
TRF No. FCC Part 15.249/A
Page 7 of 36
Report No. ES181204013E Ver.1.0
3. Summary of Test Results
FCC Rules
Description Of Test
Result
AC Power Conducted
§15.207
N/A
Emission
2.1049
20dB Bandwidth
Complies
§15.249/15.205
Band Edge
Complies
Field Strength of Fundamental
Complies
§15.249(a)
Emissions
§15.249(a)(d)
Radiated Spurious Emissions
Complies
§15.203
Antenna Requirements
Complies
Remark: The product was tested under the battery fully charged.
TRF No. FCC Part 15.249/A
Page 8 of 36
Report No. ES181204013E Ver.1.0
4. Description of test modes
The EUT is used as a receiver together with dongles, but it still has the function of transmitting.
More detailed feature description, please refer to the operation description or Users Manual.
The test mode is programmed on the EUT. The measurements are performed at Channel 1
(2405MHz), Channel 7 (2451MHz) and Channel 13 (2475MHz) are chosen for the final
testing.
Channel List:
Channel
Frequency
(MHz)
Channel
Frequency
(MHz)
Channel
Frequency
(MHz)
2405
2408
2411
2414
2417
2448
2451
2454
2457
10
2466
11
2469
12
2472
13
2475
TRF No. FCC Part 15.249/A
Page 9 of 36
Report No. ES181204013E Ver.1.0
5. TEST SYSTEM UNCERTAINTY
The following measurement uncertainty levels have been estimated for tests performed on the
apparatus:
Parameter
Radio Frequency
Maximum Peak Output Power Test
Conducted Emissions Test
Radiated Emission Test
Power Density
Occupied Bandwidth Test
Band Edge Test
All emission, radiated
Antenna Port Emission
Temperature
Humidity
Uncertainty
±1x10^-5
±1.0dB
±2.0dB
±2.0dB
±2.0dB
±1.0dB
±3dB
±3dB
±3dB
±0.5℃
±3%
Remark: The coverage Factor (k=2), and measurement Uncertainty for a level of Confidence of 95%.
TRF No. FCC Part 15.249/A
Page 10 of 36
Report No. ES181204013E Ver.1.0
6.
20dB Bandwidth test
6.1 Measurement Procedure
The EUT was operating in hopping mode or could be controlled its channel. Printed out
the test result from the spectrum by hard copy function.
6.2 Test SET-UP (Block Diagram of Configuration)
EUT
Spectrum Analyzer
6.3 Measurement Equipment Used:
EQUIPMENT
TYPE
Spectrum Analyzer
Coaxial Cable
Antenna Connector
MFR
MODEL
NUMBER
Rohde & Schwarz
FSV30
CDS
79254
ARTHUR-YANG 2244-N1TG1
SERIAL
NUMBER
1321.3008K
46107086
N/A
Characteristics
10Hz-30GHz
10Hz-30GHz
10Hz-30GHz
LAST
CAL.
05/16/2018
05/16/2018
05/16/2018
CAL DUE.
05/16/2019
05/16/2019
05/16/2019
Remark: The temporary antenna connector is soldered on the PCB board in order to perform
conducted tests and this temporary antenna connector is listed in the equipment list.
The cable loss is 0.4dBm, and impedance is 50Ω for the antenna connector.
6.4 Measurement Results:
Refer to attached data chart.
Spectrum Detector:
Test By:
Test Result:
Modulation:
PK
Andy
PASS
FSK
Test Date :
Temperature :
Humidity :
Channel frequency (MHz)
2405
2451
2475
TRF No. FCC Part 15.249/A
Page 11 of 36
December 07, 2018
24℃
53 %
20dB Down BW(kHz)
2685
2692
2699
Report No. ES181204013E Ver.1.0
TRF No. FCC Part 15.249/A
Page 12 of 36
Report No. ES181204013E Ver.1.0
TRF No. FCC Part 15.249/A
Page 13 of 36
Report No. ES181204013E Ver.1.0
7.
Band EDGE test
7.1 Measurement Procedure
The EUT was placed on a styrofoam table which is 1.5m above ground plane.
The measurement procedure at the ban edges was simplified by performing the
measurement in just one plot. Both, the in-band-emission and the unwanted emission were
be encompassed by the span. After trace stabilization, the maximum peak was be
determined by a peak detector and the value was marked by an appropriate limit line. The
second limit line, which is 20dB below the first, marks the limit for the emissions in the
unrestricted band. A maximum-peak-detector marks the highest emission in the
unrestricted band next to the band edge.
The measurements were performed at the lower end of the 2.4GHz band.
Use the following spectrum analyzer settings:
When spectrum scanned above 1GHz setting resolution bandwidth 1MHz, video
bandwidth 3MHz:
EMI Test Receiver
Attenuation
RB
VB
Detector
Trace
Setting
Auto
1MHz
3MHz
Peak
Max hold
When spectrum scanned above 1GHz setting resolution bandwidth 1MHz, video
bandwidth 10Hz:
EMI Test Receiver
Attenuation
RB
VB
Detector
Trace
TRF No. FCC Part 15.249/A
Setting
Auto
1MHz
10Hz
Peak
Max hold
Page 14 of 36
Report No. ES181204013E Ver.1.0
7.2 Test SET-UP (Block Diagram of Configuration)
Rx Antenna
Bore Sight Antenna Mast
3m
Ant. feed point
4m
Turntable
EUT
1.5 m
Amplifier
Test
Receiver
7.3 Measurement Equipment Used:
Item
Equipment
Manufacturer
Model No.
Serial No.
Signal
Analyzer
Rohde &
Schwarz
FSV30
103040
Horn Antenna
Schwarzbeck
BBHA9120D
LUNAR EM
LNA1G18-40
H+S
CBL-26
Power
Amplifier
Cable
9120D-12
72
J1010000
0081
N/A
Cable
H+S
CBL-26
N/A
Cable
H+S
CBL-26
N/A
Characteristics
9KHz-40GHz
1GHz-18GHz
Last Cal.
Cal.
Interval
05/16/2018
1 Year
05/16/2018
1GHz-26.5GHz
05/16/2018
1 Year
1GHz-26.5GHz
05/16/2018
1 Year
1GHz-26.5GHz
1GHz-26.5GHz
05/16/2018
1 Year
05/16/2018
1 Year
7.4 Measurement Results:
Spectrum Detector:
Test By:
Test Result:
PK
Andy
PASS
Test Date :
Temperature :
Humidity :
December 07, 2018
25 ℃
50 %
1. Conducted Test
Frequency
(MHz)
Modulation
Peak Power
Output(dBm)
Result of Band
edge(dBc)
Band edge
Limit(dBc)
2399.1
2484.02
GFSK
GFSK
-6.62
-4.46
41.43
46.13
>20dBc
>20dBc
TRF No. FCC Part 15.249/A
Page 15 of 36
1 Year
Report No. ES181204013E Ver.1.0
TRF No. FCC Part 15.249/A
Page 16 of 36
Report No. ES181204013E Ver.1.0
2. Radiated emission Test
TRF No. FCC Part 15.249/A
Page 17 of 36
Report No. ES181204013E Ver.1.0
TRF No. FCC Part 15.249/A
Page 18 of 36
Report No. ES181204013E Ver.1.0
TRF No. FCC Part 15.249/A
Page 19 of 36
Report No. ES181204013E Ver.1.0
TRF No. FCC Part 15.249/A
Page 20 of 36
Report No. ES181204013E Ver.1.0
8.
Radiated Emission Test
8.1 Measurement Procedure
1. Below 1000MHz, The EUT was placed on a turn table which is 0.8m above ground
plane. And above 1000MHz, The EUT was placed on a styrofoam table which is 1.5m
above ground plane.
2. The EUT was set 3 meters from the interference receiving antenna, which was
mounted on the top of a variable height antenna tower.
3. For each suspected emission, the EUT was arranged to its worst case and then tune
the Antenna tower (From 1m to 4m) and turntable (from 0 degree to 360 degree) to
find the maximum reading. A pre-amp and a high pass filter are used for the test in
order to get better signal level to comply with the guidelines.
4. Set to the maximum power setting and enable the EUT transmit continuously.
5. Final measurement (Above 1GHz): The frequency range will be divided into different
sub ranges depending of the frequency range of the used horn antenna. The EMI
Receiver set to peak and average mode and a resolution bandwidth of 1MHz. The
measurement will be performed in horizontal and vertical polarization of the
measuring antenna and while rotating the EUT in its vertical axis in the range of 0
degree to 360 degree in order to have the antenna inside the cone of radiation.
6. Test Procedure of measurement (For Above 1GHz):
1) Monitor the frequency range at horizontal polarization and move the antenna over
all sides of the EUT(if necessary move the EUT to another orthogonal axis).
2) Change the antenna polarization and repeat 1) with vertical polarization.
3) Make a hardcopy of the spectrum.
4) Measure the frequency of the detected emissions with a lower span and resolution
bandwidth to increase the accuracy and note the frequency value.
5) Change the analyser mode to Clear/ Write and found the cone of emission.
6) Rotate and move the EUT, so that the measuring distance can be enlarged to 3m
and the antenna will be still inside the cone of emission.
7) Measure the level of the detected frequency with the correct resolution bandwidth,
with the antenna polarization and azimuth and the peak and average detector,
which causes the maximum emission.
8) Repeat steps 1) to 7) for the next antenna spot if the EUT is larger than the
antenna beamwidth.
TRF No. FCC Part 15.249/A
Page 21 of 36
Report No. ES181204013E Ver.1.0
The following table is the setting of spectrum analyzer:
When spectrum scanned from 30MHz to 1GHz setting resolution bandwidth 120KHz and
video bandwidth 300KHz:
EMI Test Receiver
Attenuation
RB
VB
Detector
Trace
Setting
Auto
120KHz
300KHz
QP
Max hold
For harmonics emission .When spectrum scanned above 1GHz setting resolution
bandwidth 1MHz, video bandwidth 3MHz:
EMI Test Receiver
Attenuation
RB
VB
Detector
Trace
Setting
Auto
1MHz
3MHz
Peak
Max hold
For fundamental emission .When spectrum scanned above 1GHz setting resolution
bandwidth 3MHz, video bandwidth 10MHz:
EMI Test Receiver
Attenuation
RB
VB
Detector
Trace
Setting
Auto
3MHz
10MHz
Peak / AV
Max hold
When spectrum scanned above 1GHz setting resolution bandwidth 1MHz, video
bandwidth 10Hz:
EMI Test Receiver
Attenuation
RB
VB
Detector
Trace
TRF No. FCC Part 15.249/A
Setting
Auto
1MHz
10Hz
Peak
Max hold
Page 22 of 36
Report No. ES181204013E Ver.1.0
8.2 Test SET-UP (Block Diagram of Configuration)
(A) Radiated Emission Test Set-Up, Frequency Below 30MHz
Turntable
3m
EUT
Test
Receiver
0.8 m
Ground Plane
Coaxial Cable
(B) Radiated Emission Test Set-Up, Frequency Below 1000MHz
3m
Turntable
1m to 4m
EUT
Spectrum
Analyzer
0.8m
Ground Plane
Coaxial Cable
(C) Radiated Emission Test Set-Up, Frequency above 1000MHz
Rx Antenna
Bore Sight Antenna Mast
3m
4m
Turntable
Ant. feed point
EUT
1.5 m
TRF No. FCC Part 15.249/A
Amplifier
Page 23 of 36
Test
Receiver
Report No. ES181204013E Ver.1.0
8.3 Measurement Equipment Used:
Item
Equipment
Manufacturer
Model No.
Last Cal.
Cal.
Interval
05/16/2018
1 Year
9 KHz -30MHz
25MHz-2GHz
05/16/2018
05/16/2018
1 Year
1 Year
1MHz-1GHz
1GHz-26.5GHz
----
05/16/2018
05/16/2018
05/16/2018
05/16/2018
1 Year
1 Year
1 Year
1 Year
05/16/2018
1 Year
05/16/2018
1 Year
05/16/2018
05/16/2018
05/16/2018
05/16/2018
1 Year
1 Year
1 Year
1 Year
05/16/2018
1 Year
05/16/2018
1 Year
05/16/2018
1 Year
05/16/2018
1 Year
05/16/2018
1 Year
05/16/2018
05/16/2018
1 Year
1 Year
05/16/2018
1 Year
FMZB 1519
VULB9163
1166.5950.0
012
000141
CDS
HP
SUNSPO
JIANLI
RSU-M352
8447F
SP-140A
XL-3
818
OPT H64
N/A
N/A
JIANLI
DL-2X100B
N/A
JIANLI
DL-4X100B
N/A
JIANLI
Schwarzbeck
Rosenberger
Rosenberger
Rohde &
Schwarz
Schwarzbeck
Schwarzbeck
DL-2X50B
PLF-100
CIL02
RG 233/U
N/A
549489
A0783566
525178
FSV30
103040
BBHA9120D
BBHA 9170
9120D-1272
BBHA91703
99
N/A
1GHz-18GHz
14GHz -26.5GHz
J101000000
81
N/A
N/A
1GHz-26.5GHz
Test Receiver
2.
3.
Loop Antenna
Bilog Antenna
4.
5.
6.
7.
10.
11.
12.
13.
Power Amplifier
Power Amplifier
Color Monitor
Single Line Filter
Single Phase
Power Line Filter
3 Phase Power
Line Filter
DC Power Filter
Cable
Cable
Cable
14.
Signal Analyzer
15.
Horn Antenna
16.
Horn Antenna
17.
Boresight
Antenna Tower
EMEC
18.
Power Amplifier
LUNAR EM
19.
20.
Cable
Cable
H+S
H+S
AM-BS-450
0-D
LNA1G18-4
CBL-26
CBL-26
21.
Cable
H+S
CBL-26
9.
Characteristics
Rohde &
Schwarz
Schwarzbeck
Schwarzbeck
1.
8.
Serial No.
TRF No. FCC Part 15.249/A
ESCI
Page 24 of 36
N/A
9KHz-3GHz
--9KHz-3GHz
9KHz-3GHz
9KHz-3GHz
9KHz-40GHz
N/A
1GHz-26.5GHz
1GHz-26.5GHz
1GHz-26.5GHz
Report No. ES181204013E Ver.1.0
8.4 Limit:
The emissions from an intentional radiator shall not exceed the field strength levels
specified in the following table 15.209(a):
Remark: 1. Emission level in dBuV/m=20 log (uV/m)
2. Measurement was performed at an antenna to the closed point of EUT
distance of meters.
The field strength of emissions from intentional radiators operated within these
frequency bands shall comply with the following:
Frequency(MHz)
902-928
2400-2483.5
5725-5875
24000-24250
TRF No. FCC Part 15.249/A
Filed Strength of
Fundamental(at 3m)
PEAK
AVERAGE
114
94
114
94
114
94
128
108
Filed Strength of
Harmonics(at 3m)
PEAK
AVERAGE
74.0
54.0
74.0
54.0
74.0
54.0
88.0
68.0
Page 25 of 36
Report No. ES181204013E Ver.1.0
8.5 Measurement Result
Below 30MHz:
Operation Mode:
TX
Test Date :
December 06, 2018
Frequency Range:
9KHz~30MHz
Temperature :
28℃
Test Result:
Measured Distance:
PASS
3m
Humidity :
Test By:
65 %
Andy
Freq.
Ant.Pol.
(MHz)
--
H/V
--
Emission
Level
(dBuV/m)
--
Limit 3m
Over
(dBuV/m)
--
(dB)
--
Note: the amplitude of spurious emission that is attenuated by more than 20dB below the
permissible limit has no need to be reported.
Below 1000MHz:
Pass.
All the modulation modes were tested the worst data of the mode (TX 2405MHz)are
recorded in the following pages and the others modulation methods do not exceed the
limits.
Please refer to the following data.
TRF No. FCC Part 15.249/A
Page 26 of 36
Report No. ES181204013E Ver.1.0
TRF No. FCC Part 15.249/A
Page 27 of 36
Report No. ES181204013E Ver.1.0
TRF No. FCC Part 15.249/A
Page 28 of 36
Report No. ES181204013E Ver.1.0
Above 1000MHz~10th Harmonics:
Operation Mode:
Freq.
GFSK(CH1: 2405MHz)
December 06, 2018
Ant. Pol. Emission Level(dBuV/m) Limit 3m(dBuV/m)
(MHz)
2405(F)
4810
7215
9620
12025
14430
16835
2405(F)
4810
7215
9620
12025
14430
16835
H/V
Operation Mode:
Freq.
Test Date :
PK
90.24
62.31
60.12
56.74
55.65
56.3
55.2
89.32
61.99
60.2
56.32
56.2
55.21
55.3
AV
72.16
43.02
41.22
37.14
36.47
36.02
35.68
71.2
42.69
41.25
37.51
37.58
36.25
36.14
PK
114
74
74
74
74
74
74
114
74
74
74
74
74
74
GFSK(CH7: 2451MHz)
AV
94
54
54
54
54
54
54
94
54
54
54
54
54
54
Test Date :
Ant. Pol. Emission Level(dBuV/m) Limit 3m(dBuV/m)
Margin(dB)
PK
-23.76
-11.69
-13.88
-17.26
-18.35
-17.7
-18.8
-24.68
-12.01
-13.8
-17.68
-17.8
-18.79
-18.7
AV
-21.84
-10.98
-12.78
-16.86
-17.53
-17.98
-18.32
-22.8
-11.31
-12.75
-16.49
-16.42
-17.75
-17.86
December 06, 2018
Margin(dB)
(MHz)
2451(F)
H/V
PK
89.2
AV
72.36
PK
114
AV
94
PK
-24.8
AV
-21.64
4902
7353
9804
12255
14706
17157
2451(F)
4902
7353
9804
12255
14706
17157
63.25
60.14
58.3
56.35
55.31
55.47
88.36
63.14
60.25
56.37
56.14
55.2
55.39
44.69
41.15
39.65
37.58
36.25
36.25
71.65
44.05
41.25
37.69
37.52
36.74
36.44
74
74
74
74
74
74
114
74
74
74
74
74
74
54
54
54
54
54
54
94
54
54
54
54
54
54
-10.75
-13.86
-15.7
-17.65
-18.69
-18.53
-25.64
-10.86
-13.75
-17.63
-17.86
-18.8
-18.61
-9.31
-12.85
-14.35
-16.42
-17.75
-17.75
-22.35
-9.95
-12.75
-16.31
-16.48
-17.26
-17.56
TRF No. FCC Part 15.249/A
Page 29 of 36
Report No. ES181204013E Ver.1.0
Operation Mode:
Freq.
GFSK(CH13: 2475MHz)
Test Date :
Ant. Pol. Emission Level(dBuV/m) Limit 3m(dBuV/m)
December 06, 2018
Margin(dB)
(MHz)
2475(F)
H/V
PK
91.02
AV
72.65
PK
114
AV
94
PK
-22.98
AV
-21.35
4950
7425
9900
12375
14850
17325
2475(F)
4950
7425
9900
12375
14850
17325
63.5
60.28
58.66
56.32
55.68
55.47
90.36
63.15
60.38
58.16
56.5
55.36
55.02
44.2
41.33
39.52
37.45
36.52
36.17
71.55
44.66
41.2
39.85
37.69
36.78
36.58
74
74
74
74
74
74
114
74
74
74
74
74
74
54
54
54
54
54
54
94
54
54
54
54
54
54
-10.5
-13.72
-15.34
-17.68
-18.32
-18.53
-23.64
-10.85
-13.62
-15.84
-17.5
-18.64
-18.98
-9.8
-12.67
-14.48
-16.55
-17.48
-17.83
-22.45
-9.34
-12.8
-14.15
-16.31
-17.22
-17.42
Other harmonics emissions are lower than 20dB below the allowable limit.
Note:
(1) All Readings are Peak Value and AV.
(2) Emission Level= Reading Level+ Probe Factor +Cable Loss.
(3) The average measurement was not performed when the peak measured data
under the limit of average detection.
(4) Measuring frequencies from 1GHz to 25GHz.
TRF No. FCC Part 15.249/A
Page 30 of 36
Report No. ES181204013E Ver.1.0
8.5 Radiated Measurement Photos:
TRF No. FCC Part 15.249/A
Page 31 of 36
Report No. ES181204013E Ver.1.0
9. Antenna requirement
9.1 Limit
Except for special regulations, the Low-power Radio-Frequency Devices must not be
equipped with any jacket for installing an antenna with extension cable. An intentional radiator
shall be designed to ensure that no antenna other than that furnished by the responsible party
shall be used with the device. The use of a permanently attached antenna or of an antenna
that uses a unique coupling to the intentional radiator shall be considered sufficient to comply
with the provisions of this section. The manufacture may design the unit so that the user can
replace a broken antenna, but the use of a standard antenna jack or electrical connector is
prohibited.
9.2 Result
The EUT’s antenna, permanent attached antenna, used a Internal antenna, The antenna’s
gain is 0 dBi and meets the requirement.
TRF No. FCC Part 15.249/A
Page 32 of 36
Report No. ES181204013E Ver.1.0
APPENDIX I
(Photos of EUT)
TRF No. FCC Part 15.249/A
Page 33 of 36
Report No. ES181204013E Ver.1.0
TRF No. FCC Part 15.249/A
Page 34 of 36
Report No. ES181204013E Ver.1.0
TRF No. FCC Part 15.249/A
Page 35 of 36
Report No. ES181204013E Ver.1.0
----------------The end---------------TRF No. FCC Part 15.249/A
Page 36 of 36
Report No. ES181204013E Ver.1.0
Download: 0057 Foldable wireless mouse Test Report ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT NINGBO CSTAR IMP&EXP; CO., LTD
Mirror Download [FCC.gov]0057 Foldable wireless mouse Test Report ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT NINGBO CSTAR IMP&EXP; CO., LTD
Document ID4113999
Application IDEdRN5kcnaD02sMutm2t9fQ==
Document DescriptionTest report
Short Term ConfidentialNo
Permanent ConfidentialNo
SupercedeNo
Document TypeTest Report
Display FormatAdobe Acrobat PDF - pdf
Filesize159.79kB (1997419 bits)
Date Submitted2018-12-22 00:00:00
Date Available2018-12-22 00:00:00
Creation Date2018-12-19 10:23:05
Producing SoftwareMicrosoft Office Word 2007
Document Lastmod2018-12-21 15:02:52
Document TitleELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT
Document CreatorMicrosoft Office Word 2007
Document Author: fly

Source Exif Data [exif.tools]:
File Type                       : PDF
File Type Extension             : pdf
MIME Type                       : application/pdf
PDF Version                     : 1.5
Linearized                      : No
Language                        : zh-CN
Tagged PDF                      : Yes
XMP Toolkit                     : Adobe XMP Core 5.6-c015 81.157285, 2014/12/12-00:43:15
Format                          : application/pdf
Creator                         : fly
Title                           : ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT
Create Date                     : 2018:12:19 10:23:05
Creator Tool                    : Microsoft Office Word 2007
Modify Date                     : 2018:12:21 15:02:52+08:00
Metadata Date                   : 2018:12:21 15:02:52+08:00
Producer                        : Microsoft Office Word 2007
Document ID                     : uuid:28928ad7-a99e-4b08-af89-550d4594a2c2
Instance ID                     : uuid:a97c49f6-3aaa-45d6-89f3-12f332d6ac81
Page Count                      : 36
Author                          : fly
