FCC ID 2ABK3-682870

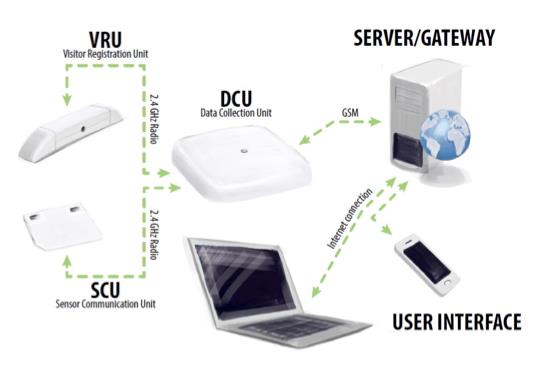

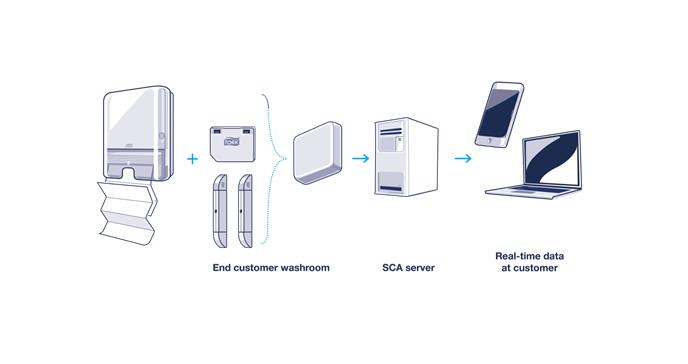

The Tork EasyCube Sensor Communication Unit (SCU) has an embedded sensor with a radio component that forwards information on refill level, other status of the dispenser and battery level on the device to the Data Collection Unit (DCU) via 2.4 GHz rad
by Essity Hygiene and Health AB
Grantee Code: 2ABK3 Product Code: 682870
Latest application date: 2015-09-25
Device Images
FCC ID Device Details
| FCC ID | 2ABK3-682870 |
|---|---|
| Mirrors | fcc.id | gov | fccid.ai |
| Grantee Code | 2ABK3 |
| Product Code | 682870 |
| Applicant Business | Essity Hygiene and Health AB 🇸🇪 |
| Related Domains |  sca.com |
| Equipment Class | The Tork EasyCube Sensor Communication Unit (SCU) has an embedded sensor with a radio component that forwards information on refill level, other status of the dispenser and battery level on the device to the Data Collection Unit (DCU) via 2.4 GHz rad |
| Test Firm | Intertek Semko AB |
Operating Frequencies
| Frequency Range | Application Purpose | Final Action Date |
|---|---|---|
| 2405 MHz | Original Equipment | 2015-09-25 |
Exhibits
| Document | Type | Available | File |
|---|---|---|---|
| Users manual | Users Manual | 2015-09-25 | PDF 570.3 KB |

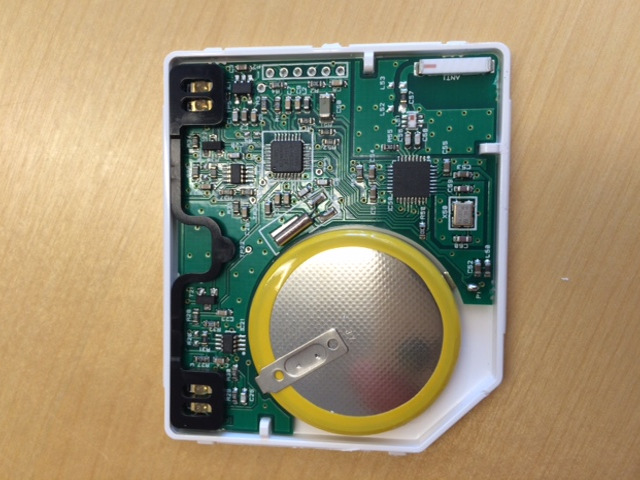

| Internal photos | Internal Photos | 2015-09-25 | PDF 106.7 KB |

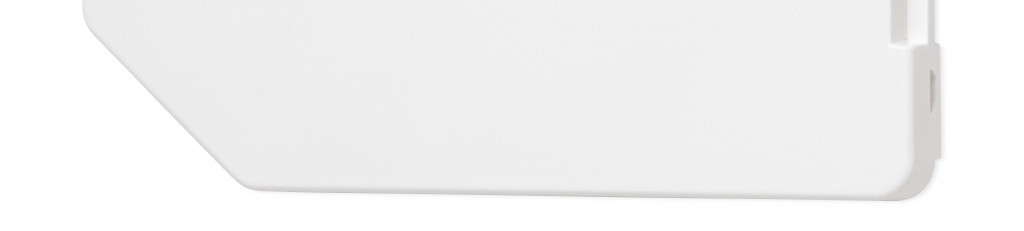

| External photos | External Photos | 2015-09-25 | PDF 61.5 KB |
| Label artwork and location info | ID Label/Location Info | 2015-09-25 | PDF 113.5 KB |

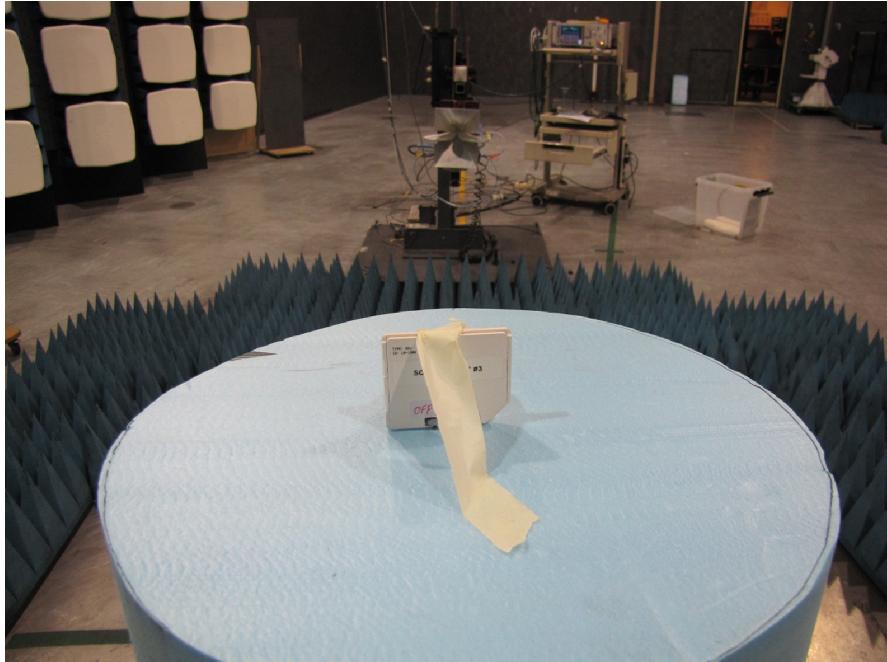

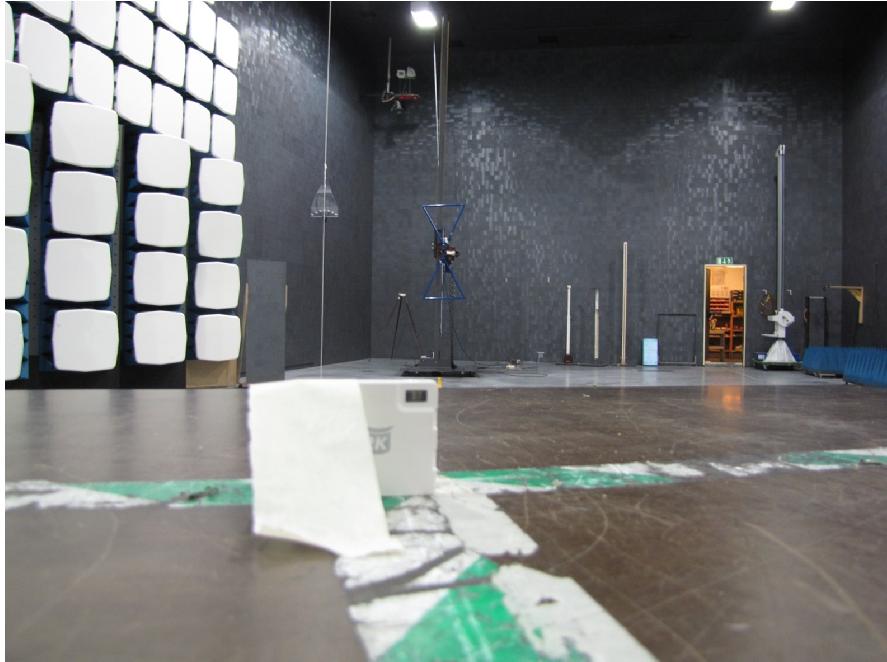

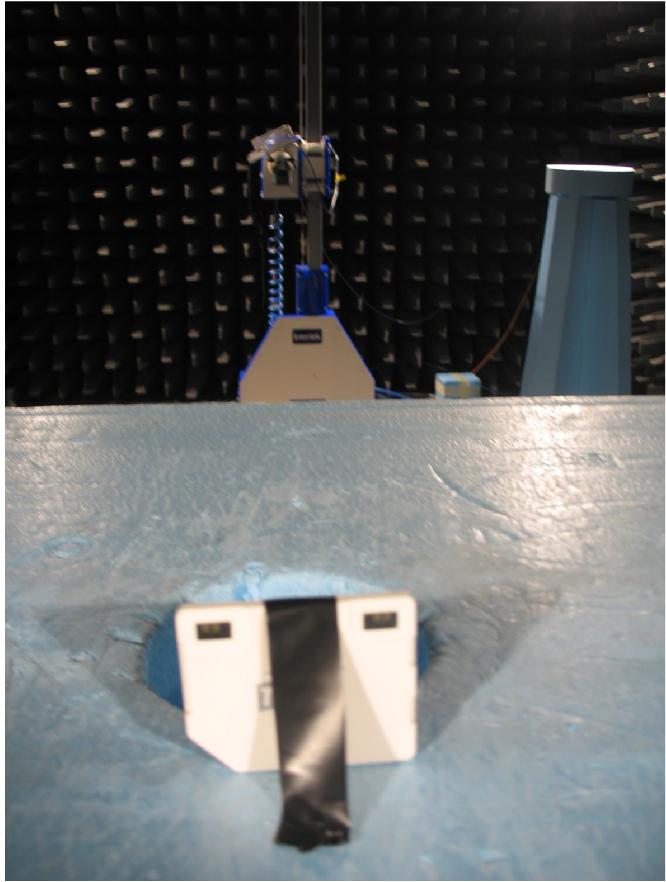

| Test setup photos | Test Setup Photos | 2015-09-25 | PDF 196.1 KB |
| Test report | Test Report | 2015-09-25 | PDF 3.2 MB |
| Grantee authorization | Attestation Statements | 2015-09-25 | PDF 139.9 KB |
| Confidentiality request | Cover Letter(s) | 2015-09-25 | PDF 97.2 KB |
| Letter of agency | Cover Letter(s) | 2015-09-25 | PDF 38.6 KB |
| RF exposure evaluation | RF Exposure Info | 2015-09-25 | PDF 91.9 KB |
| Block diagram Metadata only | Block Diagram | PDF 77.1 KB | |
| Schematics Metadata only | Schematics | PDF 559.8 KB | |
| Operational description Metadata only | Operational Description | PDF 161.2 KB |
Application Information
| Application ID | bLFXfHJnxgxX7HGRgeEwsA== |
|---|---|
| Final Action Date | 2015-09-25 |
| Application Purpose | Original Equipment |
| Applicant FRN | 0024370355 |
| Model | 682870 |
| Frequency Range | 2405 MHz |
| Equipment Class | DTS - Digital Transmission System |
| Device Description | The Tork EasyCube Sensor Communication Unit (SCU) has an embedded sensor with a radio component that forwards information on refill level, other status of the dispenser and battery level on the device to the Data Collection Unit (DCU) via 2.4 GHz rad |
| Responsible Party | Peter Blomstrom, Global Brand Director Emerging Arenas, Peter.Blomstrom@sca.com , 46317460000 |
| Technical Contact | Boris Allan Elfstrom, SCA Hygiene Products AB, allan.elfstrom@sca.com , 610-546-4546 |
| Non-Technical Contact | Gunilla Himmelmann, SCA Hygiene Products AB, gunilla.himmelmann@sca.com , 46 31 74 60821 |
| Test Firm | Par Iggstrom, Intertek Semko AB, par.iggstrom@intertek.com  , 46-8-750-00-00 |
| TCB Email | TCB_Admin@intertek.com |
| TCB Scope | A4: UNII devices & low power transmitters using spread spectrum techniques |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | Yes |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | No |
| Composite Part | Yes |
| Cognitive Radio | No |
| Authorization Waiver | No |
| Authorization Waiver Approved | No |
| Section 5301 Certification | Yes |
| Related OET Knowledge DataBase Inquiry | No |
| Grant Comments | Output Power Listed is Peak Conducted |
Applications
| Application ID | Date | Purpose |
|---|---|---|
| bLFXfHJnxgxX7HGRgeEwsA== | 2015-09-25 | Original Equipment |
Equipment Authorization
| Frequency | Output | Rules |
|---|---|---|
| 2405 MHz | 0.0025000 | 15C |
Grants
TCB Grant - Application bLFXfHJnxgxX7HGRgeEwsA==
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
Intertek Testing Services NA, Inc. 70 Codman Hill Road Boxborough, MA 01719 |
Date of Grant: 09/25/2015 Application Dated: 09/25/2015 |
| Essity Hygiene and Health AB |
| Molndals bro 2. Molndal |
| Gothenburg, 40503 Sweden |
| Attention: Peter Blomstrom , Global Brand Director Emerging Arenas |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | 2ABK3-682870 |
| Name of Grantee: | Essity Hygiene and Health AB |
| Equipment Class: | Digital Transmission System |
| Notes: | The Tork EasyCube Sensor Communication Unit (SCU) has an embedded sensor with a radio component that forwards information on refill level, other status of the dispenser and battery level on the device to the Data Collection Unit (DCU) via 2.4 GHz radio |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 15C | 2405.0 - 2405.0 | 0.0025 |
| Output Power Listed is Peak Conducted |
EAS Grant - Application bLFXfHJnxgxX7HGRgeEwsA==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
Essity Hygiene and Health AB Molndals bro 2. Molndal Gothenburg, 40503 Sweden |
Date of Grant: 09/25/2015 Application Dated: 09/25/2015 |
| Attention: Peter Blomstrom , Global Brand Director Emerging Arenas |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | 2ABK3-682870 |
| Name of Grantee: | Essity Hygiene and Health AB |
| Equipment Class: | Digital Transmission System |
| Notes: | The Tork EasyCube Sensor Communication Unit (SCU) has an embedded sensor with a radio component that forwards information on refill level, other status of the dispenser and battery level on the device to the Data Collection Unit (DCU) via 2.4 GHz radio |
| Modular Type: | Does not apply |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 15C | 2405.0 - 2405.0 | 0.0025 |
| Output Power Listed is Peak Conducted |
