FCC ID 2ABOFAA2-235
Absolute Air 2
by Tarana Wireless, Inc.
Grantee Code: 2ABOF Product Code: AA2235
Latest application date: 2015-06-25

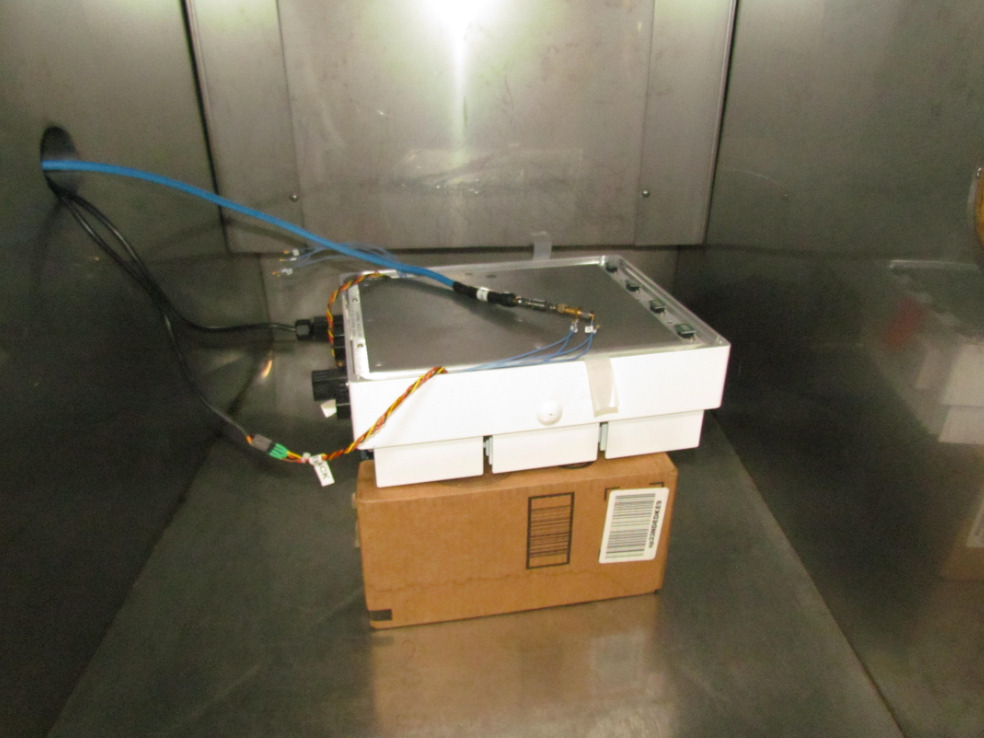

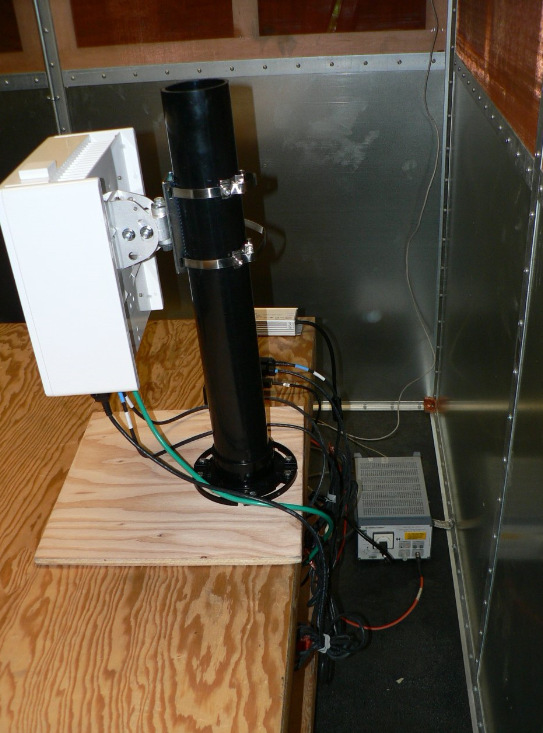

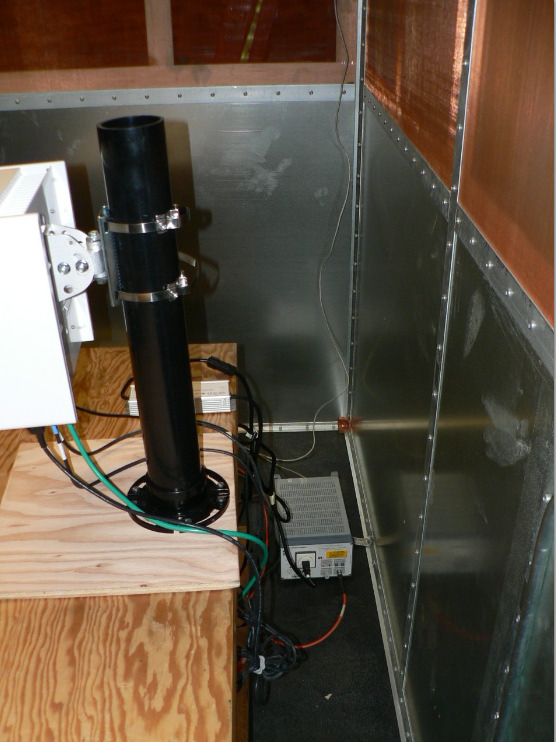

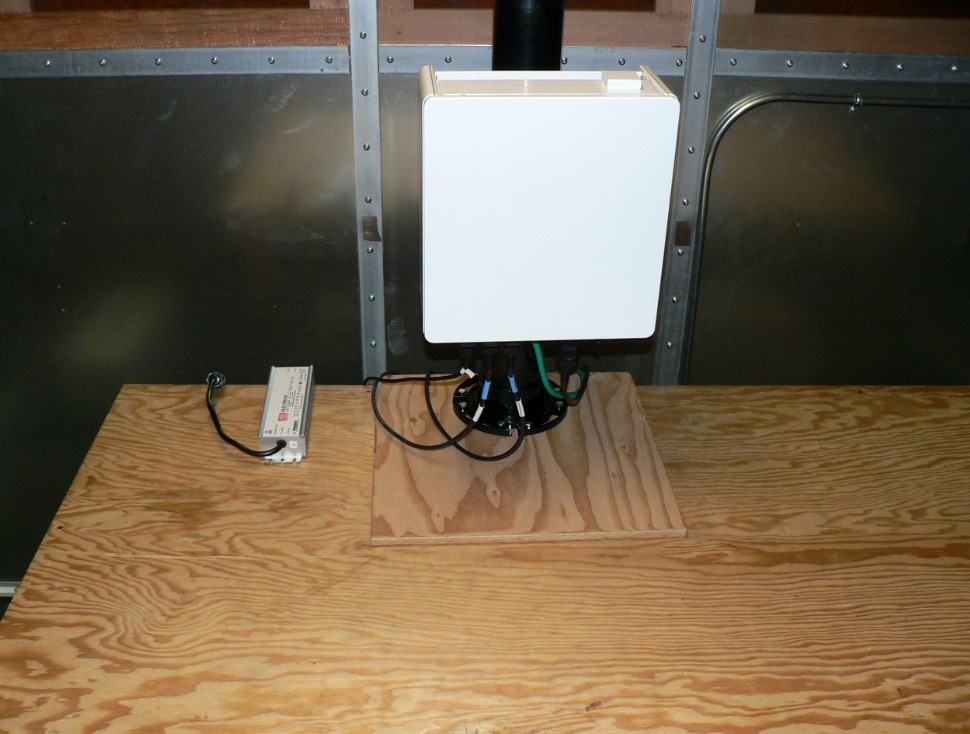

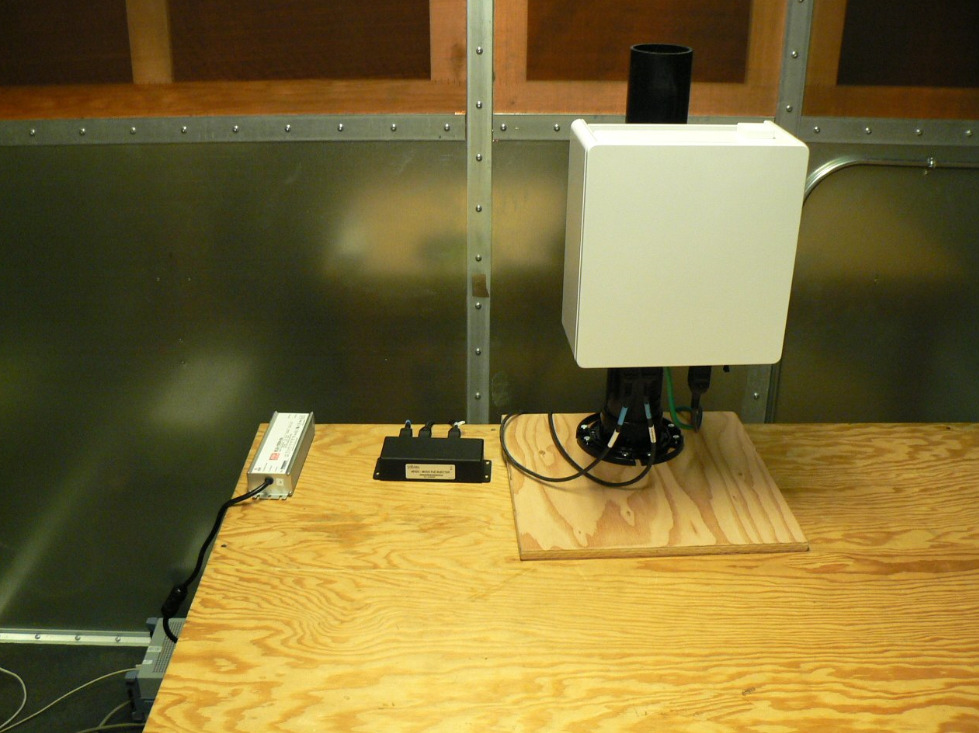

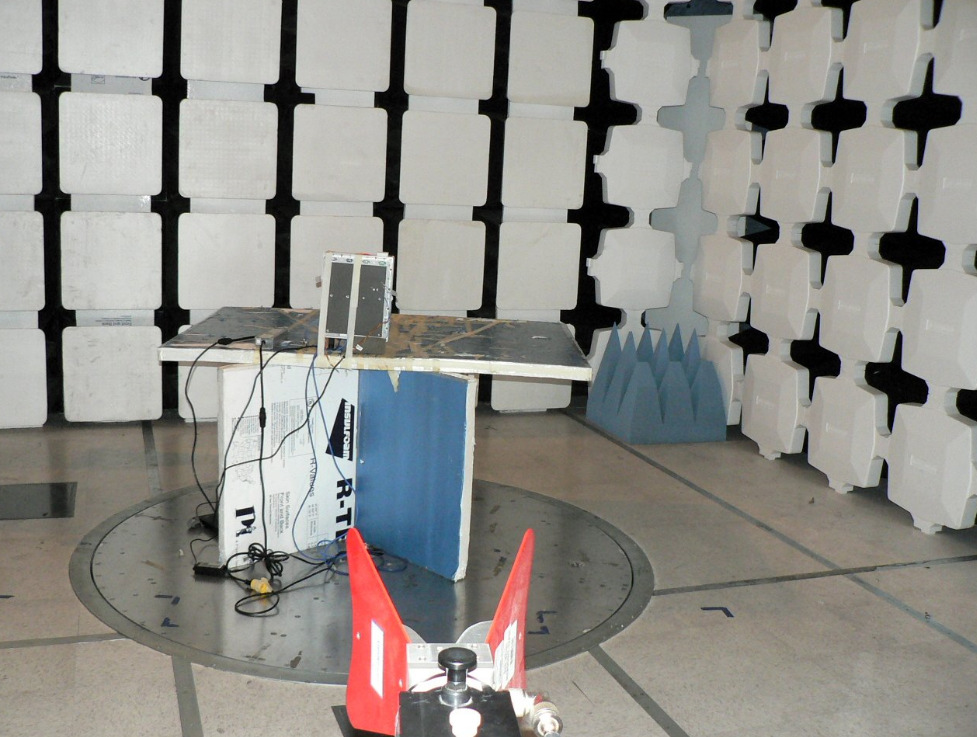

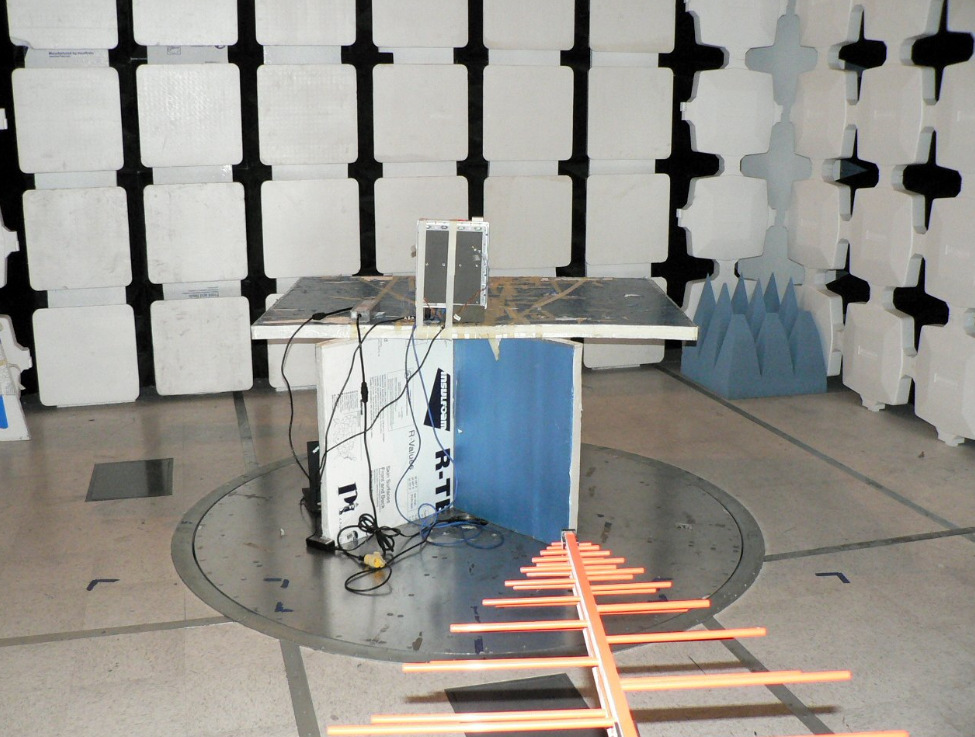

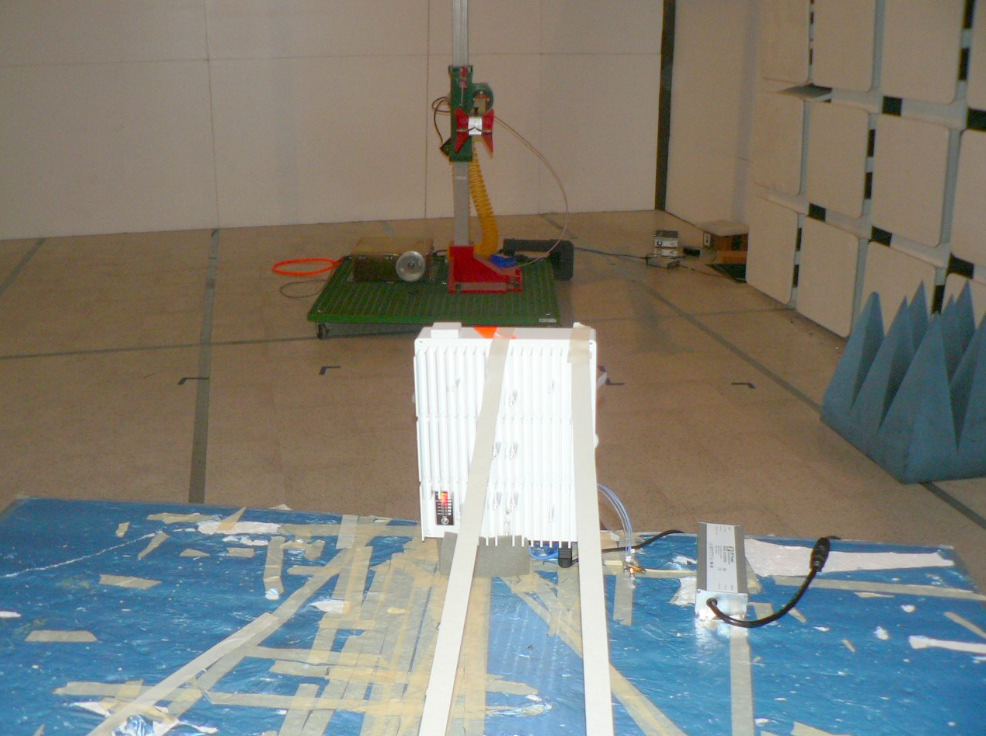

Device Images
FCC ID Device Details
| FCC ID | 2ABOFAA2-235 |
|---|---|
| Mirrors | fcc.id | gov | fccid.ai |
| Grantee Code | 2ABOF |
| Product Code | AA2235 |
| Applicant Business | Tarana Wireless, Inc. 🇺🇸 |
| Related Domains |  taranawireless.com |
| Equipment Class | Absolute Air 2 |
| Test Firm | MiCOM Labs |
Operating Frequencies
| Frequency Range | Application Purpose | Final Action Date |
|---|---|---|
| 3655-3670 MHz | Original Equipment | 2015-06-25 |
Exhibits
| Document | Type | Available | File |
|---|---|---|---|
| Manual | Users Manual | 2015-12-07 | PDF 692.1 KB |
| Ext | External Photos | 2015-12-07 | PDF 338 KB |
| Label | ID Label/Location Info | 2015-06-25 | PDF 308.8 KB |
| Test Report | Test Report | 2015-06-25 | PDF 5.8 MB |
| Agent Authorization | Cover Letter(s) | 2015-06-25 | PDF 56.5 KB |
| General LTC Confid Request Metadata only | Cover Letter(s) | 2015-06-25 | PDF 63.5 KB |
| Int LTC Confid Request | Cover Letter(s) | 2015-06-25 | PDF 63.4 KB |
| LTC Request r1 | Cover Letter(s) | 2015-06-25 | PDF 63.7 KB |
| SDR Request Letter r1 | Cover Letter(s) | 2015-06-25 | PDF 107.5 KB |
| STC Request | Cover Letter(s) | 2015-06-25 | PDF 63.1 KB |
| RFx | RF Exposure Info | 2015-06-25 | PDF 93.6 KB |
| Int Metadata only | Internal Photos | PDF 960 KB | |
| Block Metadata only | Block Diagram | PDF 107.3 KB | |
| Schema 1 Metadata only | Schematics | PDF 1.3 MB | |
| Schema 2 Metadata only | Schematics | PDF 1.4 MB | |
| 325515 Metadata only | Operational Description | PDF 61.4 KB | |
| 354786 Metadata only | Operational Description | PDF 59.5 KB | |
| 773811 Metadata only | Operational Description | PDF 36 KB | |
| Channel Allocation Metadata only | Operational Description | PDF 76.8 KB | |
| Ops Metadata only | Operational Description | PDF 40.8 KB | |
| Purchaser NDA Metadata only | Operational Description | PDF 456.3 KB | |
| Revised Ops Metadata only | Operational Description | PDF 82.9 KB | |
| SDR Description r1 Metadata only | SDR Software/Security Inf | PDF 82.3 KB | |
| SW Security Info Metadata only | SDR Software/Security Inf | PDF 82.3 KB | |
| Software Security Metadata only | SDR Software/Security Inf | PDF 82.7 KB | |
| BOM Metadata only | Parts List/Tune Up Info | PDF 471.6 KB | |
| Tune Up Metadata only | Parts List/Tune Up Info | PDF 85.8 KB |
Application Information
| Application ID | YormeaS5fdx1K2AEUwPfWA== |
|---|---|
| Final Action Date | 2015-06-25 |
| Application Purpose | Original Equipment |
| Applicant FRN | 0021168166 |
| Model | AA2-235 |
| Frequency Range | 3655-3670 MHz |
| Equipment Class | TNB - Licensed Non-Broadcast Station Transmitter |
| Device Description | Absolute Air 2 |
| Responsible Party | Christopher Saleem, Senior Regulatory Compliance Manager, csaleem@taranawireless.com , 510-366-7172 |
| Technical Contact | Gordon Hurst, MiCOM Labs, certification@micomlabs.com  , (925)4620304 |
| Test Firm | Gordon Hurst, MiCOM Labs, gordon_hurst@micomlabs.com , 925-462-0304 |
| TCB Email | certification@micomlabs.com |
| TCB Scope | B2: General Mobile Radio And Broadcast Services equipment in the following 47 CFR Parts 22 (non-cellular) 73, 74, 90, 95, 97, & 101 (all below 3 GHz) |
| Short-Term Confidentiality | Yes |
| Short-Term Confidentiality Date | 12/07/2015 |
| Long-Term Confidentiality | Yes |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | No |
| Composite Part | No |
| Cognitive Radio | Yes |
| Authorization Waiver | No |
| Authorization Waiver Approved | No |
| Section 5301 Certification | Yes |
| Related OET Knowledge DataBase Inquiry | Yes |
| Grant Comments | Power Output listed is Conducted. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 29 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter within a device, except in accordance with accepted multi-transmitter product procedures. End-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. |
Applications
| Application ID | Date | Purpose |
|---|---|---|
| YormeaS5fdx1K2AEUwPfWA== | 2015-06-25 | Original Equipment |
| OK7q3v9GIJJuXejocq3nAg== | Original Equipment |
Equipment Authorization
Grants
TCB Grant - Application YormeaS5fdx1K2AEUwPfWA==
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
MiCOM Labs 575 Boulder Court Pleasanton, CA 94566 |
Date of Grant: 06/25/2015 Application Dated: 06/10/2015 |
| Tarana Wireless, Inc. |
| 590 Alder Drive |
| Milpitas, CA 95035 |
| Attention: Christopher Saleem , Senior Regulatory Compliance Manager |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | 2ABOFAA2-235 |
| Name of Grantee: | Tarana Wireless, Inc. |
| Equipment Class: | Licensed Non-Broadcast Station Transmitter |
| Notes: | Absolute Air 2 |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| BC | 90 | 3655.0 - 3670.0 | 0.477 | 0.13 PM | 10M0W7W |
| BC | 90 | 3660.0 - 3665.0 | 0.819 | 0.13 PM | 20M0W7W |
| Power Output listed is Conducted. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 29 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter within a device, except in accordance with accepted multi-transmitter product procedures. End-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. |
| BC: | The output power is continuously variable from the value listed in this entry to 5%-10% of the value listed. |
EAS Grant - Application YormeaS5fdx1K2AEUwPfWA==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
Tarana Wireless, Inc. 590 Alder Drive Milpitas, CA 95035 United States |
Date of Grant: 06/25/2015 Application Dated: 06/10/2015 |
| Attention: Christopher Saleem , Senior Regulatory Compliance Manager |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | 2ABOFAA2-235 |
| Name of Grantee: | Tarana Wireless, Inc. |
| Equipment Class: | Licensed Non-Broadcast Station Transmitter |
| Notes: | Absolute Air 2 |
| Modular Type: | Does not apply |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| BC | 90 | 3655.0 - 3670.0 | 0.477 | 0.13 PM | 10M0W7W |
| BC | 90 | 3660.0 - 3665.0 | 0.819 | 0.13 PM | 20M0W7W |
| Power Output listed is Conducted. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 29 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter within a device, except in accordance with accepted multi-transmitter product procedures. End-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. |
| BC: | The output power is continuously variable from the value listed in this entry to 5%-10% of the value listed. |
| Mail To: | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
MiCOM Labs 575 Boulder Court Pleasanton, CA 94566 |
Date of Grant: 11/24/2015 Application Dated: 11/24/2015 |
| Tarana Wireless |
| 2953 Bunker Hill Lane |
| Suite 100 |
| Santa Clara, CA 95054 |
| Attention: Ivaylo Tankov , Sr. Compliance Manager |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | 2ABOFAA2235 |
| Name of Grantee: | Tarana Wireless |
| Equipment Class: | Licensed Non-Broadcast Station Transmitter |
| Notes: | AbsoluteAir 2 Family Wireless backhaul |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| MO | 27 | 2505.0 - 2685.0 | 0.648 | 0.19 PM | 10M0W7W |
| MO | 27 | 2510.0 - 2680.0 | 0.703 | 0.19 PM | 20M0W7W |
| The output power listed is combined conducted maximum output power. The device is a 16x16 MIMO, as is described in the filing. The antennas used with this device must be installed to provide a minimum separation distance of at least 20 cm from all persons. Installers must be provided with antenna installation instructions and operating procedures for minimizing their occupational RF exposure. This device supports bandwidths of 10 MHz & 20 MHz Maximum E.I.R.P.: 21.46 W (10M0W7W), 23.28 W (20M0W7W) |
| MO: | This Multiple Input Multiple Output (MIMO) device was evaluated for multiple transmitted signals as indicated in the filing. |
EAS Grant - Application OK7q3v9GIJJuXejocq3nAg==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
Tarana Wireless 2953 Bunker Hill Lane Suite 100 Santa Clara, CA 95054 United States |
Date of Grant: 11/24/2015 Application Dated: 11/24/2015 |
| Attention: Ivaylo Tankov , Sr. Compliance Manager |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | 2ABOFAA2235 |
| Name of Grantee: | Tarana Wireless |
| Equipment Class: | Licensed Non-Broadcast Station Transmitter |
| Notes: | AbsoluteAir 2 Family Wireless backhaul |
| Modular Type: | Does not apply |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| MO | 27 | 2505.0 - 2685.0 | 0.648 | 0.19 PM | 10M0W7W |
| MO | 27 | 2510.0 - 2680.0 | 0.703 | 0.19 PM | 20M0W7W |
| The output power listed is combined conducted maximum output power. The device is a 16x16 MIMO, as is described in the filing. The antennas used with this device must be installed to provide a minimum separation distance of at least 20 cm from all persons. Installers must be provided with antenna installation instructions and operating procedures for minimizing their occupational RF exposure. This device supports bandwidths of 10 MHz & 20 MHz Maximum E.I.R.P.: 21.46 W (10M0W7W), 23.28 W (20M0W7W) |
| MO: | This Multiple Input Multiple Output (MIMO) device was evaluated for multiple transmitted signals as indicated in the filing. |
| Mail To: |
