3201 RFID TRANSMITTER Test Setup Photos - FCC ID 2ABSL3201
FCC ID 2ABSL3201

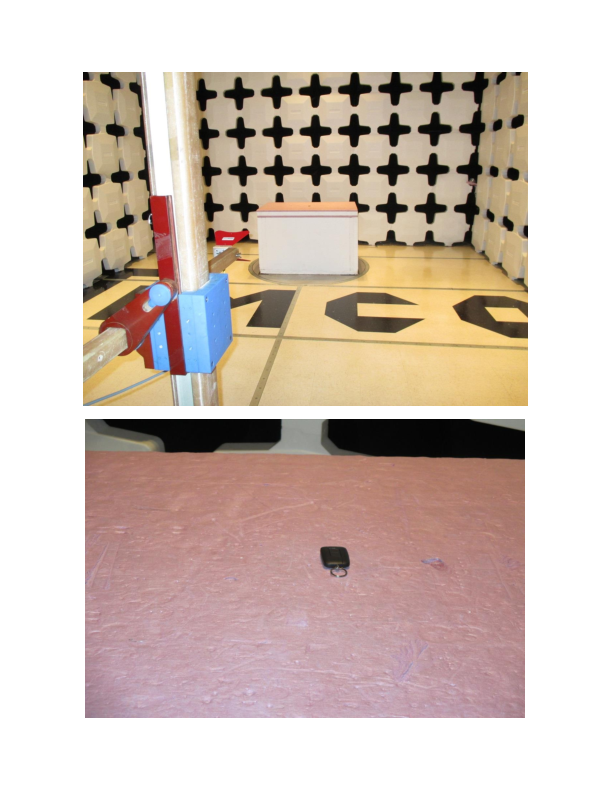

TEST SETUP PHOTOS
RFID TRANSMITTER
Document preview loads when visible.
Document Details
| FCC ID | 2ABSL3201 |
|---|---|
| Document ID | 2203175 |
| Document Type | Test Setup Photos |
| Description | TEST SETUP PHOTOS |
| Applicant | Light Wave Technology |
| Equipment Class | RFID TRANSMITTER |
| Product Code | 3201 |
| Application ID | BVG7HyFwm/4CWHcTiVjLlQ== |
| Application Purpose | Original Equipment |
| Application Date | 2014-02-27 |
| Frequency Range | 433.92 MHz |
| FRN | 0023306830 |
| Test Firm | Timco Engineering, Inc. |
| Certified By | Ismail Warsame RF Design Engineer |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | No |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | No |
| Composite Part | No |
| Submitted | 2014-02-27 |
| Available | 2014-02-27 |
| Created | 2014-02-27 |
| Modified | 2014-02-27 |
| Pages | 1 |
| File Type | Adobe Acrobat PDF |
| File Size | 320089 |
| File SHA-256 | f85d35a5920439d025bcaa3b7ffadcc8869856d8212b969ce0f2d91c14b5b9dc |
| PDF Metadata Author | Cory Douglas Leverett |
| PDF Metadata Producer | Microsoft® Word 2010 Microsoft® Word 2010 |
| FCC.gov Sources | FCC.gov 2203175 |
