CHU200TLRC Integrated Payment Terminal... - FCC ID 2AC2O-CHU200TLRC
FCC ID 2AC2O-CHU200TLRC
Antenna Details
Integrated Payment Terminal
Document preview loads when visible.
Document Details
| FCC ID | 2AC2O-CHU200TLRC |
|---|---|
| Document ID | 9267690 |
| Document Type | Test Report |

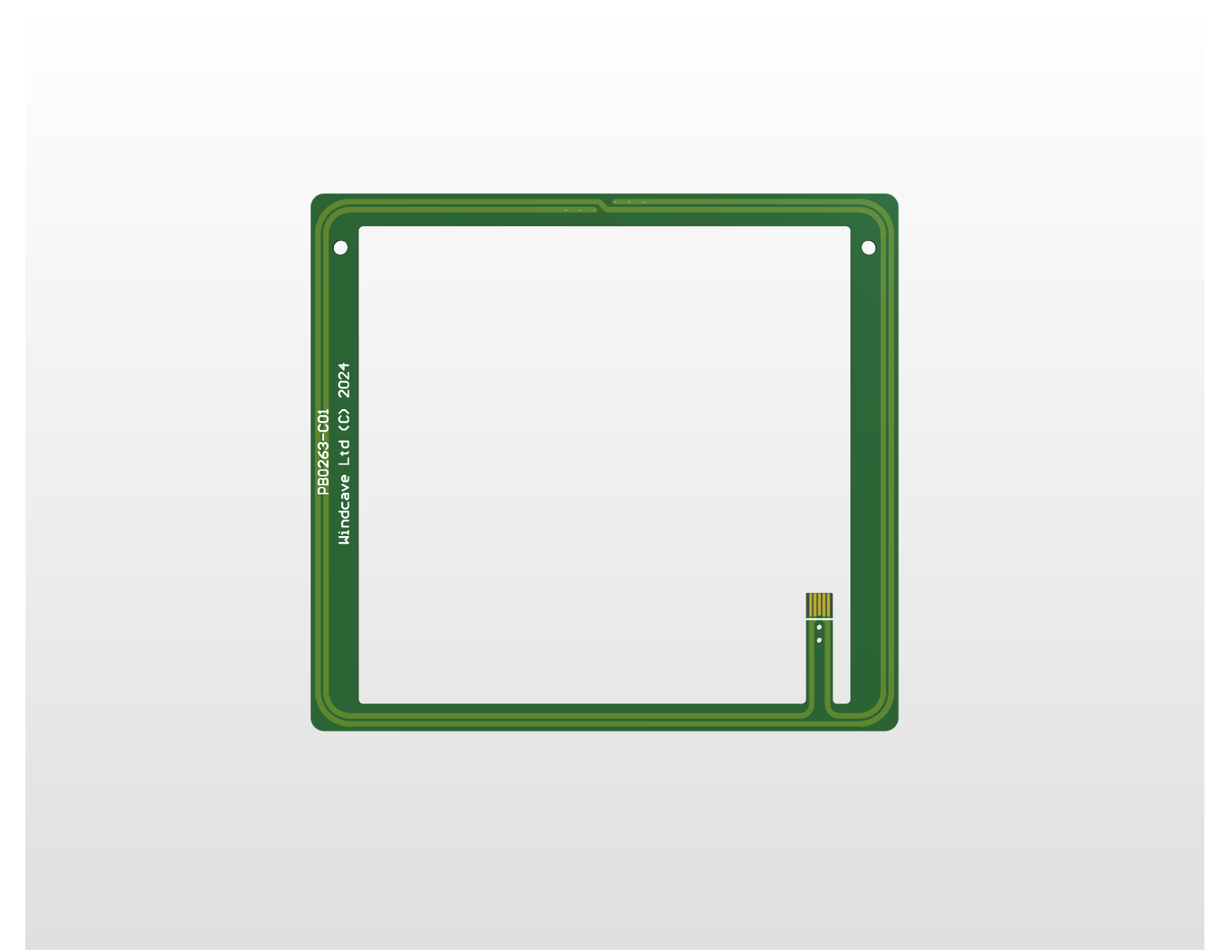

| Description | Antenna Details |
| Document Title | TP_NFC_Antenna_Rev_C01 |
| Applicant | Windcave Limited |
| Equipment Class | Integrated Payment Terminal |
| Product Code | CHU200TLRC |
| Application ID | GBwI/hwIWFuRQ/A92fjNKw== |
| Application Purpose | Original Equipment |
| Application Date | 2026-05-04 |
| Frequency Range | 13.56 MHz |
| FRN | 0026591925 |
| Test Firm | EMC Technologies (NZ) Ltd |
| Certified By | Andrew Cutler General Manager |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | No |
| Modular Equipment | Does not apply |
| Composite Device | No |
| Submitted | 2026-05-04 |
| Available | 2026-05-04 |
| Created | 2026-01-13 |
| Modified | 2026-04-23 |
| Pages | 2 |
| File Type | Adobe Acrobat PDF |
| File Size | 249711 |
| File SHA-256 | a93b430cd293b653b7c522688a2e2de0c3969efaac56e0fec82c8104f24b4a31 |
| PDF Metadata Author | Oscar Zhao |
| PDF Metadata Producer | Oscar Zhao llPDFLib 3.x |
| FCC.gov Sources | FCC.gov 9267690 |
