FCC ID 2AC2O-SCR200E-VM
Secure Vending Reader
by Windcave Limited
Grantee Code: 2AC2O Product Code: SCR200EVM
Latest application date: 2016-06-07
Device Images
FCC ID Device Details
| FCC ID | 2AC2O-SCR200E-VM |
|---|---|
| Mirrors | fcc.id | gov | fccid.ai |
| Grantee Code | 2AC2O |
| Product Code | SCR200EVM |
| Applicant Business | Windcave Limited 🇳🇿 |
| Related Domains |  windcave.com |
| Equipment Class | Secure Vending Reader |
| Test Firm | EMC Technologies NZ Ltd. |
Operating Frequencies
| Frequency Range | Application Purpose | Final Action Date |
|---|---|---|
| 13.56 MHz | Original Equipment | 2016-06-07 |
Exhibits
| Document | Type | Available | File |
|---|---|---|---|
| Users Manual | Users Manual | 2016-06-07 | PDF 904.5 KB |

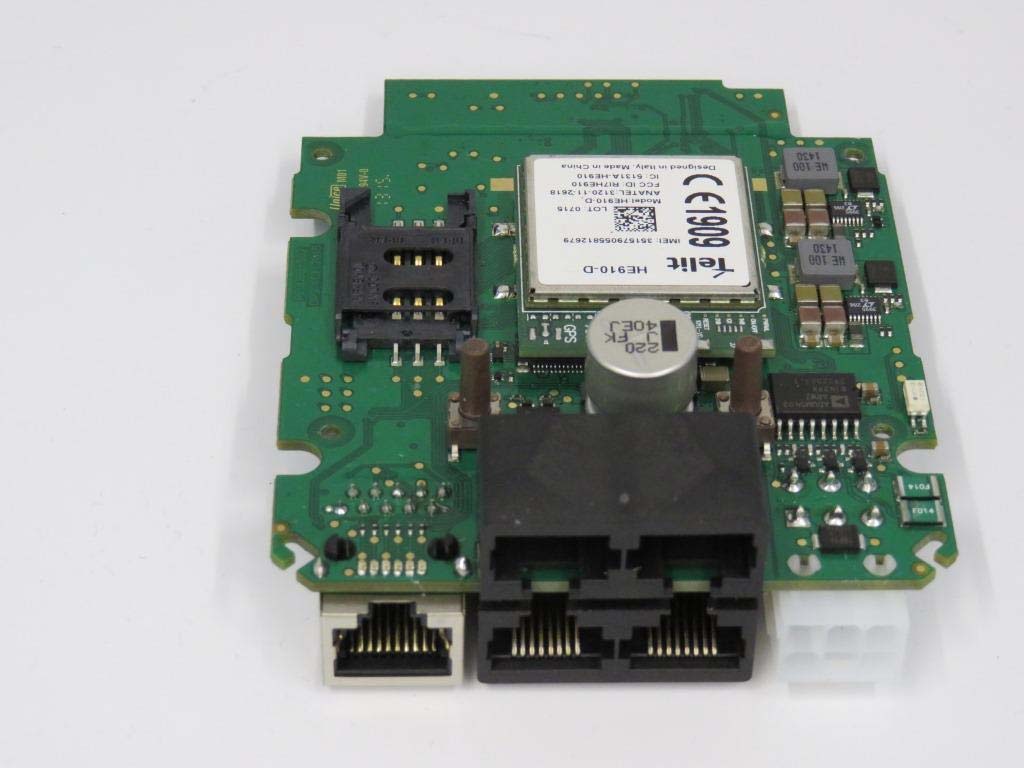

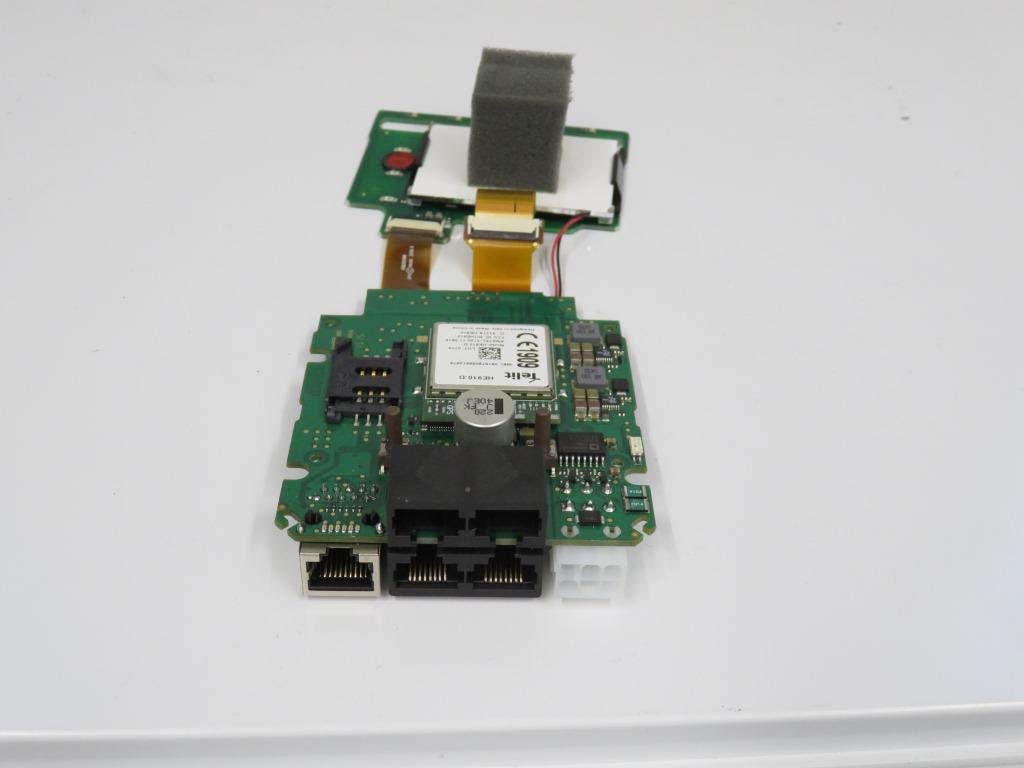

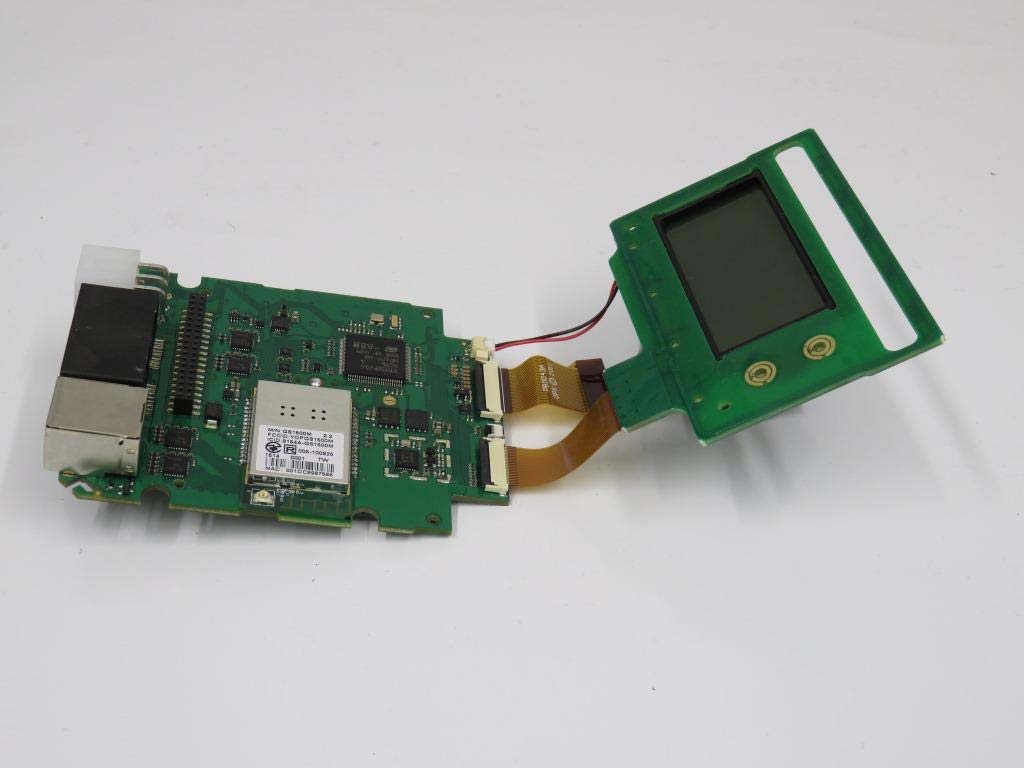

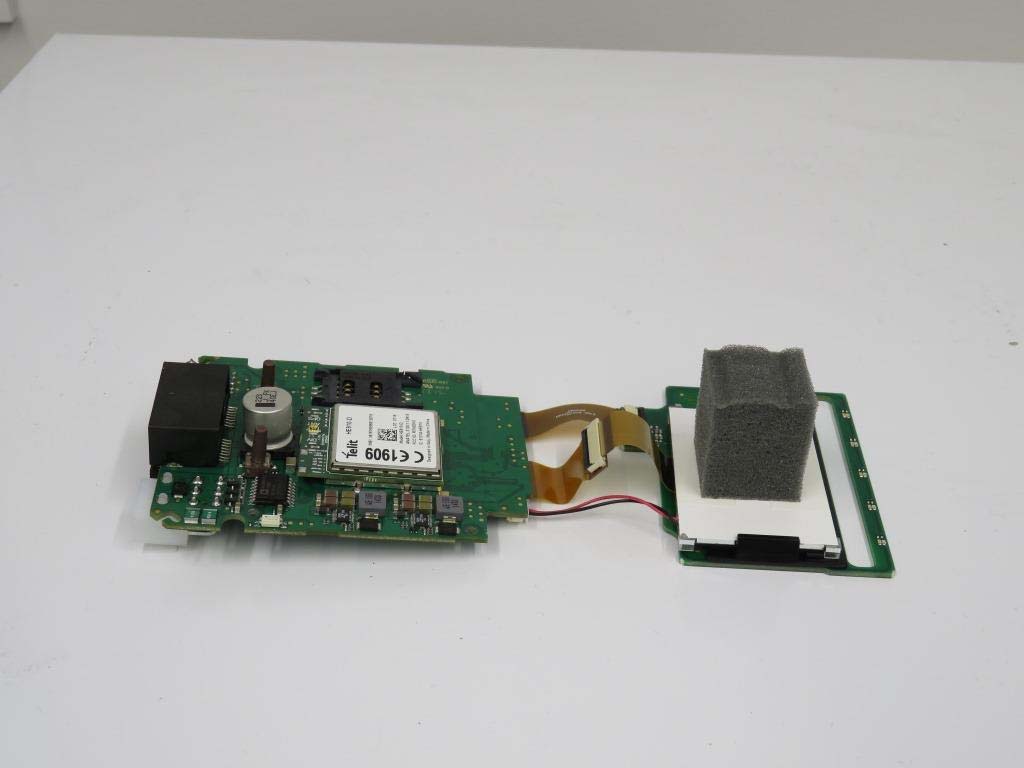

| Internal Photos | Internal Photos | 2016-06-07 | PDF 702.5 KB |

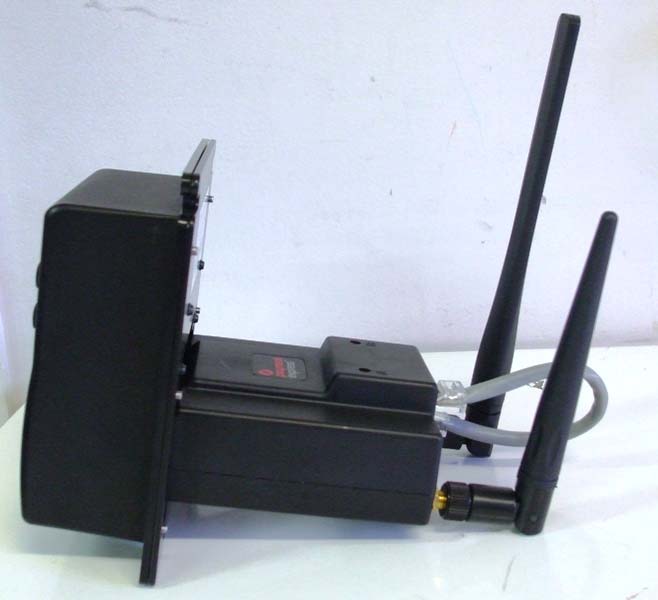

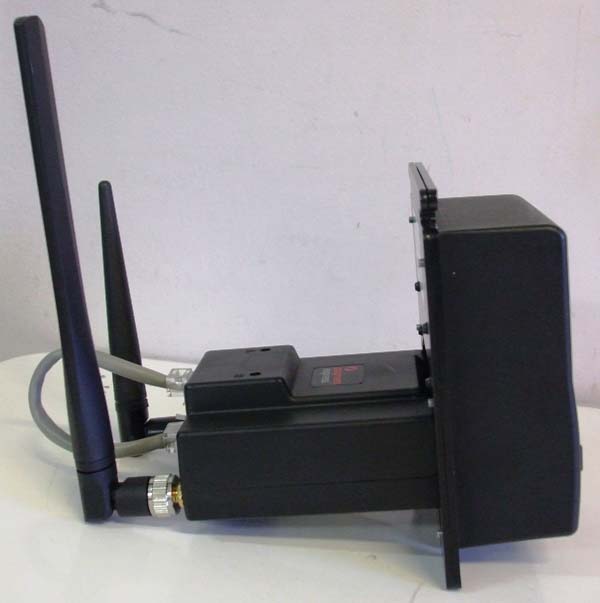

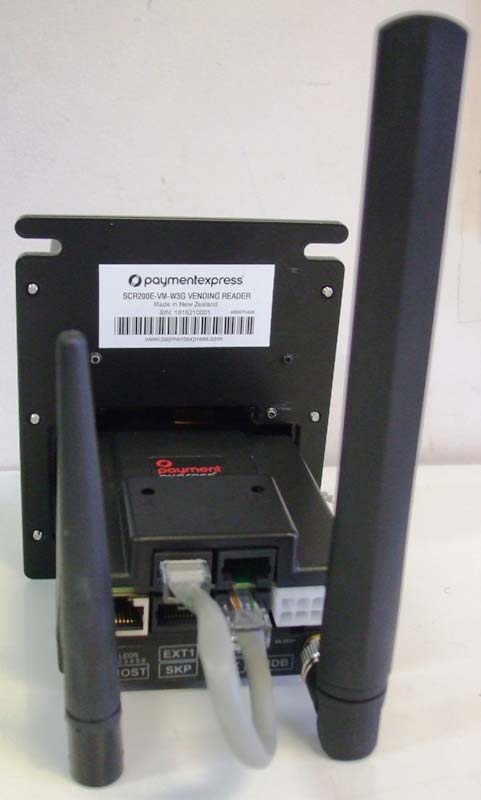

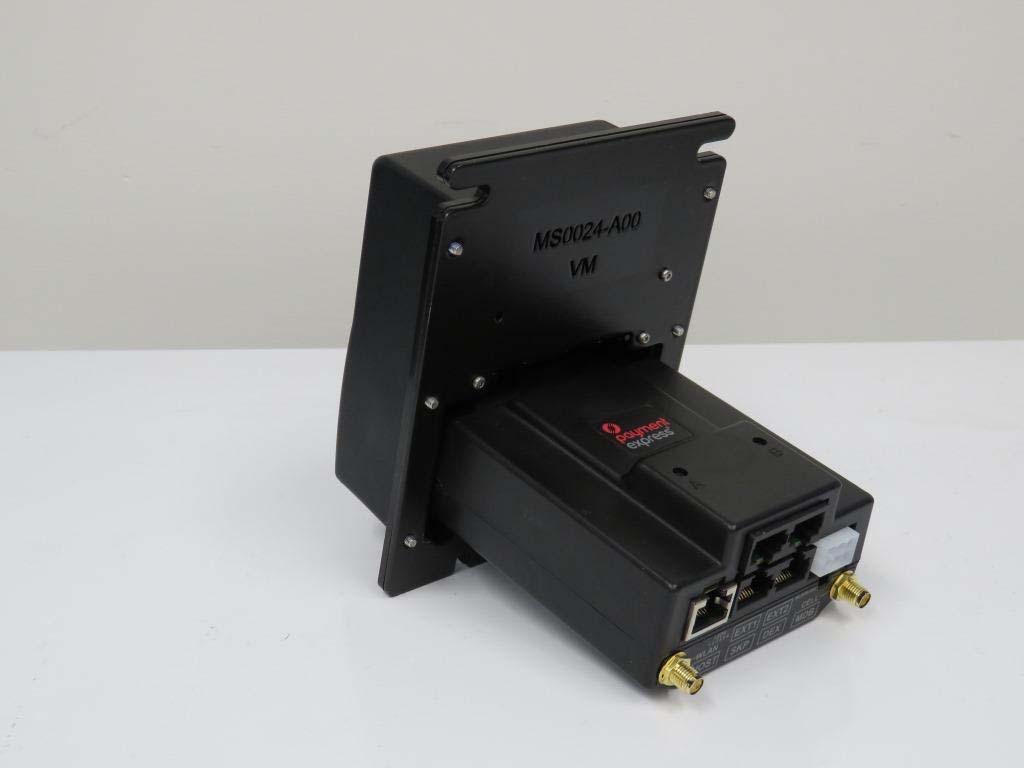

| External Photos | External Photos | 2016-06-07 | PDF 487.7 KB |
| Label | ID Label/Location Info | 2016-06-07 | PDF 628.7 KB |
| Test Setup Photos | Test Setup Photos | 2016-06-07 | PDF 485.7 KB |
| Test Report | Test Report | 2016-06-07 | PDF 1.1 MB |
| Authorization to Act Letter | Cover Letter(s) | 2016-06-07 | PDF 96.9 KB |
| Confidentiality Request Letter | Cover Letter(s) | 2016-06-07 | PDF 378.5 KB |
| Block Diagram Metadata only | Block Diagram | PDF 219.2 KB | |
| Schematics Metadata only | Schematics | PDF 2.7 MB | |
| Operational Description Metadata only | Operational Description | PDF 242.1 KB | |
| Parts List Metadata only | Parts List/Tune Up Info | PDF 251.2 KB |
Application Information
| Application ID | 3OGGHJNg3+4A/RN5XuNLng== |
|---|---|
| Final Action Date | 2016-06-07 |
| Application Purpose | Original Equipment |
| Applicant FRN | 0026591925 |
| Model | SCR200E-VM |
| Frequency Range | 13.56 MHz |
| Equipment Class | DXX - Part 15 Low Power Communication Device Transmitter |
| Device Description | Secure Vending Reader |
| Responsible Party | Cameron Collard, cameron.collard@windcave.com , +6493094693 |
| Test Firm | Andrew Cutler, EMC Technologies NZ Ltd., auklab@ihug.co.nz  , 64-9-360-0862 |
| TCB Email | TEI@TIMCOENGR.COM  |
| TCB Scope | A1: Low Power Transmitters below 1 GHz (except Spread Spectrum), Unintentional Radiators, EAS (Part 11) & Consumer ISM devices |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | Yes |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | No |
| Composite Part | Yes |
| Cognitive Radio | No |
| Authorization Waiver | No |
| Authorization Waiver Approved | No |
| Section 5301 Certification | Yes |
| Related OET Knowledge DataBase Inquiry | No |
| Grant Comments | The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operated in conjunction with any other antenna or transmitter, except as evaluated in this filing. Users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. |
Applications
| Application ID | Date | Purpose |
|---|---|---|
| 3OGGHJNg3+4A/RN5XuNLng== | 2016-06-07 | Original Equipment |
Equipment Authorization
| Frequency | Rules |
|---|---|
| 13.56 MHz | 15C |
Grants
TCB Grant - Application 3OGGHJNg3+4A/RN5XuNLng==
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
Timco Engineering, Inc. 849 NW State Road 45 Newberry, FL 32669 |
Date of Grant: 06/07/2016 Application Dated: 06/07/2016 |
| Windcave Limited |
| 33 Wilkinson Road |
| EllerslieP.O. Box 8400, |
| Auckland 1150, New Zealand |
| Attention: Cameron Collard |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | 2AC2O-SCR200E-VM |
| Name of Grantee: | Windcave Limited |
| Equipment Class: | Part 15 Low Power Communication Device Transmitter |
| Notes: | Secure Vending Reader |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 15C | 13.56 - 13.56 |
| The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operated in conjunction with any other antenna or transmitter, except as evaluated in this filing. Users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. |
EAS Grant - Application 3OGGHJNg3+4A/RN5XuNLng==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
Windcave Limited 33 Wilkinson Road EllerslieP.O. Box 8400, Auckland 1150, New Zealand |
Date of Grant: 06/07/2016 Application Dated: 06/07/2016 |
| Attention: Cameron Collard |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | 2AC2O-SCR200E-VM |
| Name of Grantee: | Windcave Limited |
| Equipment Class: | Part 15 Low Power Communication Device Transmitter |
| Notes: | Secure Vending Reader |
| Modular Type: | Does not apply |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 15C | 13.56 - 13.56 |
| The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operated in conjunction with any other antenna or transmitter, except as evaluated in this filing. Users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. |
| Mail To: |
