FCC ID 2AC3RWB120

WB120 UART DONGLE

by WINPLUSCORP CO.,LTD.

Grantee Code: 2AC3R   Product Code: WB120
Latest application date: 2016-10-27

Device Images

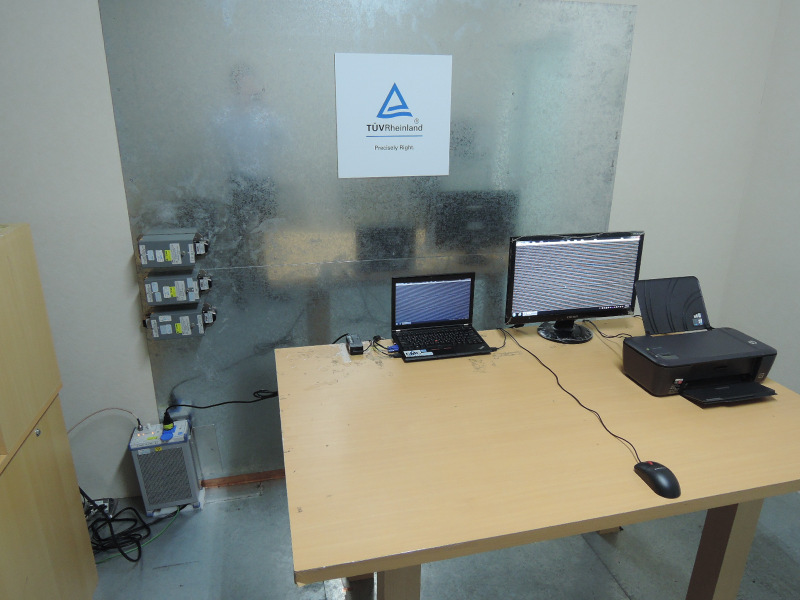

FCC ID 2AC3RWB120 Test Setup Photos
Test Setup Photos

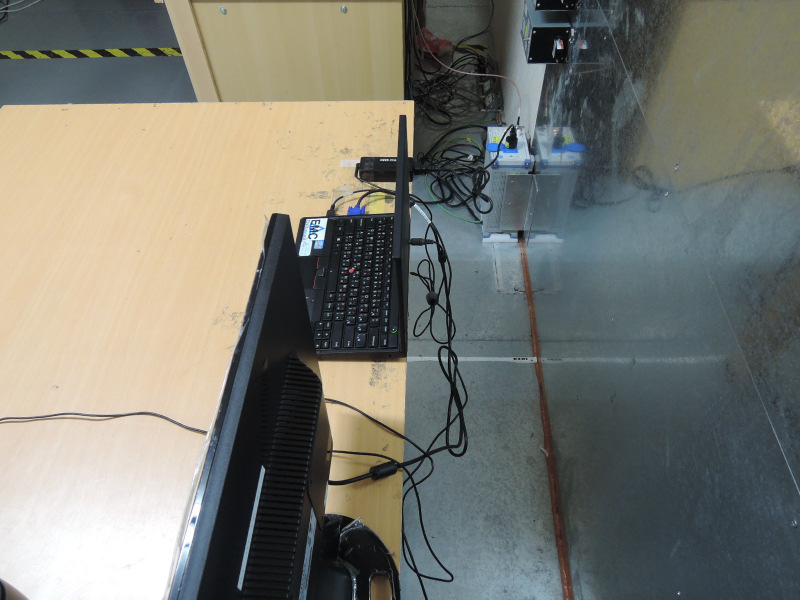

FCC ID 2AC3RWB120 Test Setup Photos
Test Setup Photos

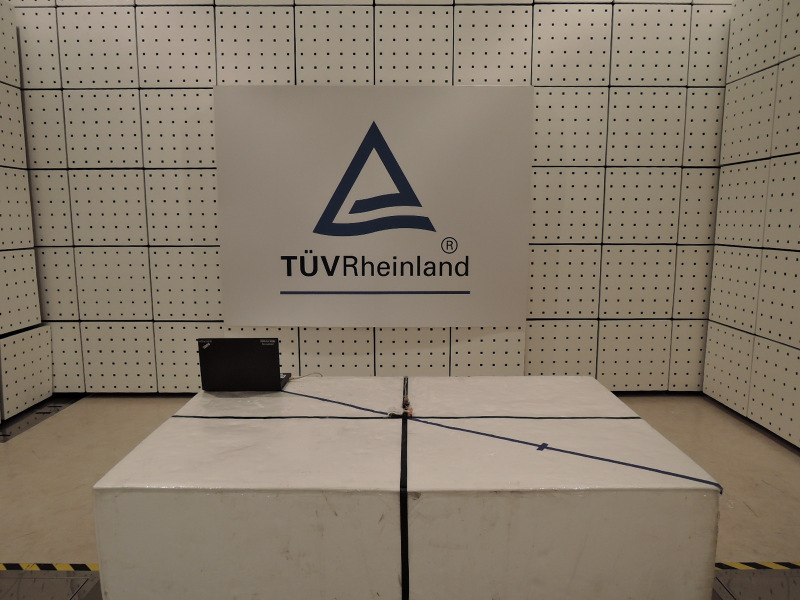

FCC ID 2AC3RWB120 Test Setup Photos
Test Setup Photos

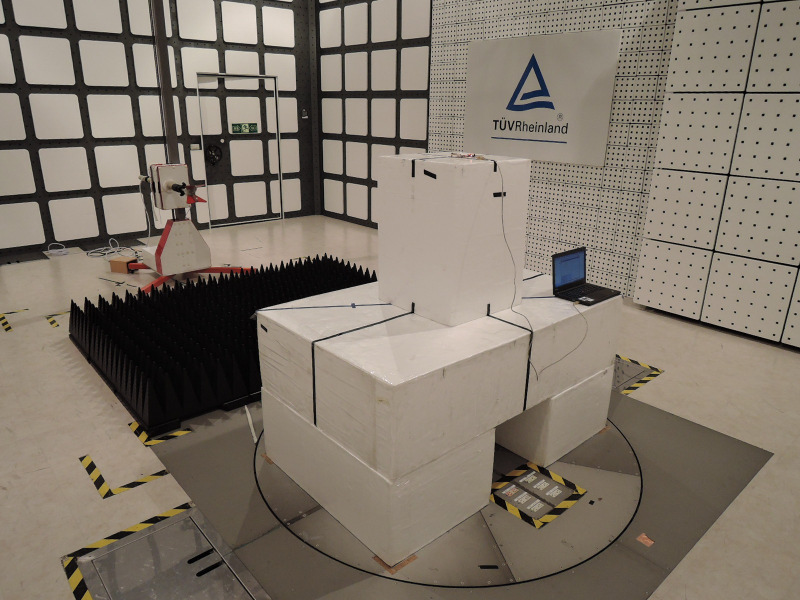

FCC ID 2AC3RWB120 Test Setup Photos
Test Setup Photos
FCC ID 2AC3RWB120 ID Label Location Info
ID Label Location Info

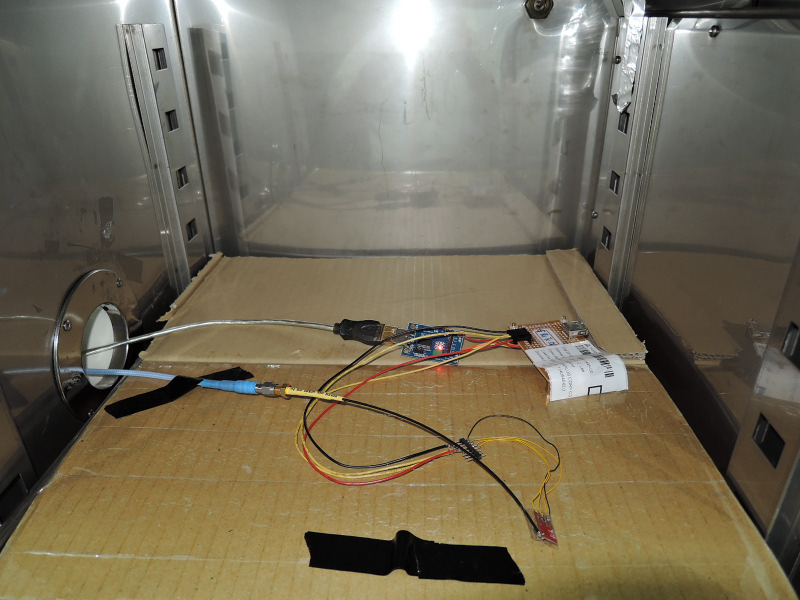

FCC ID 2AC3RWB120 Test Setup Photos
Test Setup Photos

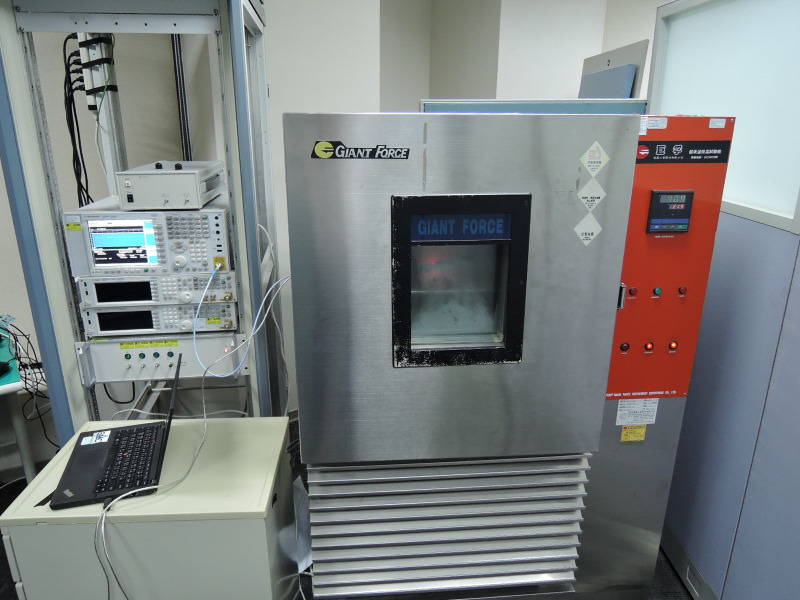

FCC ID 2AC3RWB120 Test Setup Photos
Test Setup Photos

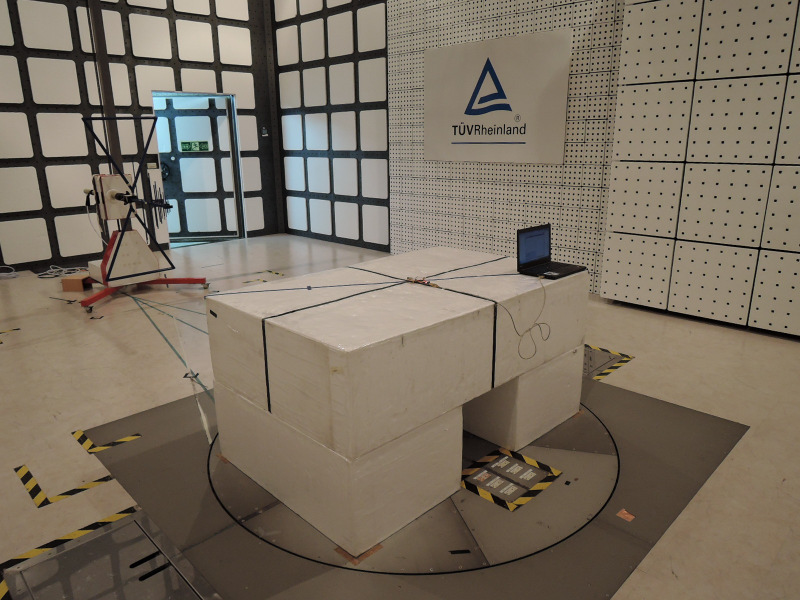

FCC ID 2AC3RWB120 Test Setup Photos
Test Setup Photos
FCC ID 2AC3RWB120 ID Label Location Info
ID Label Location Info

FCC ID Device Details

FCC ID2AC3RWB120
Mirrorsfcc.id | gov | fccid.ai
Grantee Code2AC3R
Product CodeWB120
Applicant BusinessWINPLUSCORP CO.,LTD. 🇹🇼
Related Domains winpluscorp.com.tw
Equipment ClassWB120 UART DONGLE
Test FirmTUV Rheinland Taiwan Ltd.

Operating Frequencies

Frequency RangeApplication PurposeFinal Action Date
2402-2480 MHzOriginal Equipment2016-10-27

Exhibits

DocumentTypeAvailableFile
ManualUsers Manual2016-10-27PDF 314.8 KB
Internal PhotosInternal Photos2016-10-27PDF 229.1 KB
Ext. PhotosExternal Photos2016-10-27PDF 238.4 KB
Label n LocationID Label/Location Info2016-10-27PDF 727 KB
Setup PhotoTest Setup Photos2016-10-27PDF 1 MB
Test ReportTest Report2016-10-27PDF 1.5 MB
Test ResultsTest Report2016-10-27PDF 1.7 MB
Conf. Req. LetterCover Letter(s)2016-10-27PDF 180.7 KB
Exposure InfoRF Exposure Info2016-10-27PDF 27.5 KB
Block Diagram Metadata onlyBlock DiagramPDF 82.3 KB
Schematic Metadata onlySchematicsPDF 106.1 KB
Ant Desc Metadata onlyOperational DescriptionPDF 612.8 KB
OpDesc Metadata onlyOperational DescriptionPDF 2.3 MB

Application Information

Application IDIgPB7mlWl09CzWcawg4mIQ==
Final Action Date2016-10-27
Application PurposeOriginal Equipment
Applicant FRN0018333633
ModelWB120
Frequency Range2402-2480 MHz
Equipment ClassDTS - Digital Transmission System
Device DescriptionWB120 UART DONGLE
Responsible PartyRoger Chen, General Manager, roger.chen@winpluscorp.com.tw , +886-2-89858312
Test FirmSpring Wang, TUV Rheinland Taiwan Ltd., spring.wang@tuv.com , 886-2-2172-7000
TCB Emailrc@twn.tuv.com
TCB ScopeA4: UNII devices & low power transmitters using spread spectrum techniques
Short-Term ConfidentialityNo
Long-Term ConfidentialityYes
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Cognitive RadioNo
Authorization WaiverNo
Authorization Waiver ApprovedNo
Section 5301 CertificationYes
Related OET Knowledge DataBase InquiryNo
Grant CommentsOutput power listed is conducted.
