HD2015A27 Toy RC Speedboat Schematics - FCC ID 2AC9DHD2015A27

FCC ID 2AC9DHD2015A27

Circuit Diagram

Toy RC Speedboat

by HONG DI TOYS FACTORY

Document preview loads when visible.

Document Details

FCC ID2AC9DHD2015A27
Document ID2417220
Document TypeSchematics

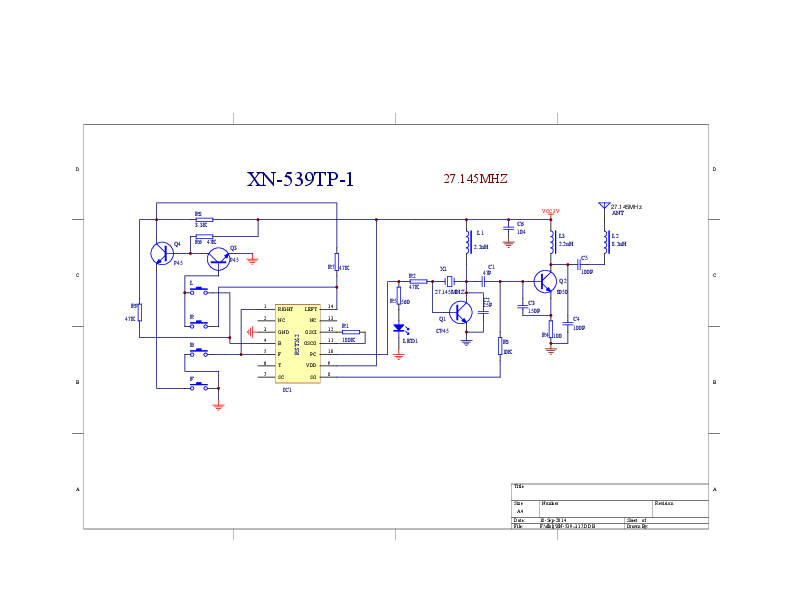

DescriptionCircuit Diagram
ApplicantHONG DI TOYS FACTORY
Equipment ClassToy RC Speedboat
Product CodeHD2015A27
Application ID1/bt9M+lVkG0e6wF1rsJQQ==
Application PurposeOriginal Equipment
Application Date2014-10-13
Frequency Range27.145 MHz
FRN0023950975
Test FirmIntertek Testing Services Hong Kong Ltd.
Certified ByCHENG HONG SHEN Manager
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2014-10-13
Available2014-10-13
Created2014-09-18
Modified2014-09-18
Pages1
File TypeAdobe Acrobat PDF
File Size78134
File SHA-25628fcfc548cae34d633237d2a4daf7d3d1323bf59fbb34dd42bbcfc4c65b5d8d9
PDF Metadata ProducerdoPDF Ver 7.3 Build 391 (Windows XP Professional Edition (SP 3) - Version: 5.1.2600 (x86))
FCC.gov SourcesFCC.gov 2417220
