FCC ID 2AC9YPCC771B
20V max Radio with Bluetooth
by GERMAIN ELECTRONIC LIMITED
Grantee Code: 2AC9Y Product Code: PCC771B
Latest application date: 2016-02-16
Device Images
FCC ID Device Details
| FCC ID | 2AC9YPCC771B |
|---|---|
| Mirrors | fcc.id | gov | fccid.ai |
| Grantee Code | 2AC9Y |
| Product Code | PCC771B |
| Applicant Business | GERMAIN ELECTRONIC LIMITED |
| Related Domains |  germain.com.hk |
| Equipment Class | 20V max Radio with Bluetooth |
| Test Firm | Waltek Services(Shenzhen) Co., Ltd. |
Operating Frequencies
| Frequency Range | Application Purpose | Final Action Date |
|---|---|---|
| 2402-2480 MHz | Original Equipment | 2016-02-16 |
Exhibits
| Document | Type | Available | File |
|---|---|---|---|

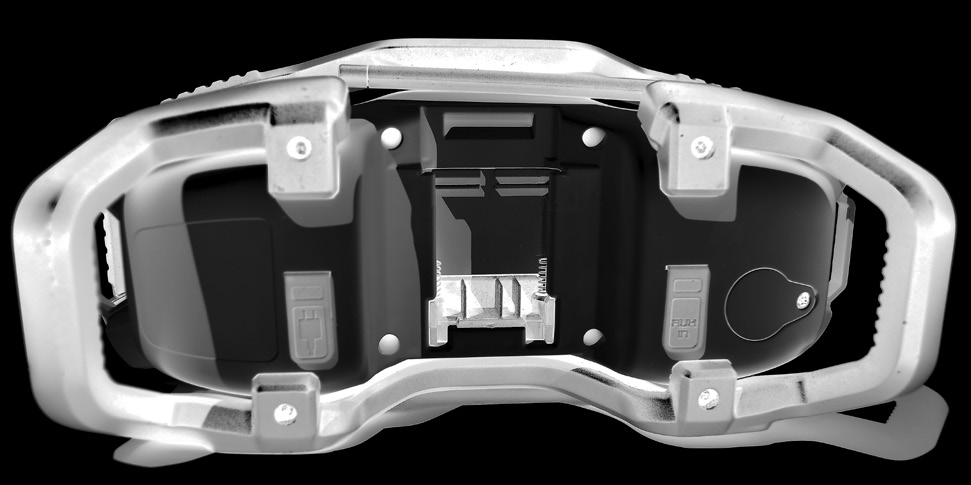

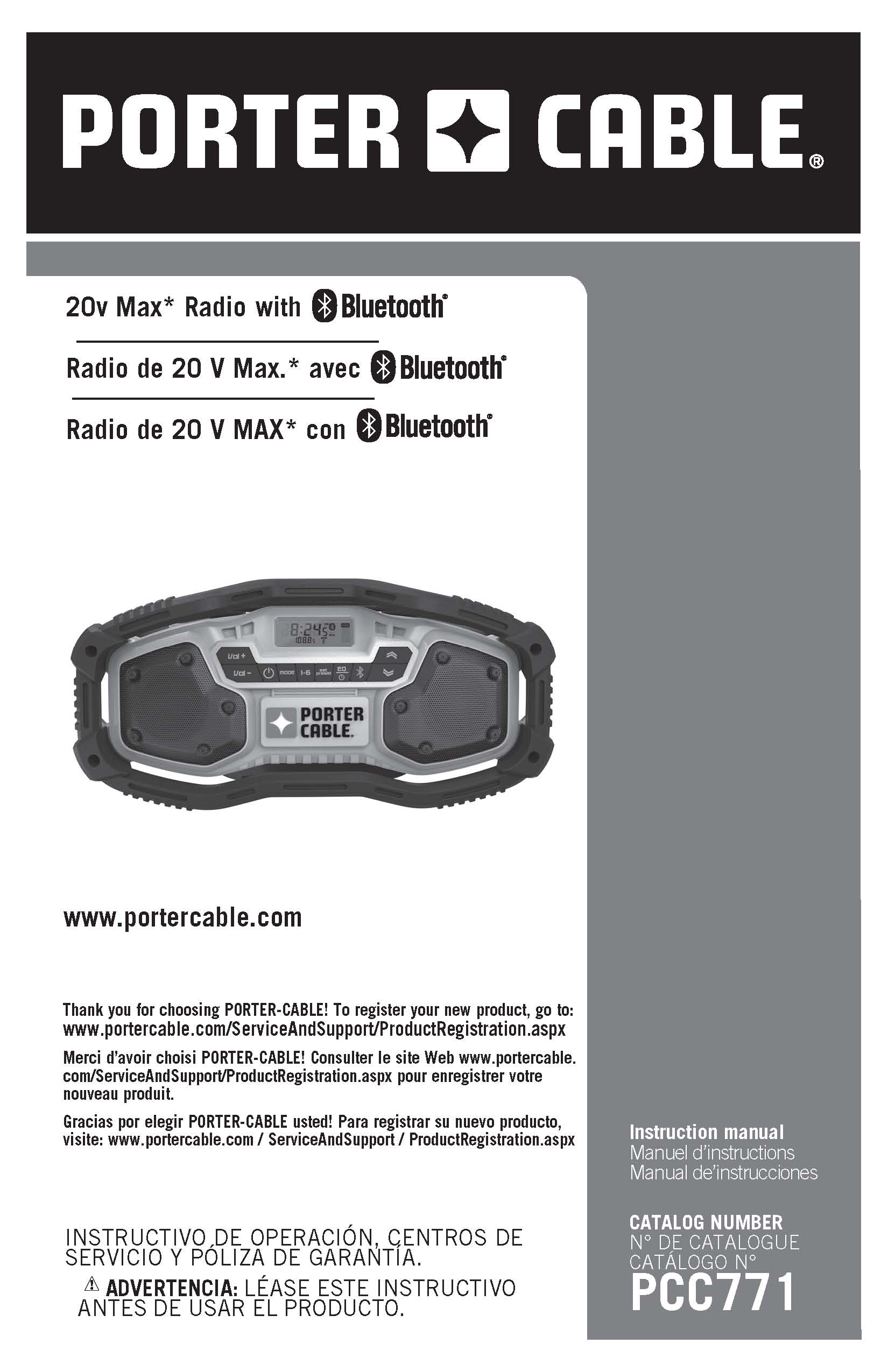

| User Manual | Users Manual | 2016-02-16 | PDF 1.5 MB |
| Users Manual | Users Manual | 2016-02-16 | PDF 1.4 MB |

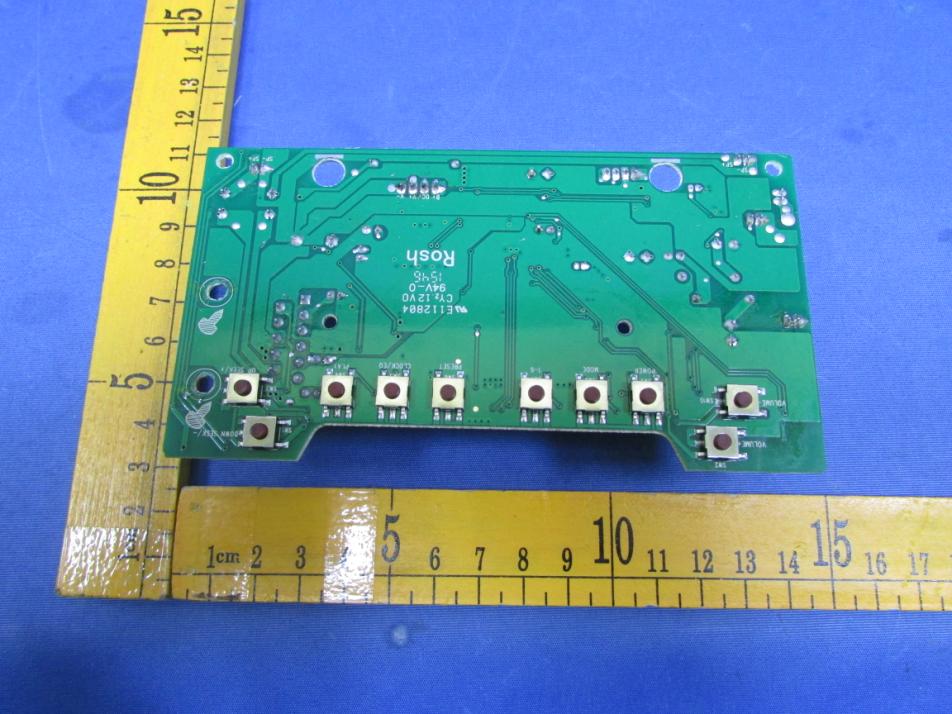

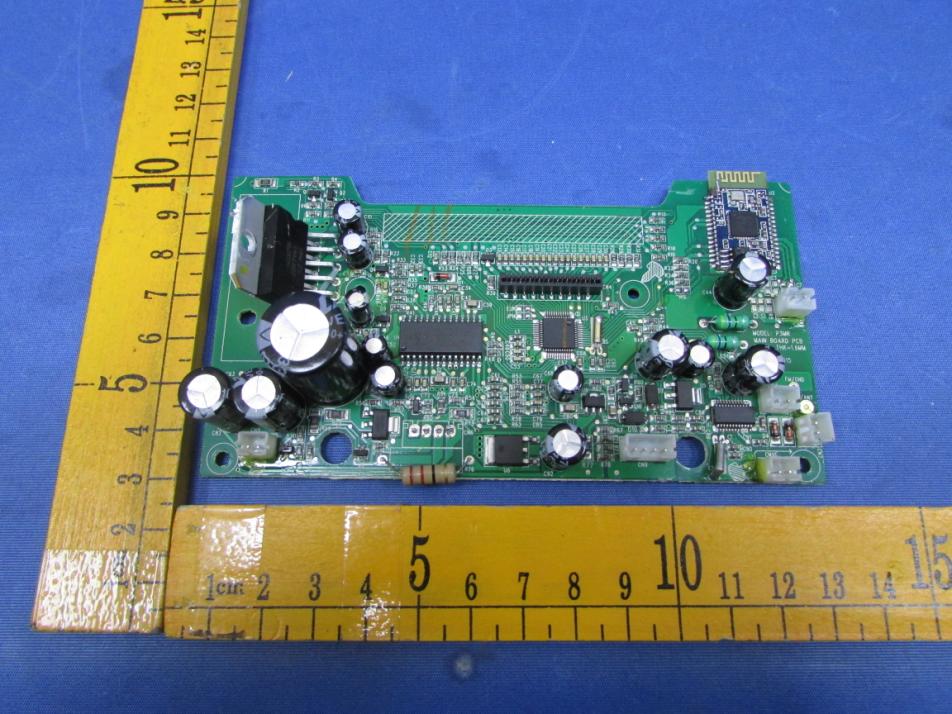

| Internal Photos | Internal Photos | 2016-02-16 | PDF 957.4 KB |

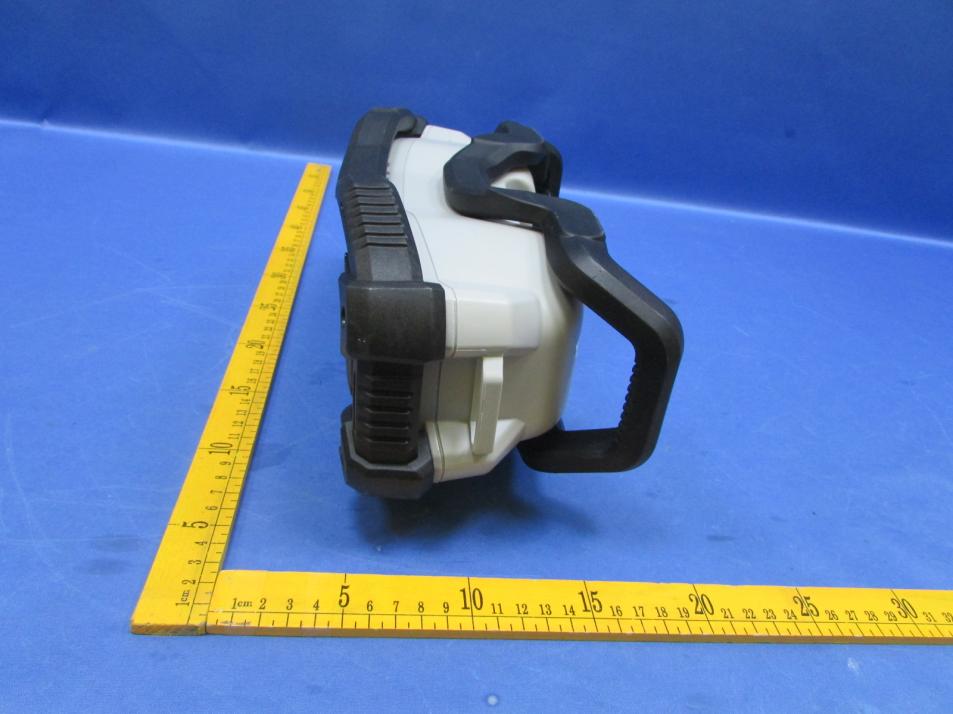

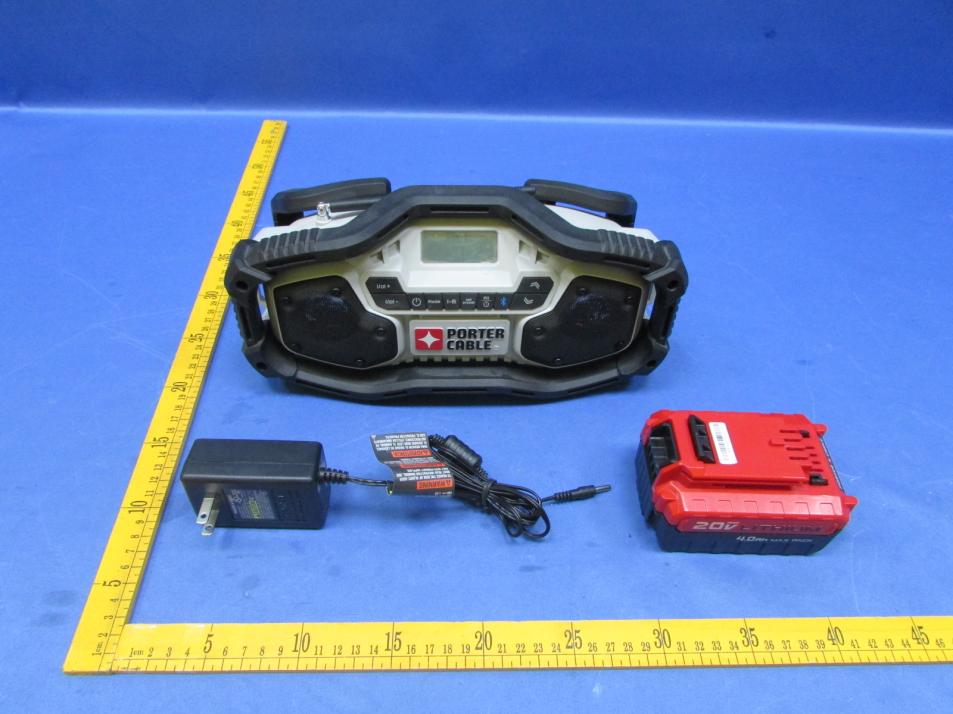

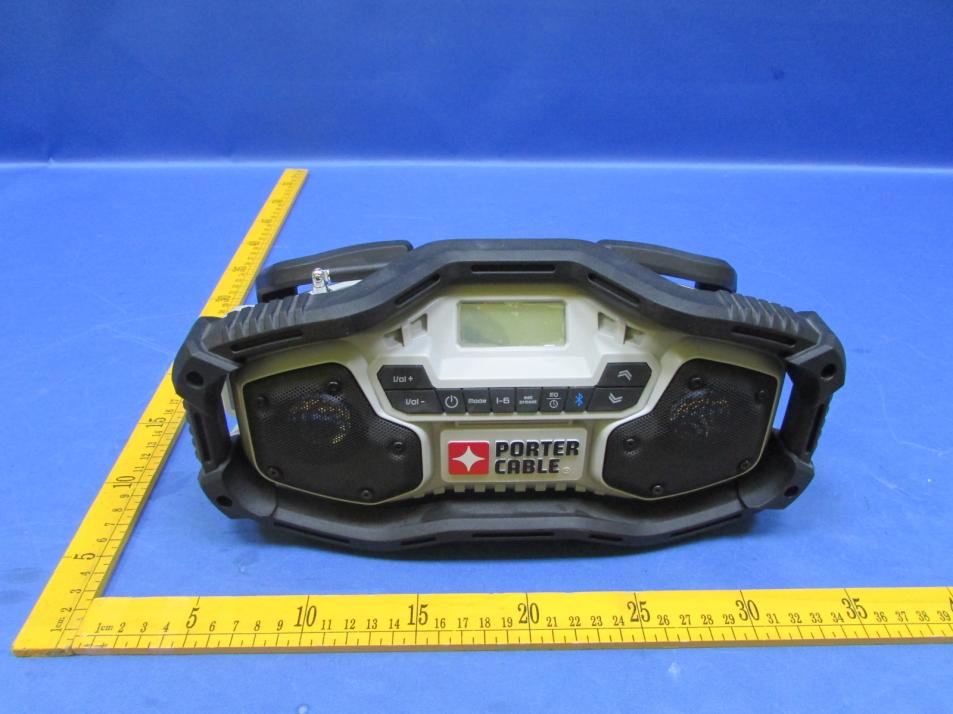

| External Photos | External Photos | 2016-02-16 | PDF 626.9 KB |
| Label and Label Location | ID Label/Location Info | 2016-02-16 | PDF 2.6 MB |
| Test Setup Photos | Test Setup Photos | 2016-02-16 | PDF 491.4 KB |
| Test Report | Test Report | 2016-02-16 | PDF 2.3 MB |
| Confidentiality Request Letter | Cover Letter(s) | 2016-02-16 | PDF 223.8 KB |
| POA | Cover Letter(s) | 2016-02-16 | PDF 201.3 KB |
| Block Diagram Metadata only | Block Diagram | PDF 219.5 KB | |
| Schematics Metadata only | Schematics | PDF 14.7 KB | |
| Operational Description Metadata only | Operational Description | PDF 317.9 KB |
Application Information
| Application ID | c6jH4Jy6aX1INjAoIVm12g== |
|---|---|
| Final Action Date | 2016-02-16 |
| Application Purpose | Original Equipment |
| Applicant FRN | 0023957780 |
| Model | PCC771B |
| Frequency Range | 2402-2480 MHz |
| Equipment Class | DSS - Part 15 Spread Spectrum Transmitter |
| Device Description | 20V max Radio with Bluetooth |
| Responsible Party | Louie Chan, ASST. General Manager, louie_chan@germain.com.hk , (852) 24268421 |
| Test Firm | philo zhong, Waltek Services(Shenzhen) Co., Ltd., philo@waltek.com.cn  , 8675527553488 |
| TCB Email | TEI@TIMCOENGR.COM  |
| TCB Scope | A4: UNII devices & low power transmitters using spread spectrum techniques |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | Yes |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | No |
| Composite Part | No |
| Cognitive Radio | No |
| Authorization Waiver | No |
| Authorization Waiver Approved | No |
| Section 5301 Certification | Yes |
| Related OET Knowledge DataBase Inquiry | No |
| Grant Comments | Power listed is conducted. |
Applications
| Application ID | Date | Purpose |
|---|---|---|
| c6jH4Jy6aX1INjAoIVm12g== | 2016-02-16 | Original Equipment |
Equipment Authorization
| Frequency | Output | Rules |
|---|---|---|
| 2402-2480 MHz | 0.0010800 | 15C |
Grants
TCB Grant - Application c6jH4Jy6aX1INjAoIVm12g==
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
Timco Engineering, Inc. 849 NW State Road 45 Newberry, FL 32669 |
Date of Grant: 02/16/2016 Application Dated: 02/16/2016 |
| GERMAIN ELECTRONIC LIMITED |
| 10/F., Fabrico Industrial Building, |
| 78-84 Kwai Cheong Road, |
| Kwai Chung, N.T., Hong Kong |
| Attention: Louie Chan , ASST. General Manager |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | 2AC9YPCC771B |
| Name of Grantee: | GERMAIN ELECTRONIC LIMITED |
| Equipment Class: | Part 15 Spread Spectrum Transmitter |
| Notes: | 20V max Radio with Bluetooth |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 15C | 2402.0 - 2480.0 | 0.00108 |
| Power listed is conducted. |
EAS Grant - Application c6jH4Jy6aX1INjAoIVm12g==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
GERMAIN ELECTRONIC LIMITED 10/F., Fabrico Industrial Building, 78-84 Kwai Cheong Road, Kwai Chung, N.T., Hong Kong |
Date of Grant: 02/16/2016 Application Dated: 02/16/2016 |
| Attention: Louie Chan , ASST. General Manager |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | 2AC9YPCC771B |
| Name of Grantee: | GERMAIN ELECTRONIC LIMITED |
| Equipment Class: | Part 15 Spread Spectrum Transmitter |
| Notes: | 20V max Radio with Bluetooth |
| Modular Type: | Does not apply |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 15C | 2402.0 - 2480.0 | 0.00108 |
| Power listed is conducted. |
| Mail To: |
