FCC ID 2ACB3L3
2.4G Remote Control
by ShenZhen FreedConn(FDC) Electronics Co., Ltd
Grantee Code: 2ACB3 Product Code: L3
Latest application date: 2016-12-20
Device Images
FCC ID Device Details
Operating Frequencies
| Frequency Range | Application Purpose | Final Action Date |
|---|---|---|
| 2401-2481 MHz | Original Equipment | 2016-12-20 |
Exhibits
| Document | Type | Available | File |
|---|---|---|---|
| 15_L3 UserMan | Users Manual | 2016-12-20 | PDF 2.4 MB |

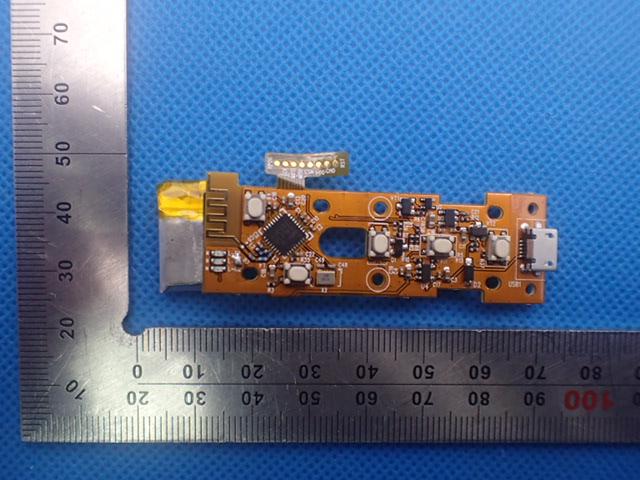

| 09_L3 IntPho | Internal Photos | 2016-12-20 | PDF 300.1 KB |

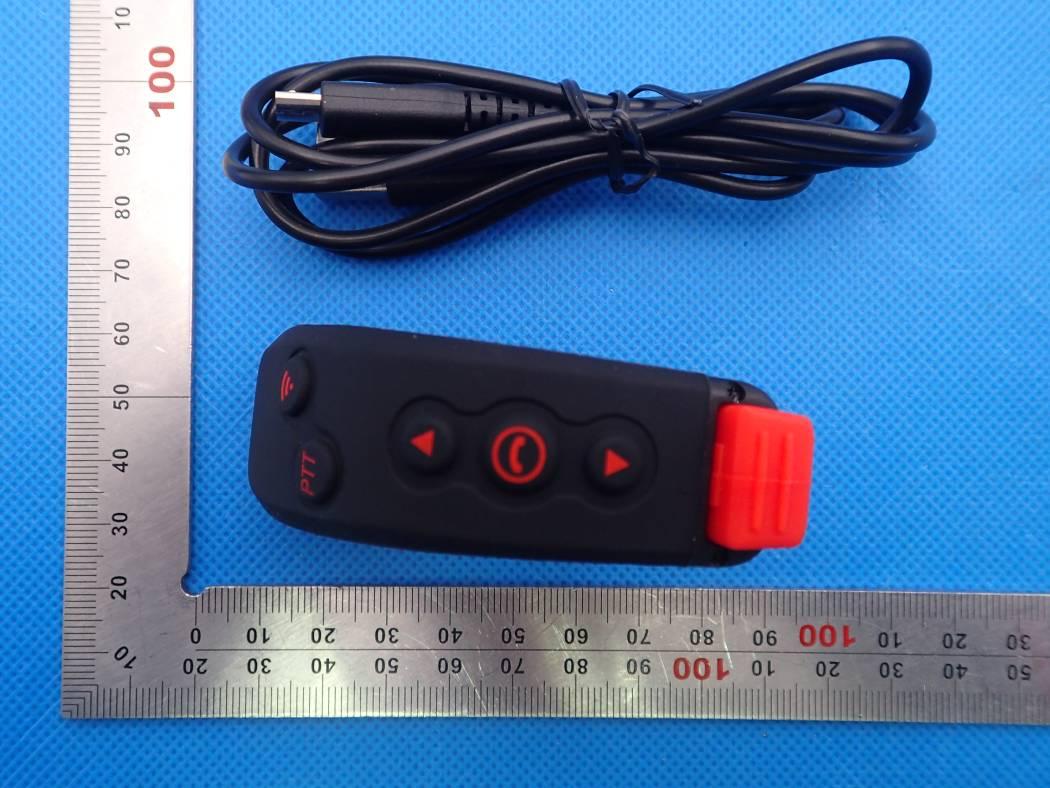

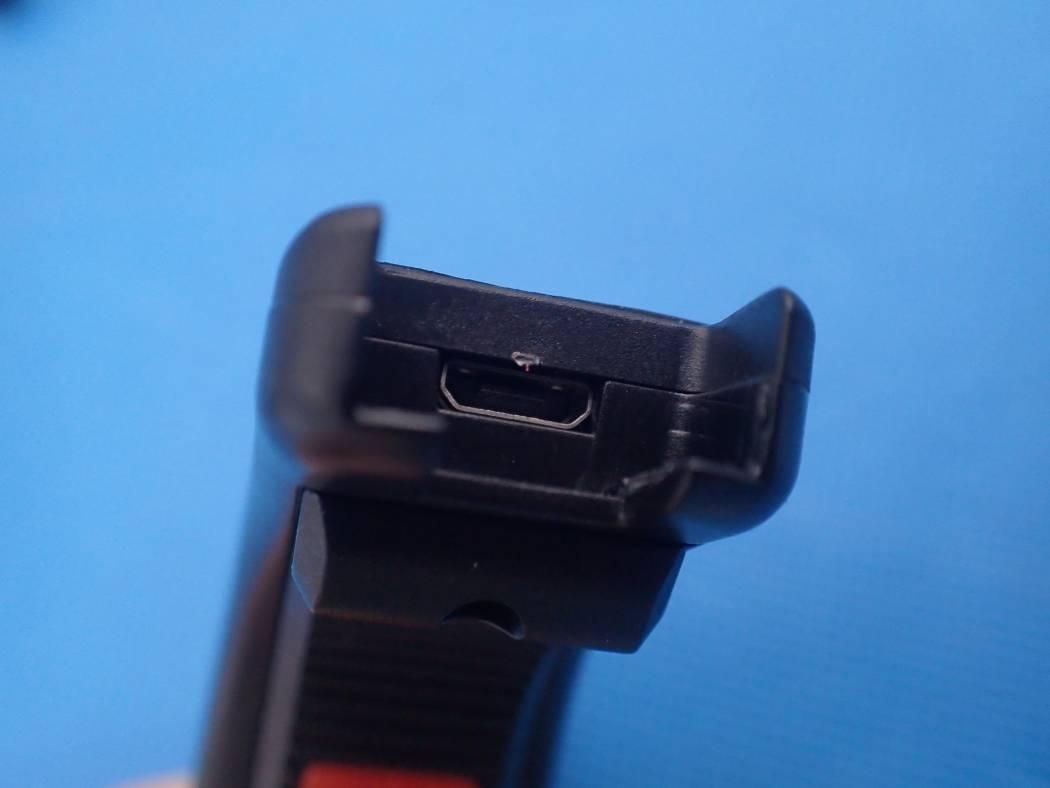

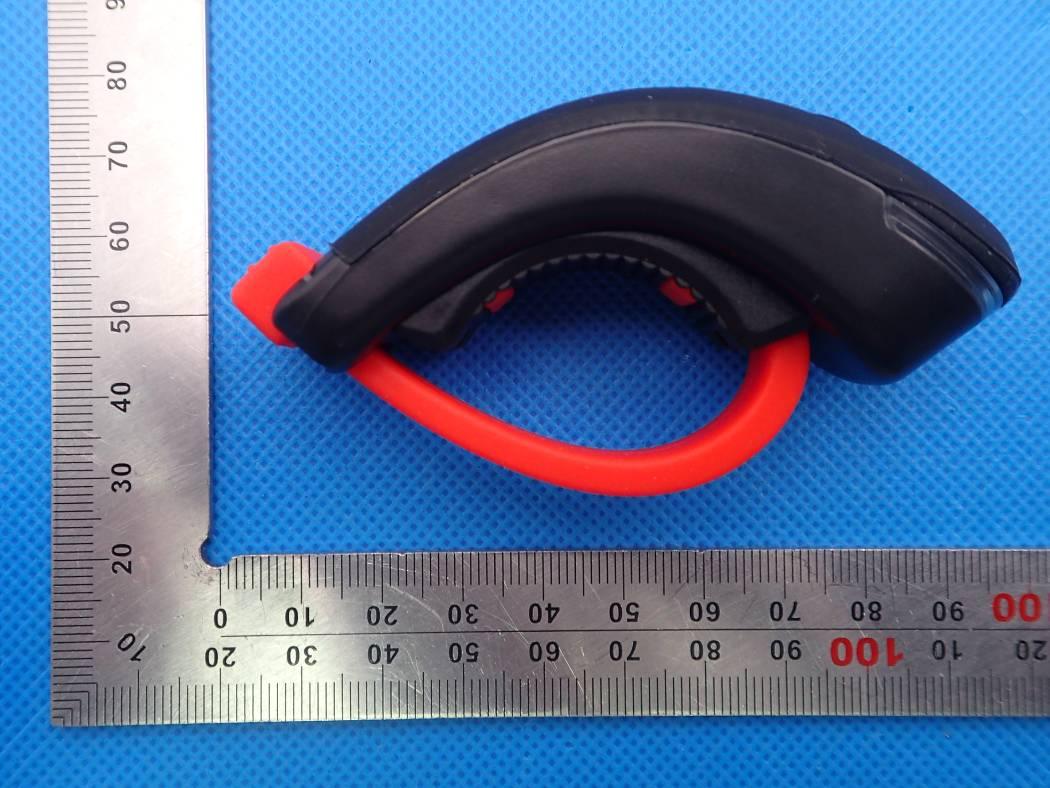

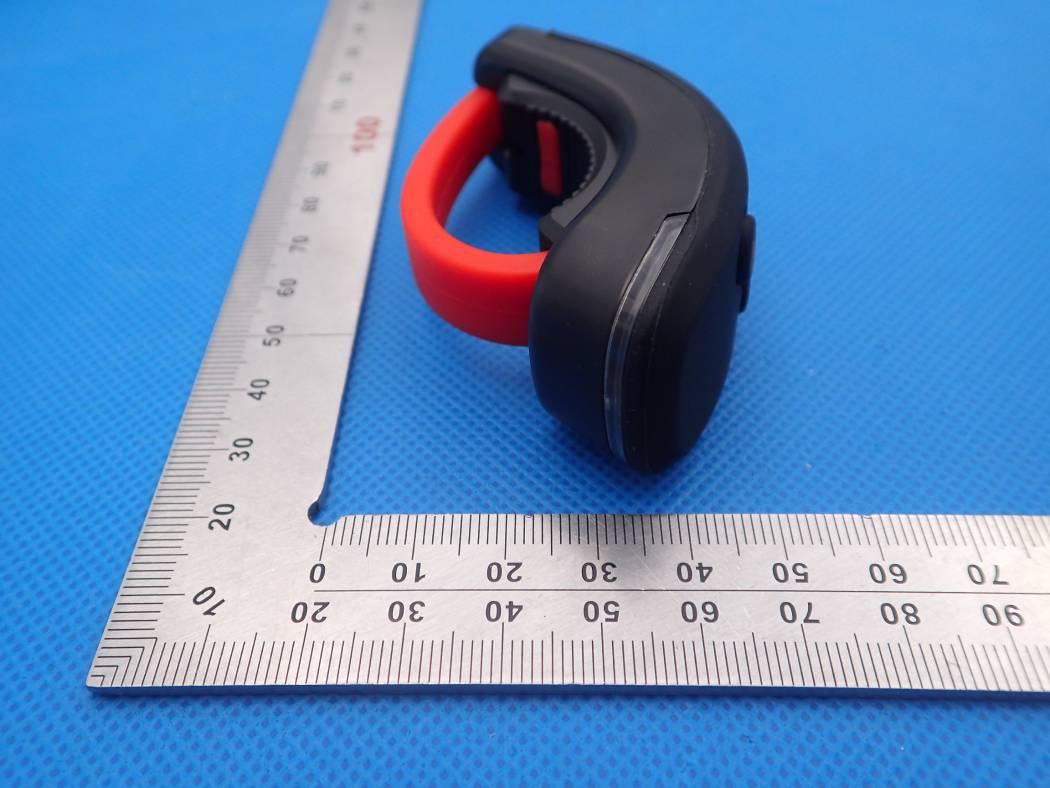

| 08_L3 ExtPho | External Photos | 2016-12-20 | PDF 802.5 KB |
| 06-07_L3 LabelSmpl-Loc | ID Label/Location Info | 2016-12-20 | PDF 273.3 KB |
| 17_L3 AntSpec | Operational Description | 2016-12-20 | PDF 16.6 KB |

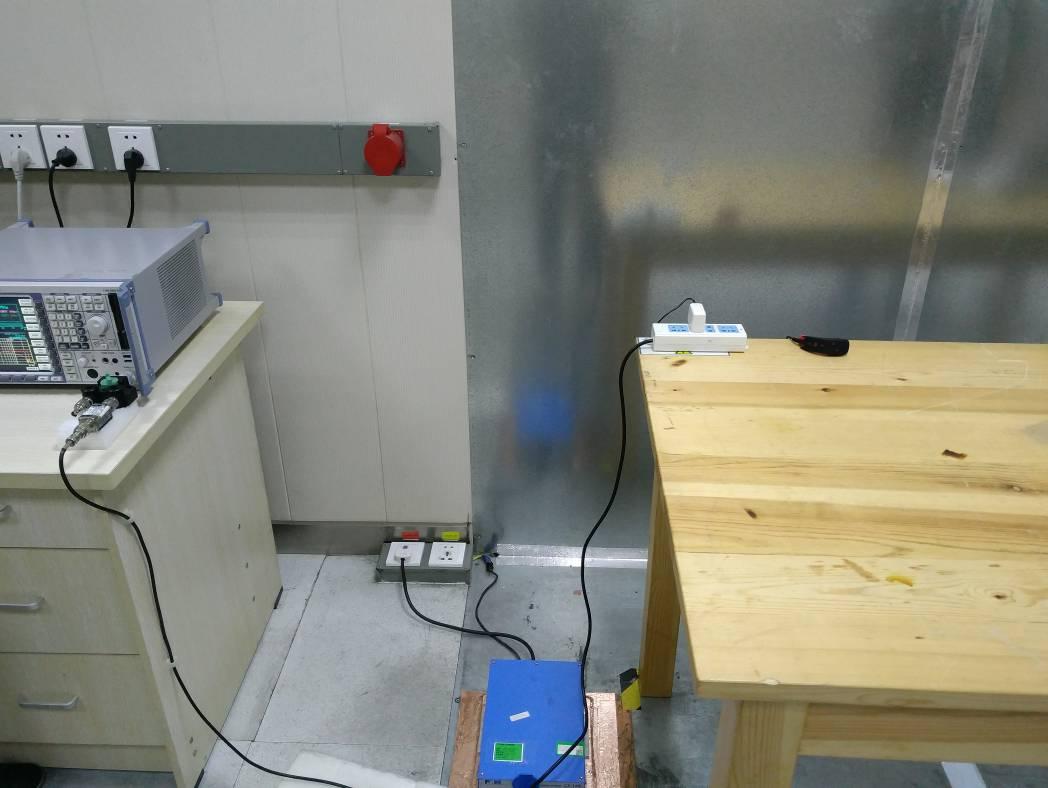

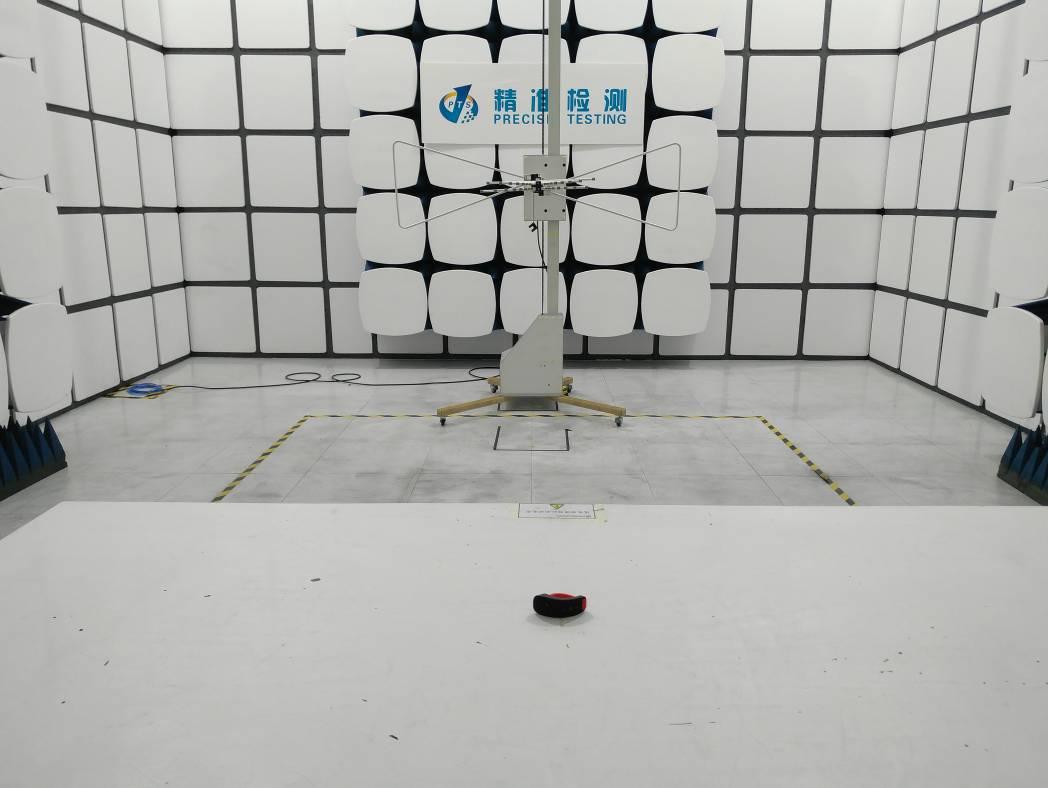

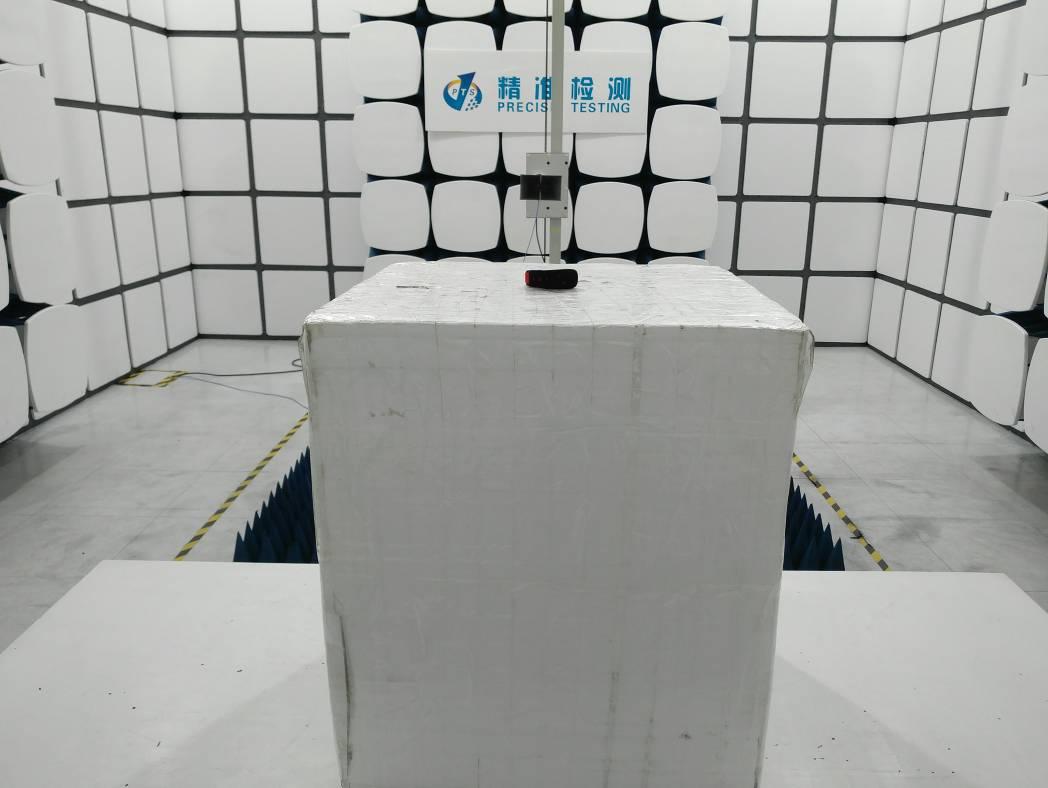

| 10_L3 TSup | Test Setup Photos | 2016-12-20 | PDF 204 KB |
| 14_L3 TestRpt | Test Report | 2016-12-20 | PDF 2.7 MB |
| 18_L3 RFExp | RF Exposure Info | 2016-12-20 | PDF 157.3 KB |
| 12_L3 BlkDia Metadata only | Block Diagram | PDF 20.9 KB | |
| 13_L3 Schem Metadata only | Schematics | PDF 133 KB | |
| 11_L3 OpDes Metadata only | Operational Description | PDF 162.1 KB | |
| 16_L3 PartsLst Metadata only | Parts List/Tune Up Info | PDF 26 KB |
Application Information
| Application ID | xtcS+9t8sebkyXxHNq1TxA== |
|---|---|
| Final Action Date | 2016-12-20 |
| Application Purpose | Original Equipment |
| Applicant FRN | 0023588957 |
| Model | L3 |
| Frequency Range | 2401-2481 MHz |
| Equipment Class | DXX - Part 15 Low Power Communication Device Transmitter |
| Device Description | 2.4G Remote Control |
| Responsible Party | Wang Honghai, wanghonghai@fdcdz.com  , 86-755-29920664 |
| Test Firm | Chris Du, Dongguan Precise Testing Service Co., Ltd., chris.du@pts-testing.com  , 86-769-8928-2919 |
| TCB Email | joergkusig@eurofins.com  |
| TCB Scope | A2: Low Power Transmitters (except Spread Spectrum) and radar detectors operating above 1 GHz |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | Yes |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | No |
| Composite Part | No |
| Cognitive Radio | No |
| Authorization Waiver | No |
| Authorization Waiver Approved | No |
| Section 5301 Certification | Yes |
| Related OET Knowledge DataBase Inquiry | No |
Applications
| Application ID | Date | Purpose |
|---|---|---|
| xtcS+9t8sebkyXxHNq1TxA== | 2016-12-20 | Original Equipment |
Equipment Authorization
| Frequency | Output | Tolerance | Rules |
|---|---|---|---|
| 2401-2481 MHz | 0.0001100 | ppm | 15C |
Grants
TCB Grant - Application xtcS+9t8sebkyXxHNq1TxA==
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
Eurofins Product Service GmbH Storkower Strasse 38c D-15526 Reichenwalde, Germany |
Date of Grant: 12/20/2016 Application Dated: 12/19/2016 |
| ShenZhen FreedConn(FDC) Electronics Co., Ltd |
| East Area 4th floor, E building,Hua Chuang Da |
| industry park, No.176 HangCheng Road, Xixiang, |
| Baoan, Shenzhen,, China |
| Attention: Wang Honghai |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | 2ACB3L3 |
| Name of Grantee: | ShenZhen FreedConn(FDC) Electronics Co., Ltd |
| Equipment Class: | Part 15 Low Power Communication Device Transmitter |
| Notes: | 2.4G Remote Control |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 15C | 2401.0 - 2481.0 | 0.00011 |
EAS Grant - Application xtcS+9t8sebkyXxHNq1TxA==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
ShenZhen FreedConn(FDC) Electronics Co., Ltd East Area 4th floor, E building,Hua Chuang Da industry park, No.176 HangCheng Road, Xixiang, Baoan, Shenzhen,, China |
Date of Grant: 12/20/2016 Application Dated: 12/19/2016 |
| Attention: Wang Honghai |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | 2ACB3L3 |
| Name of Grantee: | ShenZhen FreedConn(FDC) Electronics Co., Ltd |
| Equipment Class: | Part 15 Low Power Communication Device Transmitter |
| Notes: | 2.4G Remote Control |
| Modular Type: | Does not apply |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 15C | 2401.0 - 2481.0 | 0.00011 |
| Mail To: |
