FCC ID 2ACCJB044
GSM Quad-band / UMTS Quad-band / LTE 7-band mobile phone
by TCL Communication Ltd.
Grantee Code: 2ACCJ Product Code: B044
Latest application date: 2016-03-03
Device Images
FCC ID Device Details
Operating Frequencies
| Frequency Range | Application Purpose | Final Action Date |
|---|---|---|
| 706.5-713.5 MHz | Original Equipment | 2016-03-03 |
| 2402-2480 MHz | Original Equipment | 2016-03-03 |
| 2402-2480 MHz | Original Equipment | 2016-03-03 |
Exhibits
| Document | Type | Available | File |
|---|---|---|---|
| POP4-5.5 C_5056 QG_Eng_EN_20160224 | Users Manual | 2016-03-03 | PDF 392.1 KB |
| POP4-5.5 C_5056A_Safety and warranty information_US_EN_20160226 v1 | Users Manual | 2016-03-03 | PDF 389.6 KB |
| 5056A Interior Photo | Internal Photos | 2016-03-03 | PDF 560.3 KB |
| 5056A Exterior Photo | External Photos | 2016-03-03 | PDF 849.8 KB |
| 5056A label v1 | ID Label/Location Info | 2016-03-03 | PDF 78.4 KB |

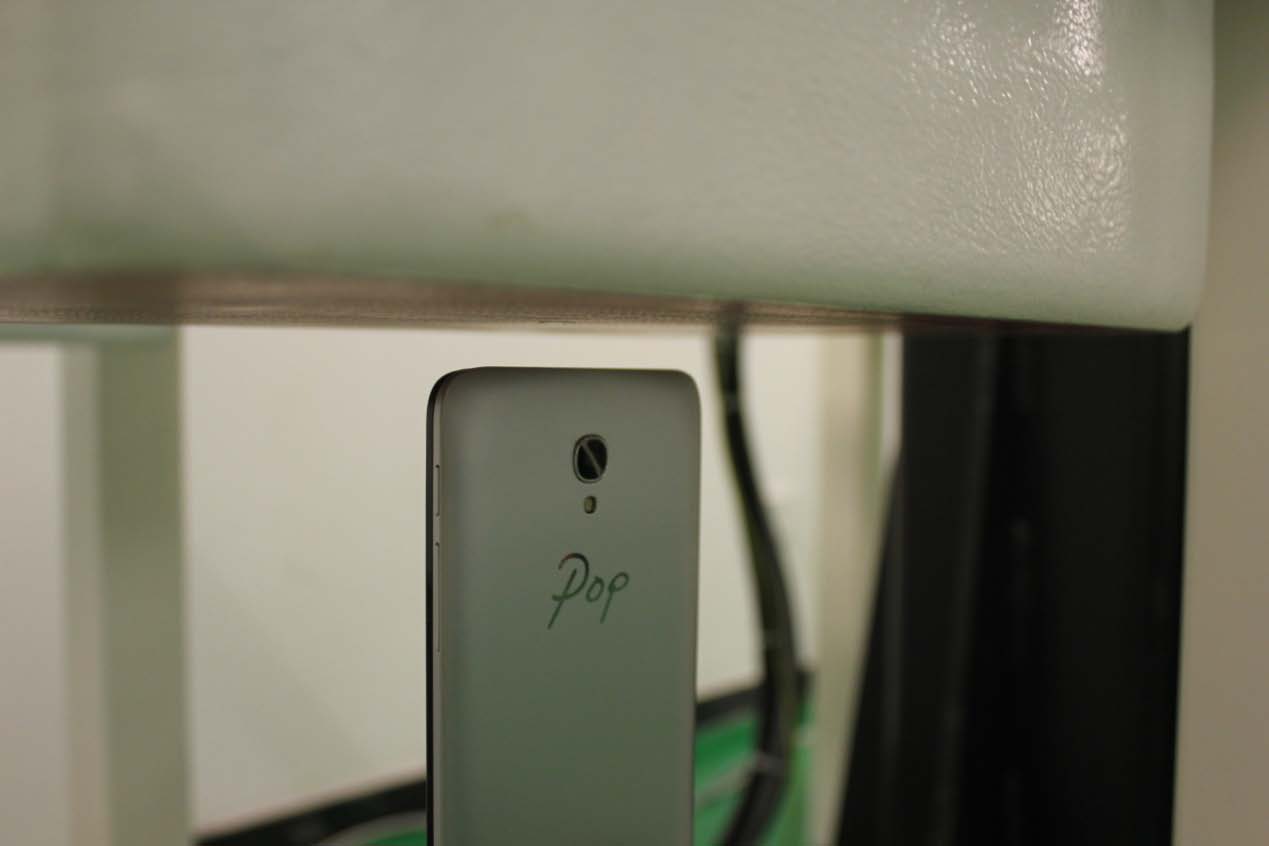

| 5056A test_setup_photo | Test Setup Photos | 2016-03-03 | PDF 1.1 MB |
| The Photos of SAR test - 43150 v1 | Test Setup Photos | 2016-03-03 | PDF 588.2 KB |
| The photos of HAC test | Test Setup Photos | 2016-03-03 | PDF 132 KB |
| I15Z43150-EMC01_TCL_5056A_FCC 15B Rev0 | Test Report | 2016-03-03 | PDF 446.7 KB |
| I15Z43150-GTE01_Part2224_GSM_Rev1 | Test Report | 2016-03-03 | PDF 1.4 MB |
| I15Z43150-GTE02_Part2224_WCDMA_Rev0 | Test Report | 2016-03-03 | PDF 1.4 MB |
| I15Z43150-GTE03_part2427_LTE_Rev0 | Test Report | 2016-03-03 | PDF 1.9 MB |
| I15Z43150-SEM02_HAC_Rev0_1-48 | Test Report | 2016-03-03 | PDF 4.5 MB |
| I15Z43150-SEM02_HAC_Rev0_49-57 | Test Report | 2016-03-03 | PDF 2.4 MB |
| I15Z43150-SRD01_FCC Report_WLAN 2.4G-Rev1_1-52 | Test Report | 2016-03-03 | PDF 4.9 MB |
| I15Z43150-SRD01_FCC Report_WLAN 2.4G-Rev1_53-94 | Test Report | 2016-03-03 | PDF 3.8 MB |
| I15Z43150-SRD02 FCC_Report_Part15C_EDR_Rev0 | Test Report | 2016-03-03 | PDF 2.3 MB |
| I15Z43150-SRD03 FCC_Report_Part15C_BLE_Rev1 | Test Report | 2016-03-03 | PDF 1,023.8 KB |
| 5056A Agent Letter_ACB_TCL_20160115 | Cover Letter(s) | 2016-03-03 | PDF 154.8 KB |
| 5056A FCC Confidentiality Letter template_TCL_20140727 | Cover Letter(s) | 2016-03-03 | PDF 751.7 KB |
| RT Question and Response | Cover Letter(s) | 2016-03-03 | PDF 151.4 KB |
| I15Z43150-SEM01_SAR_Rev1_1-57 | RF Exposure Info | 2016-03-03 | PDF 5.4 MB |
| I15Z43150-SEM01_SAR_Rev1_124-154 | RF Exposure Info | 2016-03-03 | PDF 5.1 MB |
| I15Z43150-SEM01_SAR_Rev1_155-169 | RF Exposure Info | 2016-03-03 | PDF 4.8 MB |
| I15Z43150-SEM01_SAR_Rev1_170-184 | RF Exposure Info | 2016-03-03 | PDF 5 MB |
| I15Z43150-SEM01_SAR_Rev1_185-196 | RF Exposure Info | 2016-03-03 | PDF 5.4 MB |
| I15Z43150-SEM01_SAR_Rev1_197-201 | RF Exposure Info | 2016-03-03 | PDF 399.3 KB |
| I15Z43150-SEM01_SAR_Rev1_58-123 | RF Exposure Info | 2016-03-03 | PDF 5.5 MB |
| Confidential_5056A block v1 Metadata only | Block Diagram | PDF 172.5 KB | |
| Confidential_5056A BT&WLAN circuit diagram Metadata only | Schematics | PDF 215.3 KB | |
| Confidential_5056A_schematics v1 Metadata only | Schematics | PDF 4.1 MB | |
| Confidential_5056A BT&WLAN BT_WIFI_technical description Metadata only | Operational Description | PDF 321.6 KB | |
| Confidential_5056A Operation description V1 Metadata only | Operational Description | PDF 526 KB | |
| Confidential_Antenna details For 5056A Metadata only | Operational Description | PDF 96.3 KB | |
| Confidential_5056A power tolerance 2016-2-4 Metadata only | Parts List/Tune Up Info | PDF 124 KB | |
| Confidential_Pop4-5.5C LATAM EBOM_5056A_SBA1F510000CX_1SIM_20151214 Metadata only | Parts List/Tune Up Info | PDF 70.9 KB |
Application Information
| Application ID | vwOB8NzMo0gsE81jSPdjjg== |
|---|---|
| Final Action Date | 2016-03-03 |
| Application Purpose | Original Equipment |
| Applicant FRN | 0023603830 |
| Model | B044 |
| Equipment Class | JBP - Part 15 Class B Computing Device Peripheral |
| Device Description | GSM Quad-band / UMTS Quad-band / LTE 7-band mobile phone |
| Responsible Party | Peter Yang, peter.yang@tcl.com  , +8675536645759 |
| Agent | Bo Bo Bo, CTTL-Terminals Test Lab of China Academy of Teleco, libo@catr.cn  , 86-010-62304633 |
| Technical Contact | Xue Zhen, CTTL-Terminals Test Lab of China Academy of Teleco, xuezhen@catr.cn , 86-62304633 |
| Test Firm | Zou Dongyi, China Telecommunication Technology Labs, emc@chinattl.com  , 86-10-68094053 |
| TCB Email | hotline@acbcert.com  |
| TCB Scope | A1: Low Power Transmitters below 1 GHz (except Spread Spectrum), Unintentional Radiators, EAS (Part 11) & Consumer ISM devices |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | Yes |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | Yes |
| Composite Part | No |
| Cognitive Radio | No |
| Authorization Waiver | No |
| Authorization Waiver Approved | No |
| Section 5301 Certification | Yes |
| Related OET Knowledge DataBase Inquiry | No |
| Grant Comments | This device also contains Bluetooth, BLE, WLAN and GSM/WCDMA/LTE transmitters. |
Applications
| Application ID | Date | Purpose |
|---|---|---|
| vwOB8NzMo0gsE81jSPdjjg== | 2016-03-03 | Original Equipment |
| vuIhHmE7wYPMF2YnC7CRwA== | 2016-03-03 | Original Equipment |
| ltnqhlLfuF7mRqMqJxyPXw== | 2016-03-03 | Original Equipment |
| P0uW61dCmDck+7LTA4O2gw== | 2016-03-03 | Original Equipment |
Equipment Authorization
| Frequency | Output | Tolerance | Emission | Rules | Grant Notes |
|---|---|---|---|---|---|
| 15B | 16, CC | ||||
| 706.5-713.5 MHz | 0.0435 | 0.1ppm | 4M47W7D | 27 | BC, HX |
| 709-711 MHz | 0.0542 | 0.1ppm | 8M94G7D | 27 | BC, HX |
| 709-711 MHz | 0.0427 | 0.1ppm | 8M94W7D | 27 | BC, HX |
| 779.5-784.5 MHz | 0.0859 | 0.1ppm | 4M50G7D | 27 | BC, HX |
| 779.5-784.5 MHz | 0.0728 | 0.1ppm | 4M50W7D | 27 | BC, HX |
| 782 MHz | 0.0813 | 0.1ppm | 8M94G7D | 27 | BC, HX |
| 782 MHz | 0.0628 | 0.1ppm | 8M94W7D | 27 | BC, HX |
| 824.2-848.8 MHz | 0.3459 | 0.1ppm | 248KG7W | 22H | BC, HX |
| 826.4-846.6 MHz | 0.1346 | 0.1ppm | 4M15F9W | 22H | BC, HC |
| 1715-1750 MHz | 0.1687 | 0.1ppm | 8M94W7D | 27 | BC, HX |
| 1720-1745 MHz | 0.1968 | 0.1ppm | 17M9G7D | 27 | BC, HX |
| 1720-1745 MHz | 0.1462 | 0.1ppm | 17M9W7D | 27 | BC, HX |
| 1850.2-1909.8 MHz | 0.4207 | 0.1ppm | 249KG7W | 24E | BC, HX |
| 1851.5-1908.5 MHz | 0.2004 | 0.1ppm | 2M71G7D | 24E | BC, HX |
| 1852.4-1907.6 MHz | 0.1271 | 0.1ppm | 4M17F9W | 24E | BC, HC |
| 1852.5-1907.5 MHz | 0.1671 | 0.1ppm | 4M52W7D | 24E | BC, HX |
| 1860-1900 MHz | 0.1084 | 0.1ppm | 17M9W7D | 24E | BC, HX |
| 1860-1900 MHz | 0.1321 | 0.1ppm | 18M0G7D | 24E | BC, HX |
| 2402-2480 MHz | 0.0015 | 15C | CC | ||
| 2402-2480 MHz | 0.0137000 | 15C | CC | ||
| 2412-2462 MHz | 0.4426 | 15C | CC, HX | ||
| 2507.5-2562.5 MHz | 0.3581 | 0.1ppm | 13M6W7D | 27 | BC, HX |
| 2510-2560 MHz | 0.4198 | 0.1ppm | 17M9G7D | 27 | BC, HX |
| 2510-2560 MHz | 0.3499 | 0.1ppm | 18M0W7D | 27 | BC, HX |
Grants
TCB Grant - Application vwOB8NzMo0gsE81jSPdjjg==
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
ACB, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 |
Date of Grant: 03/03/2016 Application Dated: 03/03/2016 |
| TCL Communication Ltd. |
| 5/F, Building 22E, 22 Science Park East Avenue |
| Hong Kong Science Park, Shatin, NT |
| Hong Kong, China |
| Attention: Peter Yang |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | 2ACCJB044 |
| Name of Grantee: | TCL Communication Ltd. |
| Equipment Class: | Part 15 Class B Computing Device Peripheral |
| Notes: | GSM Quad-band / UMTS Quad-band / LTE 7-band mobile phone |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 16 CC | 15B | - |
| This device also contains Bluetooth, BLE, WLAN and GSM/WCDMA/LTE transmitters. |
| 16: | If the subject device requires shielded interface cables to ensure compliance, the user's manual must advise the user of this requirement. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
EAS Grant - Application vwOB8NzMo0gsE81jSPdjjg==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
TCL Communication Ltd. 5/F, Building 22E, 22 Science Park East Avenue Hong Kong Science Park, Shatin, NT Hong Kong, China |
Date of Grant: 03/03/2016 Application Dated: 03/03/2016 |
| Attention: Peter Yang |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | 2ACCJB044 |
| Name of Grantee: | TCL Communication Ltd. |
| Equipment Class: | Part 15 Class B Computing Device Peripheral |
| Notes: | GSM Quad-band / UMTS Quad-band / LTE 7-band mobile phone |
| Modular Type: | Does not apply |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 16 CC | 15B | - |
| This device also contains Bluetooth, BLE, WLAN and GSM/WCDMA/LTE transmitters. |
| 16: | If the subject device requires shielded interface cables to ensure compliance, the user's manual must advise the user of this requirement. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| Mail To: | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
ACB, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 |
Date of Grant: 03/03/2016 Application Dated: 03/03/2016 |
| TCL Communication Ltd. |
| 5/F, Building 22E, 22 Science Park East Avenue |
| Hong Kong Science Park, Shatin, NT |
| Hong Kong, China |
| Attention: Peter Yang |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | 2ACCJB044 |
| Name of Grantee: | TCL Communication Ltd. |
| Equipment Class: | PCS Licensed Transmitter held to ear |
| Notes: | GSM Quad-band / UMTS Quad-band / LTE 7-band mobile phone |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| BC HC | 22H | 824.2 - 848.8 | 1.2912 | 0.1 PM | 247KGXW |
| BC HC | 24E | 1850.2 - 1909.8 | 1.3092 | 0.1 PM | 249KGXW |
| BC HX | 24E | 1850.2 - 1909.8 | 0.4207 | 0.1 PM | 249KG7W |
| BC HX | 22H | 824.2 - 848.8 | 0.3459 | 0.1 PM | 248KG7W |
| BC HC | 24E | 1852.4 - 1907.6 | 0.1271 | 0.1 PM | 4M17F9W |
| BC HC | 22H | 826.4 - 846.6 | 0.1346 | 0.1 PM | 4M15F9W |
| BC HX | 24E | 1851.5 - 1908.5 | 0.2004 | 0.1 PM | 2M71G7D |
| BC HX | 24E | 1860.0 - 1900.0 | 0.1321 | 0.1 PM | 18M0G7D |
| BC HX | 24E | 1852.5 - 1907.5 | 0.1671 | 0.1 PM | 4M52W7D |
| BC HX | 24E | 1860.0 - 1900.0 | 0.1084 | 0.1 PM | 17M9W7D |
| BC HX | 27 | 1720.0 - 1745.0 | 0.1968 | 0.1 PM | 17M9G7D |
| BC HX | 27 | 1715.0 - 1750.0 | 0.1687 | 0.1 PM | 8M94W7D |
| BC HX | 27 | 1720.0 - 1745.0 | 0.1462 | 0.1 PM | 17M9W7D |
| BC HX | 27 | 2510.0 - 2560.0 | 0.4198 | 0.1 PM | 17M9G7D |
| BC HX | 27 | 2507.5 - 2562.5 | 0.3581 | 0.1 PM | 13M6W7D |
| BC HX | 27 | 2510.0 - 2560.0 | 0.3499 | 0.1 PM | 18M0W7D |
| BC HX | 27 | 779.5 - 784.5 | 0.0859 | 0.1 PM | 4M50G7D |
| BC HX | 27 | 782.0 - 782.0 | 0.0813 | 0.1 PM | 8M94G7D |
| BC HX | 27 | 779.5 - 784.5 | 0.0728 | 0.1 PM | 4M50W7D |
| BC HX | 27 | 782.0 - 782.0 | 0.0628 | 0.1 PM | 8M94W7D |
| BC HX | 27 | 709.0 - 711.0 | 0.0542 | 0.1 PM | 8M94G7D |
| BC HX | 27 | 706.5 - 713.5 | 0.0435 | 0.1 PM | 4M47W7D |
| BC HX | 27 | 709.0 - 711.0 | 0.0427 | 0.1 PM | 8M94W7D |
| Output Power is ERP for operation below 1 GHz and EIRP for operation above 1 GHz. Body-worn operations are restricted to belt-clips, holsters or similar accessories that have no metallic component in the assembly and which provide at least 1.5 cm separation between the device and the user's body. End users must be informed of the body worn requirements for satisfying RF Exposure compliance. The highest reported SAR values are: Head: 0.53 W/kg; Body-worn: 0.58 W/kg; Product Specific (Hotspot): 1.18 W/kg; and Simultaneous Transmission: 1.18 W/kg. This device contains GSM/WCDMA/LTE functions that are not operational in U.S. Territories. This device also contains Bluetooth, BLE and WLAN transmitters, and supports multiple bandwidth modes for LTE operation, as documented in the filing. HAC Rating M4-2011. Support for HSPA+ and Rel.10 LTE is limited to network enhancement features- Carrier Aggregation is not implemented in the uplink |
| BC: | The output power is continuously variable from the value listed in this entry to 5%-10% of the value listed. |
| HC: | This equipment complies with the hearing aid compatibility technical requirements of Section 20.19 of the rules. |
| HX: | This mode of operation has the means to permit held to the ear telephone calls but has not been tested for hearing aid compatibility. The device supports other modes which have been found to be compliant with the HAC rules. |
EAS Grant - Application vuIhHmE7wYPMF2YnC7CRwA==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
TCL Communication Ltd. 5/F, Building 22E, 22 Science Park East Avenue Hong Kong Science Park, Shatin, NT Hong Kong, China |
Date of Grant: 03/03/2016 Application Dated: 03/03/2016 |
| Attention: Peter Yang |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | 2ACCJB044 |
| Name of Grantee: | TCL Communication Ltd. |
| Equipment Class: | PCS Licensed Transmitter held to ear |
| Notes: | GSM Quad-band / UMTS Quad-band / LTE 7-band mobile phone |
| Modular Type: | Does not apply |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| BC HC | 22H | 824.2 - 848.8 | 1.2912 | 0.1 PM | 247KGXW |
| BC HC | 24E | 1850.2 - 1909.8 | 1.3092 | 0.1 PM | 249KGXW |
| BC HX | 24E | 1850.2 - 1909.8 | 0.4207 | 0.1 PM | 249KG7W |
| BC HX | 22H | 824.2 - 848.8 | 0.3459 | 0.1 PM | 248KG7W |
| BC HC | 24E | 1852.4 - 1907.6 | 0.1271 | 0.1 PM | 4M17F9W |
| BC HC | 22H | 826.4 - 846.6 | 0.1346 | 0.1 PM | 4M15F9W |
| BC HX | 24E | 1851.5 - 1908.5 | 0.2004 | 0.1 PM | 2M71G7D |
| BC HX | 24E | 1860.0 - 1900.0 | 0.1321 | 0.1 PM | 18M0G7D |
| BC HX | 24E | 1852.5 - 1907.5 | 0.1671 | 0.1 PM | 4M52W7D |
| BC HX | 24E | 1860.0 - 1900.0 | 0.1084 | 0.1 PM | 17M9W7D |
| BC HX | 27 | 1720.0 - 1745.0 | 0.1968 | 0.1 PM | 17M9G7D |
| BC HX | 27 | 1715.0 - 1750.0 | 0.1687 | 0.1 PM | 8M94W7D |
| BC HX | 27 | 1720.0 - 1745.0 | 0.1462 | 0.1 PM | 17M9W7D |
| BC HX | 27 | 2510.0 - 2560.0 | 0.4198 | 0.1 PM | 17M9G7D |
| BC HX | 27 | 2507.5 - 2562.5 | 0.3581 | 0.1 PM | 13M6W7D |
| BC HX | 27 | 2510.0 - 2560.0 | 0.3499 | 0.1 PM | 18M0W7D |
| BC HX | 27 | 779.5 - 784.5 | 0.0859 | 0.1 PM | 4M50G7D |
| BC HX | 27 | 782.0 - 782.0 | 0.0813 | 0.1 PM | 8M94G7D |
| BC HX | 27 | 779.5 - 784.5 | 0.0728 | 0.1 PM | 4M50W7D |
| BC HX | 27 | 782.0 - 782.0 | 0.0628 | 0.1 PM | 8M94W7D |
| BC HX | 27 | 709.0 - 711.0 | 0.0542 | 0.1 PM | 8M94G7D |
| BC HX | 27 | 706.5 - 713.5 | 0.0435 | 0.1 PM | 4M47W7D |
| BC HX | 27 | 709.0 - 711.0 | 0.0427 | 0.1 PM | 8M94W7D |
| Output Power is ERP for operation below 1 GHz and EIRP for operation above 1 GHz. Body-worn operations are restricted to belt-clips, holsters or similar accessories that have no metallic component in the assembly and which provide at least 1.5 cm separation between the device and the user's body. End users must be informed of the body worn requirements for satisfying RF Exposure compliance. The highest reported SAR values are: Head: 0.53 W/kg; Body-worn: 0.58 W/kg; Product Specific (Hotspot): 1.18 W/kg; and Simultaneous Transmission: 1.18 W/kg. This device contains GSM/WCDMA/LTE functions that are not operational in U.S. Territories. This device also contains Bluetooth, BLE and WLAN transmitters, and supports multiple bandwidth modes for LTE operation, as documented in the filing. HAC Rating M4-2011. Support for HSPA+ and Rel.10 LTE is limited to network enhancement features- Carrier Aggregation is not implemented in the uplink |
| BC: | The output power is continuously variable from the value listed in this entry to 5%-10% of the value listed. |
| HC: | This equipment complies with the hearing aid compatibility technical requirements of Section 20.19 of the rules. |
| HX: | This mode of operation has the means to permit held to the ear telephone calls but has not been tested for hearing aid compatibility. The device supports other modes which have been found to be compliant with the HAC rules. |
| Mail To: | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
ACB, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 |
Date of Grant: 03/03/2016 Application Dated: 03/03/2016 |
| TCL Communication Ltd. |
| 5/F, Building 22E, 22 Science Park East Avenue |
| Hong Kong Science Park, Shatin, NT |
| Hong Kong, China |
| Attention: Peter Yang |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | 2ACCJB044 |
| Name of Grantee: | TCL Communication Ltd. |
| Equipment Class: | Part 15 Spread Spectrum Transmitter |
| Notes: | GSM Quad-band / UMTS Quad-band / LTE 7-band mobile phone |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| CC | 15C | 2402.0 - 2480.0 | 0.0137 |
| Output Power is conducted. End users must be informed of the body worn requirements for satisfying RF Exposure compliance. This device also contains BLE, WLAN and GSM/WCDMA/LTE transmitters. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
EAS Grant - Application P0uW61dCmDck+7LTA4O2gw==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
TCL Communication Ltd. 5/F, Building 22E, 22 Science Park East Avenue Hong Kong Science Park, Shatin, NT Hong Kong, China |
Date of Grant: 03/03/2016 Application Dated: 03/03/2016 |
| Attention: Peter Yang |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | 2ACCJB044 |
| Name of Grantee: | TCL Communication Ltd. |
| Equipment Class: | Part 15 Spread Spectrum Transmitter |
| Notes: | GSM Quad-band / UMTS Quad-band / LTE 7-band mobile phone |
| Modular Type: | Does not apply |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| CC | 15C | 2402.0 - 2480.0 | 0.0137 |
| Output Power is conducted. End users must be informed of the body worn requirements for satisfying RF Exposure compliance. This device also contains BLE, WLAN and GSM/WCDMA/LTE transmitters. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| Mail To: | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
ACB, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 |
Date of Grant: 03/03/2016 Application Dated: 03/03/2016 |
| TCL Communication Ltd. |
| 5/F, Building 22E, 22 Science Park East Avenue |
| Hong Kong Science Park, Shatin, NT |
| Hong Kong, China |
| Attention: Peter Yang |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | 2ACCJB044 |
| Name of Grantee: | TCL Communication Ltd. |
| Equipment Class: | Digital Transmission System |
| Notes: | GSM Quad-band / UMTS Quad-band / LTE 7-band mobile phone |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| CC | 15C | 2402.0 - 2480.0 | 0.0015 | ||
| CC HX | 15C | 2412.0 - 2462.0 | 0.4426 |
| Output Power is conducted. Body-worn operations are restricted to belt-clips, holsters or similar accessories that have no metallic component in the assembly and which provide at least 1.5 cm separation between the device and the user's body. End users must be informed of the body worn requirements for satisfying RF Exposure compliance. The highest reported SAR values are: Head: 0.38 W/kg; Body-worn: 0.87 W/kg; Product Specific (Hotspot): 0.87 W/kg; and Simultaneous Transmission: 1.18 W/kg. This device also contains Bluetooth and GSM/WCDMA/LTE transmitters. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| HX: | This mode of operation has the means to permit held to the ear telephone calls but has not been tested for hearing aid compatibility. The device supports other modes which have been found to be compliant with the HAC rules. |
EAS Grant - Application ltnqhlLfuF7mRqMqJxyPXw==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
TCL Communication Ltd. 5/F, Building 22E, 22 Science Park East Avenue Hong Kong Science Park, Shatin, NT Hong Kong, China |
Date of Grant: 03/03/2016 Application Dated: 03/03/2016 |
| Attention: Peter Yang |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | 2ACCJB044 |
| Name of Grantee: | TCL Communication Ltd. |
| Equipment Class: | Digital Transmission System |
| Notes: | GSM Quad-band / UMTS Quad-band / LTE 7-band mobile phone |
| Modular Type: | Does not apply |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| CC | 15C | 2402.0 - 2480.0 | 0.0015 | ||
| CC HX | 15C | 2412.0 - 2462.0 | 0.4426 |
| Output Power is conducted. Body-worn operations are restricted to belt-clips, holsters or similar accessories that have no metallic component in the assembly and which provide at least 1.5 cm separation between the device and the user's body. End users must be informed of the body worn requirements for satisfying RF Exposure compliance. The highest reported SAR values are: Head: 0.38 W/kg; Body-worn: 0.87 W/kg; Product Specific (Hotspot): 0.87 W/kg; and Simultaneous Transmission: 1.18 W/kg. This device also contains Bluetooth and GSM/WCDMA/LTE transmitters. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| HX: | This mode of operation has the means to permit held to the ear telephone calls but has not been tested for hearing aid compatibility. The device supports other modes which have been found to be compliant with the HAC rules. |
| Mail To: |
