FCC ID 2ACCJB070
GSM Quad Band Mobile phone
by TCL Communication Ltd.
Grantee Code: 2ACCJ Product Code: B070
Latest application date: 2016-08-08
Device Images
FCC ID Device Details
Operating Frequencies
| Frequency Range | Application Purpose | Final Action Date |
|---|---|---|
| 2402-2480 MHz | Original Equipment | 2016-08-08 |
| 824.2-848.8 MHz | Original Equipment | 2016-08-08 |
Exhibits
| Document | Type | Available | File |
|---|---|---|---|
| Users Manual | Users Manual | 2016-08-08 | PDF 4.4 MB |
| Internal Photos | Internal Photos | 2016-08-08 | PDF 320.7 KB |
| External photos | External Photos | 2016-08-08 | PDF 603.8 KB |
| Label Location | ID Label/Location Info | 2016-08-08 | PDF 141.4 KB |
| Label location | ID Label/Location Info | 2016-08-08 | PDF 141.4 KB |

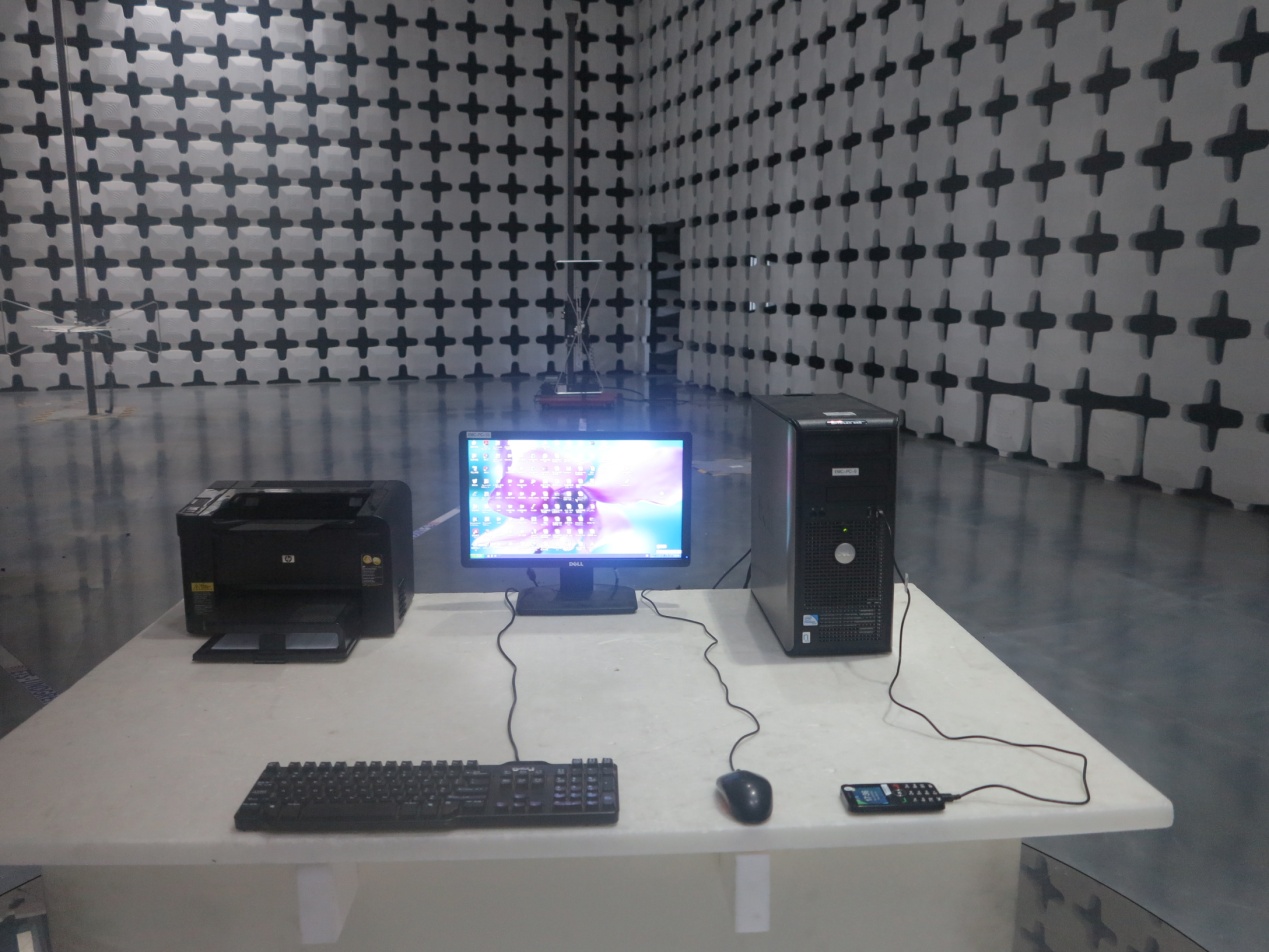

| Test Setup Photos | Test Setup Photos | 2016-08-08 | PDF 2.5 MB |
| Test Setup photos | Test Setup Photos | 2016-08-08 | PDF 2.5 MB |
| Test set-up photos | Test Setup Photos | 2016-08-08 | PDF 421.8 KB |
| Test set-up photos | Test Setup Photos | 2016-08-08 | PDF 2.5 MB |
| SAR test report | RF Exposure Info | 2016-08-08 | PDF 5.4 MB |
| Test Report | Test Report | 2016-08-08 | PDF 3 MB |
| Test Report | Test Report | 2016-08-08 | PDF 1.5 MB |
| Test report | Test Report | 2016-08-08 | PDF 277.7 KB |
| Cover letter | Cover Letter(s) | 2016-08-08 | PDF 71.3 KB |
| Block Diagram Metadata only | Block Diagram | PDF 13 KB | |
| Schematics Metadata only | Schematics | PDF 326.5 KB | |
| Operational Description Metadata only | Operational Description | PDF 679.5 KB | |
| Part list Metadata only | Parts List/Tune Up Info | PDF 96.5 KB | |
| Tune-up procedure Metadata only | Parts List/Tune Up Info | PDF 69.9 KB |
Application Information
| Application ID | sjAfUkm5fvChssgd3yQLHw== |
|---|---|
| Final Action Date | 2016-08-08 |
| Application Purpose | Original Equipment |
| Applicant FRN | 0023603830 |
| Model | B070 |
| Frequency Range | 2402-2480 MHz |
| Equipment Class | DSS - Part 15 Spread Spectrum Transmitter |
| Device Description | GSM Quad Band Mobile phone |
| Responsible Party | Peter Yang, peter.yang@tcl.com  , +8675536645759 |
| Agent | Bo Bo Bo, CTTL-Terminals Test Lab of China Academy of Teleco, libo@catr.cn  , 86-010-62304633 |
| Technical Contact | Xue Zhen, CTTL-Terminals Test Lab of China Academy of Teleco, xuezhen@catr.cn , 86-62304633 |
| Test Firm | zhen xue, Telecommunication Technology Labs,, xuezhen@catr.cn , 861062304633 |
| TCB Email | hotline@acbcert.com  |
| TCB Scope | A4: UNII devices & low power transmitters using spread spectrum techniques |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | Yes |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | Yes |
| Composite Part | No |
| Cognitive Radio | No |
| Authorization Waiver | No |
| Authorization Waiver Approved | No |
| Section 5301 Certification | Yes |
| Related OET Knowledge DataBase Inquiry | No |
| Grant Comments | Power Output listed is conducted. End-users must be provided with transmitter operating conditions for satisfying RF exposure compliance. This device contains GSM transmitter. |
