WPTT20 Wireless Body PTT Label Diagram - FCC ID 2ACD5WPTT20
FCC ID 2ACD5WPTT20

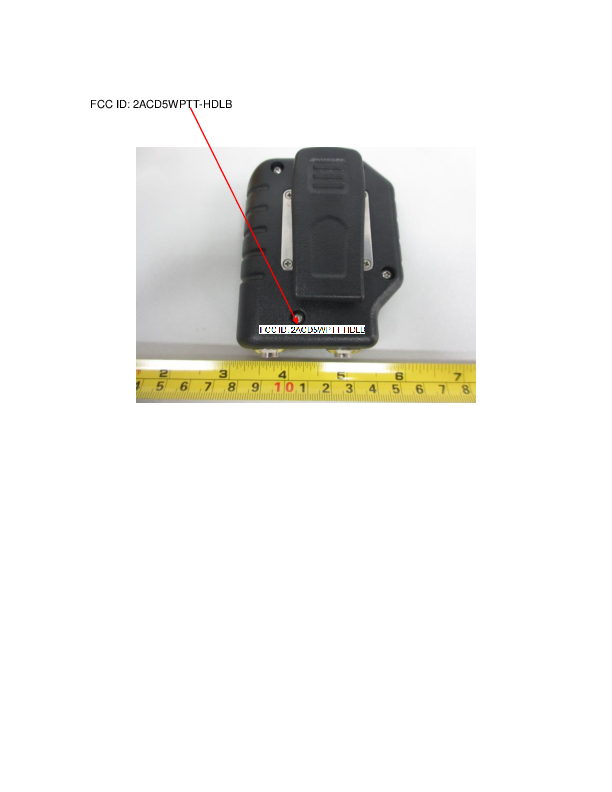

Label&Label Location
Wireless Body PTT
Document preview loads when visible.
Document Details
| FCC ID | 2ACD5WPTT20 |
|---|---|
| Document ID | 2644198 |
| Document Type | ID Label/Location Info |
| Description | Label&Label Location |
| Applicant | Titan Communication systems Aps |
| Equipment Class | Wireless Body PTT |
| Product Code | WPTT20 |
| Application ID | HUAIrs0LeIV9UTufY/Um6g== |
| Application Purpose | Original Equipment |
| Application Date | 2015-06-11 |
| Frequency Range | 2402-2480 MHz |
| FRN | 0023619232 |
| Test Firm | TUV SUD Certification and Testing (China) Co., Ltd |
| Certified By | Mr Tom Dornov |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | No |
| Short-Term Confidentiality Date | 12/08/2015 |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | No |
| Composite Part | No |
| Submitted | 2015-06-11 |
| Available | 2015-06-11 |
| Created | 2015-05-18 |
| Modified | 2015-05-18 |
| Pages | 1 |
| File Type | Adobe Acrobat PDF |
| File Size | 82252 |
| File SHA-256 | cac59e39b8341de88a66bcc87e90ba87fdda2df24a41f88b0570ab5c85c5c3e1 |
| PDF Metadata Author | xiong-al |
| PDF Metadata Producer | Microsoft® Office Word 2007 Microsoft® Office Word 2007 |
| FCC.gov Sources | FCC.gov 2644198 |
