FCC ID 2ACRLH097
Headunit
by Harman Automotive Electronic Systems (Suzhou) Co., Ltd
Grantee Code: 2ACRL Product Code: H097
Latest application date: 2015-11-30
Device Images
FCC ID Device Details
| FCC ID | 2ACRLH097 |
|---|---|
| Mirrors | fcc.id | gov | fccid.ai |
| Grantee Code | 2ACRL |
| Product Code | H097 |
| Applicant Business | Harman Automotive Electronic Systems (Suzhou) Co., Ltd 🇨🇳 |
| Related Domains |  harman.com |
| Equipment Class | Headunit |
| Test Firm | NQSTC for Information Network Products |
Operating Frequencies
| Frequency Range | Application Purpose | Final Action Date |
|---|---|---|
| 2402-2480 MHz | Original Equipment | 2015-11-30 |
Exhibits
| Document | Type | Available | File |
|---|---|---|---|
| 10-user-manual | Users Manual | 2015-11-30 | PDF 805.7 KB |

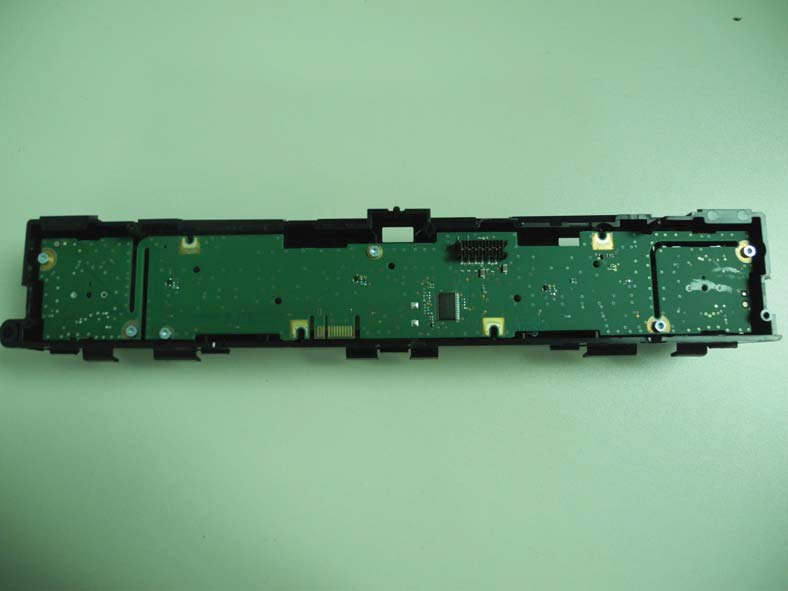

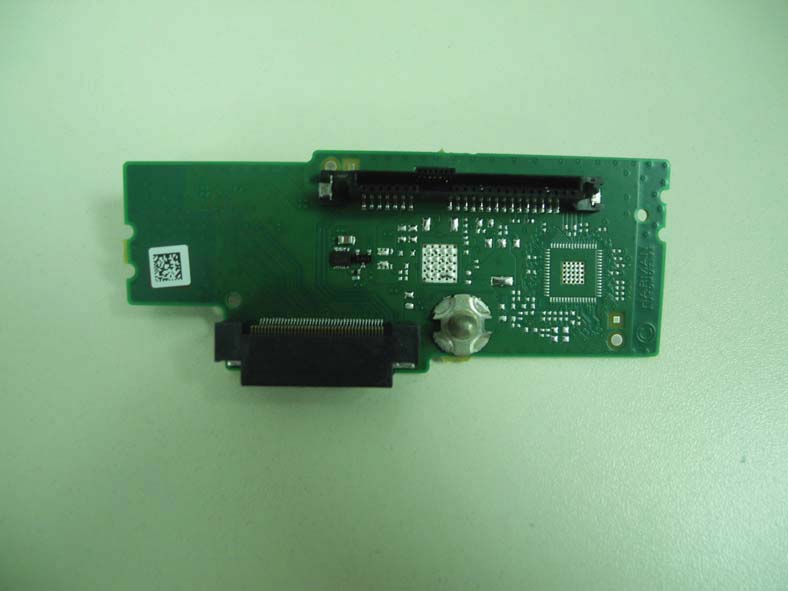

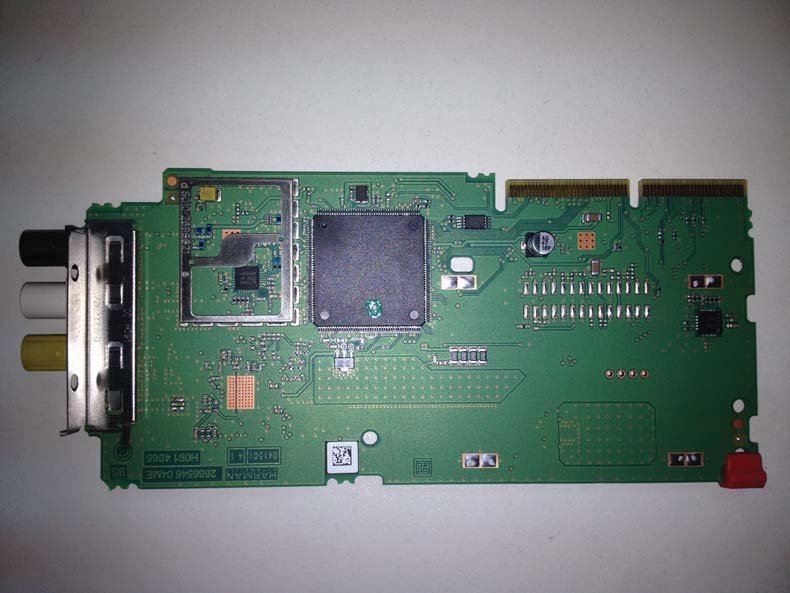

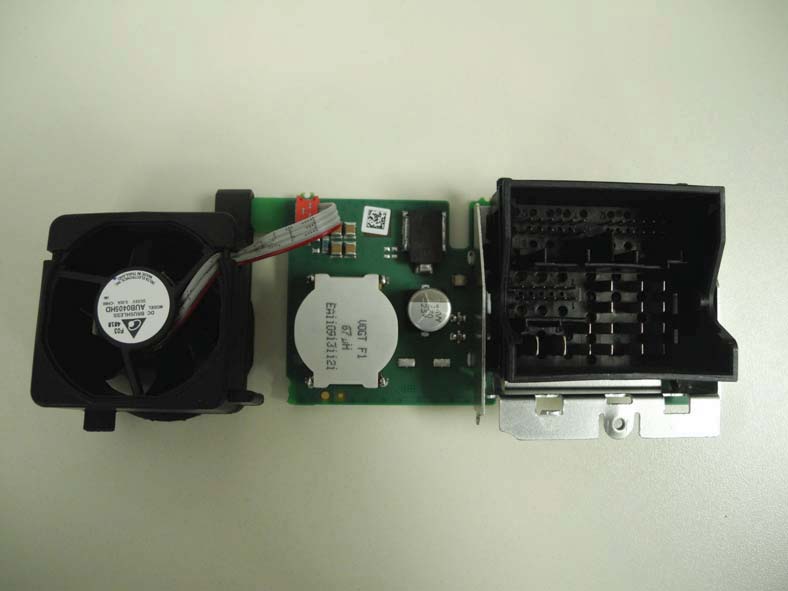

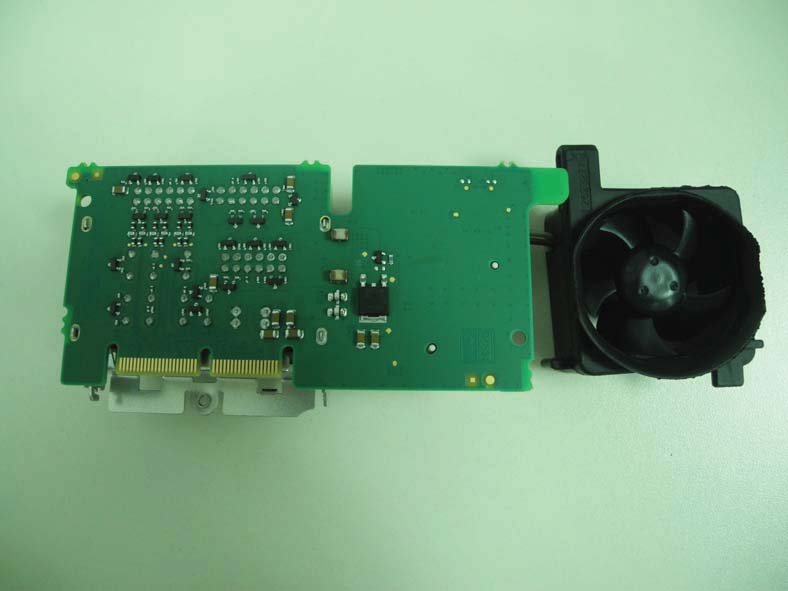

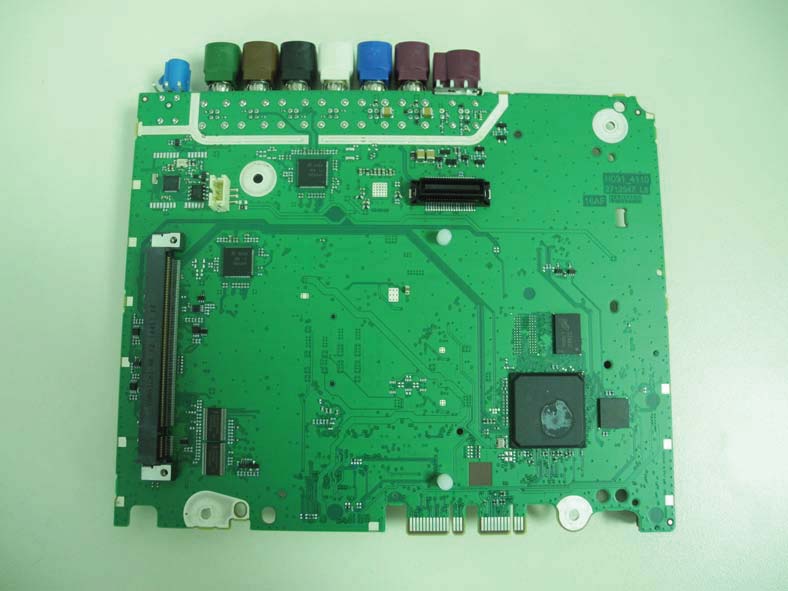

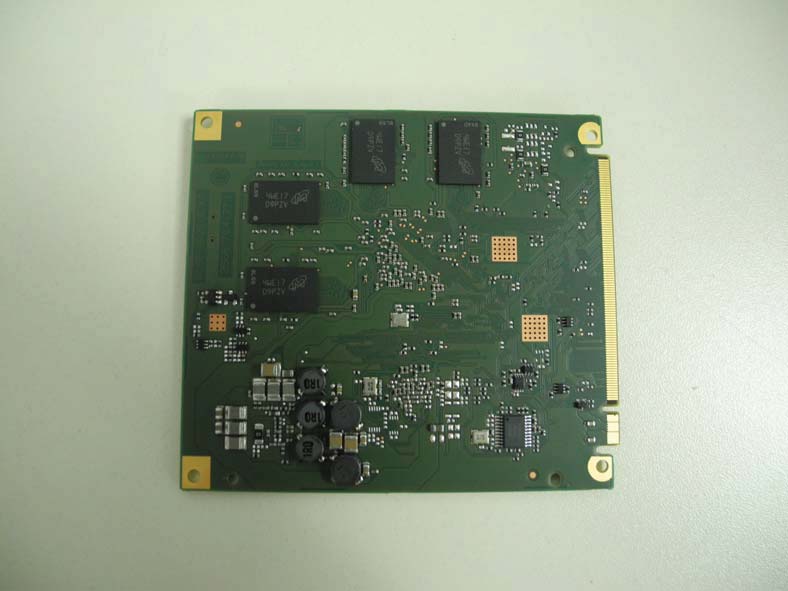

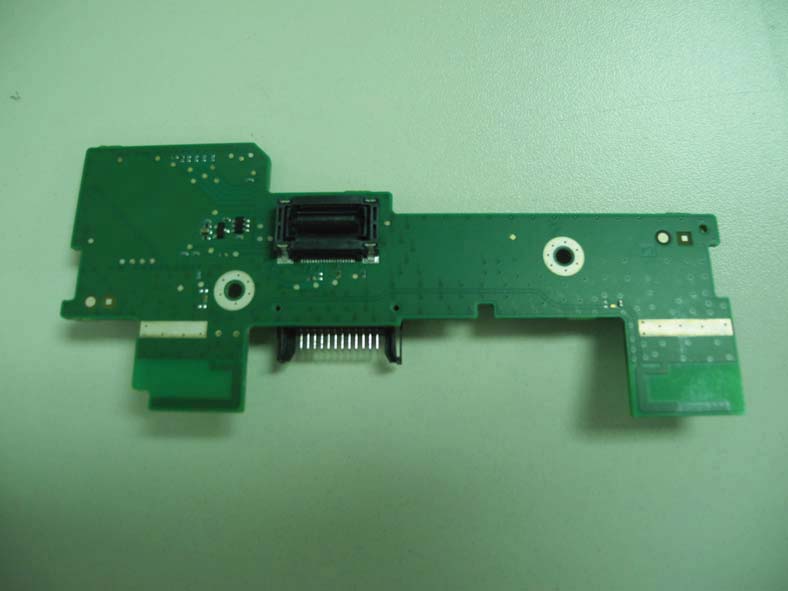

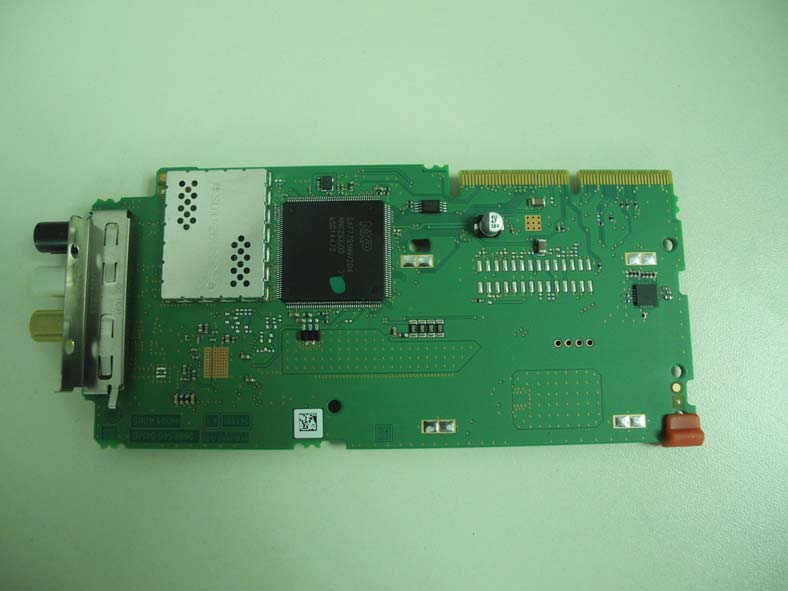

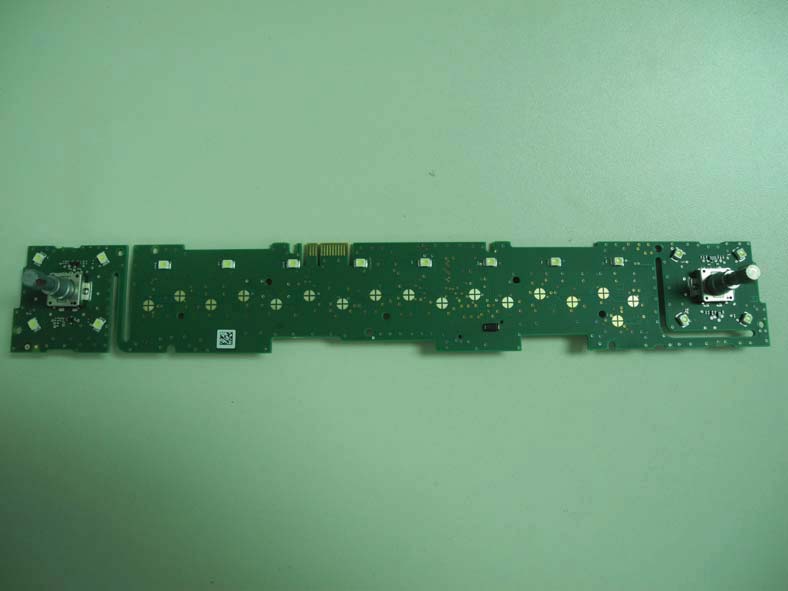

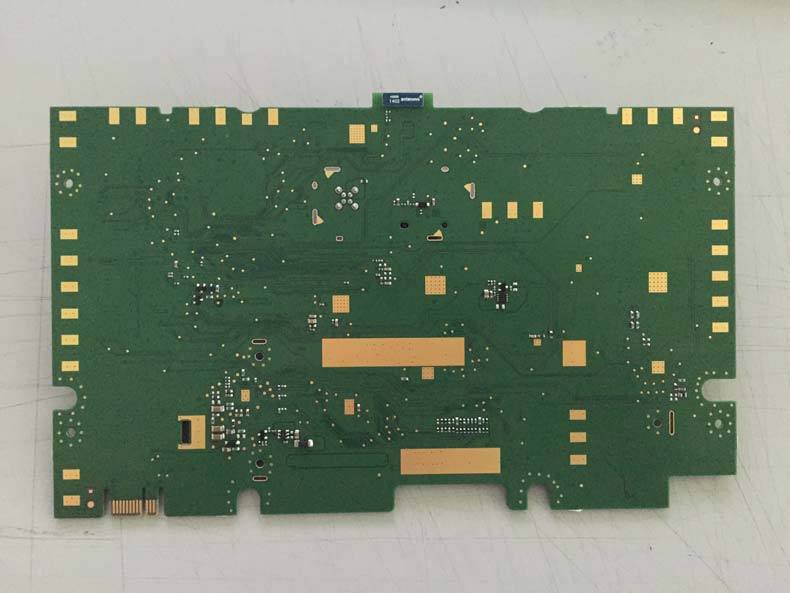

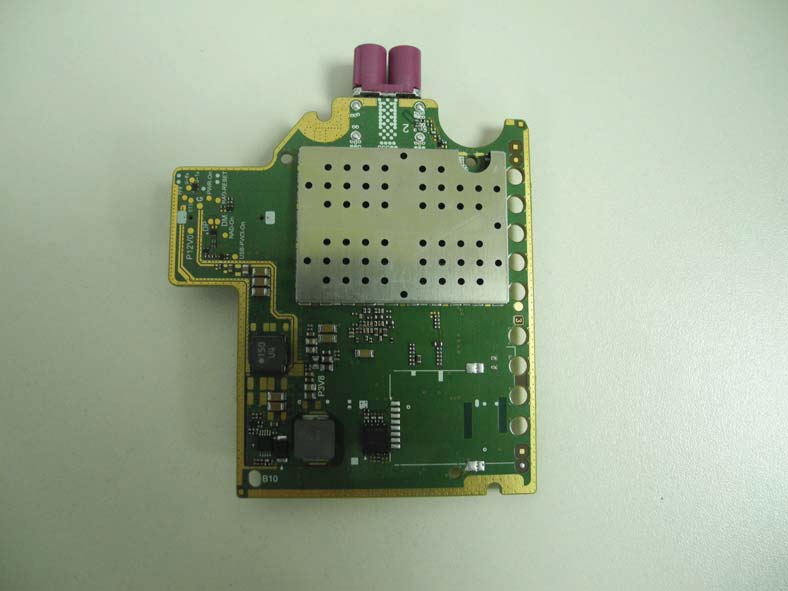

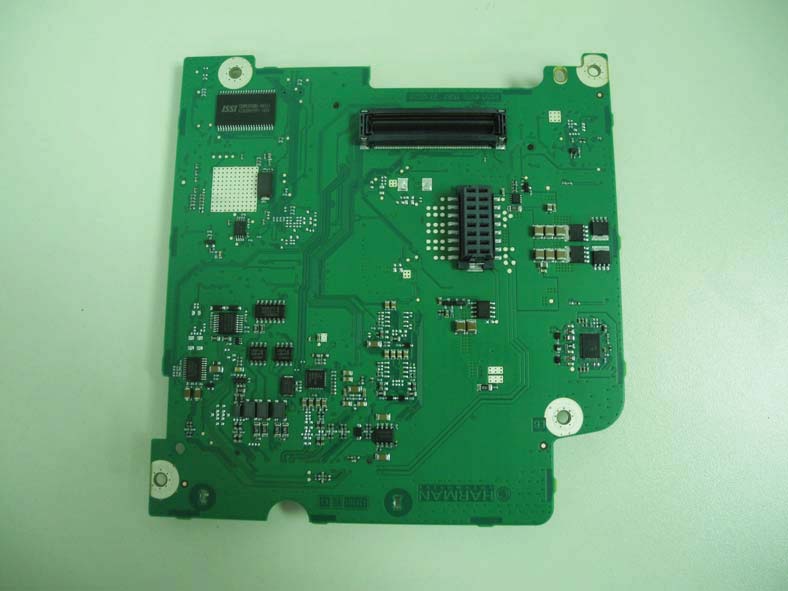

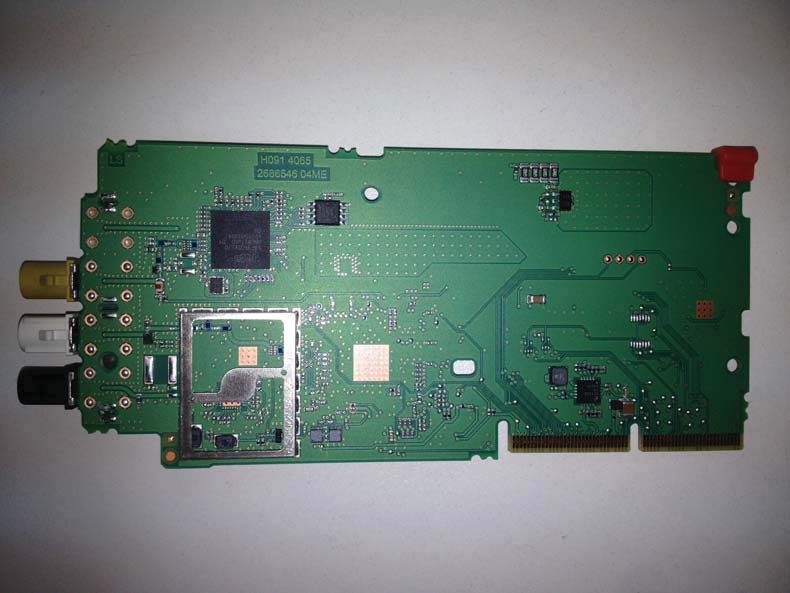

| 03-internal-photos | Internal Photos | 2015-11-30 | PDF 890 KB |
| 02-external-photos | External Photos | 2015-11-30 | PDF 163 KB |
| 04-label-and-label-location | ID Label/Location Info | 2015-11-30 | PDF 165 KB |
| 09-test-setup-photos | Test Setup Photos | 2015-11-30 | PDF 207.6 KB |
| 08- Test report - nti2015110101-test-report | Test Report | 2015-11-30 | PDF 3 MB |
| 11-fcc-confidentiality-request | Cover Letter(s) | 2015-11-30 | PDF 28.7 KB |
| 12-Cover letter - declaration-letter-of-model-difference | Cover Letter(s) | 2015-11-30 | PDF 232.3 KB |
| 07-RF Exposure - nti2015110102-test-report | RF Exposure Info | 2015-11-30 | PDF 94.9 KB |
| 01-block-diagram Metadata only | Block Diagram | PDF 194.6 KB | |
| 06-schematic-part-1 Metadata only | Schematics | PDF 1 MB | |
| 06-schematic-part-2 Metadata only | Schematics | PDF 528.2 KB | |
| 05-operation-description Metadata only | Operational Description | PDF 1.2 MB | |
| 13-Operational description - antenna-information Metadata only | Operational Description | PDF 144.7 KB |
Application Information
| Application ID | 3oS0MVZOHcH4YxNJ2IIhvQ== |
|---|---|
| Final Action Date | 2015-11-30 |
| Application Purpose | Original Equipment |
| Applicant FRN | 0023792583 |
| Model | H097 |
| Frequency Range | 2402-2480 MHz |
| Equipment Class | DSS - Part 15 Spread Spectrum Transmitter |
| Device Description | Headunit |
| Responsible Party | danie hong, Regulatory Compliance Engineer, danie.hong@harman.com , +86 512 62554740 |
| Test Firm | xuejun liang, NQSTC for Information Network Products, liangxj_shanxi@126.com  , 86-512-66591835 |
| TCB Email | tcb@cetecom.com  |
| TCB Scope | A4: UNII devices & low power transmitters using spread spectrum techniques |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | Yes |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | No |
| Composite Part | No |
| Cognitive Radio | No |
| Authorization Waiver | No |
| Authorization Waiver Approved | No |
| Section 5301 Certification | Yes |
| Related OET Knowledge DataBase Inquiry | No |
| Grant Comments | Output power listed is peak conducted. End-users must be provided with specific operating instructions for satisfying RF exposure compliance. |
Applications
| Application ID | Date | Purpose |
|---|---|---|
| 3oS0MVZOHcH4YxNJ2IIhvQ== | 2015-11-30 | Original Equipment |
Equipment Authorization
| Frequency | Output | Rules |
|---|---|---|
| 2402-2480 MHz | 0.0030000 | 15C |
Grants
TCB Grant - Application 3oS0MVZOHcH4YxNJ2IIhvQ==
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
CTC advanced GmbH Untertuerkheimer Strasse 6-10 66117 Saarbruecken, Germany |
Date of Grant: 11/30/2015 Application Dated: 11/30/2015 |
| Harman Automotive Electronic Systems (Suzhou) Co., Ltd |
| No125 Fangzhou Rd, Suzhou SIP, Jiangsu, China |
| Suzhou SIP, 215024 China |
| Attention: danie hong , Regulatory Compliance Engineer |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | 2ACRLH097 |
| Name of Grantee: | Harman Automotive Electronic Systems (Suzhou) Co., Ltd |
| Equipment Class: | Part 15 Spread Spectrum Transmitter |
| Notes: | Headunit |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 15C | 2402.0 - 2480.0 | 0.003 |
| Output power listed is peak conducted. End-users must be provided with specific operating instructions for satisfying RF exposure compliance. |
EAS Grant - Application 3oS0MVZOHcH4YxNJ2IIhvQ==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
Harman Automotive Electronic Systems (Suzhou) Co., Ltd No125 Fangzhou Rd, Suzhou SIP, Jiangsu, China Suzhou SIP, 215024 China |
Date of Grant: 11/30/2015 Application Dated: 11/30/2015 |
| Attention: danie hong , Regulatory Compliance Engineer |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | 2ACRLH097 |
| Name of Grantee: | Harman Automotive Electronic Systems (Suzhou) Co., Ltd |
| Equipment Class: | Part 15 Spread Spectrum Transmitter |
| Notes: | Headunit |
| Modular Type: | Does not apply |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 15C | 2402.0 - 2480.0 | 0.003 |
| Output power listed is peak conducted. End-users must be provided with specific operating instructions for satisfying RF exposure compliance. |
| Mail To: |
