FCC ID 2ACS619RX
Copter of Stunt Drone
by ZEGO ELECTRONIC COMPANY LIMITED
Grantee Code: 2ACS6 Product Code: 19RX
Latest application date: 2016-09-28
Device Images
FCC ID Device Details
| FCC ID | 2ACS619RX |
|---|---|
| Mirrors | fcc.id | gov | fccid.ai |
| Grantee Code | 2ACS6 |
| Product Code | 19RX |
| Applicant Business | ZEGO ELECTRONIC COMPANY LIMITED |
| Related Domains |  yrtoys.com |
| Equipment Class | Copter of Stunt Drone |
| Test Firm | CMA Industrial Development Foundations Limited |
Operating Frequencies
| Frequency Range | Application Purpose | Final Action Date |
|---|---|---|
| 2402-2475 MHz | Original Equipment | 2016-09-28 |
Exhibits
| Document | Type | Available | File |
|---|---|---|---|
| User Manual | Users Manual | 2016-09-28 | PDF 2.7 MB |

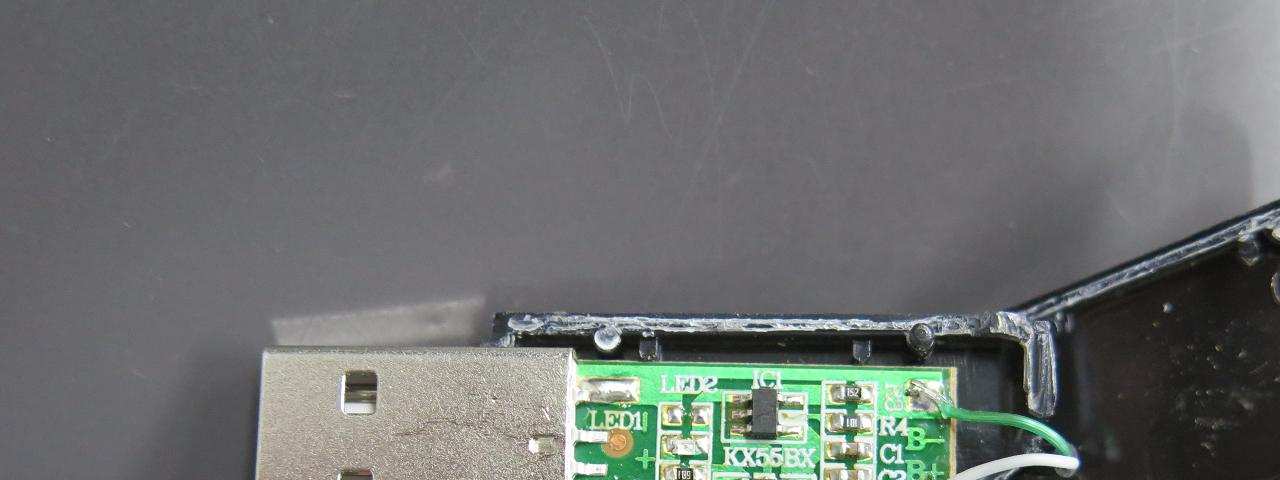

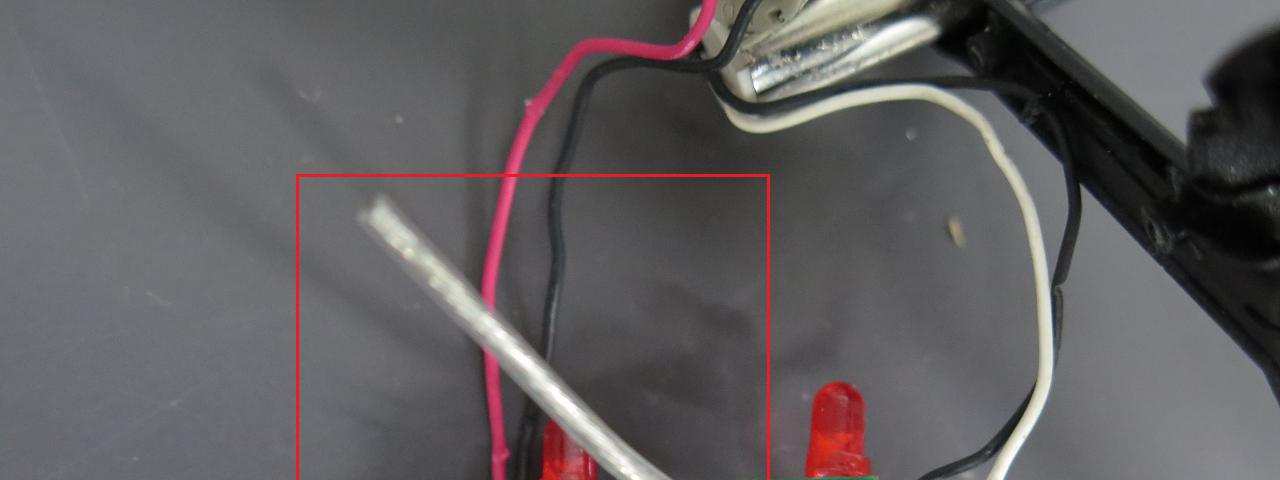

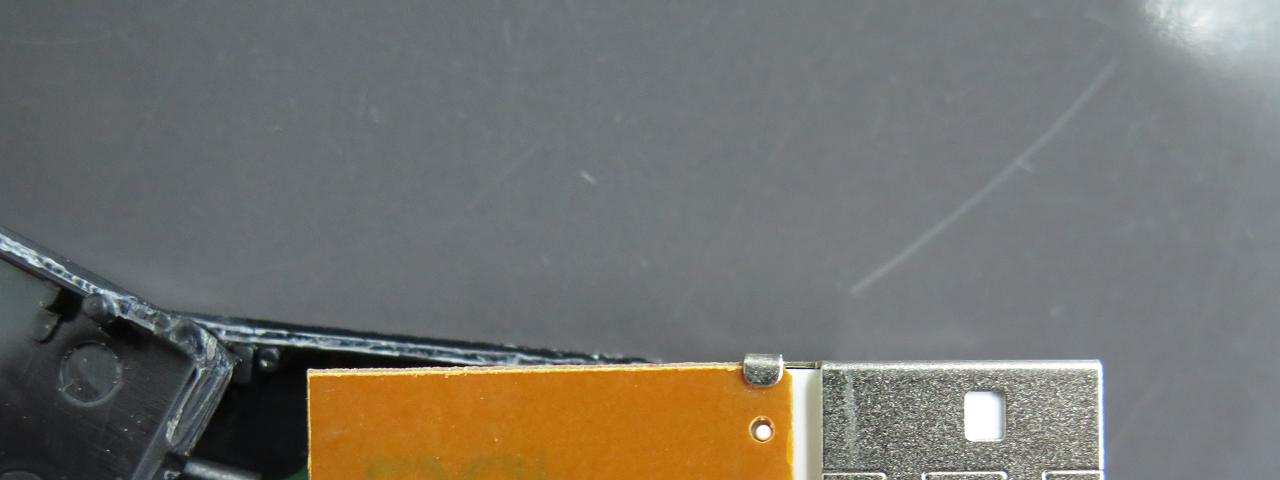

| Internal Photos | Internal Photos | 2016-09-28 | PDF 426.5 KB |

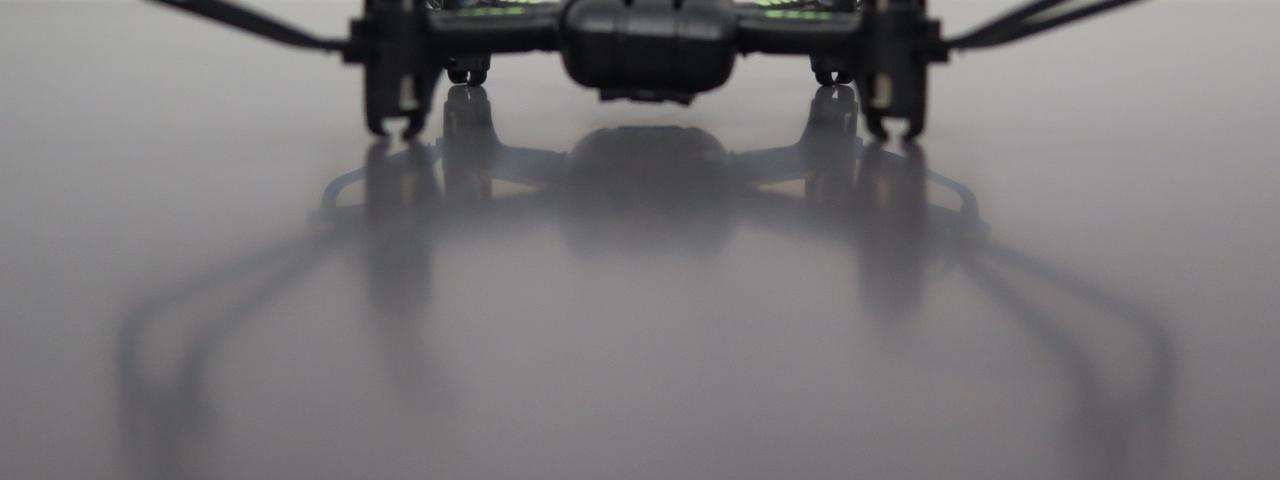

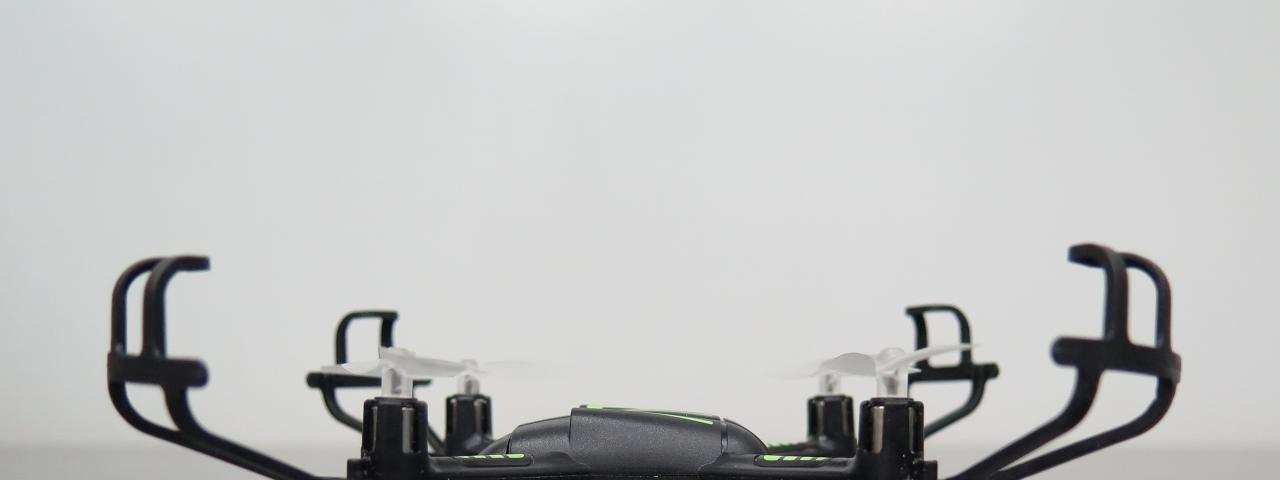

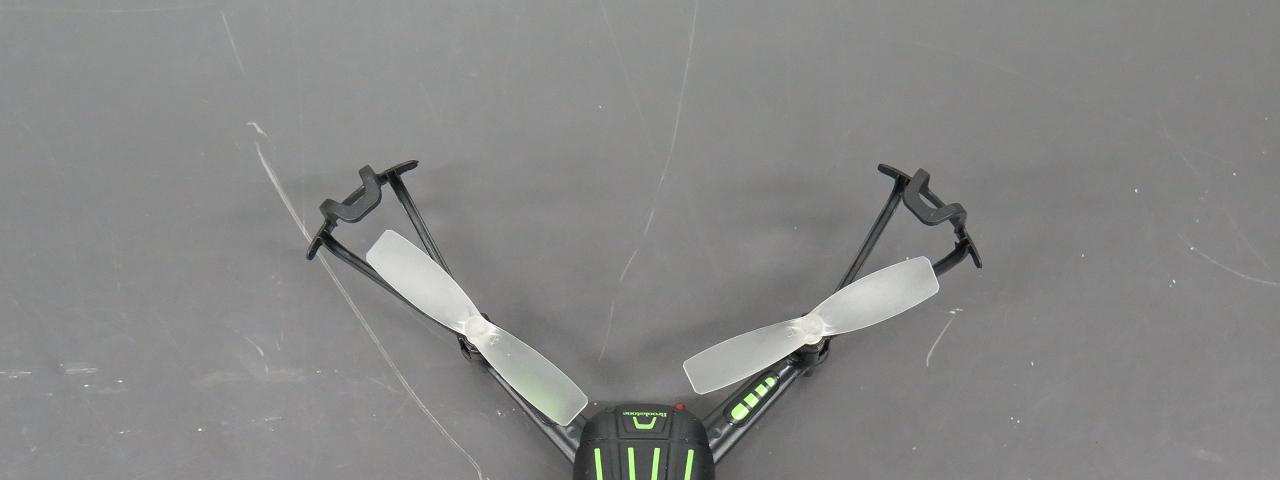

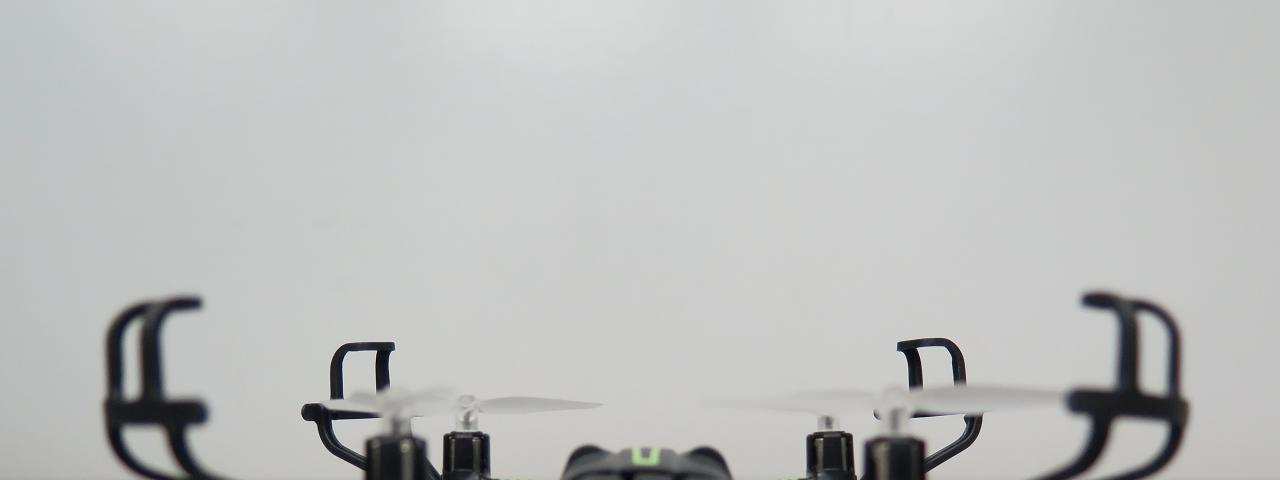

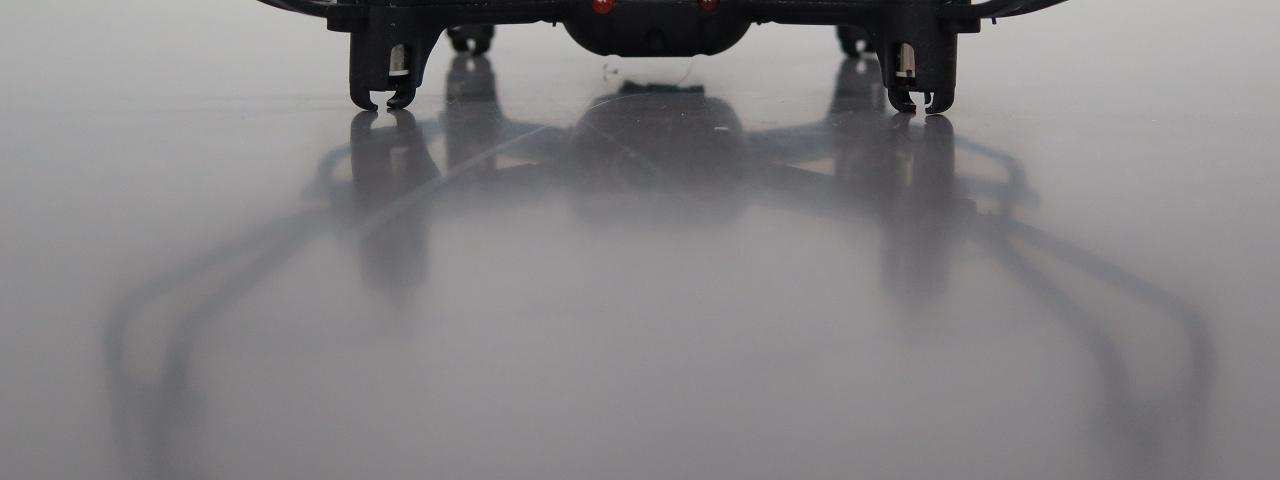

| External Photos | External Photos | 2016-09-28 | PDF 387.5 KB |
| Label Info | ID Label/Location Info | 2016-09-28 | PDF 108.9 KB |
| Test Setup Photo | Test Setup Photos | 2016-09-28 | PDF 936.8 KB |
| Test Report | Test Report | 2016-09-28 | PDF 2.6 MB |
| Confidentiality Letter | Cover Letter(s) | 2016-09-28 | PDF 87.8 KB |
| POA | Cover Letter(s) | 2016-09-28 | PDF 88.4 KB |
| Remove FCC Statement from Label Justification Letter | Cover Letter(s) | 2016-09-28 | PDF 204.6 KB |
| RF Exposure | RF Exposure Info | 2016-09-28 | PDF 28.5 KB |
| Block Diagram Metadata only | Block Diagram | PDF 81.5 KB | |
| Schematics Metadata only | Schematics | PDF 73.9 KB | |
| Operational Description Metadata only | Operational Description | PDF 4.5 KB |
Application Information
| Application ID | ERBrs6wNWd+TLUlMh2M85g== |
|---|---|
| Final Action Date | 2016-09-28 |
| Application Purpose | Original Equipment |
| Applicant FRN | 0023807795 |
| Model | 19RX |
| Frequency Range | 2402-2475 MHz |
| Equipment Class | DTS - Digital Transmission System |
| Device Description | Copter of Stunt Drone |
| Responsible Party | JADE WANG, VICE-GENERAL MANAGER, jadewang@yrtoys.com , (86) 755-27062168 |
| Test Firm | Andrew Wong, CMA Industrial Development Foundations Limited, andrewwong@cmatcl.com  , 852-2698-8198 |
| TCB Email | tei@timcoengr.com  |
| TCB Scope | A4: UNII devices & low power transmitters using spread spectrum techniques |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | Yes |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | No |
| Composite Part | Yes |
| Cognitive Radio | No |
| Authorization Waiver | No |
| Authorization Waiver Approved | No |
| Section 5301 Certification | Yes |
| Related OET Knowledge DataBase Inquiry | No |
| Grant Comments | Power listed is conducted.The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operated in conjunction with any other antenna or transmitter. |
Applications
| Application ID | Date | Purpose |
|---|---|---|
| ERBrs6wNWd+TLUlMh2M85g== | 2016-09-28 | Original Equipment |
Equipment Authorization
| Frequency | Output | Rules |
|---|---|---|
| 2402-2475 MHz | 0.0005223 | 15C |
Grants
TCB Grant - Application ERBrs6wNWd+TLUlMh2M85g==
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
Timco Engineering, Inc. 849 NW State Road 45 Newberry, FL 32669 |
Date of Grant: 09/28/2016 Application Dated: 09/28/2016 |
| ZEGO ELECTRONIC COMPANY LIMITED |
| ROOM 703, KOWLOON BUILDING, |
| 555 NATHAN ROAD, |
| KOWLOON, Hong Kong |
| Attention: JADE WANG , VICE-GENERAL MANAGER |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | 2ACS619RX |
| Name of Grantee: | ZEGO ELECTRONIC COMPANY LIMITED |
| Equipment Class: | Digital Transmission System |
| Notes: | Copter of Stunt Drone |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 15C | 2402.0 - 2475.0 | 0.0005223 |
| Power listed is conducted.The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operated in conjunction with any other antenna or transmitter. |
EAS Grant - Application ERBrs6wNWd+TLUlMh2M85g==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
ZEGO ELECTRONIC COMPANY LIMITED ROOM 703, KOWLOON BUILDING, 555 NATHAN ROAD, KOWLOON, Hong Kong |
Date of Grant: 09/28/2016 Application Dated: 09/28/2016 |
| Attention: JADE WANG , VICE-GENERAL MANAGER |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | 2ACS619RX |
| Name of Grantee: | ZEGO ELECTRONIC COMPANY LIMITED |
| Equipment Class: | Digital Transmission System |
| Notes: | Copter of Stunt Drone |
| Modular Type: | Does not apply |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 15C | 2402.0 - 2475.0 | 0.0005223 |
| Power listed is conducted.The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operated in conjunction with any other antenna or transmitter. |
| Mail To: |
