FCC ID 2ACTO-AP15C
Sophos wireless Access Point
by Sophos Ltd
Grantee Code: 2ACTO Product Code: AP15C
Latest application date: 2016-01-28
Device Images
FCC ID Device Details
| FCC ID | 2ACTO-AP15C |
|---|---|
| Mirrors | fcc.id | gov | fccid.ai |
| Grantee Code | 2ACTO |
| Product Code | AP15C |
| Applicant Business | Sophos Ltd 🇬🇧 |
| Related Domains |  sophos.com |
| Equipment Class | Sophos wireless Access Point |
| Test Firm | SPORTON International Inc. |
Operating Frequencies
| Frequency Range | Application Purpose | Final Action Date |
|---|---|---|
| 2412-2462 MHz | Original Equipment | 2016-01-28 |
| 5180-5240 MHz | Original Equipment | 2016-01-28 |
Exhibits
| Document | Type | Available | File |
|---|---|---|---|
| Safety Instructions Indoor | Users Manual | 2016-01-28 | PDF 123.6 KB |
| Users Manual | Users Manual | 2016-01-28 | PDF 873.9 KB |

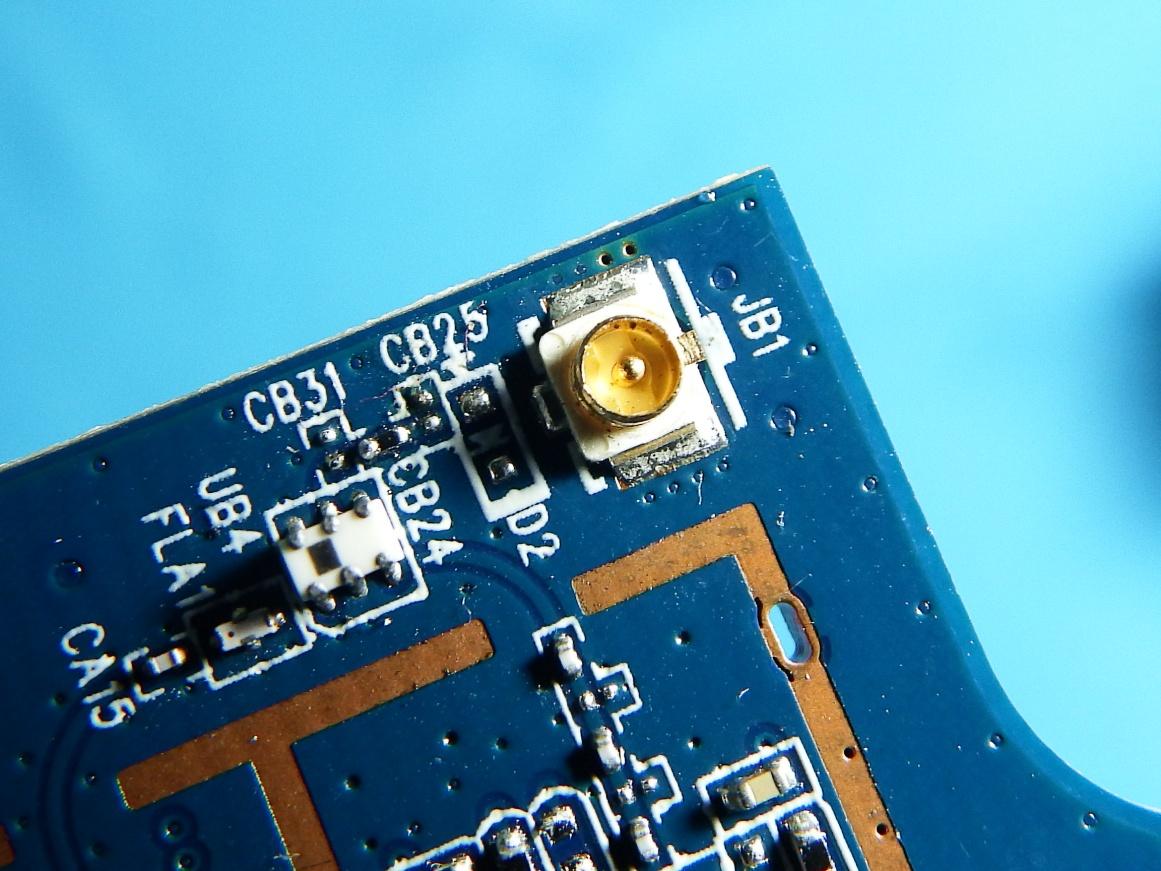

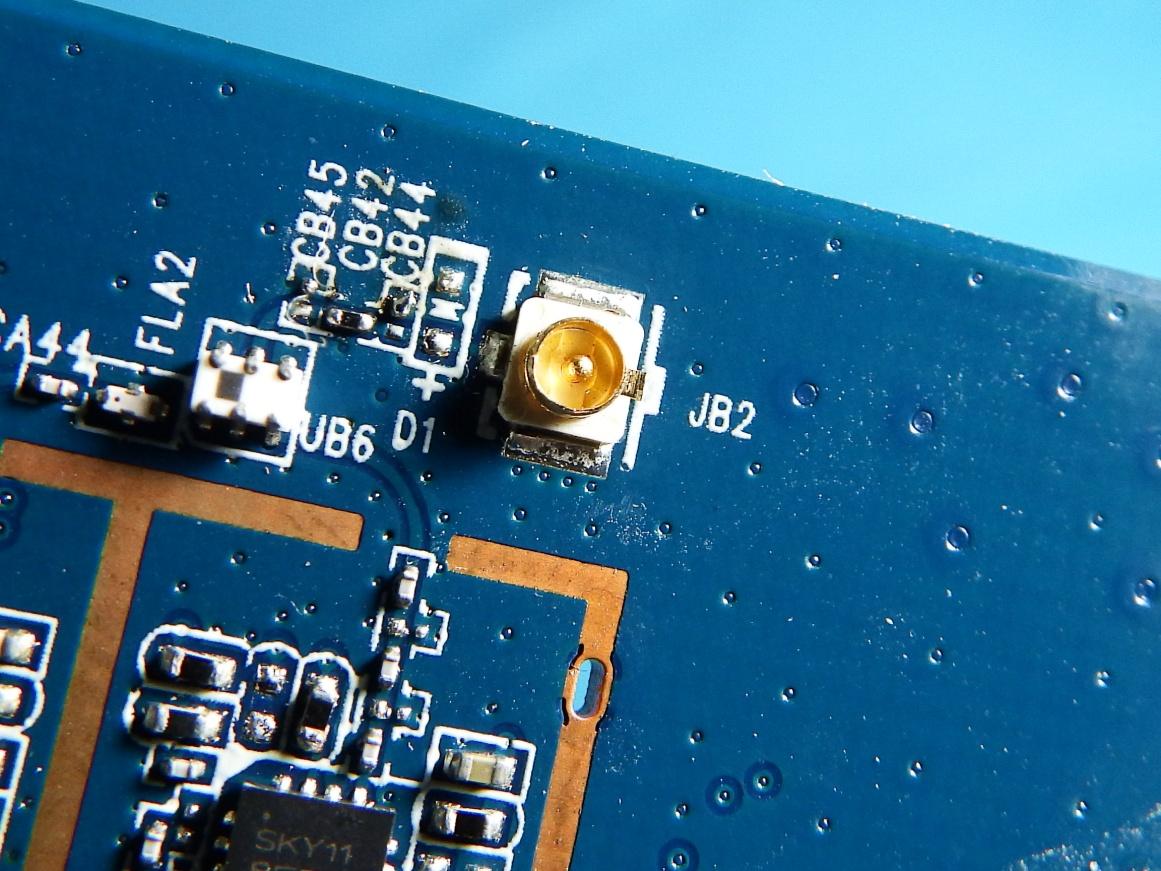

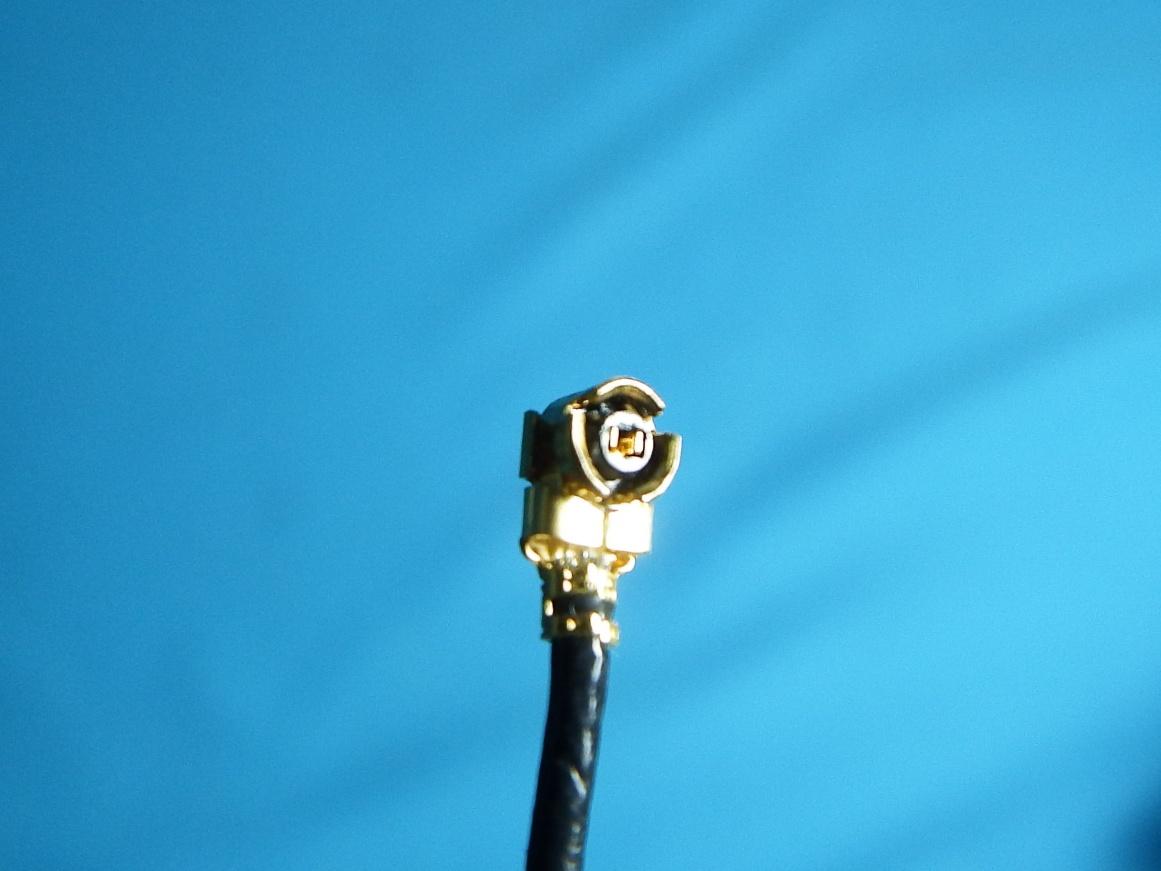

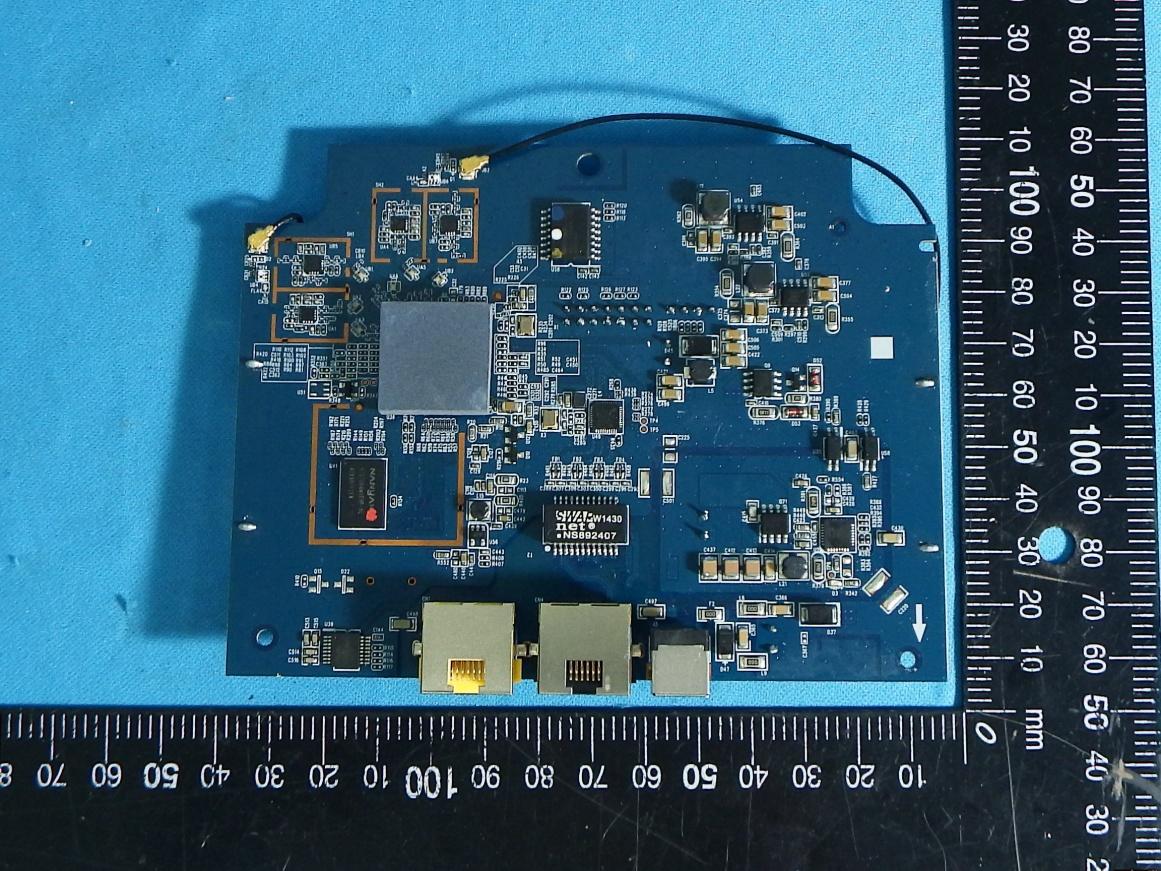

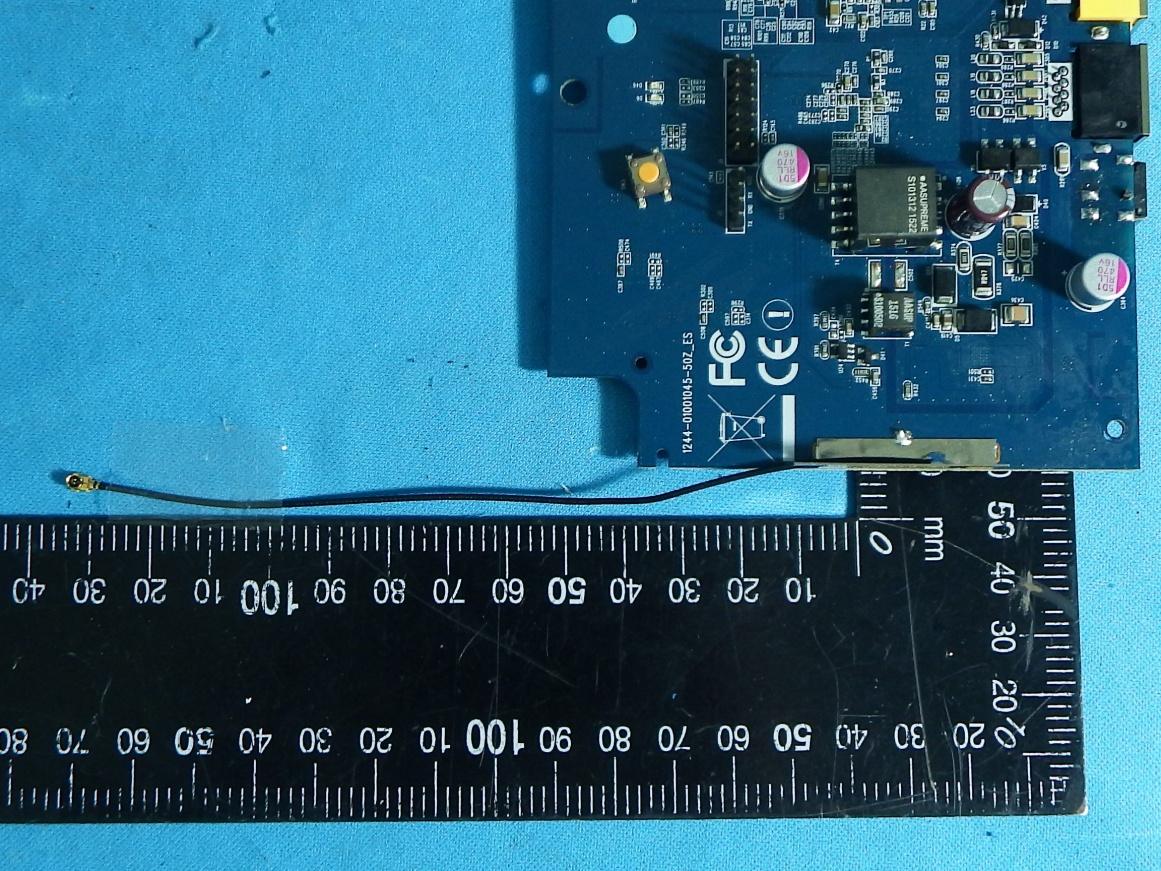

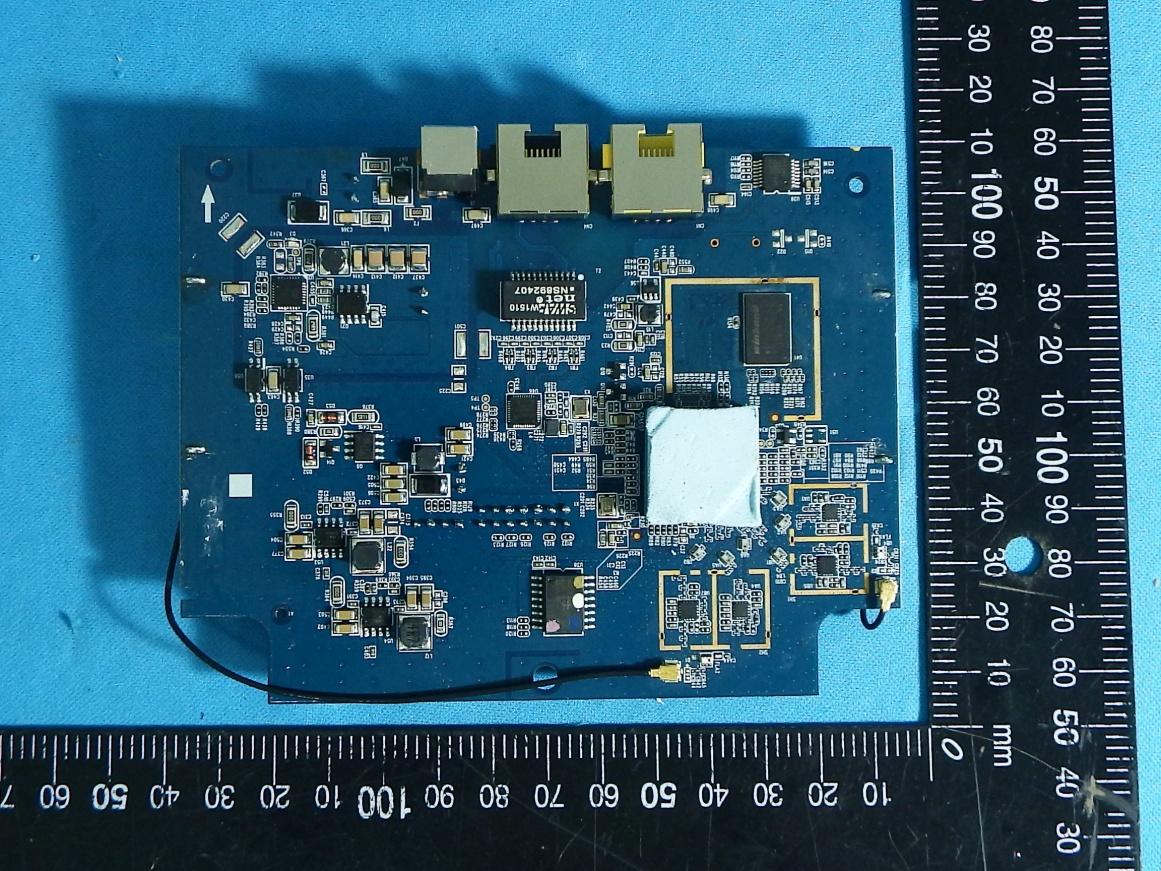

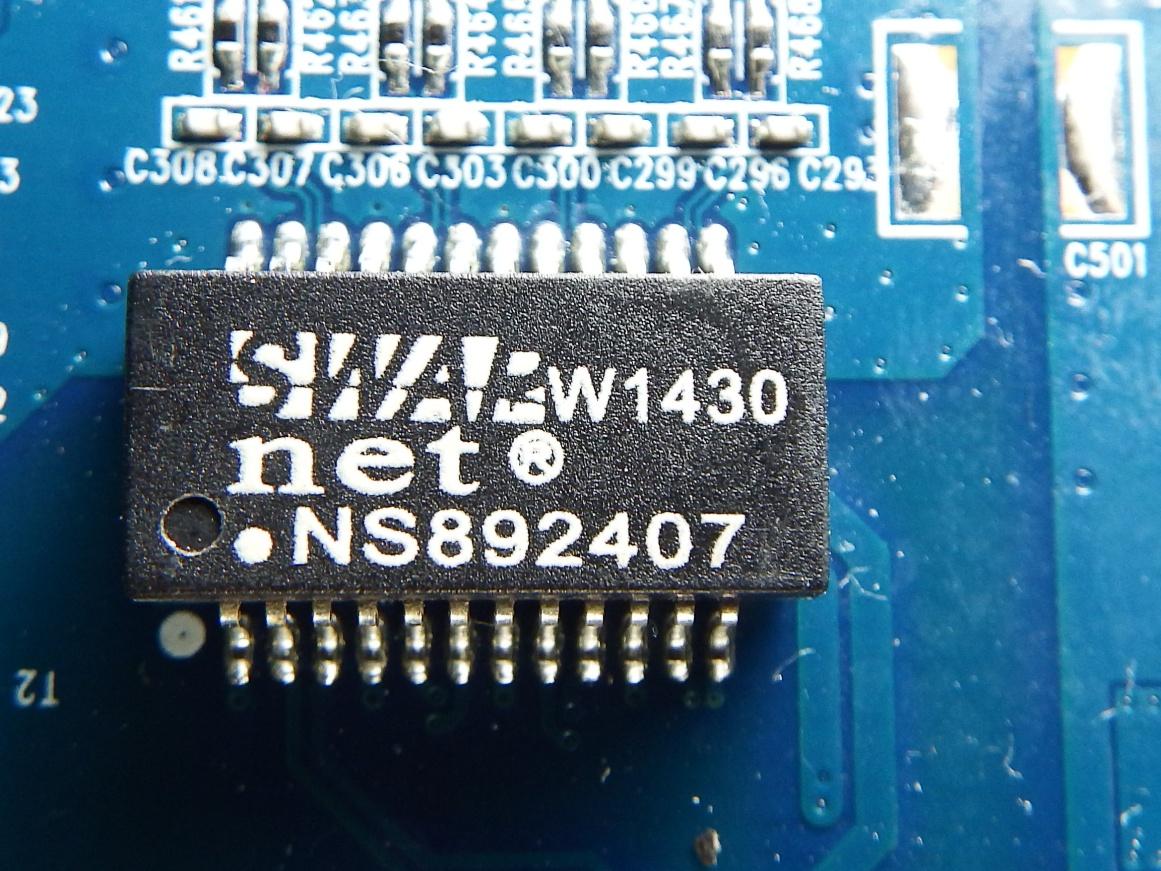

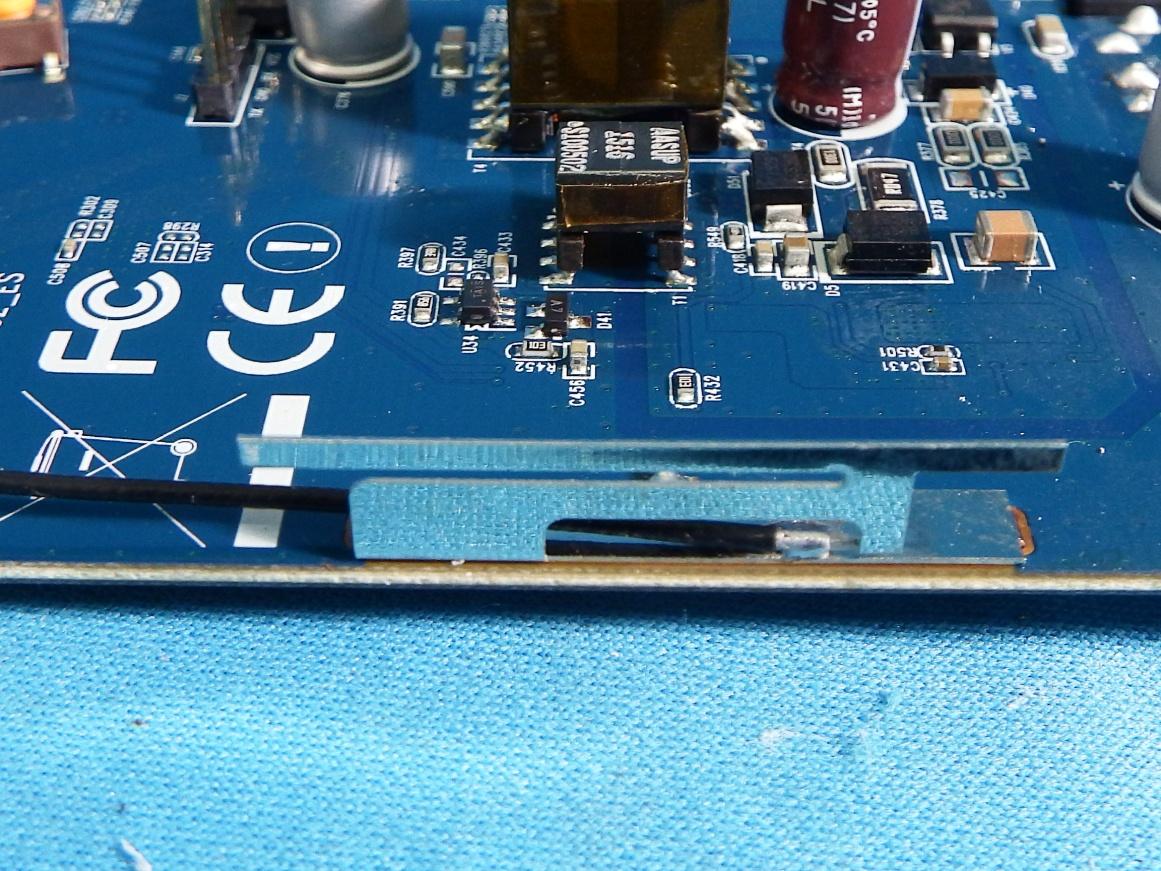

| Internal Photos | Internal Photos | 2016-01-28 | PDF 3.5 MB |

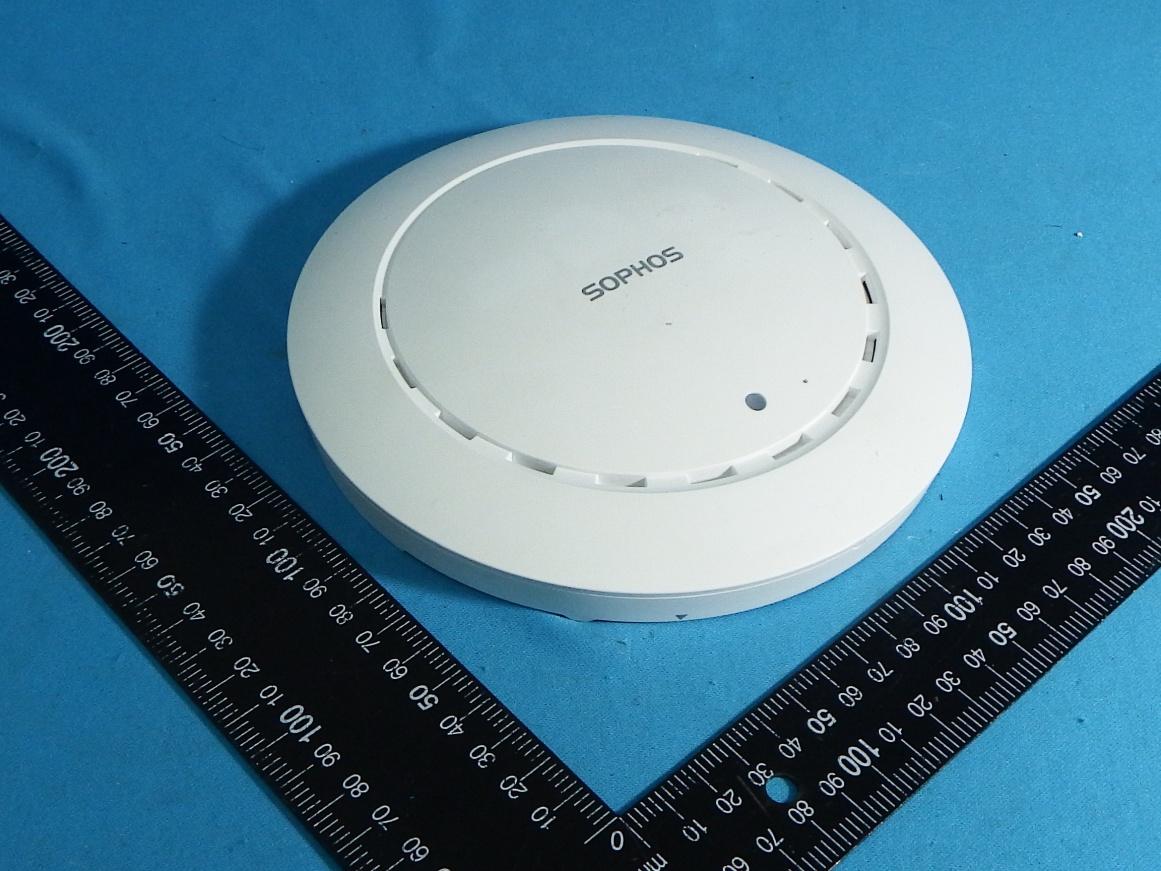

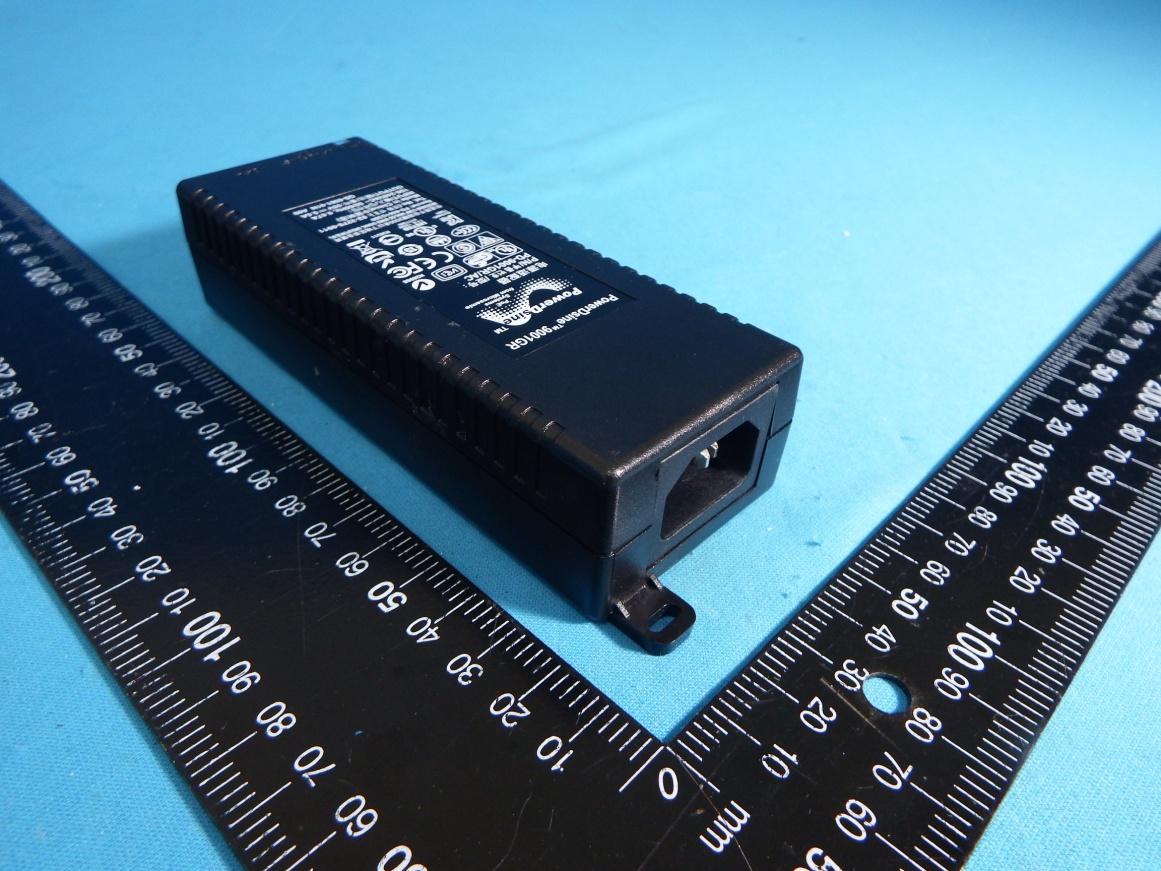

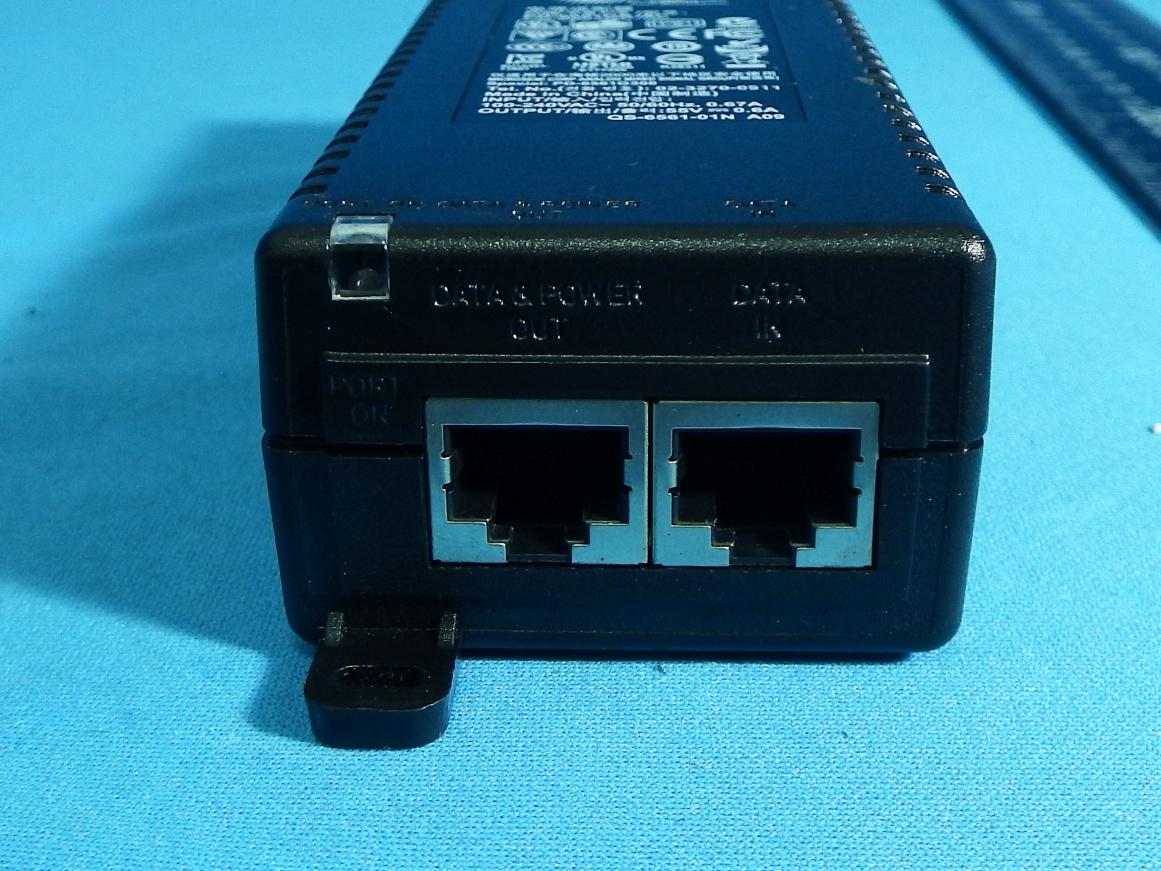

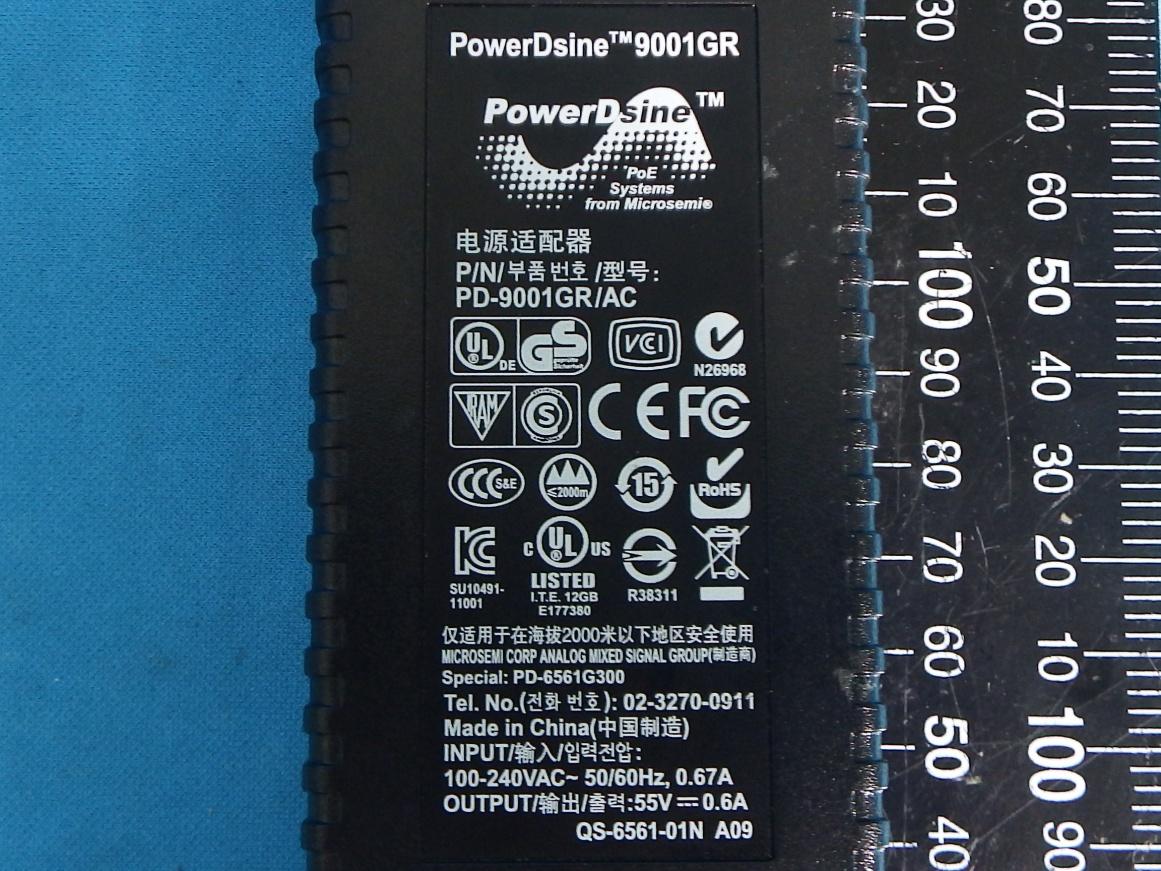

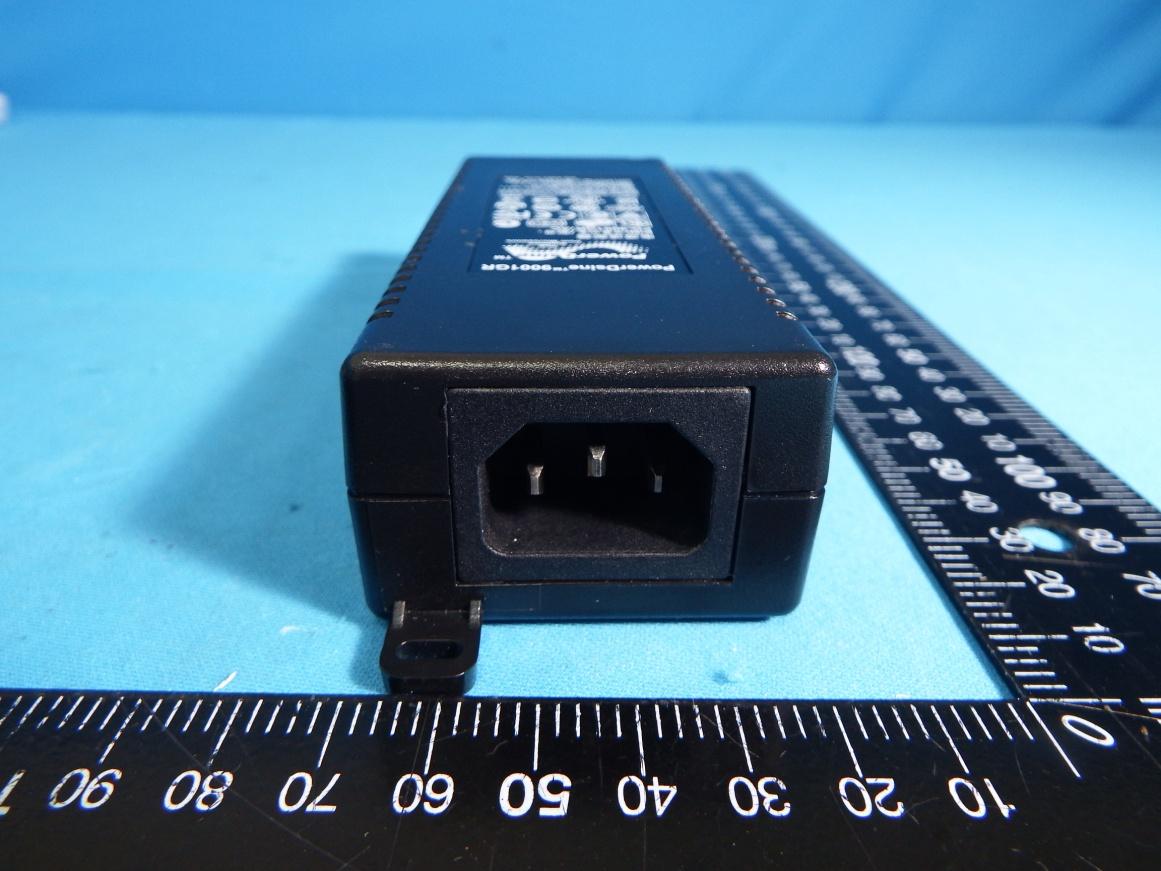

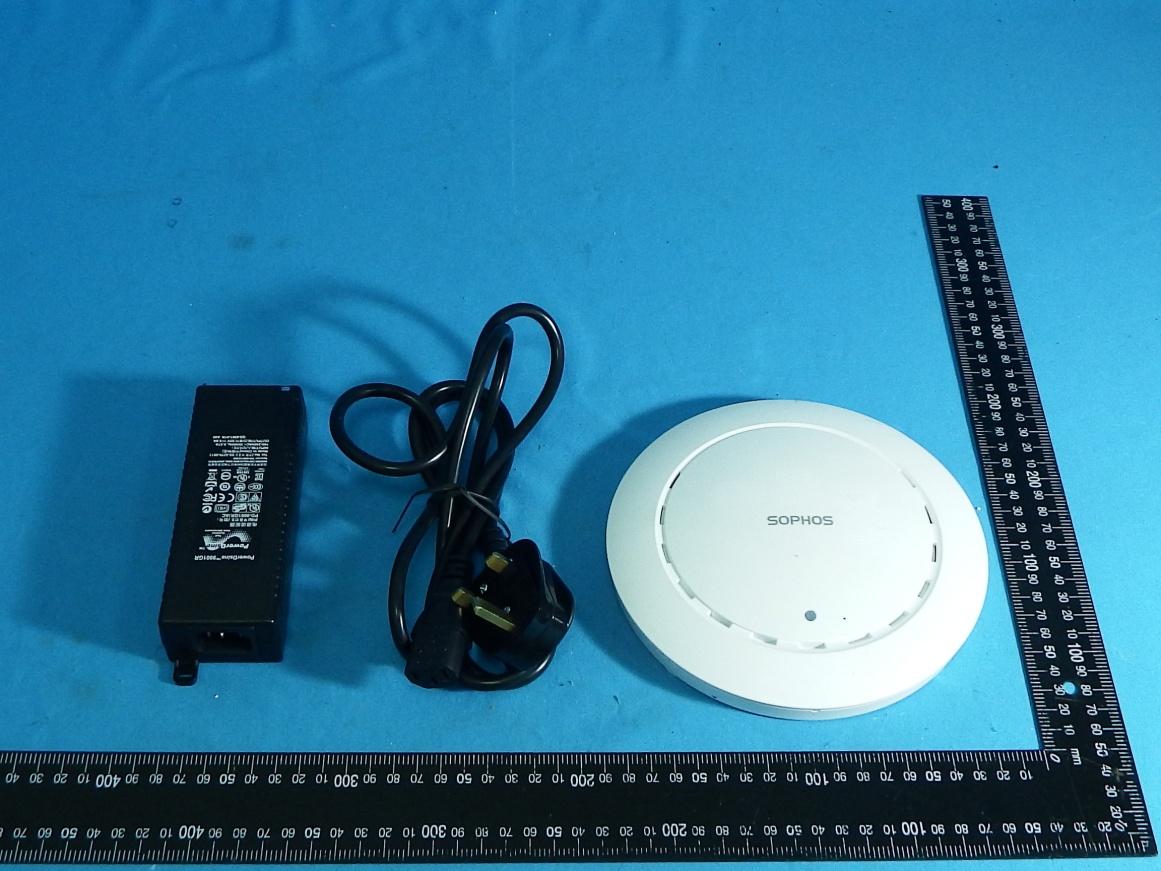

| External Photos | External Photos | 2016-01-28 | PDF 1.3 MB |
| Label | ID Label/Location Info | 2016-01-28 | PDF 1 MB |
| Test Setup Photos DTS | Test Setup Photos | 2016-01-28 | PDF 543.1 KB |
| Test Setup Photos NII | Test Setup Photos | 2016-01-28 | PDF 543.1 KB |
| Test Report DTS | Test Report | 2016-01-28 | PDF 1.7 MB |
| Test Report NII | Test Report | 2016-01-28 | PDF 2.2 MB |
| Ad Hoc Mode Function Declaration | Cover Letter(s) | 2016-01-28 | PDF 251.7 KB |
| Ad Hoc Mode Function Declaration Letter | Cover Letter(s) | 2016-01-28 | PDF 251.7 KB |
| Confidentiality Request Letter | Cover Letter(s) | 2016-01-28 | PDF 313.3 KB |
| DOC Letter | Cover Letter(s) | 2016-01-28 | PDF 201.8 KB |
| DoC Letter | Cover Letter(s) | 2016-01-28 | PDF 201.8 KB |
| POA | Cover Letter(s) | 2016-01-28 | PDF 285.7 KB |
| RF Exposure MPE | RF Exposure Info | 2016-01-28 | PDF 183 KB |
| Block Diagram Metadata only | Block Diagram | PDF 217.1 KB | |
| Schematics Metadata only | Schematics | PDF 1,015.3 KB | |
| Operational Description Metadata only | Operational Description | PDF 20.4 KB | |
| Operational Description Software Security Metadata only | Operational Description | PDF 78.1 KB |
Application Information
| Application ID | kB4QoFqWhxRPEZst1dTYAg== |
|---|---|
| Final Action Date | 2016-01-28 |
| Application Purpose | Original Equipment |
| Applicant FRN | 0023811003 |
| Model | AP15C |
| Frequency Range | 2412-2462 MHz |
| Equipment Class | DTS - Digital Transmission System |
| Device Description | Sophos wireless Access Point |
| Responsible Party | Stuart Fillingham, Director, stuart.fillingham@sophos.com , +441235465727 |
| Test Firm | Alex Chen, SPORTON International Inc., alex@sporton.com.tw  , 886-3-327-3456 |
| TCB Email | TEI@TIMCOENGR.COM  |
| TCB Scope | A4: UNII devices & low power transmitters using spread spectrum techniques |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | Yes |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | Yes |
| Composite Part | No |
| Cognitive Radio | No |
| Authorization Waiver | No |
| Authorization Waiver Approved | No |
| Section 5301 Certification | Yes |
| Related OET Knowledge DataBase Inquiry | No |
| Grant Comments | Power listed is maximum combined output power conducted. This device is restricted to indoor use only. Device operates with specific antennas in MIMO configurations as described in this filing. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not transmit simultaneously with any other antenna or transmitter. Users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. This device has 20 and 40 MHz bandwidth modes. |
Applications
| Application ID | Date | Purpose |
|---|---|---|
| kB4QoFqWhxRPEZst1dTYAg== | 2016-01-28 | Original Equipment |
| hImNcy5VlEmlNWAoaDYxBQ== | 2016-01-28 | Original Equipment |
Equipment Authorization
Grants
TCB Grant - Application kB4QoFqWhxRPEZst1dTYAg==
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
Timco Engineering, Inc. 849 NW State Road 45 Newberry, FL 32669 |
Date of Grant: 01/28/2016 Application Dated: 01/27/2016 |
| Sophos Ltd |
| The Pentagon, Abingdon Science Park |
| Abingdon, OX14 3YP United Kingdom |
| Attention: Stuart Fillingham , Director |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | 2ACTO-AP15C |
| Name of Grantee: | Sophos Ltd |
| Equipment Class: | Digital Transmission System |
| Notes: | Sophos wireless Access Point |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| CC MO | 15C | 2412.0 - 2462.0 | 0.798 |
| Power listed is maximum combined output power conducted. This device is restricted to indoor use only. Device operates with specific antennas in MIMO configurations as described in this filing. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not transmit simultaneously with any other antenna or transmitter. Users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. This device has 20 and 40 MHz bandwidth modes. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| MO: | This Multiple Input Multiple Output (MIMO) device was evaluated for multiple transmitted signals as indicated in the filing. |
EAS Grant - Application kB4QoFqWhxRPEZst1dTYAg==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
Sophos Ltd The Pentagon, Abingdon Science Park Abingdon, OX14 3YP United Kingdom |
Date of Grant: 01/28/2016 Application Dated: 01/27/2016 |
| Attention: Stuart Fillingham , Director |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | 2ACTO-AP15C |
| Name of Grantee: | Sophos Ltd |
| Equipment Class: | Digital Transmission System |
| Notes: | Sophos wireless Access Point |
| Modular Type: | Does not apply |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| CC MO | 15C | 2412.0 - 2462.0 | 0.798 |
| Power listed is maximum combined output power conducted. This device is restricted to indoor use only. Device operates with specific antennas in MIMO configurations as described in this filing. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not transmit simultaneously with any other antenna or transmitter. Users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. This device has 20 and 40 MHz bandwidth modes. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| MO: | This Multiple Input Multiple Output (MIMO) device was evaluated for multiple transmitted signals as indicated in the filing. |
| Mail To: | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
Timco Engineering, Inc. 849 NW State Road 45 Newberry, FL 32669 |
Date of Grant: 01/28/2016 Application Dated: 01/27/2016 |
| Sophos Ltd |
| The Pentagon, Abingdon Science Park |
| Abingdon, OX14 3YP United Kingdom |
| Attention: Stuart Fillingham , Director |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | 2ACTO-AP15C |
| Name of Grantee: | Sophos Ltd |
| Equipment Class: | Unlicensed National Information Infrastructure TX |
| Notes: | Sophos wireless Access Point |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 38 CC MO | 15E | 5180.0 - 5240.0 | 0.285 | ||
| 38 CC MO | 15E | 5745.0 - 5825.0 | 0.197 |
| Power listed is maximum combined output power conducted. This device is restricted to indoor use only. Device operates with specific antennas in MIMO configurations as described in this filing. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not transmit simultaneously with any other antenna or transmitter. Users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. This device has 20 and 40 MHz bandwidth modes. |
| 38: | This device has shown compliance, in all grant-listed U-NII sub-bands, with the new rules for U-NII devices adopted under Docket No. 13-49 and may be marketed, manufactured or imported after the June 1, 2016 transition deadline. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| MO: | This Multiple Input Multiple Output (MIMO) device was evaluated for multiple transmitted signals as indicated in the filing. |
EAS Grant - Application hImNcy5VlEmlNWAoaDYxBQ==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
Sophos Ltd The Pentagon, Abingdon Science Park Abingdon, OX14 3YP United Kingdom |
Date of Grant: 01/28/2016 Application Dated: 01/27/2016 |
| Attention: Stuart Fillingham , Director |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | 2ACTO-AP15C |
| Name of Grantee: | Sophos Ltd |
| Equipment Class: | Unlicensed National Information Infrastructure TX |
| Notes: | Sophos wireless Access Point |
| Modular Type: | Does not apply |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 38 CC MO | 15E | 5180.0 - 5240.0 | 0.285 | ||
| 38 CC MO | 15E | 5745.0 - 5825.0 | 0.197 |
| Power listed is maximum combined output power conducted. This device is restricted to indoor use only. Device operates with specific antennas in MIMO configurations as described in this filing. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not transmit simultaneously with any other antenna or transmitter. Users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. This device has 20 and 40 MHz bandwidth modes. |
| 38: | This device has shown compliance, in all grant-listed U-NII sub-bands, with the new rules for U-NII devices adopted under Docket No. 13-49 and may be marketed, manufactured or imported after the June 1, 2016 transition deadline. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| MO: | This Multiple Input Multiple Output (MIMO) device was evaluated for multiple transmitted signals as indicated in the filing. |
| Mail To: |
