FCC ID 2ACUR-NP800
Bluetooth/BLE/WIFI Module
by Naim Audio Limited
Grantee Code: 2ACUR Product Code: NP800
Latest application date: 2016-12-27
Device Images
FCC ID Device Details
| FCC ID | 2ACUR-NP800 |
|---|---|
| Mirrors | fcc.id | gov | fccid.ai |
| Grantee Code | 2ACUR |
| Product Code | NP800 |
| Applicant Business | Naim Audio Limited 🇬🇧 |
| Related Domains |  naimaudio.com |
| Equipment Class | Bluetooth/BLE/WIFI Module |
| Test Firm | TUV AUSTRIA SERVICES GMBH |
Operating Frequencies
| Frequency Range | Application Purpose | Final Action Date |
|---|---|---|
| 2402-2480 MHz | Original Equipment | 2016-12-27 |
| 2402-2480 MHz | Original Equipment | 2016-12-27 |
| 5180-5240 MHz | Original Equipment | 2016-12-27 |
Exhibits
| Document | Type | Available | File |
|---|---|---|---|
| Sample user manual for final product | Users Manual | 2016-12-27 | PDF 768.8 KB |
| Sample user manual of final product | Users Manual | 2016-12-27 | PDF 768.8 KB |
| Sample users manual of a final product | Users Manual | 2016-12-27 | PDF 768.8 KB |
| Internal photos | Internal Photos | 2016-12-27 | PDF 2.1 MB |
| External photos | External Photos | 2016-12-27 | PDF 3.5 MB |
| external photos | External Photos | 2016-12-27 | PDF 3.5 MB |
| Label and placement | ID Label/Location Info | 2016-12-27 | PDF 414.2 KB |

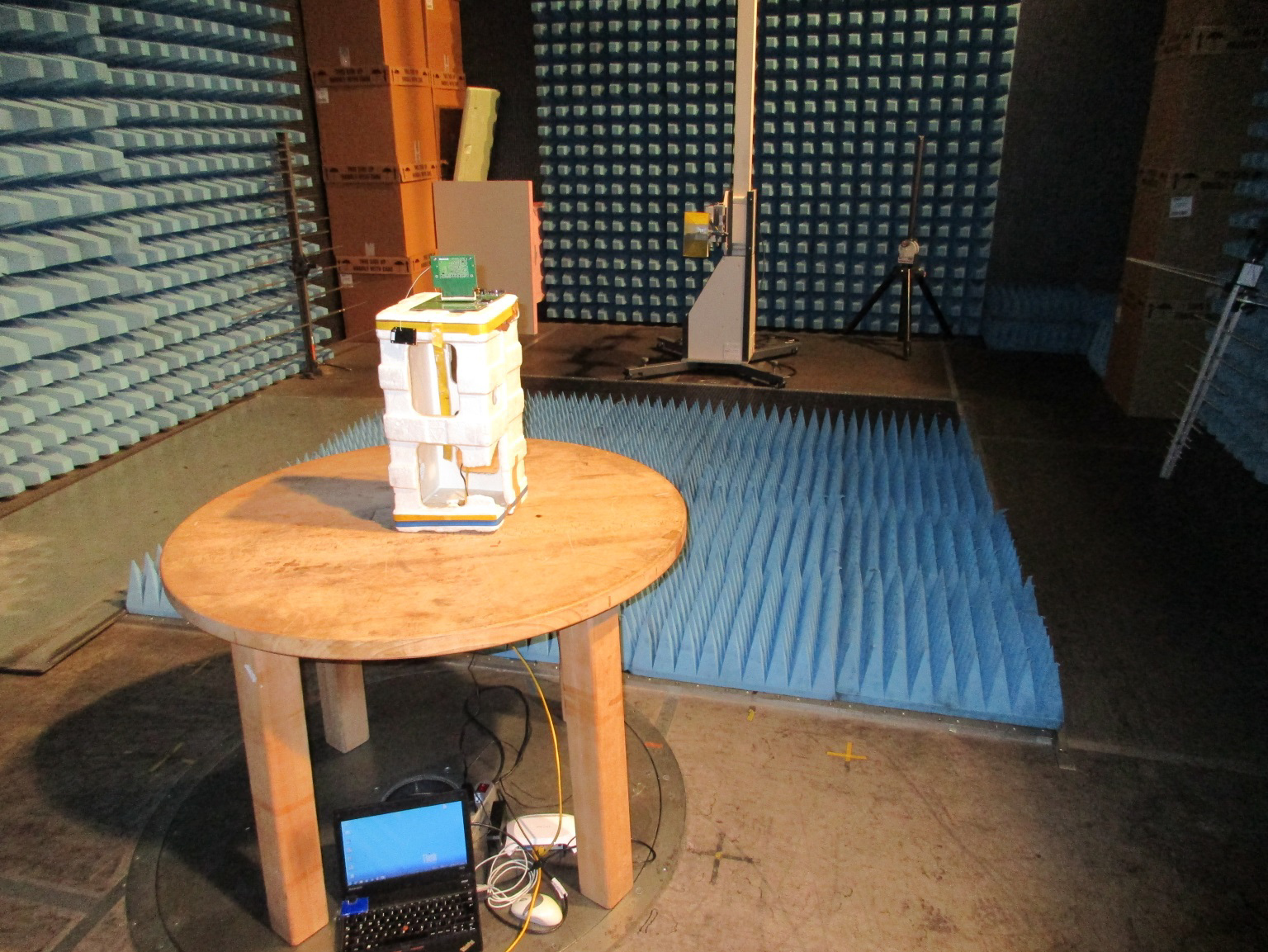

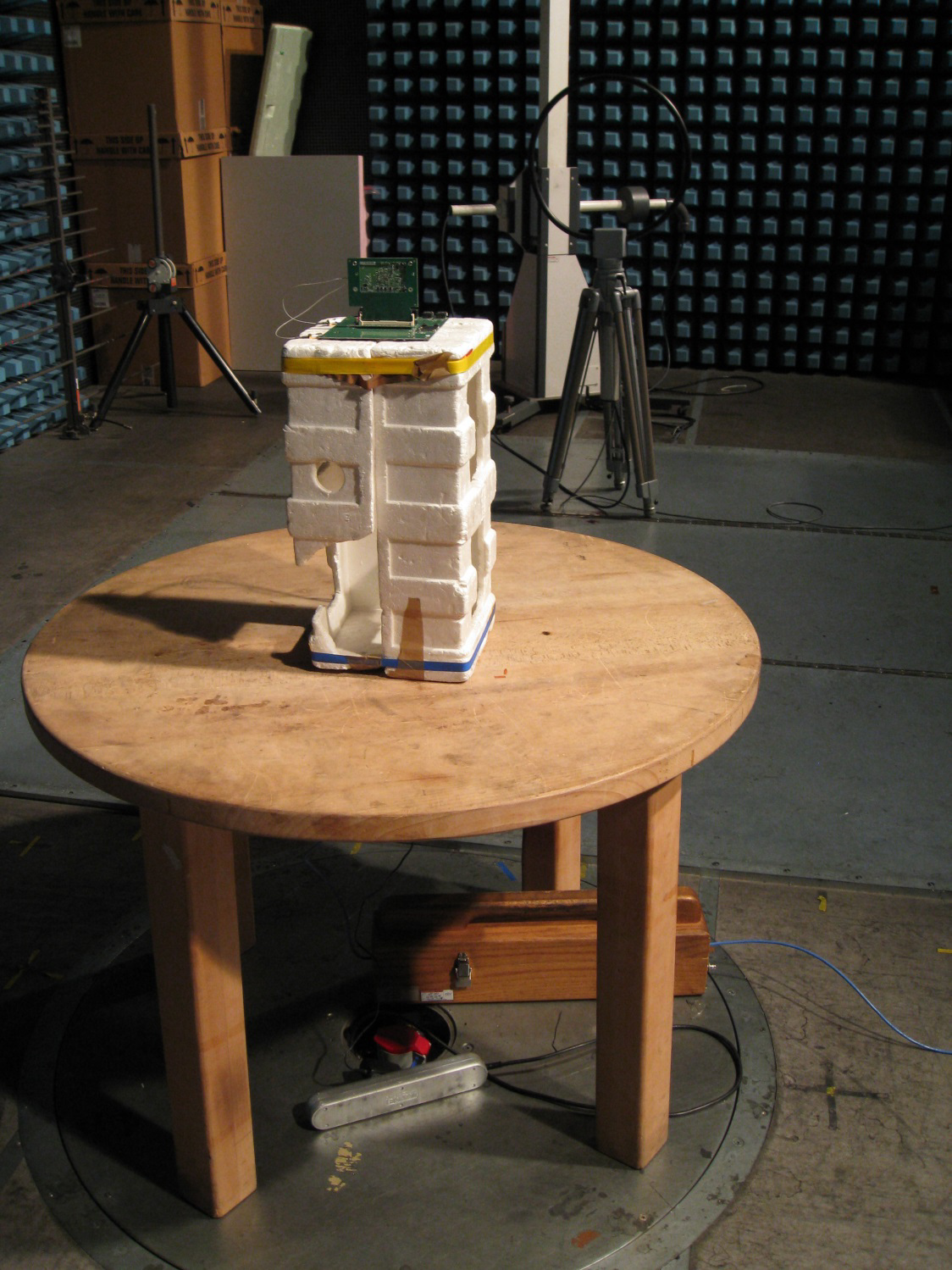

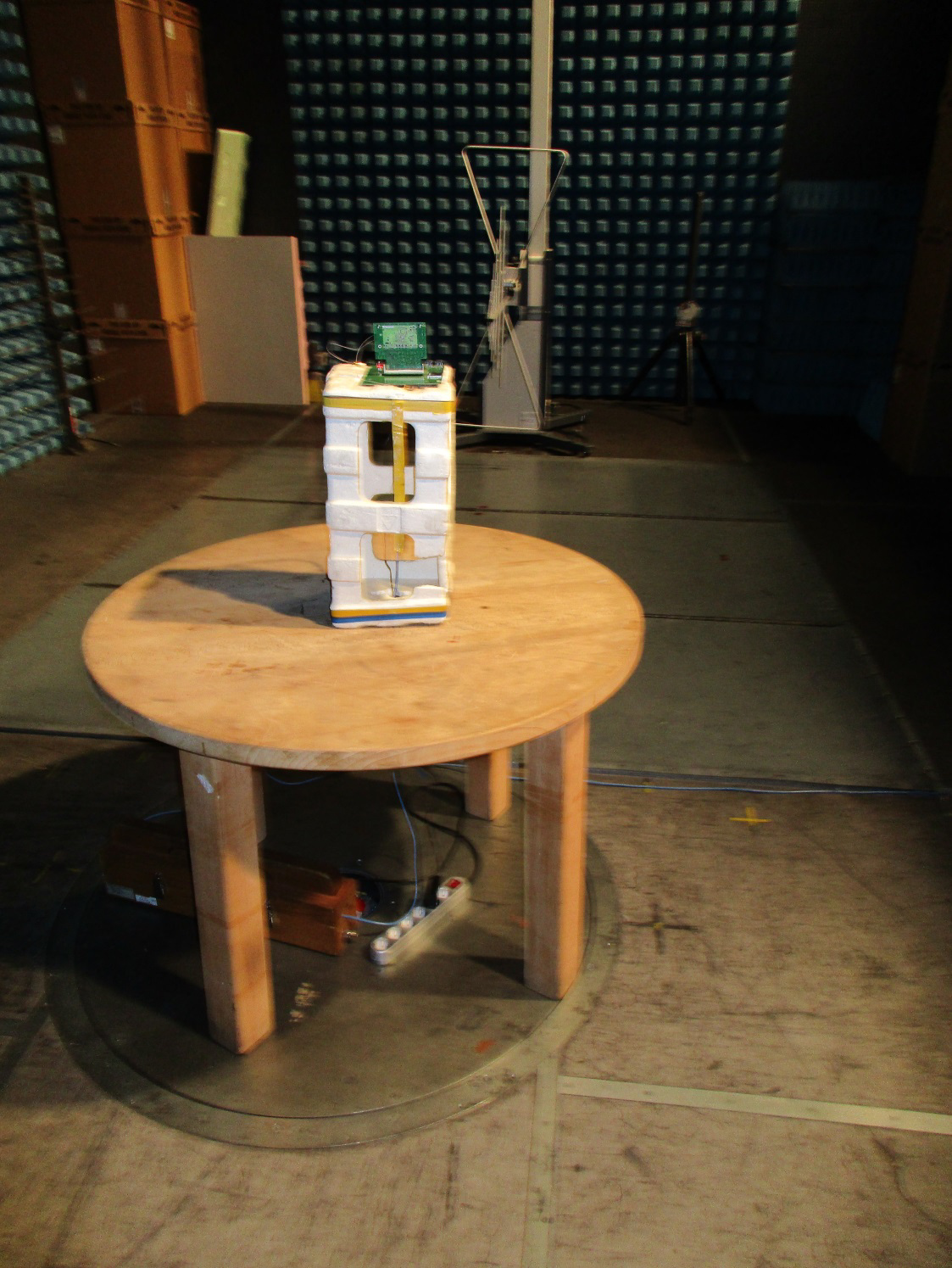

| Test setup photos | Test Setup Photos | 2016-12-27 | PDF 2.5 MB |
| 2.4 GHz WiFI Test report | Test Report | 2016-12-27 | PDF 5.3 MB |
| BLE Test report | Test Report | 2016-12-27 | PDF 1.5 MB |
| Bluetooth test report | Test Report | 2016-12-27 | PDF 2.8 MB |
| NII Test report part 1 | Test Report | 2016-12-27 | PDF 3.5 MB |
| NII Test report part 2 | Test Report | 2016-12-27 | PDF 3.7 MB |
| NII Test report part 3 | Test Report | 2016-12-27 | PDF 3.8 MB |
| NII Test report part 4 | Test Report | 2016-12-27 | PDF 3.8 MB |
| Cover letter | Cover Letter(s) | 2016-12-27 | PDF 40.3 KB |
| Request for confidentiality | Cover Letter(s) | 2016-12-27 | PDF 70.3 KB |
| RF exposure statement | RF Exposure Info | 2016-12-27 | PDF 7 KB |
| Block diagram Metadata only | Block Diagram | PDF 71 KB | |
| Schematics Metadata only | Schematics | PDF 2.1 MB | |
| Functional description Metadata only | Operational Description | PDF 2.3 MB |
Application Information
| Application ID | VoAqKzgjlDDTAghW1y3SNA== |
|---|---|
| Final Action Date | 2016-12-27 |
| Application Purpose | Original Equipment |
| Applicant FRN | 0023812803 |
| Model | NP800 |
| Frequency Range | 2402-2480 MHz |
| Equipment Class | DSS - Part 15 Spread Spectrum Transmitter |
| Device Description | Bluetooth/BLE/WIFI Module |
| Responsible Party | Alan Brooke, alan.brooke@naimaudio.com , 0044 1722 426 670 |
| Test Firm | Wilhelm Seier, TUV AUSTRIA SERVICES GMBH, emv@tuv.at  , 43-1-610-91-6530 |
| TCB Email | andreas.malek@tuv.at |
| TCB Scope | A4: UNII devices & low power transmitters using spread spectrum techniques |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | Yes |
| Grant Deferral | No |
| Modular Equipment | Limited Single Modular Approval |
| Composite Device | Yes |
| Composite Part | No |
| Cognitive Radio | No |
| Authorization Waiver | No |
| Authorization Waiver Approved | No |
| Section 5301 Certification | Yes |
| Related OET Knowledge DataBase Inquiry | No |
| Grant Comments | Limited Modular Approval only for use by the applicant. |
Applications
| Application ID | Date | Purpose |
|---|---|---|
| VoAqKzgjlDDTAghW1y3SNA== | 2016-12-27 | Original Equipment |
| 6JqorZqEvwZMfGQ2qSOCVQ== | 2016-12-27 | Original Equipment |
| 5+8CbvdmaLY/W+7IbhsDpg== | 2016-12-27 | Original Equipment |
Equipment Authorization
| Frequency | Output | Emission | Rules | Grant Notes |
|---|---|---|---|---|
| 2402-2480 MHz | 0.0156 | 561KF1D | 15C | 41, CC |
| 2402-2480 MHz | 0.015 | 977KF1D | 15C | 41, CC |
| 2402-2480 MHz | 0.0133 | 1M27F1D | 15C | 41, CC |
| 2412-2462 MHz | 0.3681 | 15C | 41, CC | |
| 5180-5240 MHz | 0.00895 | 15E | 38, 41, CC | |
| 5260-5320 MHz | 0.00941 | 15E | 38, 41, CC | |
| 5500-5700 MHz | 0.00827 | 15E | 38, 41, CC | |
| 5745-5825 MHz | 0.00732 | 15E | 38, 41, CC |
Grants
TCB Grant - Application VoAqKzgjlDDTAghW1y3SNA==
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
TUV Austria Services GmbH Deutschstrasse 10 Wien, A-1230 Austria |
Date of Grant: 12/27/2016 Application Dated: 12/27/2016 |
| Naim Audio Limited |
| Southampton Road |
| Salisbury, United Kingdom |
| Attention: Alan Brooke |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | 2ACUR-NP800 |
| Name of Grantee: | Naim Audio Limited |
| Equipment Class: | Part 15 Spread Spectrum Transmitter |
| Notes: | Bluetooth/BLE/WIFI Module |
| Modular Type: | Limited Single Modular |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 41 CC | 15C | 2402.0 - 2480.0 | 0.015 | 977KF1D | |
| 41 CC | 15C | 2402.0 - 2480.0 | 0.0133 | 1M27F1D |
| Limited Modular Approval only for use by the applicant. |
| 41: | Installation of this device must not be readily accessible to human subjects closer than 20 cm. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
EAS Grant - Application VoAqKzgjlDDTAghW1y3SNA==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
Naim Audio Limited Southampton Road Salisbury, United Kingdom |
Date of Grant: 12/27/2016 Application Dated: 12/27/2016 |
| Attention: Alan Brooke |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | 2ACUR-NP800 |
| Name of Grantee: | Naim Audio Limited |
| Equipment Class: | Part 15 Spread Spectrum Transmitter |
| Notes: | Bluetooth/BLE/WIFI Module |
| Modular Type: | Limited Single Modular |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 41 CC | 15C | 2402.0 - 2480.0 | 0.015 | 977KF1D | |
| 41 CC | 15C | 2402.0 - 2480.0 | 0.0133 | 1M27F1D |
| Limited Modular Approval only for use by the applicant. |
| 41: | Installation of this device must not be readily accessible to human subjects closer than 20 cm. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| Mail To: | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
TUV Austria Services GmbH Deutschstrasse 10 Wien, A-1230 Austria |
Date of Grant: 12/27/2016 Application Dated: 12/27/2016 |
| Naim Audio Limited |
| Southampton Road |
| Salisbury, United Kingdom |
| Attention: Alan Brooke |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | 2ACUR-NP800 |
| Name of Grantee: | Naim Audio Limited |
| Equipment Class: | Digital Transmission System |
| Notes: | Bluetooth/BLE/WIFI Module |
| Modular Type: | Limited Single Modular |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 41 CC | 15C | 2402.0 - 2480.0 | 0.0156 | 561KF1D | |
| 41 CC | 15C | 2412.0 - 2462.0 | 0.3681 |
| Limited Modular Approval only for use by the applicant. This device has 20 MHz and 40 MHz bandwidth modes. |
| 41: | Installation of this device must not be readily accessible to human subjects closer than 20 cm. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
EAS Grant - Application 6JqorZqEvwZMfGQ2qSOCVQ==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
Naim Audio Limited Southampton Road Salisbury, United Kingdom |
Date of Grant: 12/27/2016 Application Dated: 12/27/2016 |
| Attention: Alan Brooke |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | 2ACUR-NP800 |
| Name of Grantee: | Naim Audio Limited |
| Equipment Class: | Digital Transmission System |
| Notes: | Bluetooth/BLE/WIFI Module |
| Modular Type: | Limited Single Modular |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 41 CC | 15C | 2402.0 - 2480.0 | 0.0156 | 561KF1D | |
| 41 CC | 15C | 2412.0 - 2462.0 | 0.3681 |
| Limited Modular Approval only for use by the applicant. This device has 20 MHz and 40 MHz bandwidth modes. |
| 41: | Installation of this device must not be readily accessible to human subjects closer than 20 cm. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| Mail To: | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
TUV Austria Services GmbH Deutschstrasse 10 Wien, A-1230 Austria |
Date of Grant: 12/27/2016 Application Dated: 12/27/2016 |
| Naim Audio Limited |
| Southampton Road |
| Salisbury, United Kingdom |
| Attention: Alan Brooke |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | 2ACUR-NP800 |
| Name of Grantee: | Naim Audio Limited |
| Equipment Class: | Unlicensed National Information Infrastructure TX |
| Notes: | Bluetooth/BLE/WIFI Module |
| Modular Type: | Limited Single Modular |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 38 41 CC | 15E | 5180.0 - 5240.0 | 0.00895 | ||
| 38 41 CC | 15E | 5260.0 - 5320.0 | 0.00941 | ||
| 38 41 CC | 15E | 5500.0 - 5700.0 | 0.00827 | ||
| 38 41 CC | 15E | 5745.0 - 5825.0 | 0.00732 |
| Limited Modular Approval only for use by the applicant. This device has 20 MHz, 40 MHz and 80 MHz bandwidth modes. |
| 38: | This device has shown compliance, in all grant-listed U-NII sub-bands, with the new rules for U-NII devices adopted under Docket No. 13-49 and may be marketed, manufactured or imported after the June 1, 2016 transition deadline. |
| 41: | Installation of this device must not be readily accessible to human subjects closer than 20 cm. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
EAS Grant - Application 5+8CbvdmaLY/W+7IbhsDpg==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
Naim Audio Limited Southampton Road Salisbury, United Kingdom |
Date of Grant: 12/27/2016 Application Dated: 12/27/2016 |
| Attention: Alan Brooke |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | 2ACUR-NP800 |
| Name of Grantee: | Naim Audio Limited |
| Equipment Class: | Unlicensed National Information Infrastructure TX |
| Notes: | Bluetooth/BLE/WIFI Module |
| Modular Type: | Limited Single Modular |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 38 41 CC | 15E | 5180.0 - 5240.0 | 0.00895 | ||
| 38 41 CC | 15E | 5260.0 - 5320.0 | 0.00941 | ||
| 38 41 CC | 15E | 5500.0 - 5700.0 | 0.00827 | ||
| 38 41 CC | 15E | 5745.0 - 5825.0 | 0.00732 |
| Limited Modular Approval only for use by the applicant. This device has 20 MHz, 40 MHz and 80 MHz bandwidth modes. |
| 38: | This device has shown compliance, in all grant-listed U-NII sub-bands, with the new rules for U-NII devices adopted under Docket No. 13-49 and may be marketed, manufactured or imported after the June 1, 2016 transition deadline. |
| 41: | Installation of this device must not be readily accessible to human subjects closer than 20 cm. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| Mail To: |
