FCC ID 2ACURZIGEE
Zigbee Module
by Naim Audio Limited
Grantee Code: 2ACUR Product Code: ZIGEE
Latest application date: 2016-12-21
Device Images
FCC ID Device Details
| FCC ID | 2ACURZIGEE |
|---|---|
| Mirrors | fcc.id | gov | fccid.ai |
| Grantee Code | 2ACUR |
| Product Code | ZIGEE |
| Applicant Business | Naim Audio Limited 🇬🇧 |
| Related Domains |  naimaudio.com |
| Equipment Class | Zigbee Module |
| Test Firm | TUV AUSTRIA SERVICES GMBH |
Operating Frequencies
| Frequency Range | Application Purpose | Final Action Date |
|---|---|---|
| 2425-2475 MHz | Original Equipment | 2016-12-21 |
Exhibits
| Document | Type | Available | File |
|---|---|---|---|
| Sample User manual of a final product | Users Manual | 2016-12-21 | PDF 768.8 KB |

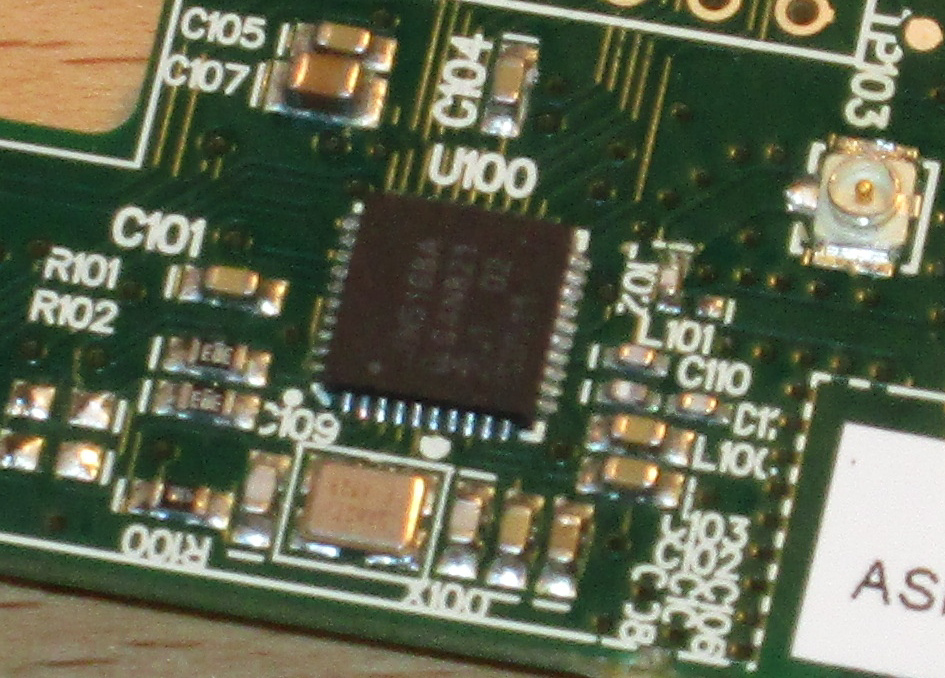

| Internal photos | Internal Photos | 2016-12-21 | PDF 466.7 KB |

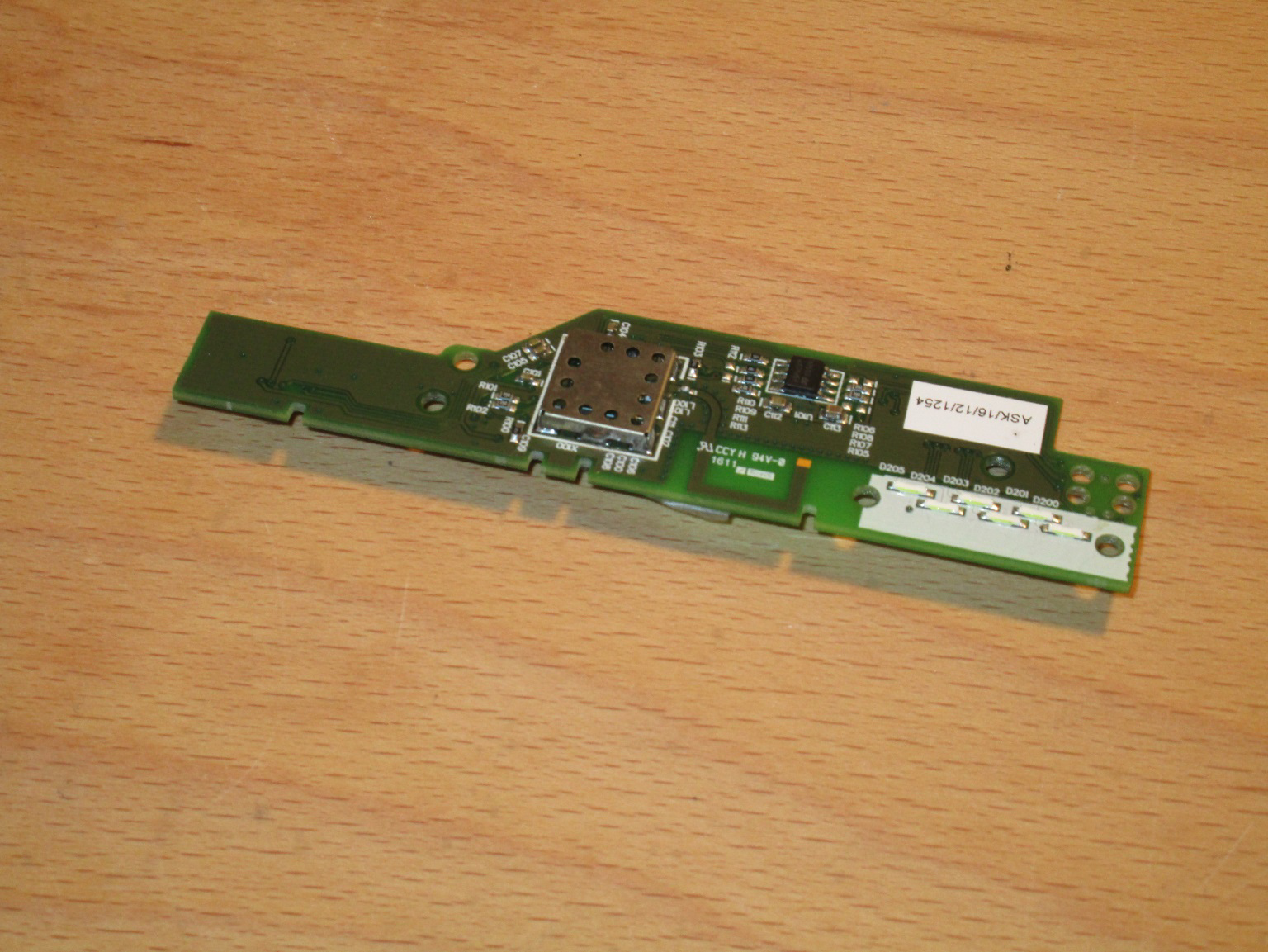

| External photos | External Photos | 2016-12-21 | PDF 1.7 MB |
| Label and placement info | ID Label/Location Info | 2016-12-21 | PDF 795.9 KB |

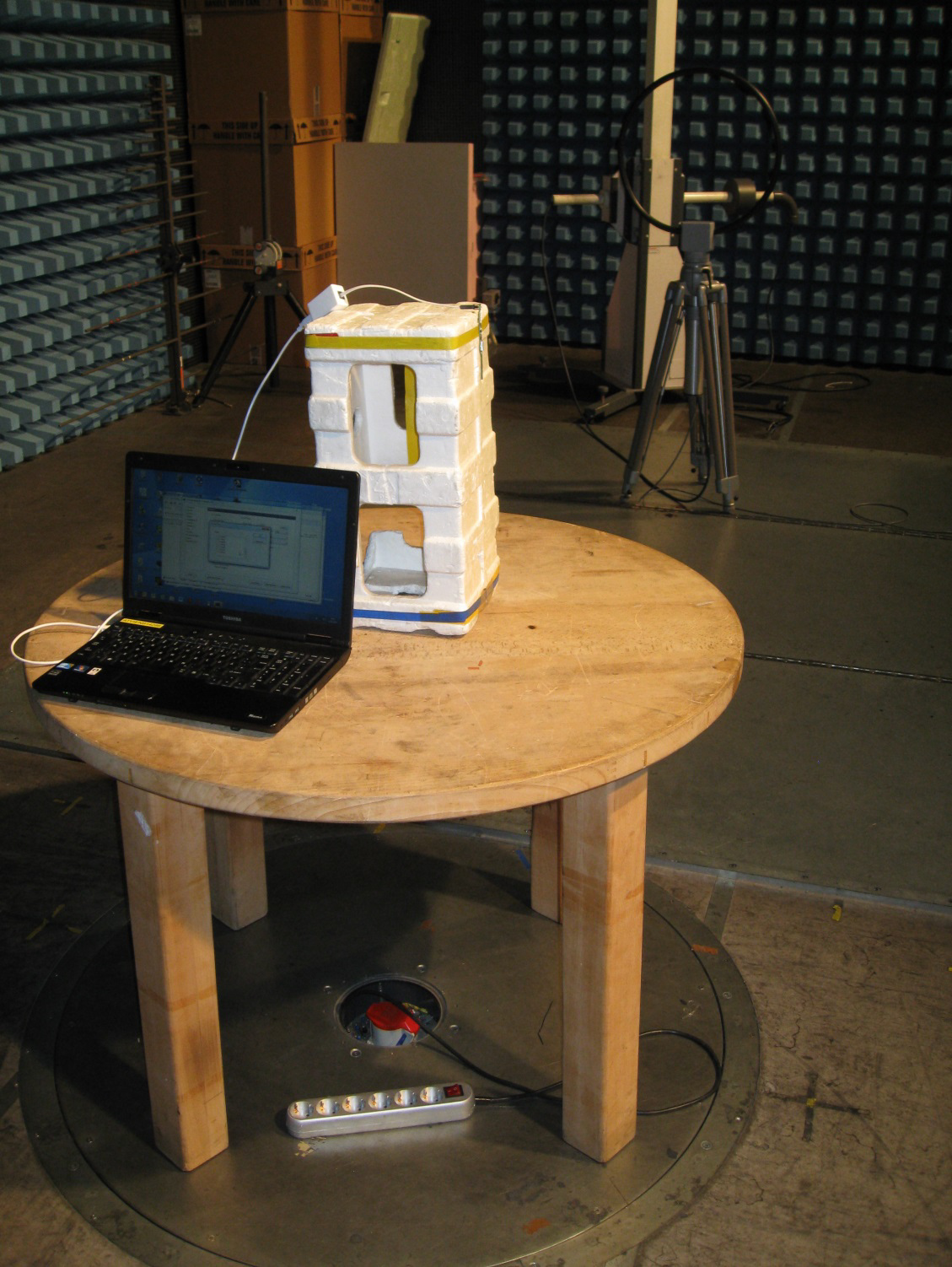

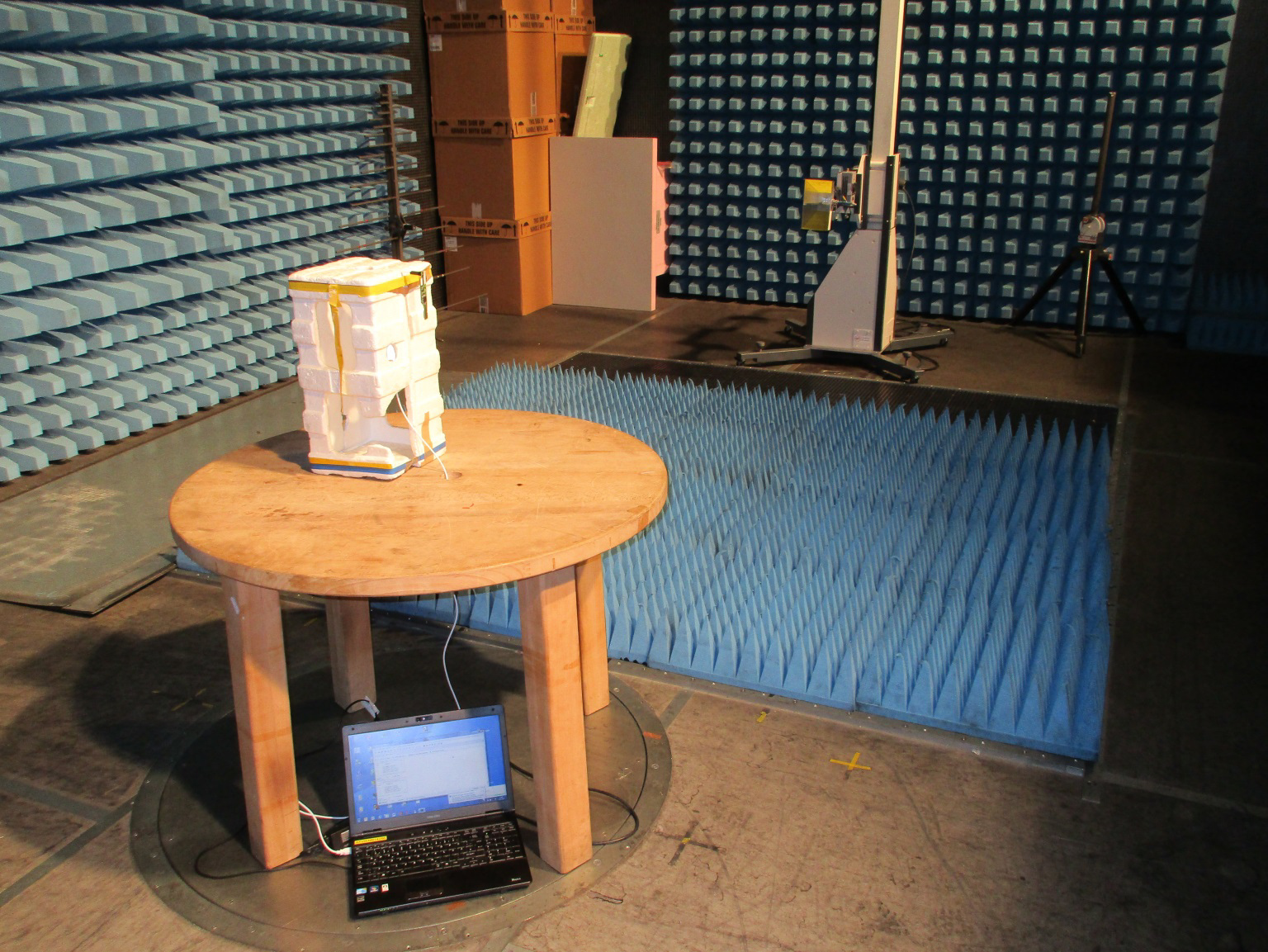

| Test setup photos | Test Setup Photos | 2016-12-21 | PDF 1.8 MB |
| Test report | Test Report | 2016-12-21 | PDF 1.7 MB |
| Cover letter | Cover Letter(s) | 2016-12-21 | PDF 40.2 KB |
| Request for confidentiality | Cover Letter(s) | 2016-12-21 | PDF 70.3 KB |
| Block diagram Metadata only | Block Diagram | PDF 31 KB | |
| Schematics Metadata only | Schematics | PDF 58.4 KB | |
| Functional description Metadata only | Operational Description | PDF 32.5 KB |
Application Information
| Application ID | 1HX7iTU6uRJKrJRQbaMQvg== |
|---|---|
| Final Action Date | 2016-12-21 |
| Application Purpose | Original Equipment |
| Applicant FRN | 0023812803 |
| Model | ZIGEE |
| Frequency Range | 2425-2475 MHz |
| Equipment Class | DSS - Part 15 Spread Spectrum Transmitter |
| Device Description | Zigbee Module |
| Responsible Party | Alan Brooke, alan.brooke@naimaudio.com , 0044 1722 426 670 |
| Test Firm | Wilhelm Seier, TUV AUSTRIA SERVICES GMBH, emv@tuv.at  , 43-1-610-91-6530 |
| TCB Email | andreas.malek@tuv.at |
| TCB Scope | A4: UNII devices & low power transmitters using spread spectrum techniques |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | Yes |
| Grant Deferral | No |
| Modular Equipment | Limited Single Modular Approval |
| Composite Device | No |
| Composite Part | No |
| Cognitive Radio | No |
| Authorization Waiver | No |
| Authorization Waiver Approved | No |
| Section 5301 Certification | Yes |
| Related OET Knowledge DataBase Inquiry | No |
| Grant Comments | Limited modular approval only for use by the applicant. |
Applications
| Application ID | Date | Purpose |
|---|---|---|
| 1HX7iTU6uRJKrJRQbaMQvg== | 2016-12-21 | Original Equipment |
Grants
TCB Grant - Application 1HX7iTU6uRJKrJRQbaMQvg==
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
TUV Austria Services GmbH Deutschstrasse 10 Wien, A-1230 Austria |
Date of Grant: 12/21/2016 Application Dated: 12/21/2016 |
| Naim Audio Limited |
| Southampton Road |
| Salisbury, United Kingdom |
| Attention: Alan Brooke |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | 2ACURZIGEE |
| Name of Grantee: | Naim Audio Limited |
| Equipment Class: | Part 15 Spread Spectrum Transmitter |
| Notes: | Zigbee Module |
| Modular Type: | Limited Single Modular |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 15C | 2425.0 - 2475.0 | 0.0006 | 1M58F1D |
| Limited modular approval only for use by the applicant. |
EAS Grant - Application 1HX7iTU6uRJKrJRQbaMQvg==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
Naim Audio Limited Southampton Road Salisbury, United Kingdom |
Date of Grant: 12/21/2016 Application Dated: 12/21/2016 |
| Attention: Alan Brooke |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | 2ACURZIGEE |
| Name of Grantee: | Naim Audio Limited |
| Equipment Class: | Part 15 Spread Spectrum Transmitter |
| Notes: | Zigbee Module |
| Modular Type: | Limited Single Modular |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 15C | 2425.0 - 2475.0 | 0.0006 | 1M58F1D |
| Limited modular approval only for use by the applicant. |
