FCC ID 2ACWISE40FYP1T
LED TV
by Shenyang Tongfang Multimedia Technology Co., Limited
Grantee Code: 2ACWI Product Code: SE40FYP1T
Latest application date: 2016-02-21
Device Images
FCC ID Device Details
| FCC ID | 2ACWISE40FYP1T |
|---|---|
| Mirrors | fcc.id | gov | fccid.ai |
| Grantee Code | 2ACWI |
| Product Code | SE40FYP1T |
| Applicant Business | Shenyang Tongfang Multimedia Technology Co., Limited 🇨🇳 |
| Related Domains |  thtfce.com |
| Equipment Class | LED TV |
| Test Firm | EST Technology Co.,Ltd |
Operating Frequencies
| Frequency Range | Application Purpose | Final Action Date |
|---|---|---|
| 2412-2472 MHz | Original Equipment | 2016-02-21 |
Exhibits
| Document | Type | Available | File |
|---|---|---|---|
| User manual | Users Manual | 2016-02-21 | PDF 2.3 MB |

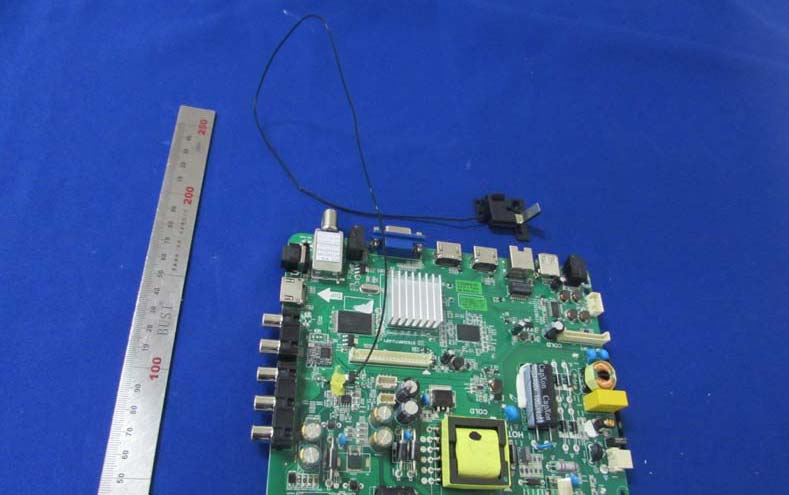

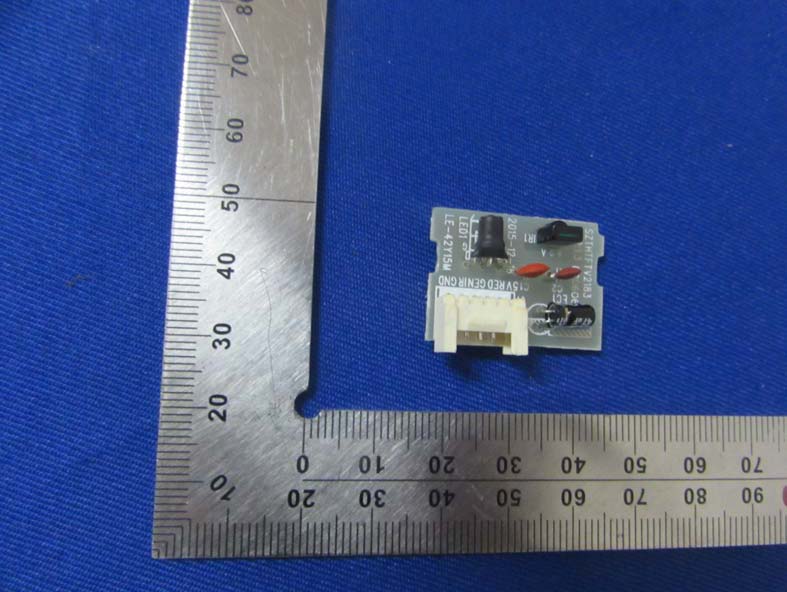

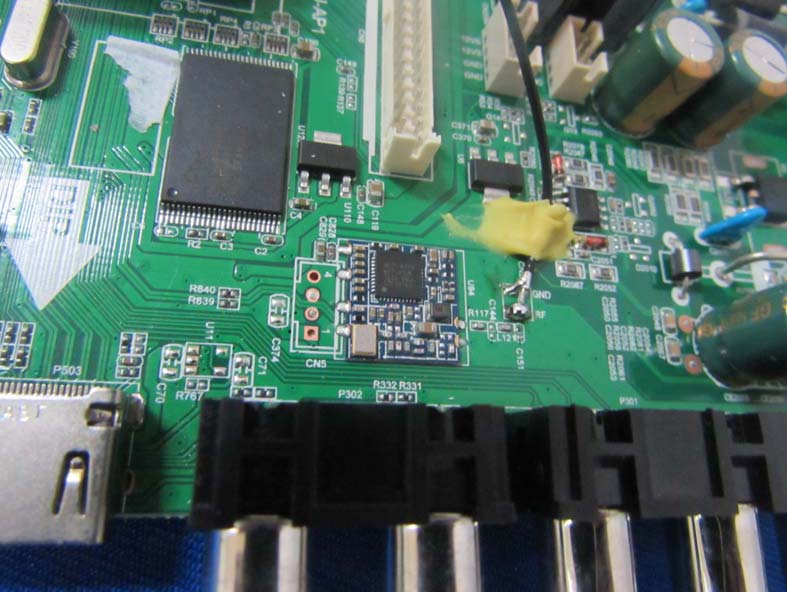

| Int photo | Internal Photos | 2016-02-21 | PDF 501.1 KB |

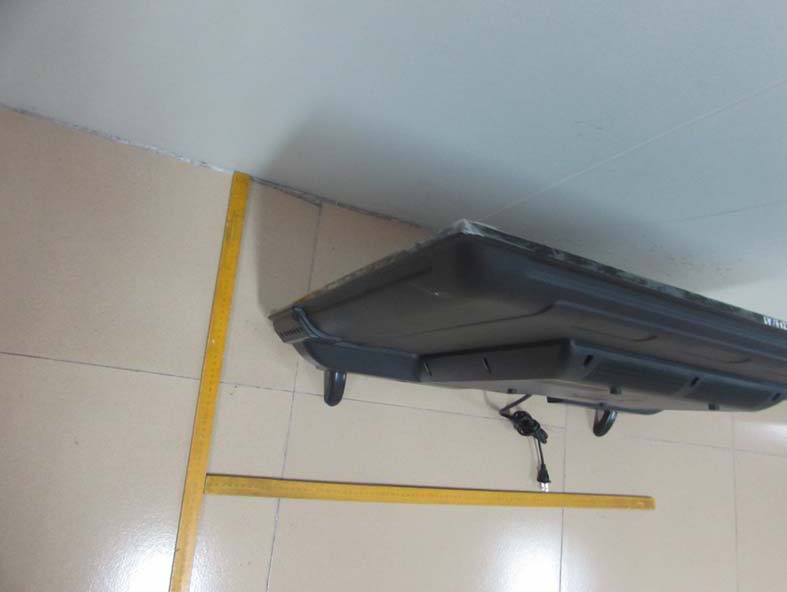

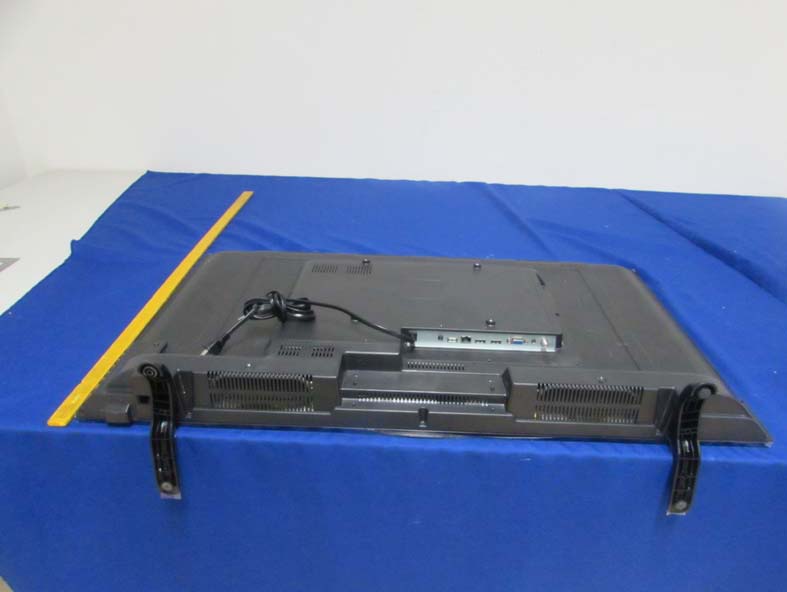

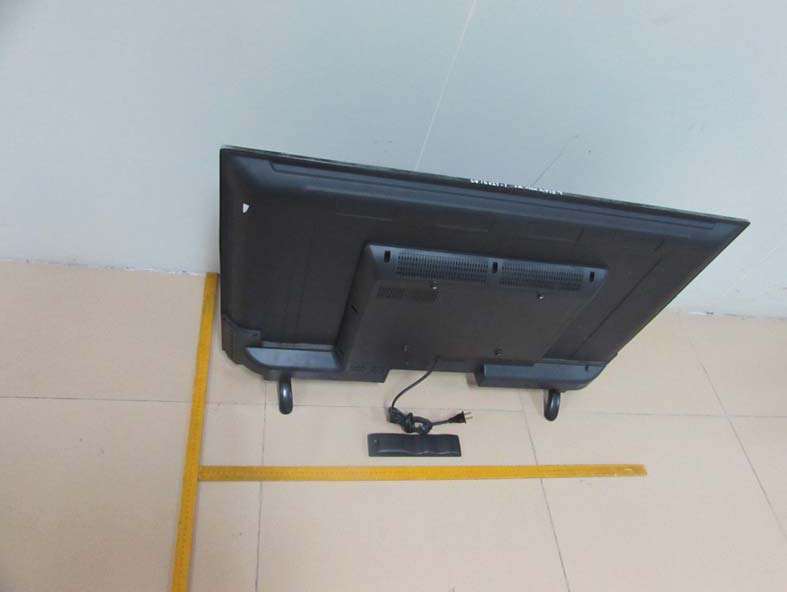

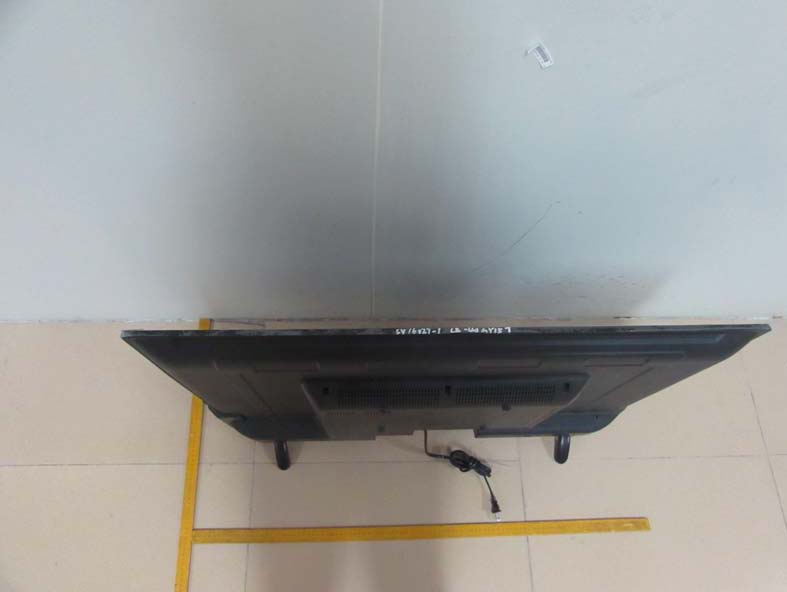

| Ext photo | External Photos | 2016-02-21 | PDF 266.3 KB |
| ID label | ID Label/Location Info | 2016-02-21 | PDF 43.6 KB |
| ID label location | ID Label/Location Info | 2016-02-21 | PDF 66.8 KB |

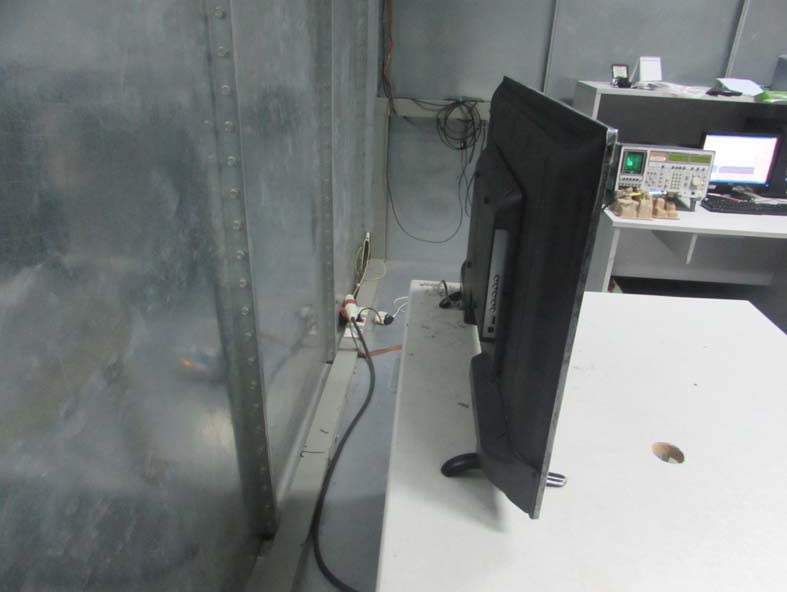

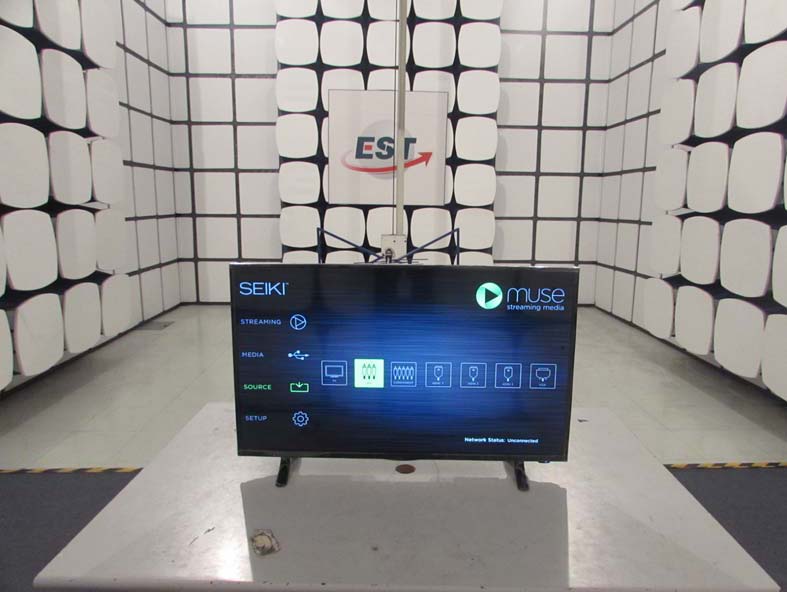

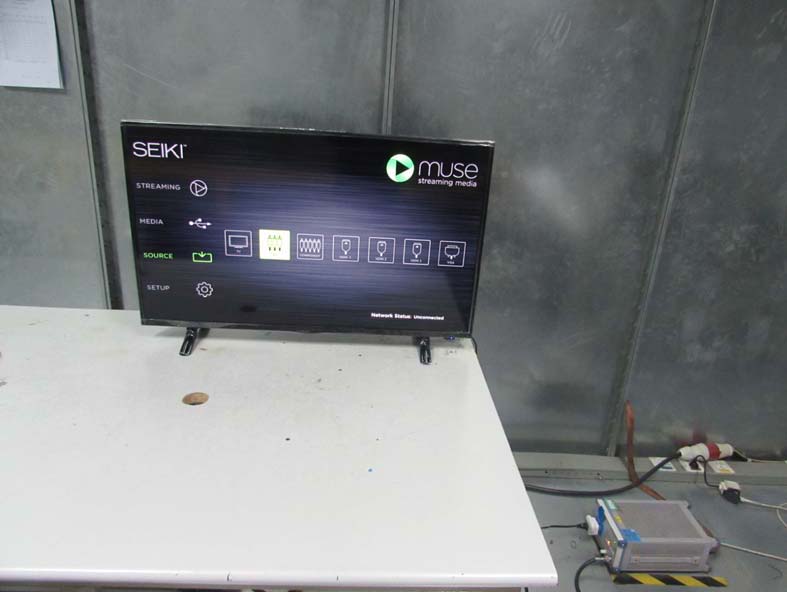

| Test setup photo | Test Setup Photos | 2016-02-21 | PDF 181.6 KB |
| Test report | Test Report | 2016-02-21 | PDF 3.3 MB |
| DoC Attestation Letter | Cover Letter(s) | 2016-02-21 | PDF 38.4 KB |
| Confidential request letter | Cover Letter(s) | 2016-02-21 | PDF 39.4 KB |
| Model Declaration Letter | Cover Letter(s) | 2016-02-21 | PDF 30.8 KB |
| POA | Cover Letter(s) | 2016-02-21 | PDF 65.5 KB |
| WiFi ch 12-13 letter | Cover Letter(s) | 2016-02-21 | PDF 84.4 KB |
| RF exposure | RF Exposure Info | 2016-02-21 | PDF 55.9 KB |
| Block diagram Metadata only | Block Diagram | PDF 523.1 KB | |
| SCH Metadata only | Schematics | PDF 494.4 KB | |
| OpDes Metadata only | Operational Description | PDF 64.3 KB |
Application Information
| Application ID | wPvMWPKqSBEvJkPOd4yF6A== |
|---|---|
| Final Action Date | 2016-02-21 |
| Application Purpose | Original Equipment |
| Applicant FRN | 0023847171 |
| Model | SE40FYP1T |
| Frequency Range | 2412-2472 MHz |
| Equipment Class | DTS - Digital Transmission System |
| Device Description | LED TV |
| Responsible Party | Yu Li, Engineer, li_yu@thtfce.com , 86-755-33010881 |
| Test Firm | Iceman Hu, EST Technology Co.,Ltd, jiafei214@163.com  , 86-769-83081888 |
| TCB Email | TCB@siemic.com  |
| TCB Scope | A4: UNII devices & low power transmitters using spread spectrum techniques |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | Yes |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | No |
| Composite Part | No |
| Cognitive Radio | No |
| Authorization Waiver | No |
| Authorization Waiver Approved | No |
| Section 5301 Certification | Yes |
| Related OET Knowledge DataBase Inquiry | No |
| Grant Comments | Power listed is the maximum conducted output power. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter, except in accordance with FCC multi- transmitter product procedures. End-Users must be provided with transmitter operation conditions for satisfying RF exposure compliance. Device contains 20 and 40 MHz signal bandwidth. |
Applications
| Application ID | Date | Purpose |
|---|---|---|
| wPvMWPKqSBEvJkPOd4yF6A== | 2016-02-21 | Original Equipment |
Equipment Authorization
| Frequency | Output | Rules |
|---|---|---|
| 2412-2472 MHz | 0.0148900 | 15C |
Grants
TCB Grant - Application wPvMWPKqSBEvJkPOd4yF6A==
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
Bureau Veritas Consumer Products Services, Inc. 775 Montague Expressway Milpitas, CA 95035 |
Date of Grant: 02/21/2016 Application Dated: 02/21/2016 |
| Shenyang Tongfang Multimedia Technology Co., Limited |
| No.10 Nanping East Road HunNan New District, |
| Shenyang, LiaoNing Province, 110000 China |
| Attention: Yu Li , Engineer |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | 2ACWISE40FYP1T |
| Name of Grantee: | Shenyang Tongfang Multimedia Technology Co., Limited |
| Equipment Class: | Digital Transmission System |
| Notes: | LED TV |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 15C | 2412.0 - 2472.0 | 0.01489 |
| Power listed is the maximum conducted output power. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter, except in accordance with FCC multi- transmitter product procedures. End-Users must be provided with transmitter operation conditions for satisfying RF exposure compliance. Device contains 20 and 40 MHz signal bandwidth. |
EAS Grant - Application wPvMWPKqSBEvJkPOd4yF6A==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
Shenyang Tongfang Multimedia Technology Co., Limited No.10 Nanping East Road HunNan New District, Shenyang, LiaoNing Province, 110000 China |
Date of Grant: 02/21/2016 Application Dated: 02/21/2016 |
| Attention: Yu Li , Engineer |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | 2ACWISE40FYP1T |
| Name of Grantee: | Shenyang Tongfang Multimedia Technology Co., Limited |
| Equipment Class: | Digital Transmission System |
| Notes: | LED TV |
| Modular Type: | Does not apply |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 15C | 2412.0 - 2472.0 | 0.01489 |
| Power listed is the maximum conducted output power. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter, except in accordance with FCC multi- transmitter product procedures. End-Users must be provided with transmitter operation conditions for satisfying RF exposure compliance. Device contains 20 and 40 MHz signal bandwidth. |
