FCC ID 2ACWIWA55UF
LED TV
by Shenyang Tongfang Multimedia Technology Co., Limited
Grantee Code: 2ACWI Product Code: WA55UF
Latest application date: 2017-03-23
Device Images
FCC ID Device Details
| FCC ID | 2ACWIWA55UF |
|---|---|
| Mirrors | fcc.id | gov | fccid.ai |
| Grantee Code | 2ACWI |
| Product Code | WA55UF |
| Applicant Business | Shenyang Tongfang Multimedia Technology Co., Limited 🇨🇳 |
| Related Domains |  thtfce.com |
| Equipment Class | LED TV |
| Test Firm | EMTEK (Shenzhen) Co., Ltd. |
Operating Frequencies
| Frequency Range | Application Purpose | Final Action Date |
|---|---|---|
| 2402-2480 MHz | Original Equipment | 2017-03-23 |
| 2402-2480 MHz | Original Equipment | 2017-03-23 |
| 5180-5240 MHz | Original Equipment | 2017-03-23 |
Exhibits
| Document | Type | Available | File |
|---|---|---|---|
| User Manual | Users Manual | 2017-03-23 | PDF 1 MB |

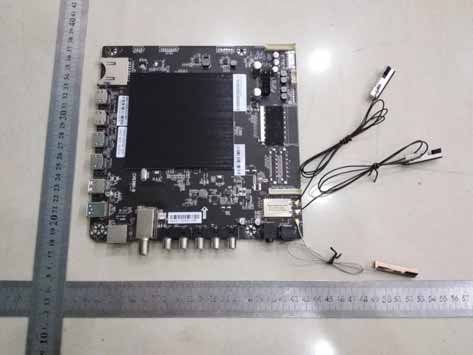

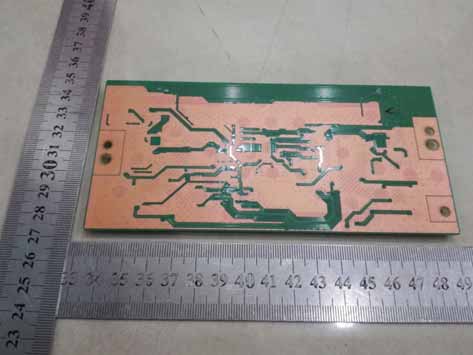

| Internal Photos | Internal Photos | 2017-03-23 | PDF 154.9 KB |
| Internal photos | Internal Photos | 2017-03-23 | PDF 154.9 KB |

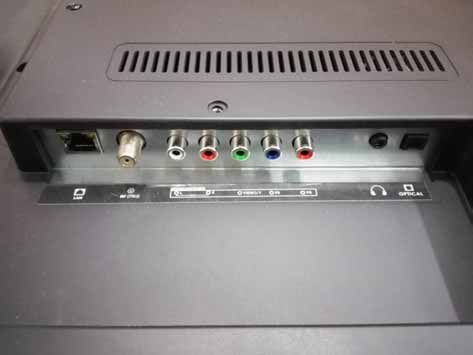

| External Photos | External Photos | 2017-03-23 | PDF 68 KB |
| External photos | External Photos | 2017-03-23 | PDF 68 KB |
| Label & Label Location | ID Label/Location Info | 2017-03-23 | PDF 74.6 KB |
| label and Label location | ID Label/Location Info | 2017-03-23 | PDF 74.6 KB |

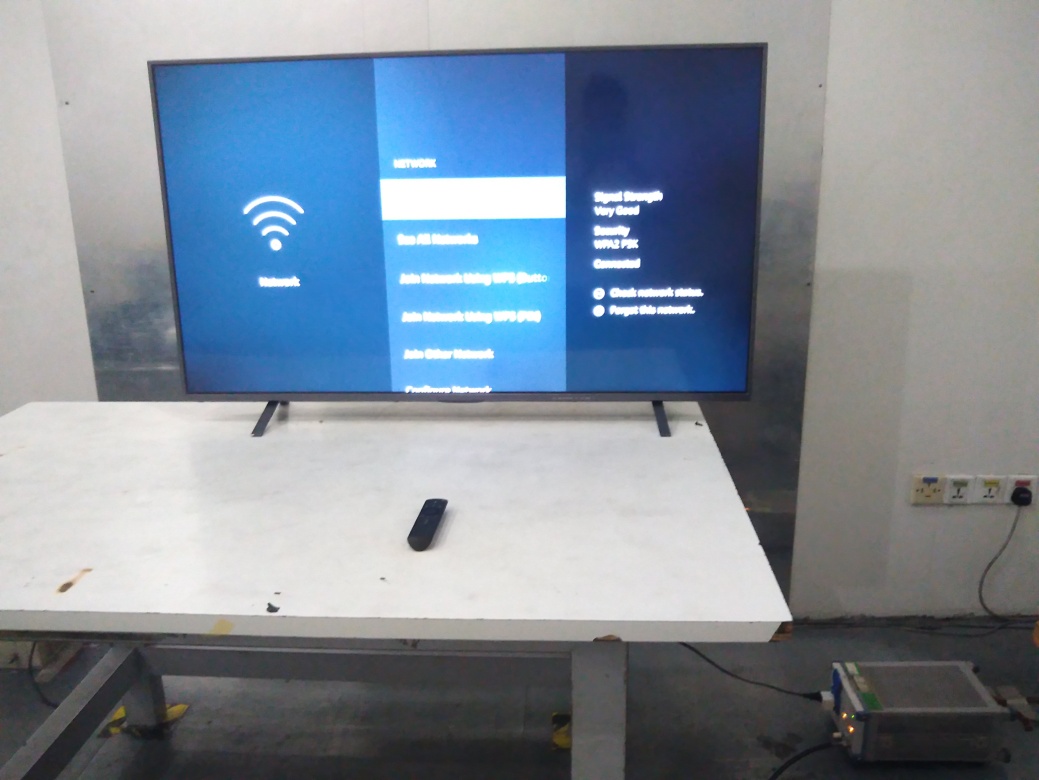

| RF Test Set-up Photos | Test Setup Photos | 2017-03-23 | PDF 264.3 KB |
| RF Test Report | Test Report | 2017-03-23 | PDF 3.9 MB |
| RF Test Report | Test Report | 2017-03-23 | PDF 2.1 MB |
| RF Test Report-BLE | Test Report | 2017-03-23 | PDF 1.3 MB |
| RF Test Report-wifi | Test Report | 2017-03-23 | PDF 1.9 MB |
| DOC Attestation Letter | Attestation Statements | 2017-03-23 | PDF 11.8 KB |
| Authorization letter | Cover Letter(s) | 2017-03-23 | PDF 20 KB |
| DTS Ch12&13 Declaration letter | Cover Letter(s) | 2017-03-23 | PDF 68.6 KB |
| Family model letter | Cover Letter(s) | 2017-03-23 | PDF 24 KB |
| LTC Letter | Cover Letter(s) | 2017-03-23 | PDF 19 KB |
| MPE Report | RF Exposure Info | 2017-03-23 | PDF 51.4 KB |
| Block Diagram Metadata only | Block Diagram | PDF 115 KB | |
| Schematics Metadata only | Schematics | PDF 2.6 MB | |
| Operational Description Metadata only | Operational Description | PDF 38.3 KB | |
| SW Declaration Letter Metadata only | Operational Description | PDF 68.4 KB |
Application Information
| Application ID | nfiepLosLcsnH+7efWoysg== |
|---|---|
| Final Action Date | 2017-03-23 |
| Application Purpose | Original Equipment |
| Applicant FRN | 0023847171 |
| Model | WA55UF |
| Frequency Range | 2402-2480 MHz |
| Equipment Class | DTS - Digital Transmission System |
| Device Description | LED TV |
| Responsible Party | Yu Li, Engineer, li_yu@thtfce.com , 86-755-33010881 |
| Test Firm | David Lee, EMTEK (Shenzhen) Co., Ltd., david.lee@emtek.com.cn  , 86-755-26504659 |
| TCB Email | tcb@siemic.com  |
| TCB Scope | A4: UNII devices & low power transmitters using spread spectrum techniques |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | Yes |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | Yes |
| Composite Part | No |
| Cognitive Radio | No |
| Authorization Waiver | No |
| Authorization Waiver Approved | No |
| Section 5301 Certification | Yes |
| Related OET Knowledge DataBase Inquiry | No |
| Grant Comments | Power listed is maximum combined conducted output power(2*2 MIMO); The antennas used for this transmitter must be installed to provide a seperation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. The device has 20MHz and 40MHz bandwidth. |
