FCC ID 2ACWIWA65UF
LED TV
by Shenyang Tongfang Multimedia Technology Co., Limited
Grantee Code: 2ACWI Product Code: WA65UF
Latest application date: 2017-03-23
Device Images
FCC ID Device Details
| FCC ID | 2ACWIWA65UF |
|---|---|
| Mirrors | fcc.id | gov | fccid.ai |
| Grantee Code | 2ACWI |
| Product Code | WA65UF |
| Applicant Business | Shenyang Tongfang Multimedia Technology Co., Limited 🇨🇳 |
| Related Domains |  thtfce.com |
| Equipment Class | LED TV |
| Test Firm | EMTEK (Shenzhen) Co., Ltd. |
Operating Frequencies
| Frequency Range | Application Purpose | Final Action Date |
|---|---|---|
| 2402-2480 MHz | Original Equipment | 2017-03-23 |
| 5180-5240 MHz | Original Equipment | 2017-03-23 |
| 2402-2480 MHz | Original Equipment | 2017-03-23 |
Exhibits
| Document | Type | Available | File |
|---|---|---|---|
| User Manual | Users Manual | 2017-03-23 | PDF 1 MB |

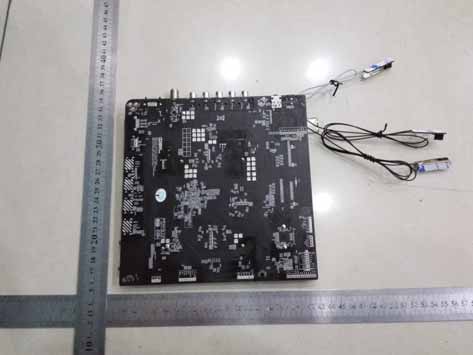

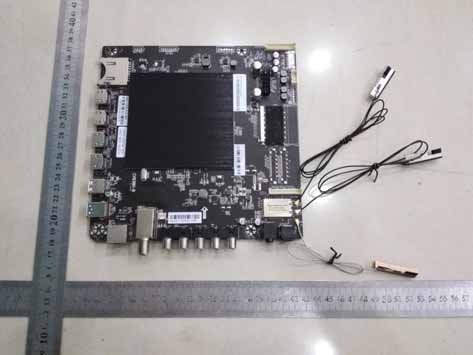

| Internal Photos | Internal Photos | 2017-03-23 | PDF 176.1 KB |
| Internal photos | Internal Photos | 2017-03-23 | PDF 176.1 KB |

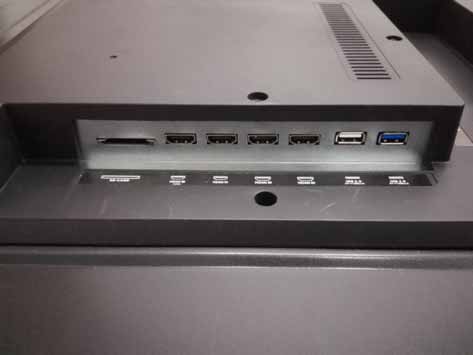

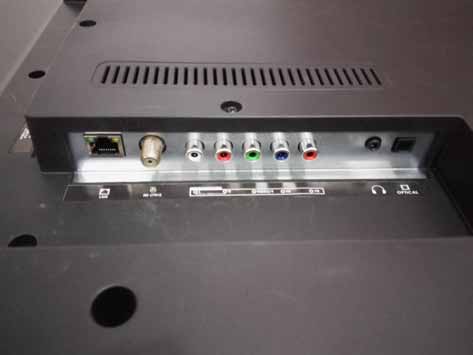

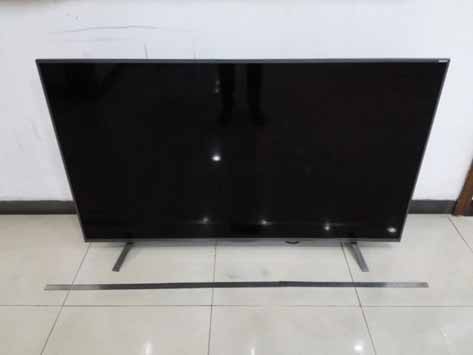

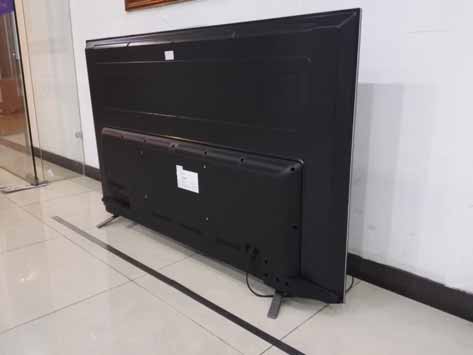

| External Photos | External Photos | 2017-03-23 | PDF 65.9 KB |
| External photos | External Photos | 2017-03-23 | PDF 65.9 KB |
| Label & Label Location | ID Label/Location Info | 2017-03-23 | PDF 81.3 KB |
| label and Label location | ID Label/Location Info | 2017-03-23 | PDF 81.3 KB |
| RF Test Set-up Photos | Test Setup Photos | 2017-03-23 | PDF 83.7 KB |
| RF Test Report | Test Report | 2017-03-23 | PDF 3.8 MB |
| RF Test Report | Test Report | 2017-03-23 | PDF 2.1 MB |
| RF Test Report-BLE | Test Report | 2017-03-23 | PDF 1.2 MB |
| RF Test Report-wifi | Test Report | 2017-03-23 | PDF 5.5 MB |
| DOC Attestation Letter | Attestation Statements | 2017-03-23 | PDF 11.8 KB |
| Authorization letter | Cover Letter(s) | 2017-03-23 | PDF 19.9 KB |
| DTS Ch12&13 Declaration letter | Cover Letter(s) | 2017-03-23 | PDF 68.1 KB |
| Family model letter | Cover Letter(s) | 2017-03-23 | PDF 24 KB |
| LTC Letter | Cover Letter(s) | 2017-03-23 | PDF 19 KB |
| MPE Report | RF Exposure Info | 2017-03-23 | PDF 79.8 KB |
| Block Diagram Metadata only | Block Diagram | PDF 115 KB | |
| Schematics Metadata only | Schematics | PDF 3.3 MB | |
| Operational Description Metadata only | Operational Description | PDF 16.9 KB | |
| SW Declaration Letter Metadata only | Operational Description | PDF 68.5 KB |
Application Information
| Application ID | zRhKTtCbePWBvYSRUr7QIw== |
|---|---|
| Final Action Date | 2017-03-23 |
| Application Purpose | Original Equipment |
| Applicant FRN | 0023847171 |
| Model | WA65UF |
| Frequency Range | 2402-2480 MHz |
| Equipment Class | DTS - Digital Transmission System |
| Device Description | LED TV |
| Responsible Party | Yu Li, Engineer, li_yu@thtfce.com , 86-755-33010881 |
| Test Firm | David Lee, EMTEK (Shenzhen) Co., Ltd., david.lee@emtek.com.cn  , 86-755-26504659 |
| TCB Email | tcb@siemic.com  |
| TCB Scope | A4: UNII devices & low power transmitters using spread spectrum techniques |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | Yes |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | Yes |
| Composite Part | No |
| Cognitive Radio | No |
| Authorization Waiver | No |
| Authorization Waiver Approved | No |
| Section 5301 Certification | Yes |
| Related OET Knowledge DataBase Inquiry | No |
| Grant Comments | Power listed is maximum combined conducted output power(2*2 MIMO); The antennas used for this transmitter must be installed to provide a seperation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. The device has 20MHz and 40MHz bandwidth. |
Applications
| Application ID | Date | Purpose |
|---|---|---|
| zRhKTtCbePWBvYSRUr7QIw== | 2017-03-23 | Original Equipment |
| eiVvwyptfvPj4d5z3GPrHg== | 2017-03-23 | Original Equipment |
| GVf5lc5K8Du6YNabYW/ldw== | 2017-03-23 | Original Equipment |
Equipment Authorization
Grants
TCB Grant - Application zRhKTtCbePWBvYSRUr7QIw==
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
Bureau Veritas Consumer Products Services, Inc. 775 Montague Expressway Milpitas, CA 95035 |
Date of Grant: 03/23/2017 Application Dated: 03/23/2017 |
| Shenyang Tongfang Multimedia Technology Co., Limited |
| No.10 Nanping East Road HunNan New District, |
| Shenyang, LiaoNing Province, 110000 China |
| Attention: Yu Li , Engineer |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | 2ACWIWA65UF |
| Name of Grantee: | Shenyang Tongfang Multimedia Technology Co., Limited |
| Equipment Class: | Digital Transmission System |
| Notes: | LED TV |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| CC | 15C | 2402.0 - 2480.0 | 0.0015 | ||
| CC MO | 15C | 2412.0 - 2462.0 | 0.14 |
| Power listed is maximum combined conducted output power(2*2 MIMO); The antennas used for this transmitter must be installed to provide a seperation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. The device has 20MHz and 40MHz bandwidth. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| MO: | This Multiple Input Multiple Output (MIMO) device was evaluated for multiple transmitted signals as indicated in the filing. |
