FCC ID 2ACWIWE55UC420
LED TV
by Shenyang Tongfang Multimedia Technology Co., Limited
Grantee Code: 2ACWI Product Code: WE55UC420
Latest application date: 2015-11-25
Device Images
FCC ID Device Details
| FCC ID | 2ACWIWE55UC420 |
|---|---|
| Mirrors | fcc.id | gov | fccid.ai |
| Grantee Code | 2ACWI |
| Product Code | WE55UC420 |
| Applicant Business | Shenyang Tongfang Multimedia Technology Co., Limited 🇨🇳 |
| Related Domains |  thtfce.com |
| Equipment Class | LED TV |
| Test Firm | EMTEK (DONGGUAN) CO.,LTD |
Operating Frequencies
| Frequency Range | Application Purpose | Final Action Date |
|---|---|---|
| 2412-2462 MHz | Class II permissive change or modification of presently authorized equipment | 2015-11-25 |
| 2412-2462 MHz | Original Equipment | 2015-08-17 |
Exhibits
| Document | Type | Available | File |
|---|---|---|---|
| User Manual | Users Manual | 2015-08-17 | PDF 4 MB |

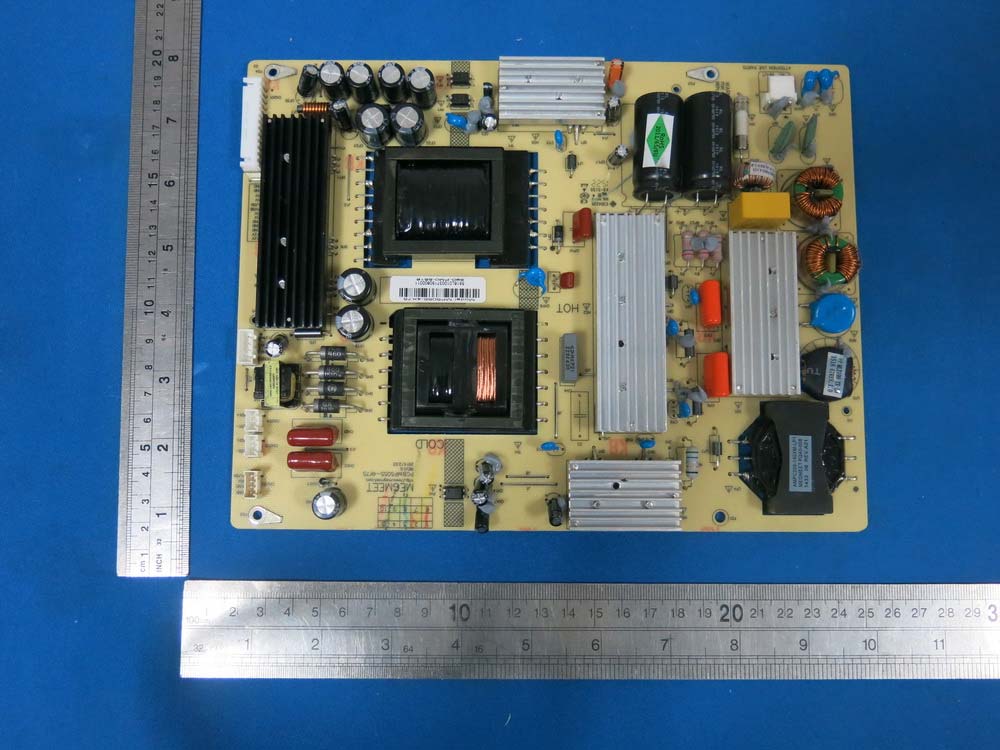

| Internal Photos | Internal Photos | 2015-11-25 | PDF 510.8 KB |
| Int photo | Internal Photos | 2015-08-17 | PDF 984.7 KB |

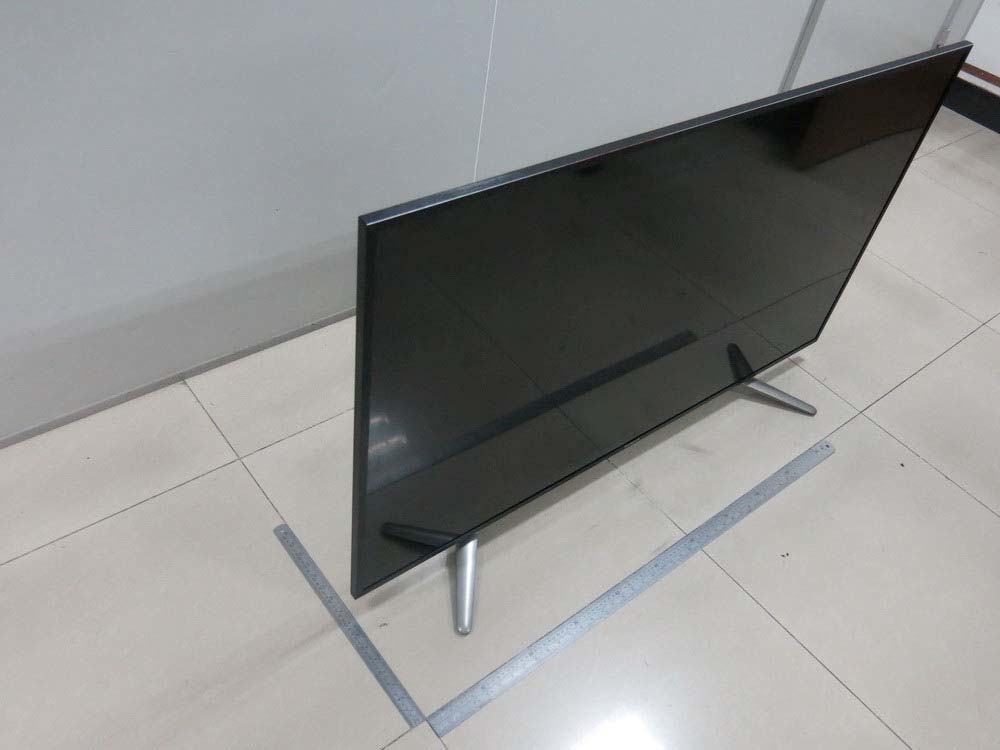

| External Photos | External Photos | 2015-11-25 | PDF 225.9 KB |
| Ext photo | External Photos | 2015-08-17 | PDF 202.1 KB |
| ID Label | ID Label/Location Info | 2015-08-17 | PDF 546.4 KB |
| ID Label location | ID Label/Location Info | 2015-08-17 | PDF 75.9 KB |

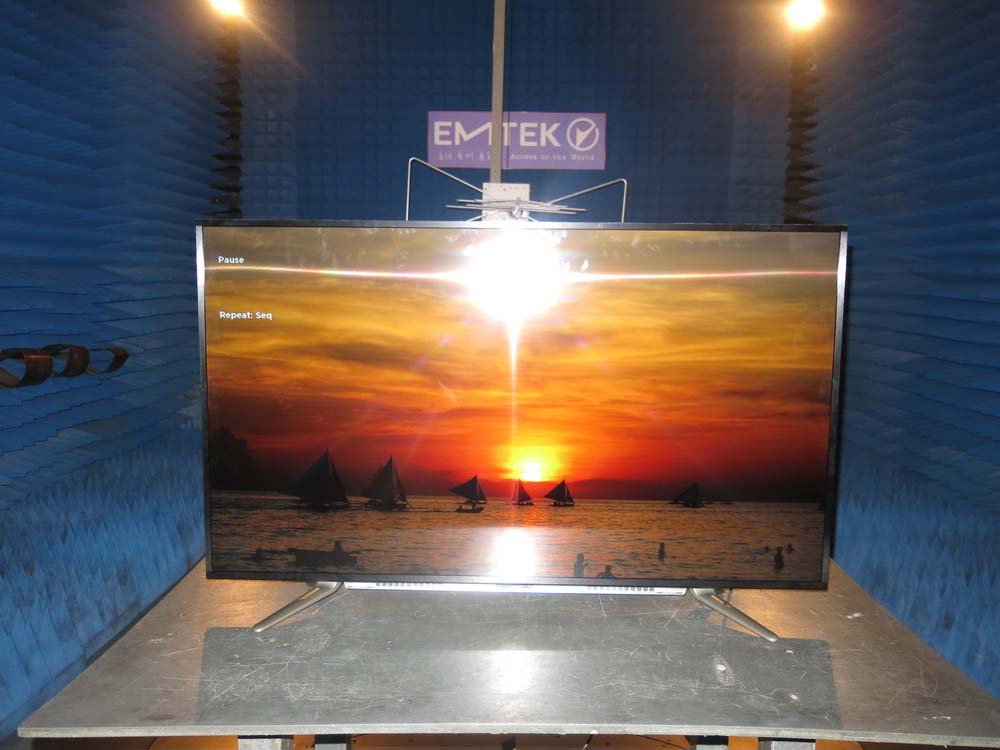

| RF Test Set-Up Photos | Test Setup Photos | 2015-11-25 | PDF 385.4 KB |
| Test setup photo | Test Setup Photos | 2015-08-17 | PDF 457.3 KB |
| RF Test Report | Test Report | 2015-11-25 | PDF 2 MB |
| Test Report | Test Report | 2015-08-17 | PDF 4.5 MB |
| Authorization Letter | Cover Letter(s) | 2015-11-25 | PDF 22.2 KB |
| C2PC Request Letter | Cover Letter(s) | 2015-11-25 | PDF 20.6 KB |
| Family Models Declaration | Cover Letter(s) | 2015-11-25 | PDF 21.5 KB |
| Confidential request letter | Cover Letter(s) | 2015-08-17 | PDF 21.3 KB |
| Declaration on model difference | Cover Letter(s) | 2015-08-17 | PDF 21.5 KB |
| POA | Cover Letter(s) | 2015-08-17 | PDF 22.3 KB |
| WiFi ch 12 13 | Cover Letter(s) | 2015-08-17 | PDF 44.7 KB |
| RF exposure | RF Exposure Info | 2015-08-17 | PDF 71.9 KB |
| Block diagram Metadata only | Block Diagram | PDF 73.2 KB | |
| SCH Metadata only | Schematics | PDF 779.4 KB | |
| OpDes Metadata only | Operational Description | PDF 87.5 KB |
Application Information
| Application ID | wZLPR0u4CbWRvR2O1q5Xsw== |
|---|---|
| Final Action Date | 2015-11-25 |
| Application Purpose | Class II permissive change or modification of presently authorized equipment |
| Applicant FRN | 0023847171 |
| Model | WE55UC420 |
| Frequency Range | 2412-2462 MHz |
| Equipment Class | DTS - Digital Transmission System |
| Device Description | LED TV |
| Responsible Party | Yu Li, Engineer, li_yu@thtfce.com , 86-755-33010881 |
| Test Firm | Sam Lv, EMTEK (DONGGUAN) CO.,LTD, sam.lv@emtek.com.cn  , 86-769-2807078 |
| TCB Email | tcb@siemic.com  |
| TCB Scope | A4: UNII devices & low power transmitters using spread spectrum techniques |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | No |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | No |
| Composite Part | No |
| Cognitive Radio | No |
| Authorization Waiver | No |
| Authorization Waiver Approved | No |
| Section 5301 Certification | Yes |
| Related OET Knowledge DataBase Inquiry | No |
| Grant Comments | C2PC to change the LED Panel. Power listed is the maximum conducted output power. Device is 2X2 MIMO. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter, except in accordance with FCC multi- transmitter product procedures. End-Users must be provided with transmitter operation conditions for satisfying RF exposure compliance Device contains 20 and 40 MHz signal bandwidth. |
