FCC ID 2ACWK76X2
WIFI MODULE
by CT UNITE COMMUNICATION TECHNOLOGY LTD
Grantee Code: 2ACWK Product Code: 76X2
Latest application date: 2016-10-10
Device Images
FCC ID Device Details
Operating Frequencies
| Frequency Range | Application Purpose | Final Action Date |
|---|---|---|
| 2402-2480 MHz | Original Equipment | 2016-10-10 |
| 2402-2480 MHz | Original Equipment | 2016-10-10 |
| 5180-5240 MHz | Original Equipment | 2016-10-10 |
Exhibits
| Document | Type | Available | File |
|---|---|---|---|
| User manual | Users Manual | 2016-10-10 | PDF 2.6 MB |
| Internal photos | Internal Photos | 2016-10-10 | PDF 367.2 KB |
| External photos | External Photos | 2016-10-10 | PDF 367.7 KB |
| Label | ID Label/Location Info | 2016-10-10 | PDF 124.9 KB |

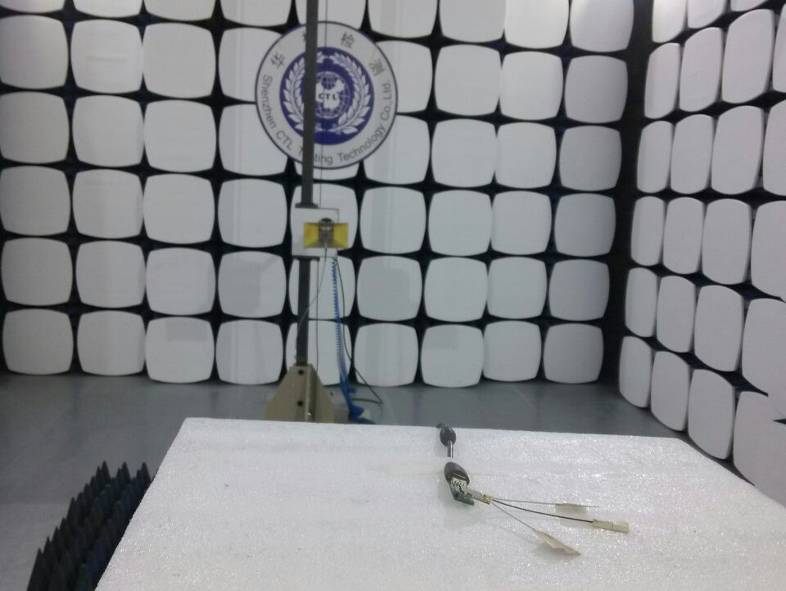

| Test setup | Test Setup Photos | 2016-10-10 | PDF 280.1 KB |
| Test report | Test Report | 2016-10-10 | PDF 1.9 MB |
| Test report | Test Report | 2016-10-10 | PDF 4.9 MB |
| Test report part 1 | Test Report | 2016-10-10 | PDF 3.5 MB |
| Test report part 1 | Test Report | 2016-10-10 | PDF 2.1 MB |
| Test report part 2 | Test Report | 2016-10-10 | PDF 4.2 MB |
| Test report part 2 | Test Report | 2016-10-10 | PDF 4.1 MB |
| Cover letter | Cover Letter(s) | 2016-10-10 | PDF 312.4 KB |
| RF Exposure | RF Exposure Info | 2016-10-10 | PDF 76.1 KB |
| Block Diagram Metadata only | Block Diagram | PDF 65.9 KB | |
| Schematics Metadata only | Schematics | PDF 126.7 KB | |
| Operational Description Metadata only | Operational Description | PDF 148.1 KB | |
| Software Security Metadata only | SDR Software/Security Inf | PDF 185.2 KB |
Application Information
| Application ID | wNcmBI3Tn5kcrgprsKPiYw== |
|---|---|
| Final Action Date | 2016-10-10 |
| Application Purpose | Original Equipment |
| Applicant FRN | 0023847478 |
| Model | 76X2 |
| Frequency Range | 2402-2480 MHz |
| Equipment Class | DTS - Digital Transmission System |
| Device Description | WIFI MODULE |
| Responsible Party | Li Yan, Manager, liyan@zk-sz.com  , +86-755-86630017 |
| Test Firm | Tracy Qi, Shenzhen CTL Testing Technology Co., Ltd., qihui@ctl-lab.com  , 86-755-89486194 |
| TCB Email | stuart.beck@nemko.com  |
| TCB Scope | A4: UNII devices & low power transmitters using spread spectrum techniques |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | Yes |
| Grant Deferral | No |
| Modular Equipment | Limited Single Modular Approval |
| Composite Device | Yes |
| Composite Part | No |
| Cognitive Radio | No |
| Authorization Waiver | No |
| Authorization Waiver Approved | No |
| Section 5301 Certification | Yes |
| Related OET Knowledge DataBase Inquiry | No |
| Grant Comments | Limited Single Modular Approval. Power output listed is conducted. Approval is limited to indoor access point operating, and OEM installation only. Compliance of this device in all final host configurations is the responsibility of the Grantee. This device has a 20 MHz, and 40 MHz bandwidth mode. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. OEM integrators must be provided with antenna installation instructions and labeling requirements for finished products. OEM integrators and End-users must be provided with transmitter operation conditions for satisfying RF exposure compliance. This grant is valid only when the device is sold to OEM integrators and the OEM integrators are instructed to ensure that the end user has no manual instructions to remove or install the device. Separate approval is required for all other operating configurations, including portable configurations with respect to 2.1093 and different antenna configurations. |
Applications
| Application ID | Date | Purpose |
|---|---|---|
| wNcmBI3Tn5kcrgprsKPiYw== | 2016-10-10 | Original Equipment |
| Lz9L/E+rNogRF0UIRmp3Ig== | 2016-10-10 | Original Equipment |
| 38nQ+7iRGSszEpWELrHRaQ== | 2016-10-10 | Original Equipment |
Equipment Authorization
Grants
TCB Grant - Application wNcmBI3Tn5kcrgprsKPiYw==
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
Nemko North America, INC. 303 River Road Ottawa, Ontario, K1V 1H2 Canada |
Date of Grant: 10/10/2016 Application Dated: 10/10/2016 |
| CT UNITE COMMUNICATION TECHNOLOGY LTD |
| 6C, JIAJIAHAO COMMERCIAL BUILDING, YIYUAN ROAD |
| NORTH OF SHENNAN AVENUE, NANSHAN DISTRICT |
| SHENZHEN, China |
| Attention: Li Yan , Manager |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | 2ACWK76X2 |
| Name of Grantee: | CT UNITE COMMUNICATION TECHNOLOGY LTD |
| Equipment Class: | Digital Transmission System |
| Notes: | WIFI MODULE |
| Modular Type: | Limited Single Modular |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| CC | 15C | 2412.0 - 2462.0 | 0.08072 | ||
| CC MO | 15C | 2412.0 - 2462.0 | 0.13614 | ||
| CC | 15C | 2402.0 - 2480.0 | 0.000288 |
| Limited Single Modular Approval. Power output listed is conducted. Approval is limited to indoor access point operating, and OEM installation only. Compliance of this device in all final host configurations is the responsibility of the Grantee. This device has a 20 MHz, and 40 MHz bandwidth mode. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. OEM integrators must be provided with antenna installation instructions and labeling requirements for finished products. OEM integrators and End-users must be provided with transmitter operation conditions for satisfying RF exposure compliance. This grant is valid only when the device is sold to OEM integrators and the OEM integrators are instructed to ensure that the end user has no manual instructions to remove or install the device. Separate approval is required for all other operating configurations, including portable configurations with respect to 2.1093 and different antenna configurations. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| MO: | This Multiple Input Multiple Output (MIMO) device was evaluated for multiple transmitted signals as indicated in the filing. |
