FCC ID 2ACYPYN622CII
Wireless Flash Trigger Transceiver
by SHENZHEN YONGNUO PHOTOGRAPHIC EQUIPMENT CO., LTD
Grantee Code: 2ACYP Product Code: YN622CII
Latest application date: 2015-09-16
Device Images
FCC ID Device Details
| FCC ID | 2ACYPYN622CII |
|---|---|
| Mirrors | fcc.id | gov | fccid.ai |
| Grantee Code | 2ACYP |
| Product Code | YN622CII |
| Applicant Business | SHENZHEN YONGNUO PHOTOGRAPHIC EQUIPMENT CO., LTD 🇨🇳 |
| Related Domains |  hkyongnuo.com |
| Equipment Class | Wireless Flash Trigger Transceiver |
| Test Firm | Shenzhen Alpha Product Testing Co., Ltd. |
Operating Frequencies
| Frequency Range | Application Purpose | Final Action Date |
|---|---|---|
| 2403-2474 MHz | Original Equipment | 2015-09-16 |
Exhibits
| Document | Type | Available | File |
|---|---|---|---|
| User Manual-1 | Users Manual | 2015-09-16 | PDF 2.9 MB |
| User Manual-2 | Users Manual | 2015-09-16 | PDF 4 MB |

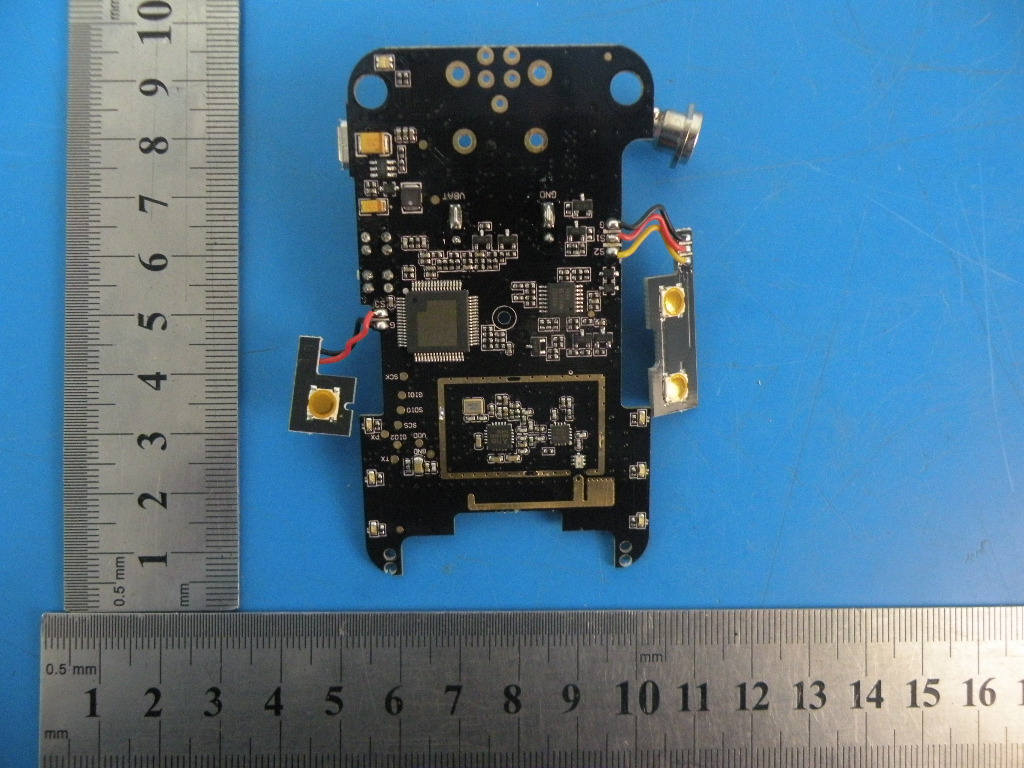

| Internal Photos | Internal Photos | 2015-09-16 | PDF 1.1 MB |

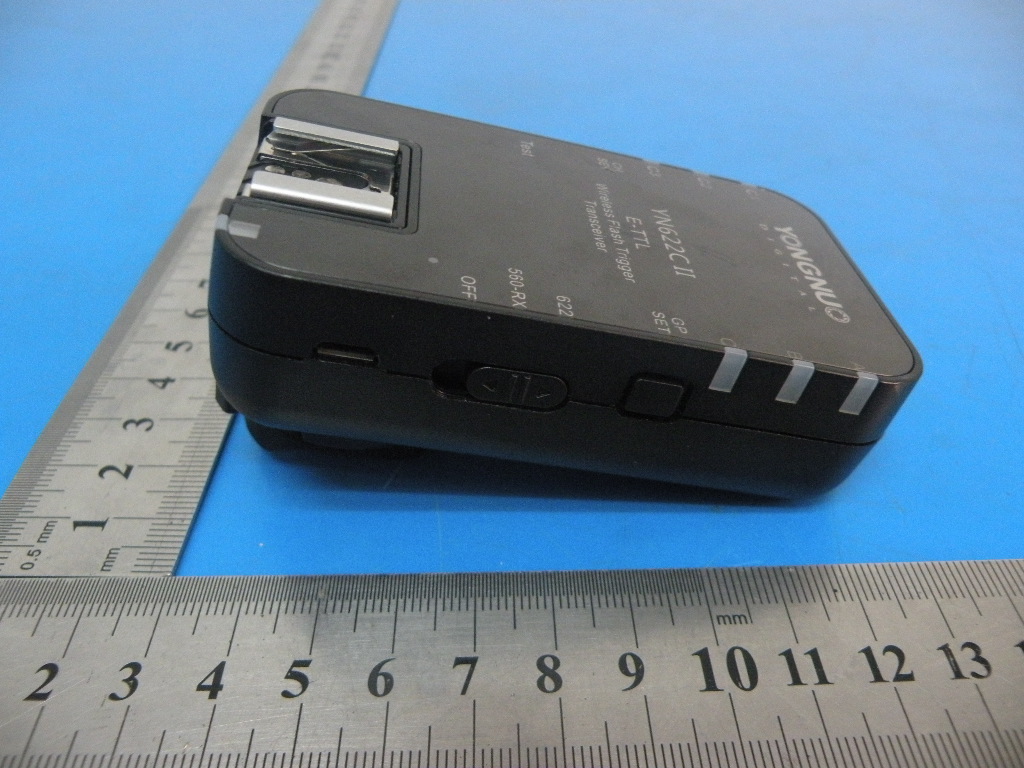

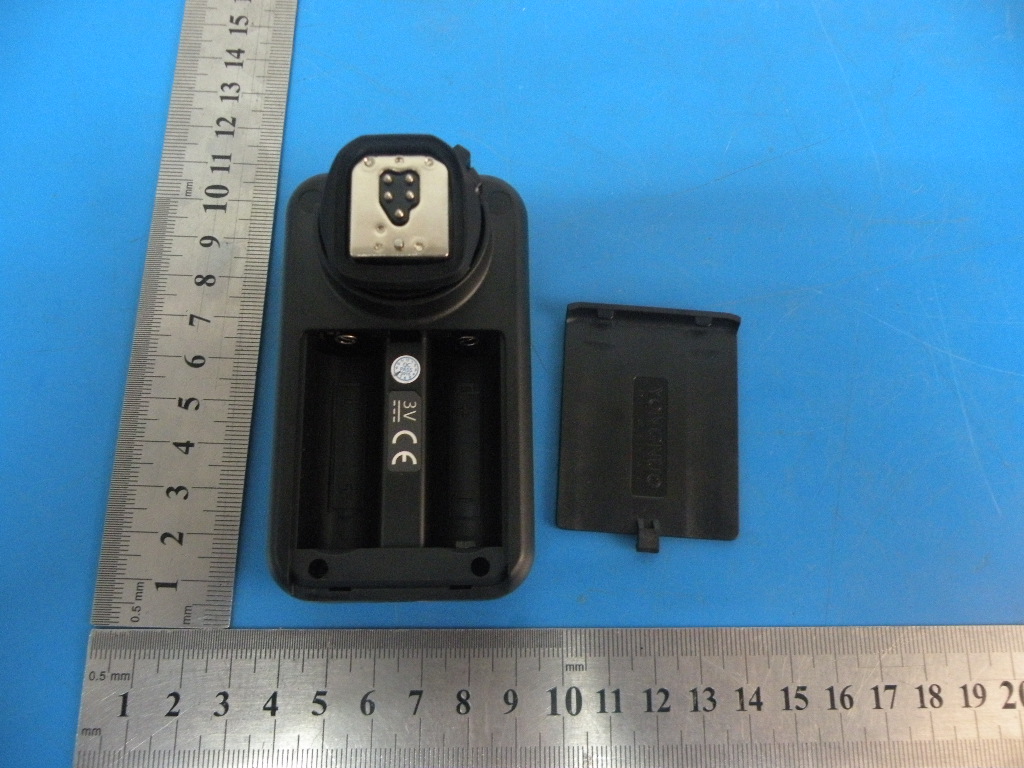

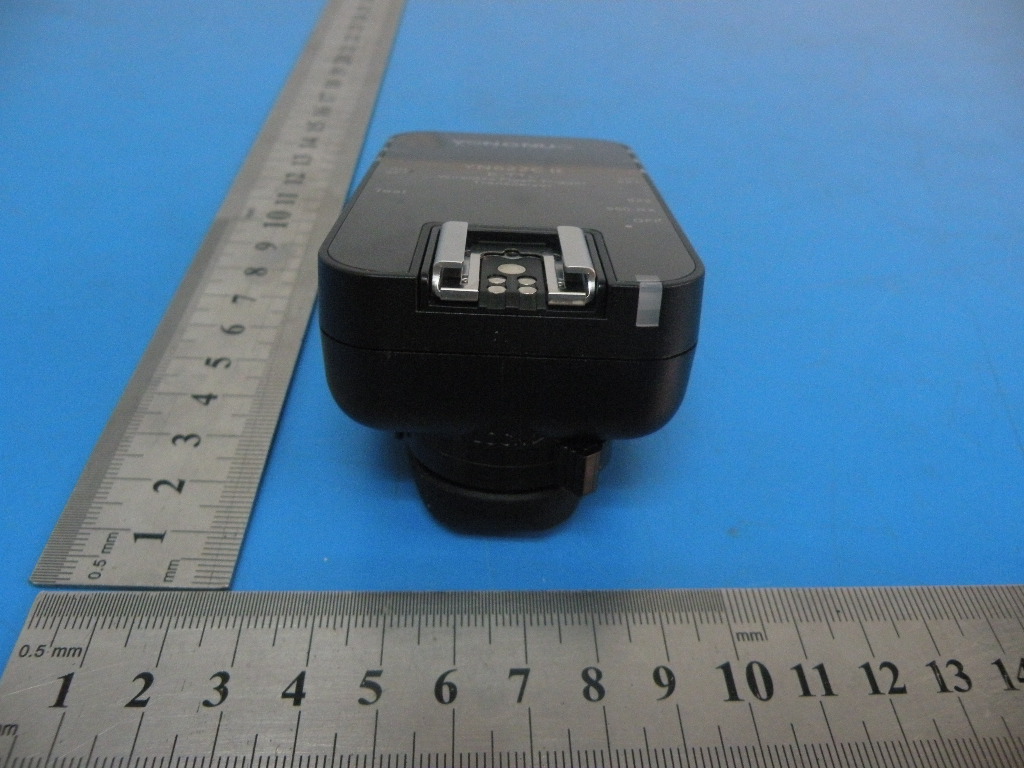

| External Photos | External Photos | 2015-09-16 | PDF 1.9 MB |
| FCC ID Label | ID Label/Location Info | 2015-09-16 | PDF 8.2 KB |
| FCC ID Label Location | ID Label/Location Info | 2015-09-16 | PDF 291.2 KB |

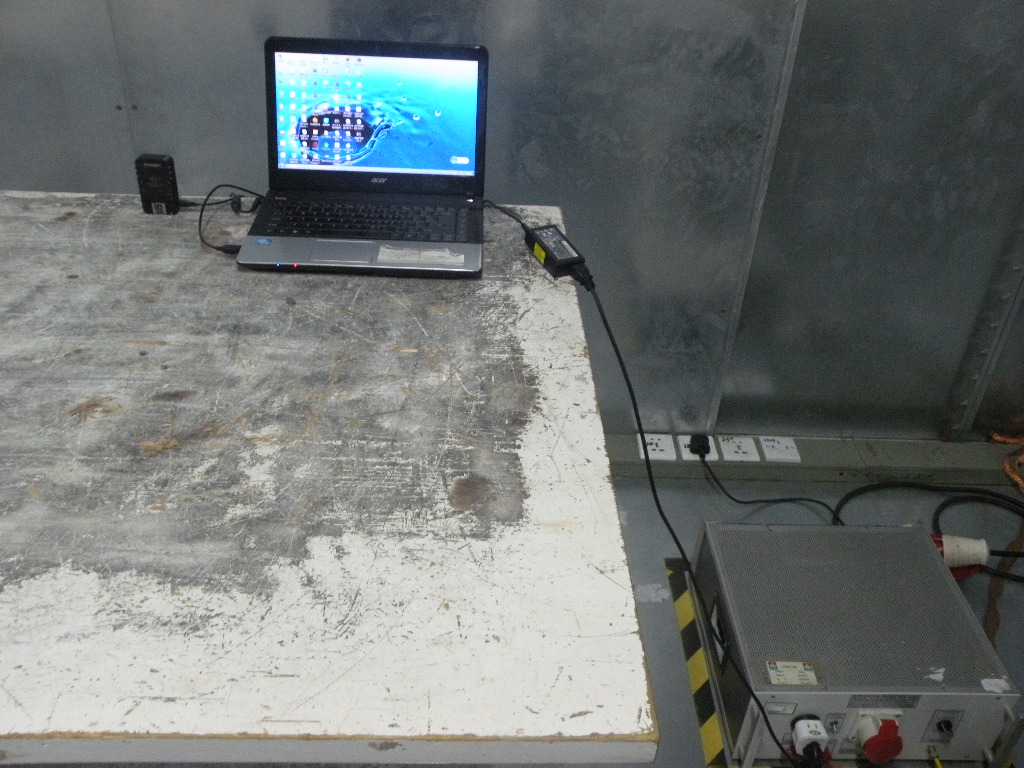

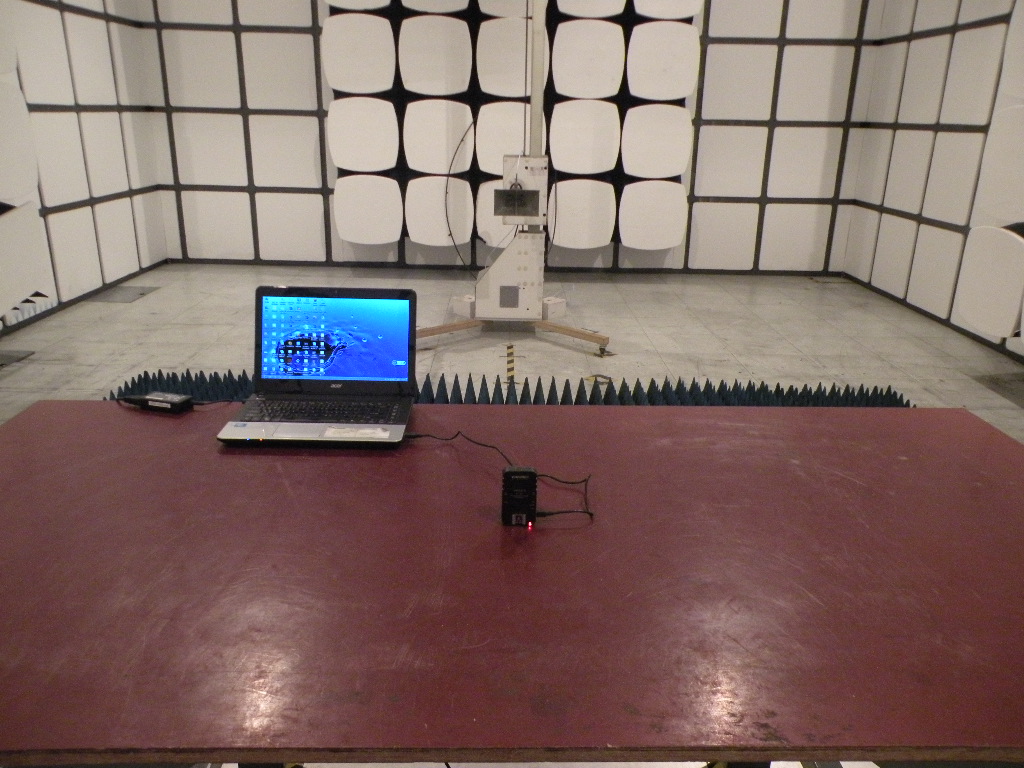

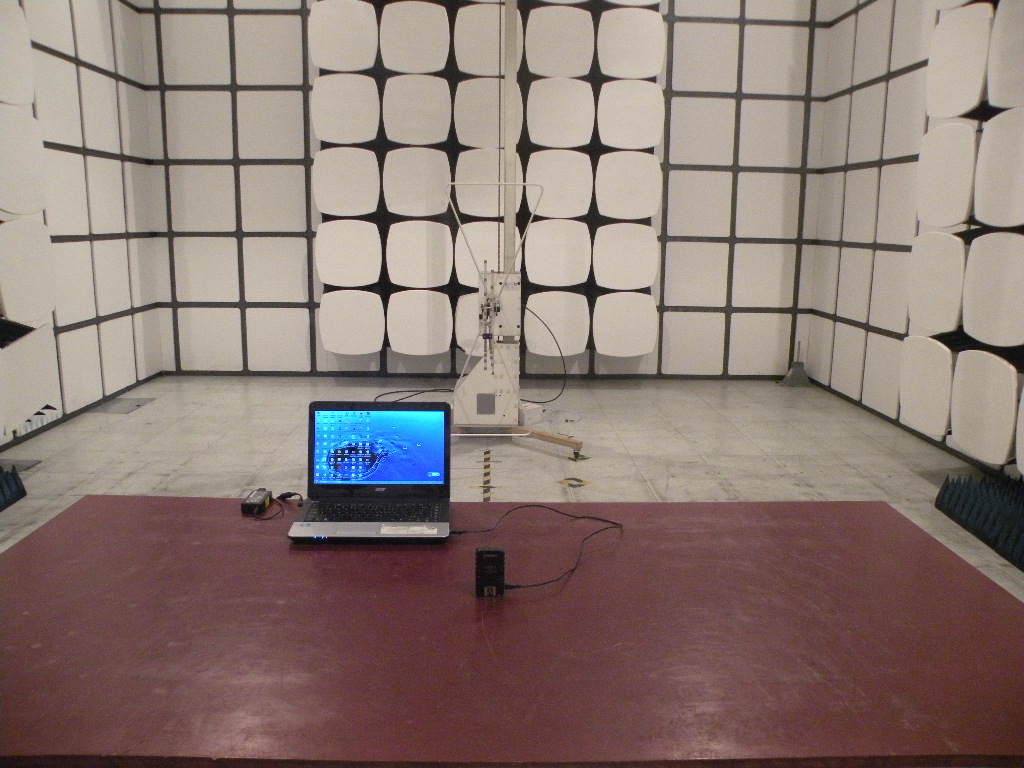

| Test Setup Photos for DXX | Test Setup Photos | 2015-09-16 | PDF 869.6 KB |
| Test Report for DXX | Test Report | 2015-09-16 | PDF 4.9 MB |
| Confidentiality Request Letter | Cover Letter(s) | 2015-09-16 | PDF 108.4 KB |
| POA | Cover Letter(s) | 2015-09-16 | PDF 42.8 KB |
| Block Diagram Metadata only | Block Diagram | PDF 170.2 KB | |
| Schematics Metadata only | Schematics | PDF 321 KB | |
| Operational Description Metadata only | Operational Description | PDF 212 KB |
Application Information
| Application ID | AnGpHGsPQKpxwsOeYOhF1w== |
|---|---|
| Final Action Date | 2015-09-16 |
| Application Purpose | Original Equipment |
| Applicant FRN | 0023869746 |
| Model | YN622CII |
| Frequency Range | 2403-2474 MHz |
| Equipment Class | DXX - Part 15 Low Power Communication Device Transmitter |
| Device Description | Wireless Flash Trigger Transceiver |
| Responsible Party | Dong Juan Liao, Project Supervisor, dj@hkyongnuo.com , 0755-33008068 |
| Test Firm | Mark Zhu, Shenzhen Alpha Product Testing Co., Ltd., mark@a-lab.cn  , 86-755-86375552 |
| TCB Email | bentje.holger@phoenix-testlab.de  |
| TCB Scope | A2: Low Power Transmitters (except Spread Spectrum) and radar detectors operating above 1 GHz |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | Yes |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | No |
| Composite Part | No |
| Cognitive Radio | No |
| Authorization Waiver | No |
| Authorization Waiver Approved | No |
| Section 5301 Certification | Yes |
| Related OET Knowledge DataBase Inquiry | No |
Applications
| Application ID | Date | Purpose |
|---|---|---|
| AnGpHGsPQKpxwsOeYOhF1w== | 2015-09-16 | Original Equipment |
Equipment Authorization
| Frequency | Rules |
|---|---|
| 2403-2474 MHz | 15C |
Grants
TCB Grant - Application AnGpHGsPQKpxwsOeYOhF1w==
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
PHOENIX TESTLAB GmbH Koenigswinkel 10 32825 Blomberg, Germany |
Date of Grant: 09/16/2015 Application Dated: 09/16/2015 |
| SHENZHEN YONGNUO PHOTOGRAPHIC EQUIPMENT CO., LTD |
| Building A, Shenfubao modern optics factory |
| Kengzi Street, Pingshan District |
| Shenzhen, China |
| Attention: Dong Juan Liao , Project Supervisor |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | 2ACYPYN622CII |
| Name of Grantee: | SHENZHEN YONGNUO PHOTOGRAPHIC EQUIPMENT CO., LTD |
| Equipment Class: | Part 15 Low Power Communication Device Transmitter |
| Notes: | Wireless Flash Trigger Transceiver |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 15C | 2403.0 - 2474.0 |
EAS Grant - Application AnGpHGsPQKpxwsOeYOhF1w==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
SHENZHEN YONGNUO PHOTOGRAPHIC EQUIPMENT CO., LTD Building A, Shenfubao modern optics factory Kengzi Street, Pingshan District Shenzhen, China |
Date of Grant: 09/16/2015 Application Dated: 09/16/2015 |
| Attention: Dong Juan Liao , Project Supervisor |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | 2ACYPYN622CII |
| Name of Grantee: | SHENZHEN YONGNUO PHOTOGRAPHIC EQUIPMENT CO., LTD |
| Equipment Class: | Part 15 Low Power Communication Device Transmitter |
| Notes: | Wireless Flash Trigger Transceiver |
| Modular Type: | Does not apply |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 15C | 2403.0 - 2474.0 |
| Mail To: |
