FCC ID 2AD2CEX-SM14
Explosion proof smartphone EX-SM14
by TechNed Benelux B.V.
Grantee Code: 2AD2C Product Code: EXSM14
Latest application date: 2016-08-29
Device Images
FCC ID Device Details
| FCC ID | 2AD2CEX-SM14 |
|---|---|
| Mirrors | fcc.id | gov | fccid.ai |
| Grantee Code | 2AD2C |
| Product Code | EXSM14 |
| Applicant Business | TechNed Benelux B.V. 🇳🇱 |
| Related Domains |  technedbenelux.nl |
| Equipment Class | Explosion proof smartphone EX-SM14 |
| Test Firm | Telefication B.V. |
Operating Frequencies
| Frequency Range | Application Purpose | Final Action Date |
|---|---|---|
| 2402-2480 MHz | Class II permissive change or modification of presently authorized equipment | 2016-08-29 |
| 2402-2480 MHz | Original Equipment | 2015-09-30 |
| 824.2-848.8 MHz | Original Equipment | 2015-09-30 |
| 2402-2480 MHz | Original Equipment | 2015-09-30 |
Exhibits
| Document | Type | Available | File |
|---|---|---|---|

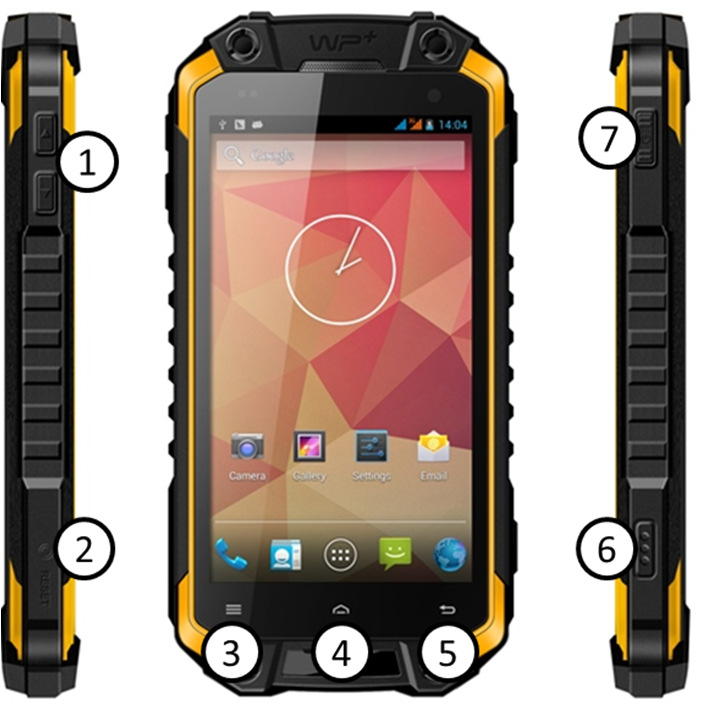

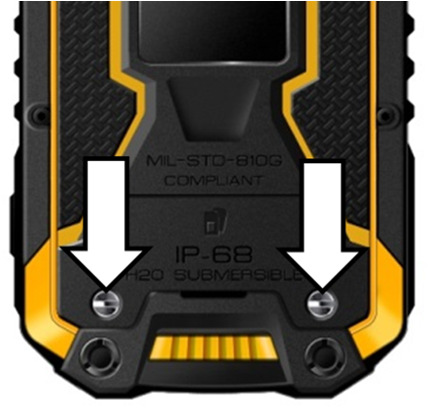

| User manual | Users Manual | 2015-09-30 | PDF 1.2 MB |
| Users Manual | Users Manual | 2015-09-30 | PDF 1.2 MB |

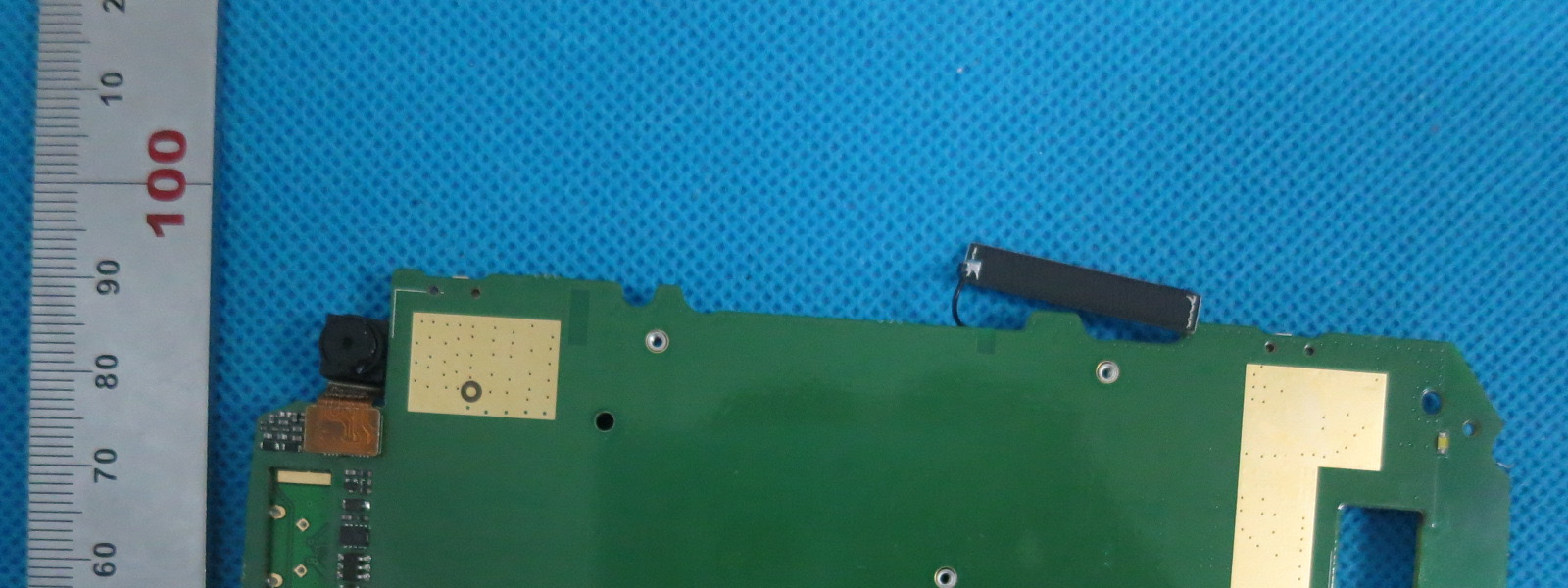

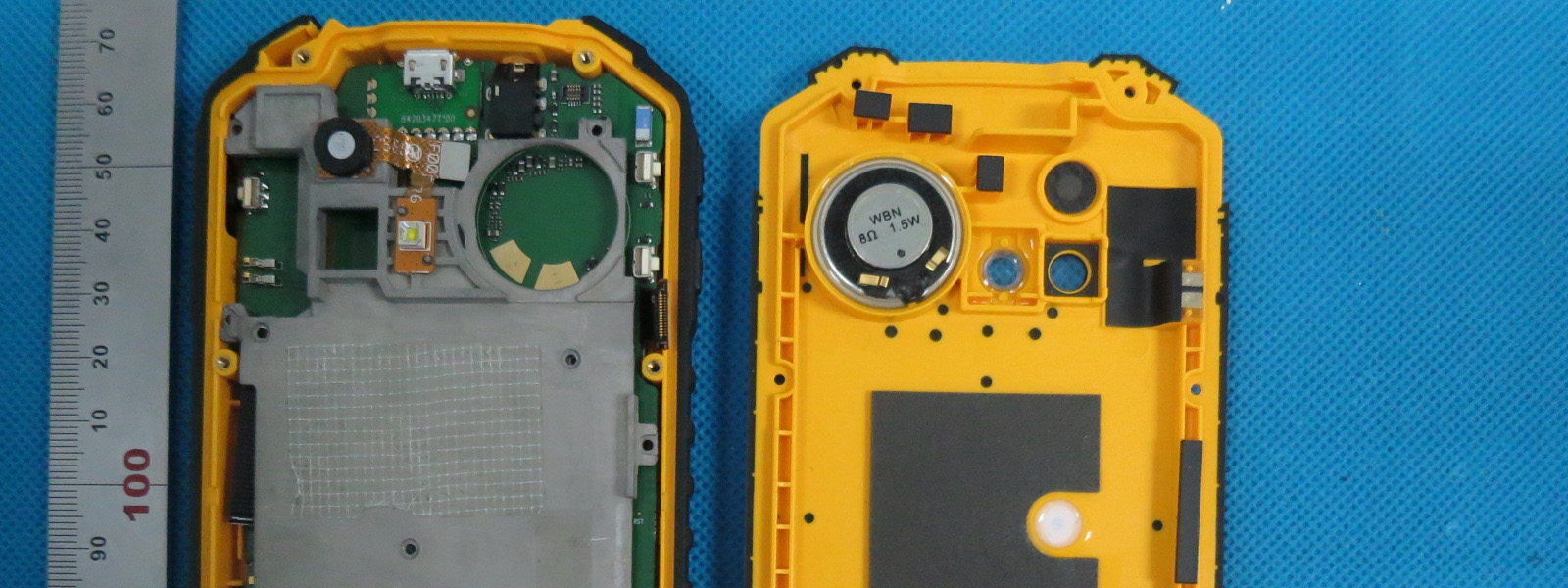

| Internal Photos | Internal Photos | 2015-09-30 | PDF 2.8 MB |
| Internal photo | Internal Photos | 2015-09-30 | PDF 2.8 MB |
| External Photos | External Photos | 2015-09-30 | PDF 354.2 KB |
| External photo | External Photos | 2015-09-30 | PDF 354.2 KB |
| ID Label/Location Info | ID Label/Location Info | 2015-09-30 | PDF 293.7 KB |
| ID label/Location info | ID Label/Location Info | 2015-09-30 | PDF 293.7 KB |

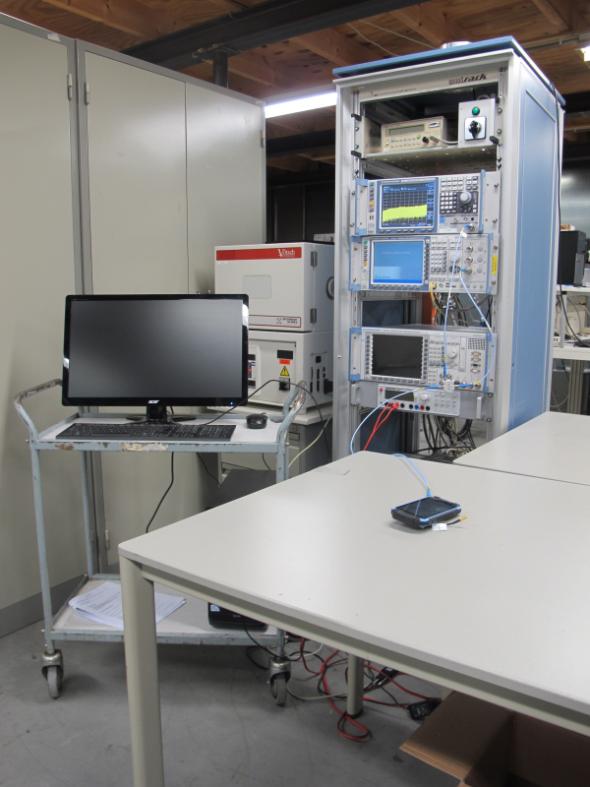

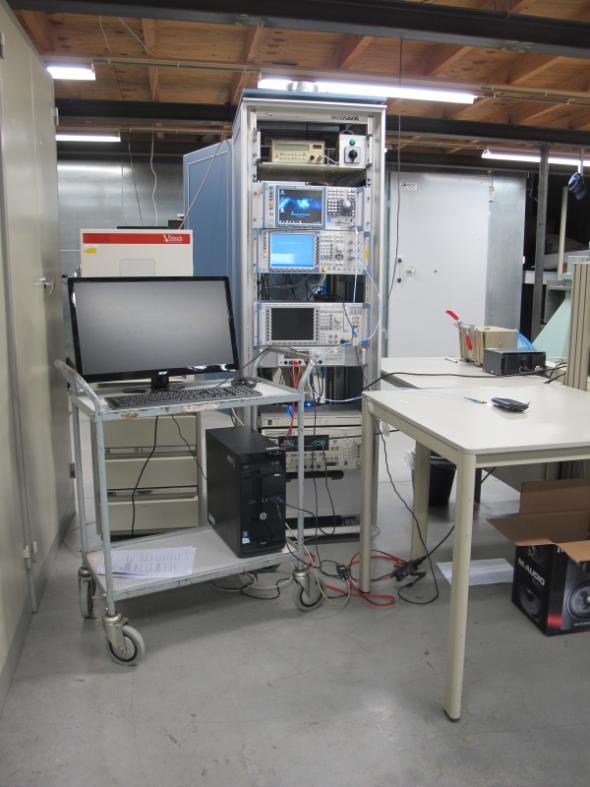

| Test setup photos | Test Setup Photos | 2015-09-30 | PDF 546.8 KB |
| Test Report | Test Report | 2016-08-29 | PDF 5.1 MB |
| Test report BT | Test Report | 2015-09-30 | PDF 2.2 MB |
| Test report BTLE | Test Report | 2015-09-30 | PDF 2 MB |
| Test report WLAN | Test Report | 2015-09-30 | PDF 4.6 MB |
| Test report part 1 | Test Report | 2015-09-30 | PDF 2.9 MB |
| Test report part 2 | Test Report | 2015-09-30 | PDF 3 MB |
| Test report part 3 | Test Report | 2015-09-30 | PDF 458.3 KB |
| C2PC letter | Cover Letter(s) | 2016-08-29 | PDF 252.1 KB |
| Antenna report | Cover Letter(s) | 2015-09-30 | PDF 826.4 KB |
| Confidentiality | Cover Letter(s) | 2015-09-30 | PDF 403.5 KB |
| DoC Statement FCC Part 15B | Cover Letter(s) | 2015-09-30 | PDF 260.3 KB |
| SAR report part 1 | RF Exposure Info | 2015-09-30 | PDF 4.9 MB |
| SAR report part 2 | RF Exposure Info | 2015-09-30 | PDF 2 MB |
| Block Diagram Metadata only | Block Diagram | PDF 155.3 KB | |
| Block diagram Metadata only | Block Diagram | PDF 155.3 KB | |
| Schematics Metadata only | Schematics | PDF 367.3 KB | |
| Operational Description Metadata only | Operational Description | PDF 204.2 KB | |
| Operational description Metadata only | Operational Description | PDF 204.2 KB | |
| Part List Metadata only | Parts List/Tune Up Info | PDF 187.1 KB | |
| Parts List Metadata only | Parts List/Tune Up Info | PDF 187.1 KB | |
| Parts list (BOM) Metadata only | Parts List/Tune Up Info | PDF 187.1 KB | |
| Tune Up Info Metadata only | Parts List/Tune Up Info | PDF 442.7 KB |
Application Information
| Application ID | VyU179ay26LjD3j8M7EPjg== |
|---|---|
| Final Action Date | 2016-08-29 |
| Application Purpose | Class II permissive change or modification of presently authorized equipment |
| Applicant FRN | 0024220329 |
| Model | EX-SM14 |
| Frequency Range | 2402-2480 MHz |
| Equipment Class | DTS - Digital Transmission System |
| Device Description | Explosion proof smartphone EX-SM14 |
| Responsible Party | Erwin Geluk, info@technedbenelux.nl , +31 183631295 |
| Technical Contact | Erwin Geluk, TechNed Benelux B.V., info@technedbenelux.nl , 31 183631295 |
| Non-Technical Contact | Erwin Geluk, TechNed Benelux B.V., info@technedbenelux.nl , 31 183631295 |
| Test Firm | Willem Jong, Telefication B.V., wjjong@telefication.com  , +31 889 983 600 |
| TCB Email | certification@telefication.com |
| TCB Scope | A4: UNII devices & low power transmitters using spread spectrum techniques |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | No |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | Yes |
| Composite Part | No |
| Cognitive Radio | No |
| Authorization Waiver | No |
| Authorization Waiver Approved | No |
| Section 5301 Certification | Yes |
| Related OET Knowledge DataBase Inquiry | No |
| Grant Comments | Power Output is conducted. SAR compliance for body-worn operating conditions is limited to the specific configuration tested for this filing. Body-worn operations are restricted to belt-clips, holsters or similar accessories that have no metallic component in the assembly and must provide at least 10 mm separation between the device and the user's body, which includes use as hotspot.End users must be informed of the body worn requirements for satisfying RF Exposure compliance. The highest reported SAR values for head, body-worn accessory, product specific (wireless router), and simultaneous transmission use conditions are: 1.0 W/kg, 1.09 W/kg, 1.09 W/kg and 1.46 W/kg, respectively. C2PC: SW addition of 40 MHz 802.11n BW; this device supports 20/40 MHz BW modes. |
Applications
| Application ID | Date | Purpose |
|---|---|---|
| VyU179ay26LjD3j8M7EPjg== | 2016-08-29 | Class II permissive change or modification of presently authorized equipment |
| XwxNIXDuwhP/vdEsFZPNaA== | 2015-09-30 | Original Equipment |
| MvjgbbQuCj9aaibnCZLL0Q== | 2015-09-30 | Original Equipment |
| 1XOLrS5c8zQVYeo7YLd55Q== | 2015-09-30 | Original Equipment |
Equipment Authorization
| Frequency | Output | Tolerance | Emission | Rules | Grant Notes |
|---|---|---|---|---|---|
| 824.2-848.8 MHz | 0.574 | 0.01ppm | 248KGXW | 22H | |
| 824.2-848.8 MHz | 0.133 | 0.01ppm | 248KG7W | 22H | |
| 826.4-846.6 MHz | 0.035 | 0.01ppm | 4M20F9W | 22H | |
| 1850.2-1909.8 MHz | 0.385 | 0.01ppm | 246KGXW | 24E | |
| 1850.2-1909.8 MHz | 0.053 | 0.01ppm | 246KG7W | 24E | |
| 1852.4-1907.6 MHz | 0.061 | 0.01ppm | 4M17F9W | 24E | |
| 2402-2480 MHz | 0.0020000 | 15C | CC | ||
| 2402-2480 MHz | 0.0008 | 15C | CC | ||
| 2412-2462 MHz | 0.0136 | 15C | CC | ||
| 2412-2462 MHz | 0.014 | 15C | CC |
Grants
TCB Grant - Application XwxNIXDuwhP/vdEsFZPNaA==
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
Telefication B.V. Wilmersdorf 50 Apeldoorn, NL-7300 AC Netherlands |
Date of Grant: 09/30/2015 Application Dated: 09/30/2015 |
| TechNed Benelux B.V. |
| Veersteeg 15 |
| Spijk, 4212 LR Netherlands |
| Attention: Erwin Geluk |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | 2AD2CEX-SM14 |
| Name of Grantee: | TechNed Benelux B.V. |
| Equipment Class: | Digital Transmission System |
| Notes: | Explosion proof smartphone EX-SM14 |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| CC | 15C | 2412.0 - 2462.0 | 0.0136 | ||
| CC | 15C | 2402.0 - 2480.0 | 0.0008 |
| Power Output is conducted. SAR compliance for body-worn operating conditions is limited to the specific configuration tested for this filing. Body-worn operations are restricted to belt-clips, holsters or similar accessories that have no metallic component in the assembly and must provide at least 10 mm separation between the device and the user's body, which includes use as hotspot. End users must be informed of the body worn requirements for satisfying RF Exposure compliance. The highest reported SAR values for head, body-worn accessory, product specific (wireless router), and simultaneous transmission use conditions are: 1.0 W/kg, 1.09 W/kg, 1.09 W/kg and 1.46 W/kg, respectively. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
EAS Grant - Application XwxNIXDuwhP/vdEsFZPNaA==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
TechNed Benelux B.V. Veersteeg 15 Spijk, 4212 LR Netherlands |
Date of Grant: 09/30/2015 Application Dated: 09/30/2015 |
| Attention: Erwin Geluk |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | 2AD2CEX-SM14 |
| Name of Grantee: | TechNed Benelux B.V. |
| Equipment Class: | Digital Transmission System |
| Notes: | Explosion proof smartphone EX-SM14 |
| Modular Type: | Does not apply |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| CC | 15C | 2412.0 - 2462.0 | 0.0136 | ||
| CC | 15C | 2402.0 - 2480.0 | 0.0008 |
| Power Output is conducted. SAR compliance for body-worn operating conditions is limited to the specific configuration tested for this filing. Body-worn operations are restricted to belt-clips, holsters or similar accessories that have no metallic component in the assembly and must provide at least 10 mm separation between the device and the user's body, which includes use as hotspot. End users must be informed of the body worn requirements for satisfying RF Exposure compliance. The highest reported SAR values for head, body-worn accessory, product specific (wireless router), and simultaneous transmission use conditions are: 1.0 W/kg, 1.09 W/kg, 1.09 W/kg and 1.46 W/kg, respectively. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| Mail To: | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
Telefication B.V. Wilmersdorf 50 Apeldoorn, NL-7300 AC Netherlands |
Date of Grant: 08/29/2016 Application Dated: 08/29/2016 |
| TechNed Benelux B.V. |
| Veersteeg 15 |
| Spijk, 4212 LR Netherlands |
| Attention: Erwin Geluk |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | 2AD2CEX-SM14 |
| Name of Grantee: | TechNed Benelux B.V. |
| Equipment Class: | Digital Transmission System |
| Notes: | Explosion proof smartphone EX-SM14 |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| CC | 15C | 2402.0 - 2480.0 | 0.0008 | ||
| CC | 15C | 2412.0 - 2462.0 | 0.014 |
| Power Output is conducted. SAR compliance for body-worn operating conditions is limited to the specific configuration tested for this filing. Body-worn operations are restricted to belt-clips, holsters or similar accessories that have no metallic component in the assembly and must provide at least 10 mm separation between the device and the user's body, which includes use as hotspot.End users must be informed of the body worn requirements for satisfying RF Exposure compliance. The highest reported SAR values for head, body-worn accessory, product specific (wireless router), and simultaneous transmission use conditions are: 1.0 W/kg, 1.09 W/kg, 1.09 W/kg and 1.46 W/kg, respectively. C2PC: SW addition of 40 MHz 802.11n BW; this device supports 20/40 MHz BW modes. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
EAS Grant - Application VyU179ay26LjD3j8M7EPjg==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
TechNed Benelux B.V. Veersteeg 15 Spijk, 4212 LR Netherlands |
Date of Grant: 08/29/2016 Application Dated: 08/29/2016 |
| Attention: Erwin Geluk |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | 2AD2CEX-SM14 |
| Name of Grantee: | TechNed Benelux B.V. |
| Equipment Class: | Digital Transmission System |
| Notes: | Explosion proof smartphone EX-SM14 |
| Modular Type: | Does not apply |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| CC | 15C | 2402.0 - 2480.0 | 0.0008 | ||
| CC | 15C | 2412.0 - 2462.0 | 0.014 |
| Power Output is conducted. SAR compliance for body-worn operating conditions is limited to the specific configuration tested for this filing. Body-worn operations are restricted to belt-clips, holsters or similar accessories that have no metallic component in the assembly and must provide at least 10 mm separation between the device and the user's body, which includes use as hotspot.End users must be informed of the body worn requirements for satisfying RF Exposure compliance. The highest reported SAR values for head, body-worn accessory, product specific (wireless router), and simultaneous transmission use conditions are: 1.0 W/kg, 1.09 W/kg, 1.09 W/kg and 1.46 W/kg, respectively. C2PC: SW addition of 40 MHz 802.11n BW; this device supports 20/40 MHz BW modes. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| Mail To: | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
Telefication B.V. Wilmersdorf 50 Apeldoorn, NL-7300 AC Netherlands |
Date of Grant: 09/30/2015 Application Dated: 09/30/2015 |
| TechNed Benelux B.V. |
| Veersteeg 15 |
| Spijk, 4212 LR Netherlands |
| Attention: Erwin Geluk |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | 2AD2CEX-SM14 |
| Name of Grantee: | TechNed Benelux B.V. |
| Equipment Class: | PCS Licensed Transmitter held to ear |
| Notes: | Explosion proof smartphone EX-SM14 |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 24E | 1850.2 - 1909.8 | 0.385 | 0.01 PM | 246KGXW | |
| 24E | 1852.4 - 1907.6 | 0.061 | 0.01 PM | 4M17F9W | |
| 22H | 824.2 - 848.8 | 0.574 | 0.01 PM | 248KGXW | |
| 24E | 1850.2 - 1909.8 | 0.053 | 0.01 PM | 246KG7W | |
| 22H | 826.4 - 846.6 | 0.035 | 0.01 PM | 4M20F9W | |
| 22H | 824.2 - 848.8 | 0.133 | 0.01 PM | 248KG7W |
| Power Output is ERP for part 22 and EIRP for Part 24. SAR compliance for body-worn operating conditions is limited to the specific configuration tested for this filing. Body-worn operations are restricted to belt-clips, holsters or similar accessories that have no metallic component in the assembly and must provide at least 10 mm separation between the device and the user's body, which includes use as hotspot. End users must be informed of the body worn requirements for satisfying RF Exposure compliance. The highest reported SAR values for head, body-worn accessory, product specific (wireless router) and simultaneous transmission use conditions are: 1.0 W/kg, 1.09 W/kg, 1.09 W/kg and 1.46 W/kg respectively. This device contains functions that are not operational in U.S. Territories. This filing is only applicable for U.S. operations. |
EAS Grant - Application MvjgbbQuCj9aaibnCZLL0Q==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
TechNed Benelux B.V. Veersteeg 15 Spijk, 4212 LR Netherlands |
Date of Grant: 09/30/2015 Application Dated: 09/30/2015 |
| Attention: Erwin Geluk |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | 2AD2CEX-SM14 |
| Name of Grantee: | TechNed Benelux B.V. |
| Equipment Class: | PCS Licensed Transmitter held to ear |
| Notes: | Explosion proof smartphone EX-SM14 |
| Modular Type: | Does not apply |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 24E | 1850.2 - 1909.8 | 0.385 | 0.01 PM | 246KGXW | |
| 24E | 1852.4 - 1907.6 | 0.061 | 0.01 PM | 4M17F9W | |
| 22H | 824.2 - 848.8 | 0.574 | 0.01 PM | 248KGXW | |
| 24E | 1850.2 - 1909.8 | 0.053 | 0.01 PM | 246KG7W | |
| 22H | 826.4 - 846.6 | 0.035 | 0.01 PM | 4M20F9W | |
| 22H | 824.2 - 848.8 | 0.133 | 0.01 PM | 248KG7W |
| Power Output is ERP for part 22 and EIRP for Part 24. SAR compliance for body-worn operating conditions is limited to the specific configuration tested for this filing. Body-worn operations are restricted to belt-clips, holsters or similar accessories that have no metallic component in the assembly and must provide at least 10 mm separation between the device and the user's body, which includes use as hotspot. End users must be informed of the body worn requirements for satisfying RF Exposure compliance. The highest reported SAR values for head, body-worn accessory, product specific (wireless router) and simultaneous transmission use conditions are: 1.0 W/kg, 1.09 W/kg, 1.09 W/kg and 1.46 W/kg respectively. This device contains functions that are not operational in U.S. Territories. This filing is only applicable for U.S. operations. |
| Mail To: | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
Telefication B.V. Wilmersdorf 50 Apeldoorn, NL-7300 AC Netherlands |
Date of Grant: 09/30/2015 Application Dated: 09/30/2015 |
| TechNed Benelux B.V. |
| Veersteeg 15 |
| Spijk, 4212 LR Netherlands |
| Attention: Erwin Geluk |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | 2AD2CEX-SM14 |
| Name of Grantee: | TechNed Benelux B.V. |
| Equipment Class: | Part 15 Spread Spectrum Transmitter |
| Notes: | Explosion proof smartphone EX-SM14 |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| CC | 15C | 2402.0 - 2480.0 | 0.002 |
| Power Output is conducted. End users must be informed of the body worn requirements for satisfying RF Exposure compliance. The highest reported SAR value for simultaneous transmission use is: 1.22 W/kg. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
EAS Grant - Application 1XOLrS5c8zQVYeo7YLd55Q==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
TechNed Benelux B.V. Veersteeg 15 Spijk, 4212 LR Netherlands |
Date of Grant: 09/30/2015 Application Dated: 09/30/2015 |
| Attention: Erwin Geluk |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | 2AD2CEX-SM14 |
| Name of Grantee: | TechNed Benelux B.V. |
| Equipment Class: | Part 15 Spread Spectrum Transmitter |
| Notes: | Explosion proof smartphone EX-SM14 |
| Modular Type: | Does not apply |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| CC | 15C | 2402.0 - 2480.0 | 0.002 |
| Power Output is conducted. End users must be informed of the body worn requirements for satisfying RF Exposure compliance. The highest reported SAR value for simultaneous transmission use is: 1.22 W/kg. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| Mail To: |
