LUMA500 Projector Test Setup Photos - FCC ID 2AD2W-LUMA500
FCC ID 2AD2W-LUMA500

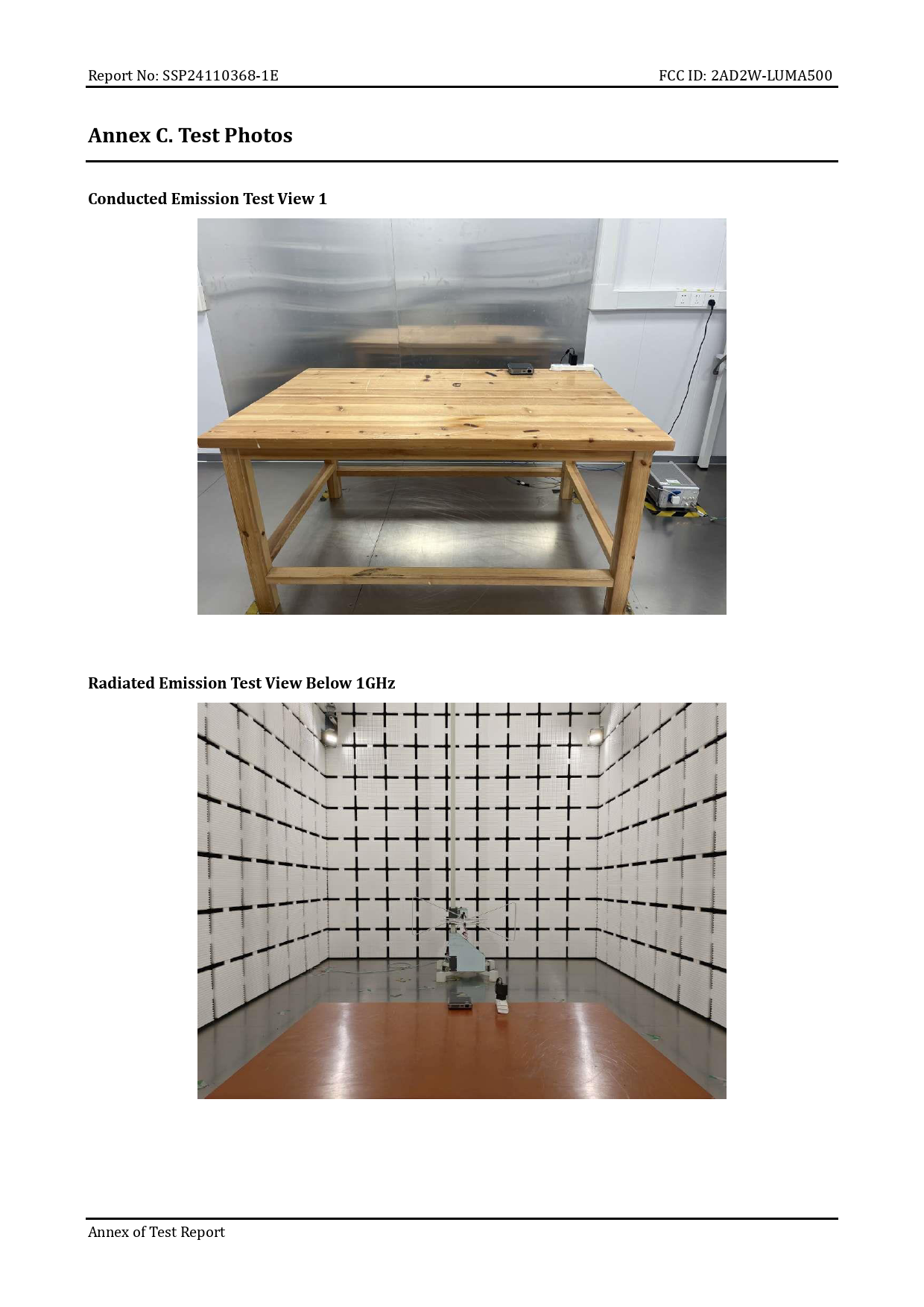

Test setup
Projector
Document preview loads when visible.
Document Details
| FCC ID | 2AD2W-LUMA500 |
|---|---|
| Document ID | 8036816 |
| Document Type | Test Setup Photos |
| Description | Test setup |
| Applicant | C&A; Marketing Inc. |
| Equipment Class | Projector |
| Product Code | LUMA500 |
| Application ID | lOZwbFNAKhMFM9Fuqn99Eg== |
| Application Purpose | Original Equipment |
| Application Date | 2025-02-10 |
| Frequency Range | 5180-5240 MHz |
| FRN | 0025643727 |
| Test Firm | Shenzhen CCUT Quality Technology Co., Ltd. |
| Certified By | Chaim Piekarski |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | No |
| Short-Term Confidentiality Date | 08/09/2025 |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | Yes |
| Composite Part | No |
| Submitted | 2025-02-10 |
| Available | 2025-08-09 |
| Created | 2025-01-14 |
| Modified | 2025-01-14 |
| Pages | 2 |
| File Type | Adobe Acrobat PDF |
| File Size | 331527 |
| File SHA-256 | 08ebcf539dd570d241899258dbb4761a263cb4cd8b9b1c0e6f280add636dcd29 |
| PDF Metadata Author | Sem |
| PDF Metadata Producer | Microsoft® Word 2019 Sem |
| FCC.gov Sources | FCC.gov 8036816, FCC.gov 8036808, FCC.gov 8036769 |
