HLK7688A WIFI Module Operational Description - FCC ID 2AD56HLK-7688A

FCC ID 2AD56HLK-7688A

17_HLK-7688A AntSpec

WIFI Module

by Shenzhen Hi-Link Electronic co., Ltd.

Document preview loads when visible.

Document Details

FCC ID2AD56HLK-7688A
Document ID3260947
Document TypeOperational Description

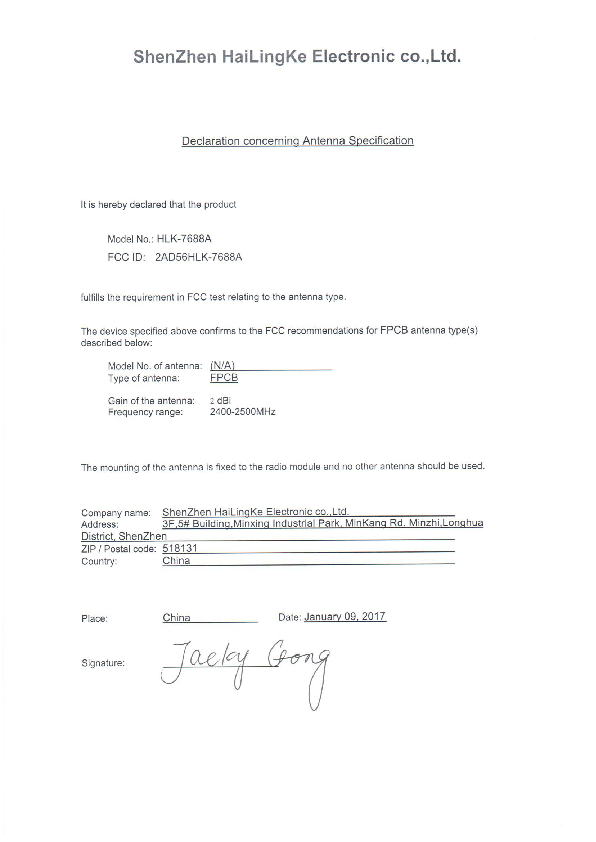

Description17_HLK-7688A AntSpec
ApplicantShenzhen Hi-Link Electronic co., Ltd.
Equipment ClassWIFI Module
Product CodeHLK7688A
Application IDa5aFC2gDV9alyHmrOp5ZGg==
Application PurposeOriginal Equipment
Application Date2017-01-17
Frequency Range2412-2462 MHz
FRN0024259467
Test FirmShenzhen SEM.Test Technology Co., Ltd.
Certified ByJoerg Kusig Head of Certification
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentSingle Modular Approval
Composite DeviceNo
Composite PartNo
Submitted2017-01-17
Available2017-01-17
Created2017-01-10
Modified2017-01-10
Pages1
File TypeAdobe Acrobat PDF
File Size170484
File SHA-25648232ec36e59c5771e8a8e6457b764e13fc0fec85f20baad05537af507f44ecd
FCC.gov SourcesFCC.gov 3260947
