FCC ID 2AD6M-X20
X22e Dual 5GHz MeshRanger
by P2 Mobile Technologies Limited
Grantee Code: 2AD6M Product Code: X20
Latest application date: 2018-06-15
Device Images
FCC ID Device Details
| FCC ID | 2AD6M-X20 |
|---|---|
| Mirrors | fcc.id | gov | fccid.ai |
| Grantee Code | 2AD6M |
| Product Code | X20 |
| Applicant Business | P2 Mobile Technologies Limited |
| Related Domains |  p2wt.com  mrt-cert.com |
| Equipment Class | X22e Dual 5GHz MeshRanger |
| Test Firm | MRT Technology (Suzhou) Co., Ltd. |
Operating Frequencies
| Frequency Range | Application Purpose | Final Action Date |
|---|---|---|
| 5180-5240 MHz | Class II permissive change or modification of presently authorized equipment | 2018-06-15 |
| 5180-5240 MHz | Original Equipment | 2016-01-25 |
Exhibits
| Document | Type | Available | File |
|---|---|---|---|
| 2AD6M-X20_User Manual_01.22 | Users Manual | 2016-01-25 | PDF 349.8 KB |
| 2AD6M-X20_Internal Photo | Internal Photos | 2018-06-15 | PDF 1.8 MB |
| 2AD6M-X20_Internal Photo | Internal Photos | 2016-01-25 | PDF 1.6 MB |

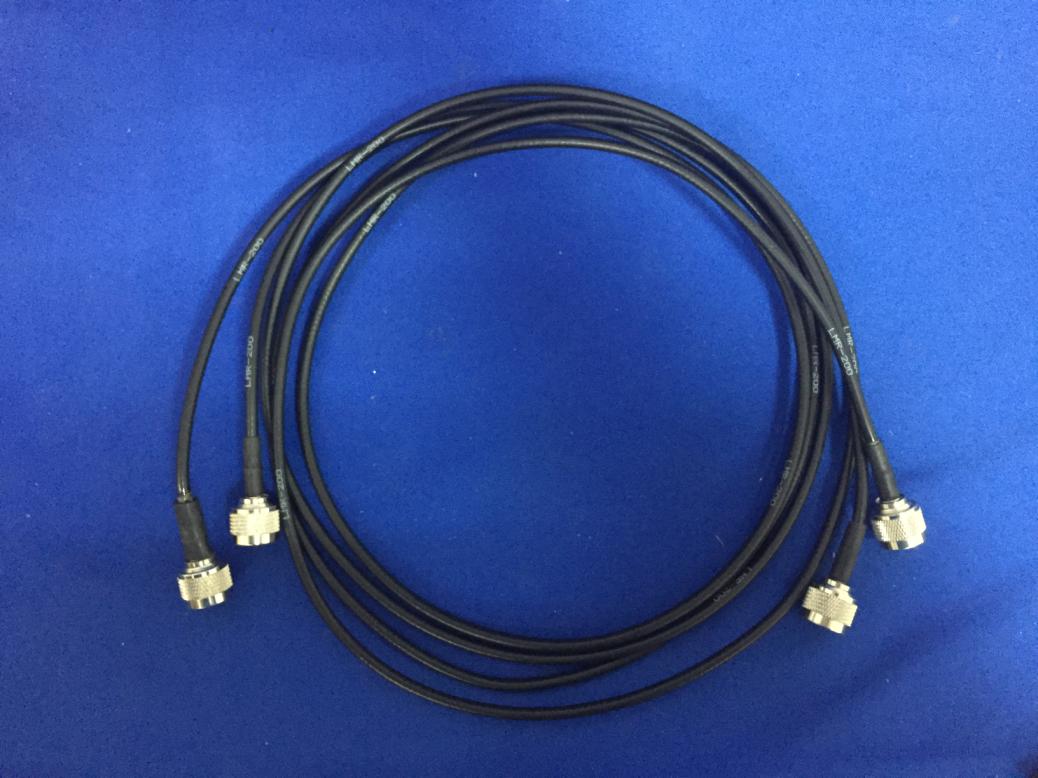

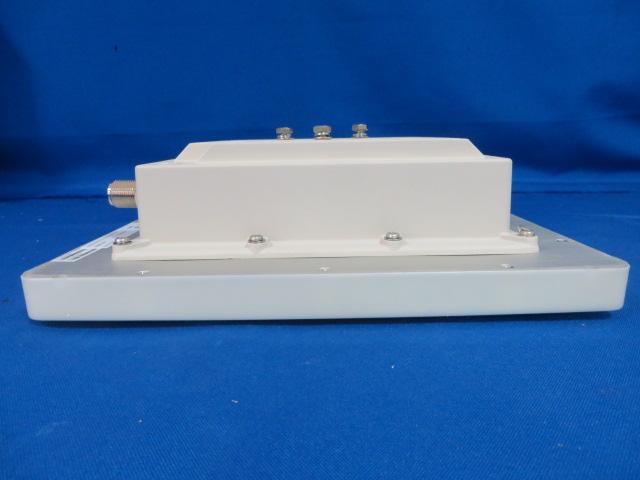

| 2AD6M-X20_External Photo_1 | External Photos | 2018-06-15 | PDF 696.7 KB |
| 2AD6M-X20_External Photo | External Photos | 2016-01-25 | PDF 384.7 KB |
| 2AD6M-X20_Label Location | ID Label/Location Info | 2018-06-15 | PDF 206.7 KB |
| 2AD6M-X20_Label & Label Location | ID Label/Location Info | 2016-01-25 | PDF 122.7 KB |
| 2AD6M-X20_FCC Test Setup Photo_1 | Test Setup Photos | 2018-06-15 | PDF 409.7 KB |
| 2AD6M-X20_Test Setup Photo | Test Setup Photos | 2016-01-25 | PDF 350.5 KB |
| 1803RSU020-U1 WB-610C-FCC 15E Test Report_1 | Test Report | 2018-06-15 | PDF 4 MB |
| 1511RSU00201 FCC-UNII Report_Part 1 | Test Report | 2016-01-25 | PDF 5.2 MB |
| 1511RSU00201 FCC-UNII Report_Part 10 | Test Report | 2016-01-25 | PDF 5.1 MB |
| 1511RSU00201 FCC-UNII Report_Part 11 | Test Report | 2016-01-25 | PDF 4.2 MB |
| 1511RSU00201 FCC-UNII Report_Part 12 | Test Report | 2016-01-25 | PDF 4.2 MB |
| 1511RSU00201 FCC-UNII Report_Part 2 | Test Report | 2016-01-25 | PDF 5 MB |
| 1511RSU00201 FCC-UNII Report_Part 3 | Test Report | 2016-01-25 | PDF 5.1 MB |
| 1511RSU00201 FCC-UNII Report_Part 4 | Test Report | 2016-01-25 | PDF 5.3 MB |
| 1511RSU00201 FCC-UNII Report_Part 5 | Test Report | 2016-01-25 | PDF 5.2 MB |
| 1511RSU00201 FCC-UNII Report_Part 6 | Test Report | 2016-01-25 | PDF 5.3 MB |
| 1511RSU00201 FCC-UNII Report_Part 7 | Test Report | 2016-01-25 | PDF 5 MB |
| 1511RSU00201 FCC-UNII Report_Part 8 | Test Report | 2016-01-25 | PDF 4.9 MB |
| 1511RSU00201 FCC-UNII Report_Part 9 | Test Report | 2016-01-25 | PDF 5.2 MB |
| 1511RSU00203 Co-location Report | Test Report | 2016-01-25 | PDF 239.4 KB |
| 1511RSU00203 FCC 15B Report | Test Report | 2016-01-25 | PDF 1.3 MB |
| 2AD6M_Attestation | Cover Letter(s) | 2016-01-25 | PDF 122.8 KB |
| 2AD6M-X20_Declaration of authorization 180601-Signed | Cover Letter(s) | 2018-06-15 | PDF 155.6 KB |
| 2AD6M-X20_FCC_C2PC Letter 180601-Signed | Cover Letter(s) | 2018-06-15 | PDF 146.8 KB |
| 2AD6M_Declaration of authorization | Cover Letter(s) | 2016-01-25 | PDF 150.2 KB |
| 2AD6M_FCC Confidentiality Letter | Cover Letter(s) | 2016-01-25 | PDF 152.4 KB |
| 2AD6M_Non-SDR Cover Letter | Cover Letter(s) | 2016-01-25 | PDF 295.6 KB |
| 1511RSU00202 RF-Exposure Report_01.22_new | RF Exposure Info | 2016-01-25 | PDF 187.9 KB |
| Confidential_2AD6M-X20_Block Diagram_01.22 Metadata only | Block Diagram | PDF 103.2 KB | |
| Confidential_2AD6M-X20_Schematic_01.22 Metadata only | Schematics | PDF 1.6 MB | |
| Confidential_2AD6M-X20_Operation Description_01.22 Metadata only | Operational Description | PDF 309.1 KB |
Application Information
| Application ID | EjdIyrUdjBN/MQfgqaIN1w== |
|---|---|
| Final Action Date | 2018-06-15 |
| Application Purpose | Class II permissive change or modification of presently authorized equipment |
| Applicant FRN | 0024264327 |
| Model | X20 |
| Frequency Range | 5180-5240 MHz |
| Equipment Class | NII - Unlicensed National Information Infrastructure TX |
| Device Description | X22e Dual 5GHz MeshRanger |
| Responsible Party | Simon Yeung, Operations Manager, simonyeung@p2wt.com , 852-3899-1917 |
| Agent | MRT Technology (Suzhou) Co., Ltd |
| Technical Contact | Robin Wu, MRT Technology (Suzhou) Co., Ltd, robinwu@mrt-cert.com , +86-512-66308358 |
| Non-Technical Contact | Robin Wu, MRT Technology (Suzhou) Co., Ltd, robinwu@mrt-cert.com , +86-512-66308358 |
| Test Firm | Mr. Marlin Chen, MRT Technology (Suzhou) Co., Ltd., marlinchen@mrt-cert.com , +86-512-66308358 |
| TCB Email | hotline@acbcert.com  |
| TCB Scope | A4: UNII devices & low power transmitters using spread spectrum techniques |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | Yes |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | Yes |
| Composite Part | No |
| Cognitive Radio | No |
| Authorization Waiver | No |
| Authorization Waiver Approved | No |
| Section 5301 Certification | Yes |
| Related OET Knowledge DataBase Inquiry | No |
| Grant Comments | C2PC to change housing. Power Output listed is conducted. Device include two 802.11 a/n/ac devices in a 2x2 Spatial Multiplexing MIMO configuration as described in this filing. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 142 cm from all persons and not be co-located with any other transmitters except in accordance with FCC multi-transmitter product procedures. End-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. This device has 20 MHz, 40 MHz and 80 MHz bandwidth modes. This device must be professionally installed. |
Applications
| Application ID | Date | Purpose |
|---|---|---|
| EjdIyrUdjBN/MQfgqaIN1w== | 2018-06-15 | Class II permissive change or modification of presently authorized equipment |
| cPCx/W6Y24zVRCjGarXSuQ== | 2016-01-25 | Original Equipment |
| CxPAWYCY5B5er0jWbzQRBA== | 2016-01-25 | Original Equipment |
Equipment Authorization
Grants
TCB Grant - Application EjdIyrUdjBN/MQfgqaIN1w==
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
ACB, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 |
Date of Grant: 06/15/2018 Application Dated: 06/15/2018 |
| P2 Mobile Technologies Limited |
| Units 501-502, Building 12W, |
| Hong Kong Science Park, New Territories, |
| Hong Kong, Hong Kong |
| Attention: Simon Yeung , Operations Manager |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | 2AD6M-X20 |
| Name of Grantee: | P2 Mobile Technologies Limited |
| Equipment Class: | Unlicensed National Information Infrastructure TX |
| Notes: | X22e Dual 5GHz MeshRanger |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 38 CC MO | 15E | 5180.0 - 5240.0 | 0.7244 | ||
| 38 CC MO | 15E | 5745.0 - 5825.0 | 0.5248 | ||
| 38 CC MO | 15E | 5180.0 - 5240.0 | 0.8531 | ||
| 38 CC MO | 15E | 5745.0 - 5825.0 | 0.5297 |
| C2PC to change housing. Power Output listed is conducted. Device include two 802.11 a/n/ac devices in a 2x2 Spatial Multiplexing MIMO configuration as described in this filing. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 142 cm from all persons and not be co-located with any other transmitters except in accordance with FCC multi-transmitter product procedures. End-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. This device has 20 MHz, 40 MHz and 80 MHz bandwidth modes. This device must be professionally installed. |
| 38: | This device has shown compliance, in all grant-listed U-NII sub-bands, with the new rules for U-NII devices adopted under Docket No. 13-49 and may be marketed, manufactured or imported after the June 1, 2016 transition deadline. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| MO: | This Multiple Input Multiple Output (MIMO) device was evaluated for multiple transmitted signals as indicated in the filing. |
