FCC ID 2AD8UFZCWI2A1
Wireless Access Point
by Nokia Solutions and Networks, OY
Grantee Code: 2AD8U Product Code: FZCWI2A1
Latest application date: 2016-01-20
Device Images
FCC ID Device Details
Operating Frequencies
| Frequency Range | Application Purpose | Final Action Date |
|---|---|---|
| 5180-5240 MHz | Class II permissive change or modification of presently authorized equipment | 2016-01-20 |
| 5180-5240 MHz | Original Equipment | 2015-10-29 |
| 2412-2462 MHz | Original Equipment | 2015-10-29 |
Exhibits
| Document | Type | Available | File |
|---|---|---|---|
| User Manual - Regulatory Information_11.15.pdf | Users Manual | 2016-01-20 | PDF 1.6 MB |
| User Manual Regulatory Information_10.23.pdf | Users Manual | 2015-10-29 | PDF 1.6 MB |
| User Manual_10.23.pdf | Users Manual | 2015-10-29 | PDF 2.4 MB |
| Internal Photo.pdf | Internal Photos | 2016-04-26 | PDF 1.5 MB |
| External Photo.pdf | External Photos | 2016-04-26 | PDF 726.5 KB |
| WI2A-AC200i_Label Location.pdf | ID Label/Location Info | 2015-10-29 | PDF 162.6 KB |

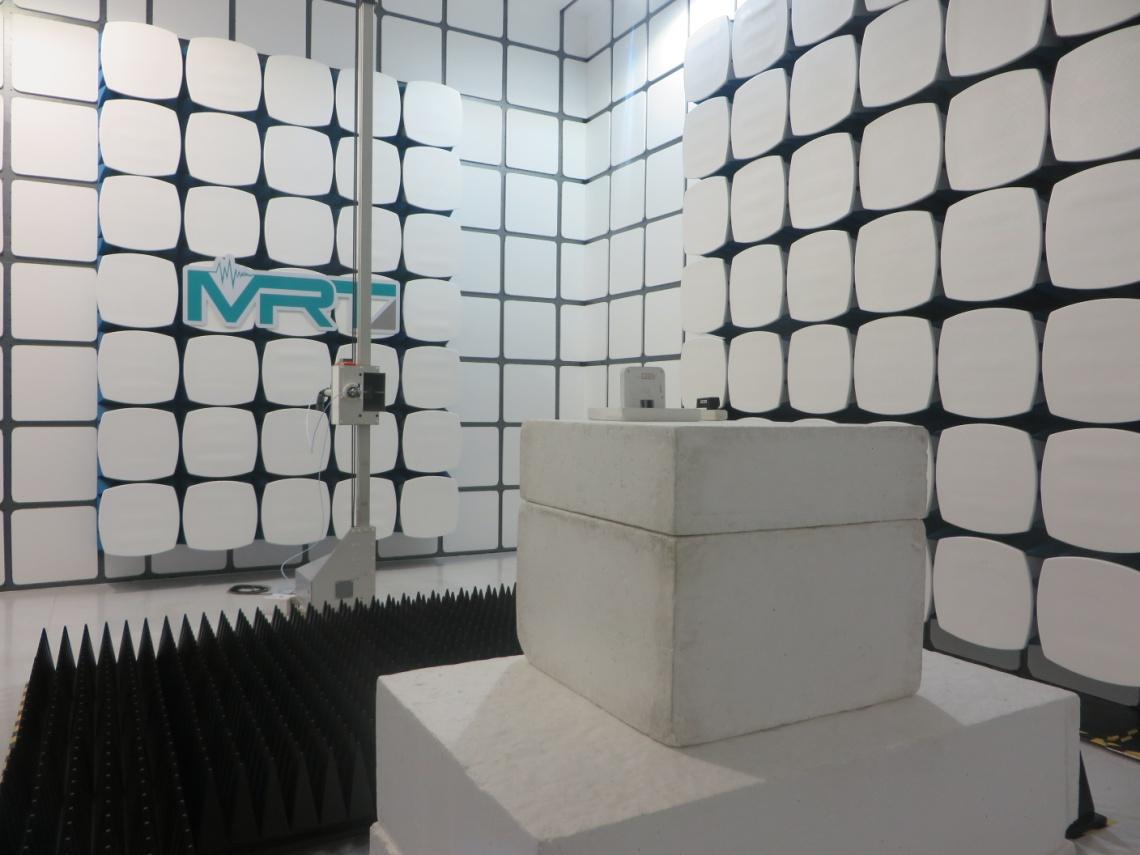

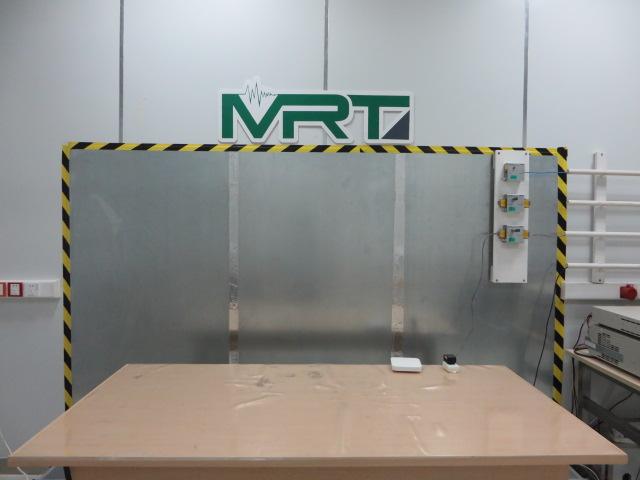

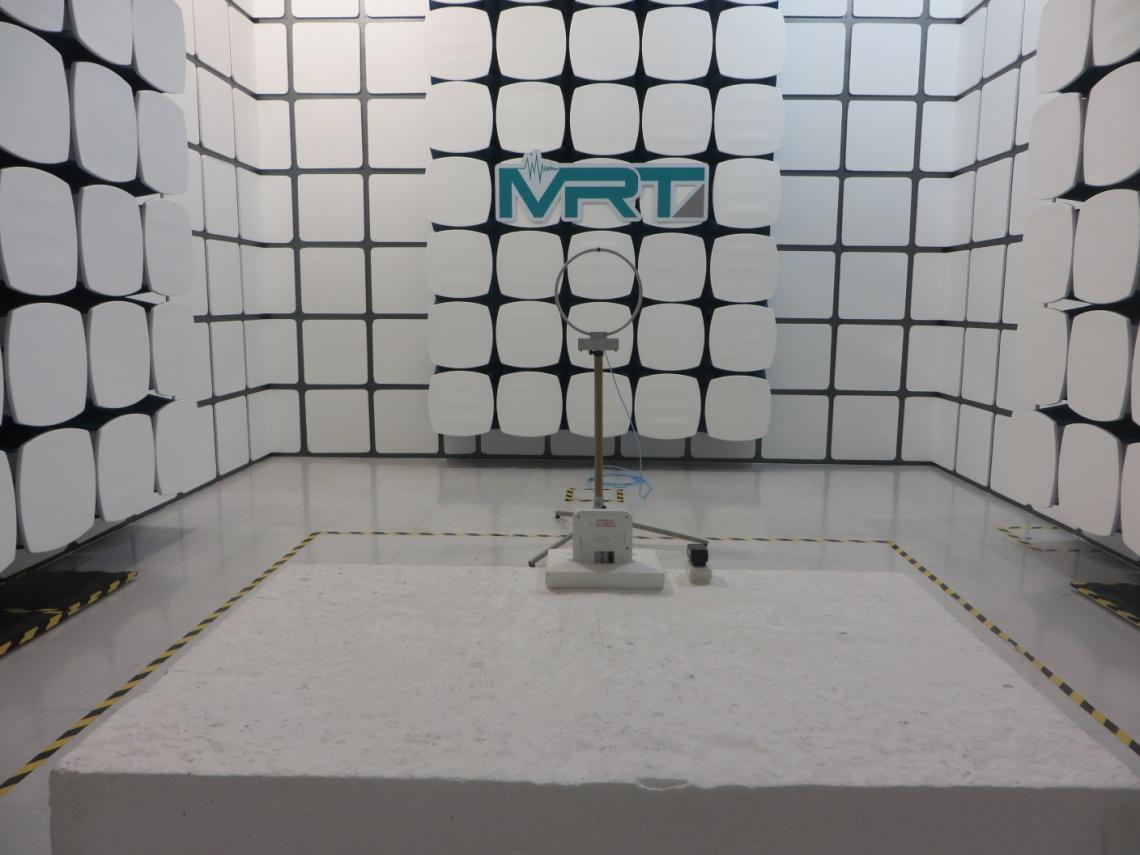

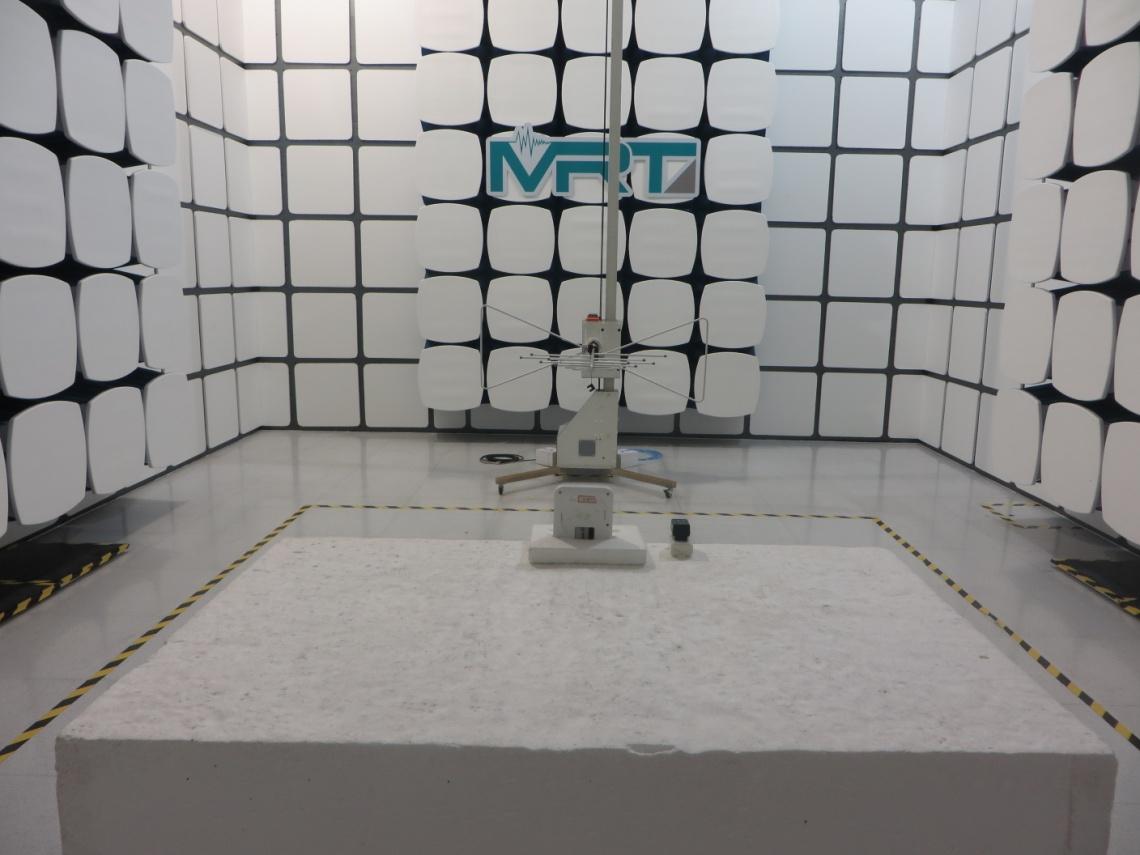

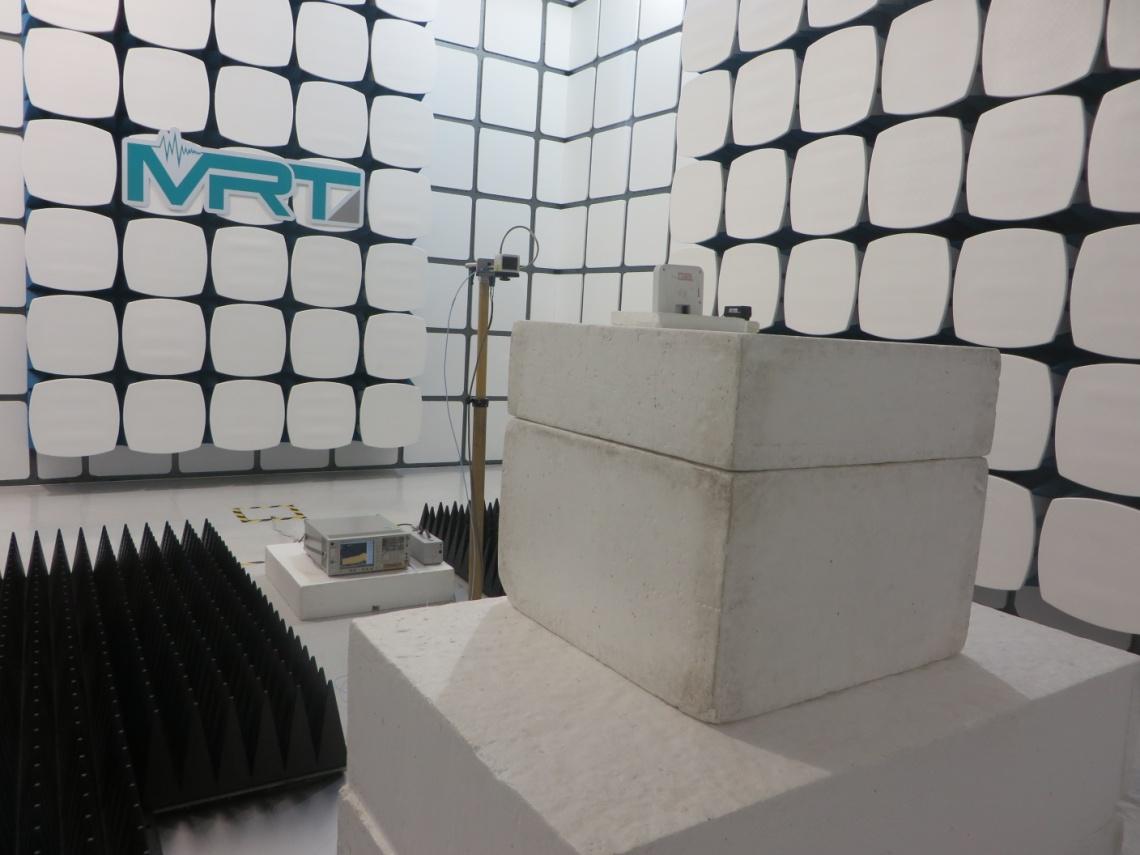

| FCC Test Setup Photo.pdf | Test Setup Photos | 2016-04-26 | PDF 477.1 KB |
| FCC Test Setup Photo.pdf | Test Setup Photos | 2016-01-20 | PDF 516.2 KB |
| 1506RSU00616-FCC & IC-UNII Report_Part 1.pdf | Test Report | 2016-01-20 | PDF 5 MB |
| 1506RSU00616-FCC & IC-UNII Report_Part 10.pdf | Test Report | 2016-01-20 | PDF 5.5 MB |
| 1506RSU00616-FCC & IC-UNII Report_Part 11.pdf | Test Report | 2016-01-20 | PDF 5.5 MB |
| 1506RSU00616-FCC & IC-UNII Report_Part 12.pdf | Test Report | 2016-01-20 | PDF 2.8 MB |
| 1506RSU00616-FCC & IC-UNII Report_Part 13.pdf | Test Report | 2016-01-20 | PDF 3 MB |
| 1506RSU00616-FCC & IC-UNII Report_Part 2.pdf | Test Report | 2016-01-20 | PDF 5 MB |
| 1506RSU00616-FCC & IC-UNII Report_Part 3.pdf | Test Report | 2016-01-20 | PDF 5.2 MB |
| 1506RSU00616-FCC & IC-UNII Report_Part 4.pdf | Test Report | 2016-01-20 | PDF 5 MB |
| 1506RSU00616-FCC & IC-UNII Report_Part 5.pdf | Test Report | 2016-01-20 | PDF 5.3 MB |
| 1506RSU00616-FCC & IC-UNII Report_Part 6.pdf | Test Report | 2016-01-20 | PDF 5.4 MB |
| 1506RSU00616-FCC & IC-UNII Report_Part 7.pdf | Test Report | 2016-01-20 | PDF 5.1 MB |
| 1506RSU00616-FCC & IC-UNII Report_Part 8.pdf | Test Report | 2016-01-20 | PDF 5.1 MB |
| 1506RSU00616-FCC & IC-UNII Report_Part 9.pdf | Test Report | 2016-01-20 | PDF 5.4 MB |
| 1506RSU00617-FCC & IC -DFS Report.pdf | Test Report | 2016-01-20 | PDF 3.5 MB |
| 1506RSU00611-FCC & IC-DTS Report Part 1_10.23.pdf | Test Report | 2015-10-29 | PDF 5.5 MB |
| 1506RSU00611-FCC & IC-DTS Report Part 2_10.23.pdf | Test Report | 2015-10-29 | PDF 5.2 MB |
| 1506RSU00611-FCC & IC-DTS Report Part 3_10.23.pdf | Test Report | 2015-10-29 | PDF 5.2 MB |
| 1506RSU00612-FCC & IC-UNII Report Part 1_10.23.pdf | Test Report | 2015-10-29 | PDF 5.2 MB |
| 1506RSU00612-FCC & IC-UNII Report_Part 2.pdf | Test Report | 2015-10-29 | PDF 4.8 MB |
| 1506RSU00612-FCC & IC-UNII Report_Part 3.pdf | Test Report | 2015-10-29 | PDF 5.5 MB |
| 1506RSU00612-FCC & IC-UNII Report_Part 4.pdf | Test Report | 2015-10-29 | PDF 5.4 MB |
| 1506RSU00612-FCC & IC-UNII Report_Part 5.pdf | Test Report | 2015-10-29 | PDF 5.1 MB |
| 1506RSU00612-FCC & IC-UNII Report_Part 6.pdf | Test Report | 2015-10-29 | PDF 4.5 MB |
| 1506RSU00612-FCC & IC-UNII Report_Part 7.pdf | Test Report | 2015-10-29 | PDF 3.4 MB |
| Attestation - Declaration Letter_WI2A.pdf | Attestation Statements | 2015-10-29 | PDF 105.4 KB |
| Attestation - FCC General Declaration_Wi2A.pdf | Attestation Statements | 2015-10-29 | PDF 79.8 KB |
| Confidentiality Request Letter_WI2A.pdf | Cover Letter(s) | 2016-01-20 | PDF 107.3 KB |
| Cover Letter - Agency.pdf | Cover Letter(s) | 2016-01-20 | PDF 26 KB |
| Cover Letter - ClassII Permissive Change (FCC-DFS).pdf | Cover Letter(s) | 2016-01-20 | PDF 27.9 KB |
| Cover Letter_AUTHORIZATION LETTER.pdf | Cover Letter(s) | 2015-10-29 | PDF 26 KB |
| FCC Confidential Letter_WI2A.pdf | Cover Letter(s) | 2015-10-29 | PDF 27.8 KB |
| FCC Confidentiality-short term_WI2A.pdf | Cover Letter(s) | 2015-10-29 | PDF 83 KB |
| RF Exposure Report.pdf | RF Exposure Info | 2016-01-20 | PDF 178.6 KB |
| 1506RSU00614-RF Exposure Report.pdf | RF Exposure Info | 2015-10-29 | PDF 150.6 KB |
| WI2A-AC200i_Block Diagram .pdf Metadata only | Block Diagram | PDF 46 KB | |
| WI2A-AC200i_Schematic_10.23.pdf Metadata only | Schematics | PDF 1.1 MB | |
| Software Operating Description_rev.pdf Metadata only | Operational Description | PDF 677.9 KB | |
| Software Operation Description.pdf Metadata only | Operational Description | PDF 459.8 KB | |
| WI2A-AC200i_Software Operation Description.pdf Metadata only | Operational Description | PDF 459.8 KB |
Application Information
| Application ID | X7PWq7FpXUfWr0G+97Kj2Q== |
|---|---|
| Final Action Date | 2016-01-20 |
| Application Purpose | Class II permissive change or modification of presently authorized equipment |
| Applicant FRN | 0031452253 |
| Model | FZCWI2A1 |
| Frequency Range | 5180-5240 MHz |
| Equipment Class | NII - Unlicensed National Information Infrastructure TX |
| Device Description | Wireless Access Point |
| Responsible Party | Lee Klinkenborg, R&D; Engineer, lee.klinkenborg@nokia.com  , 2242217580 |
| Agent | Robin Robin Robin, MRT Technology (Suzhou) Co., Ltd, robinwu@mrt-cert.com  , 8651266308358 |
| Test Firm | Wu Jian, MRT Technology (Suzhou) Co., Ltd, robinwu@mrt-cert.com , 86-512-66308358 |
| TCB Email | certification@curtis-straus.com  |
| TCB Scope | A4: UNII devices & low power transmitters using spread spectrum techniques |
| Short-Term Confidentiality | Yes |
| Short-Term Confidentiality Date | 05/16/2016 |
| Long-Term Confidentiality | Yes |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | Yes |
| Composite Part | No |
| Cognitive Radio | No |
| Authorization Waiver | No |
| Authorization Waiver Approved | No |
| Section 5301 Certification | Yes |
| Related OET Knowledge DataBase Inquiry | Yes |
| Grant Comments | This device has 20 MHz, 40 MHz, and 80 MHz bandwidth modes. Output power listed is conducted. Device operates with specific antennas in MIMO Configurations as described in this filing. This device must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users and installers must be provided with installation and operating instructions for satisfying RF exposure compliance requirements. |
Applications
| Application ID | Date | Purpose |
|---|---|---|
| X7PWq7FpXUfWr0G+97Kj2Q== | 2016-01-20 | Class II permissive change or modification of presently authorized equipment |
| Yq8PJeR9i2leFBlHzvld/w== | 2015-10-29 | Original Equipment |
| 1Hl4IZmkwHZjplWQYjAHXQ== | 2015-10-29 | Original Equipment |
Equipment Authorization
Grants
TCB Grant - Application Yq8PJeR9i2leFBlHzvld/w==
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
Bureau Veritas Consumer Products Services, Inc. One Distribution Center Circle Suite #1 Littleton, MA 01460 |
Date of Grant: 10/29/2015 Application Dated: 10/29/2015 |
| Nokia Solutions and Networks, OY |
| 2000 W. Lucent Lane |
| Naperville, IL 60563 |
| Attention: Lee Klinkenborg , R&D Engineer |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | 2AD8UFZCWI2A1 |
| Name of Grantee: | Nokia Solutions and Networks, OY |
| Equipment Class: | Unlicensed National Information Infrastructure TX |
| Notes: | Wireless Access Point |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 38 CC MO | 15E | 5180.0 - 5240.0 | 0.4256 | ||
| 38 CC MO | 15E | 5745.0 - 5825.0 | 0.4188 |
| This device has 20 MHz, 40 MHz, and 80 MHz bandwidth modes. Output power listed is conducted. Device operates with specific antennas in MIMO Configurations as described in this filing. This device must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users and installers must be provided with installation and operating instructions for satisfying RF exposure compliance requirements. |
| 38: | This device has shown compliance, in all grant-listed U-NII sub-bands, with the new rules for U-NII devices adopted under Docket No. 13-49 and may be marketed, manufactured or imported after the June 1, 2016 transition deadline. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| MO: | This Multiple Input Multiple Output (MIMO) device was evaluated for multiple transmitted signals as indicated in the filing. |
EAS Grant - Application Yq8PJeR9i2leFBlHzvld/w==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
Nokia Solutions and Networks, OY 2000 W. Lucent Lane Naperville, IL 60563 United States |
Date of Grant: 10/29/2015 Application Dated: 10/29/2015 |
| Attention: Lee Klinkenborg , R&D Engineer |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | 2AD8UFZCWI2A1 |
| Name of Grantee: | Nokia Solutions and Networks, OY |
| Equipment Class: | Unlicensed National Information Infrastructure TX |
| Notes: | Wireless Access Point |
| Modular Type: | Does not apply |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 38 CC MO | 15E | 5180.0 - 5240.0 | 0.4256 | ||
| 38 CC MO | 15E | 5745.0 - 5825.0 | 0.4188 |
| This device has 20 MHz, 40 MHz, and 80 MHz bandwidth modes. Output power listed is conducted. Device operates with specific antennas in MIMO Configurations as described in this filing. This device must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users and installers must be provided with installation and operating instructions for satisfying RF exposure compliance requirements. |
| 38: | This device has shown compliance, in all grant-listed U-NII sub-bands, with the new rules for U-NII devices adopted under Docket No. 13-49 and may be marketed, manufactured or imported after the June 1, 2016 transition deadline. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| MO: | This Multiple Input Multiple Output (MIMO) device was evaluated for multiple transmitted signals as indicated in the filing. |
| Mail To: | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
Bureau Veritas Consumer Products Services, Inc. One Distribution Center Circle Suite #1 Littleton, MA 01460 |
Date of Grant: 01/20/2016 Application Dated: 11/18/2015 |
| Nokia Solutions and Networks, OY |
| 2000 W. Lucent Lane |
| Naperville, IL 60563 |
| Attention: Lee Klinkenborg , R&D Engineer |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | 2AD8UFZCWI2A1 |
| Name of Grantee: | Nokia Solutions and Networks, OY |
| Equipment Class: | Unlicensed National Information Infrastructure TX |
| Notes: | Wireless Access Point |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 38 CC MO | 15E | 5180.0 - 5240.0 | 0.4256 | ||
| 38 CC MO | 15E | 5260.0 - 5320.0 | 0.1455 | ||
| 38 CC MO | 15E | 5500.0 - 5700.0 | 0.1247 | ||
| 38 CC MO | 15E | 5725.0 - 5825.0 | 0.4188 |
| This device has 20 MHz, 40 MHz, and 80 MHz bandwidth modes. Output power listed is conducted. Device operates with specific antennas in MIMO Configurations as described in this filing. This device must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users and installers must be provided with installation and operating instructions for satisfying RF exposure compliance requirements. |
| 38: | This device has shown compliance, in all grant-listed U-NII sub-bands, with the new rules for U-NII devices adopted under Docket No. 13-49 and may be marketed, manufactured or imported after the June 1, 2016 transition deadline. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| MO: | This Multiple Input Multiple Output (MIMO) device was evaluated for multiple transmitted signals as indicated in the filing. |
EAS Grant - Application X7PWq7FpXUfWr0G+97Kj2Q==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
Nokia Solutions and Networks, OY 2000 W. Lucent Lane Naperville, IL 60563 United States |
Date of Grant: 01/20/2016 Application Dated: 11/18/2015 |
| Attention: Lee Klinkenborg , R&D Engineer |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | 2AD8UFZCWI2A1 |
| Name of Grantee: | Nokia Solutions and Networks, OY |
| Equipment Class: | Unlicensed National Information Infrastructure TX |
| Notes: | Wireless Access Point |
| Modular Type: | Does not apply |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 38 CC MO | 15E | 5180.0 - 5240.0 | 0.4256 | ||
| 38 CC MO | 15E | 5260.0 - 5320.0 | 0.1455 | ||
| 38 CC MO | 15E | 5500.0 - 5700.0 | 0.1247 | ||
| 38 CC MO | 15E | 5725.0 - 5825.0 | 0.4188 |
| This device has 20 MHz, 40 MHz, and 80 MHz bandwidth modes. Output power listed is conducted. Device operates with specific antennas in MIMO Configurations as described in this filing. This device must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users and installers must be provided with installation and operating instructions for satisfying RF exposure compliance requirements. |
| 38: | This device has shown compliance, in all grant-listed U-NII sub-bands, with the new rules for U-NII devices adopted under Docket No. 13-49 and may be marketed, manufactured or imported after the June 1, 2016 transition deadline. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| MO: | This Multiple Input Multiple Output (MIMO) device was evaluated for multiple transmitted signals as indicated in the filing. |
| Mail To: | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
Bureau Veritas Consumer Products Services, Inc. One Distribution Center Circle Suite #1 Littleton, MA 01460 |
Date of Grant: 10/29/2015 Application Dated: 10/29/2015 |
| Nokia Solutions and Networks, OY |
| 2000 W. Lucent Lane |
| Naperville, IL 60563 |
| Attention: Lee Klinkenborg , R&D Engineer |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | 2AD8UFZCWI2A1 |
| Name of Grantee: | Nokia Solutions and Networks, OY |
| Equipment Class: | Digital Transmission System |
| Notes: | Wireless Access Point |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| CC MO | 15C | 2412.0 - 2462.0 | 0.4325 |
| This device has 20 MHz, 40 MHz, and 80 MHz bandwidth modes. Output power listed is conducted. Device operates with specific antennas in MIMO Configurations as described in this filing. This device must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users and installers must be provided with installation and operating instructions for satisfying RF exposure compliance requirements. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| MO: | This Multiple Input Multiple Output (MIMO) device was evaluated for multiple transmitted signals as indicated in the filing. |
EAS Grant - Application 1Hl4IZmkwHZjplWQYjAHXQ==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
Nokia Solutions and Networks, OY 2000 W. Lucent Lane Naperville, IL 60563 United States |
Date of Grant: 10/29/2015 Application Dated: 10/29/2015 |
| Attention: Lee Klinkenborg , R&D Engineer |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | 2AD8UFZCWI2A1 |
| Name of Grantee: | Nokia Solutions and Networks, OY |
| Equipment Class: | Digital Transmission System |
| Notes: | Wireless Access Point |
| Modular Type: | Does not apply |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| CC MO | 15C | 2412.0 - 2462.0 | 0.4325 |
| This device has 20 MHz, 40 MHz, and 80 MHz bandwidth modes. Output power listed is conducted. Device operates with specific antennas in MIMO Configurations as described in this filing. This device must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users and installers must be provided with installation and operating instructions for satisfying RF exposure compliance requirements. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| MO: | This Multiple Input Multiple Output (MIMO) device was evaluated for multiple transmitted signals as indicated in the filing. |
| Mail To: |
