FCC ID 2ADA4XB52U
3G Featurephone
by MOBIWIRE MOBILES (NINGBO) CO.,LTD
Grantee Code: 2ADA4 Product Code: XB52U
Latest application date: 2017-05-02
Device Images
FCC ID Device Details
| FCC ID | 2ADA4XB52U |
|---|---|
| Mirrors | fcc.id | gov | fccid.ai |
| Grantee Code | 2ADA4 |
| Product Code | XB52U |
| Applicant Business | MOBIWIRE MOBILES (NINGBO) CO.,LTD 🇨🇳 |
| Related Domains |  mobiwire.com.cn |
| Equipment Class | 3G Featurephone |
| Test Firm | BZT Testing Technology Co., Ltd. |
Operating Frequencies
| Frequency Range | Application Purpose | Final Action Date |
|---|---|---|
| 824.2-848.8 MHz | Original Equipment | 2017-05-02 |
| 2402-2480 MHz | Original Equipment | 2017-05-02 |
| 2402-2480 MHz | Original Equipment | 2017-05-02 |
Exhibits
| Document | Type | Available | File |
|---|---|---|---|
| User manual | Users Manual | 2017-05-02 | PDF 317.6 KB |

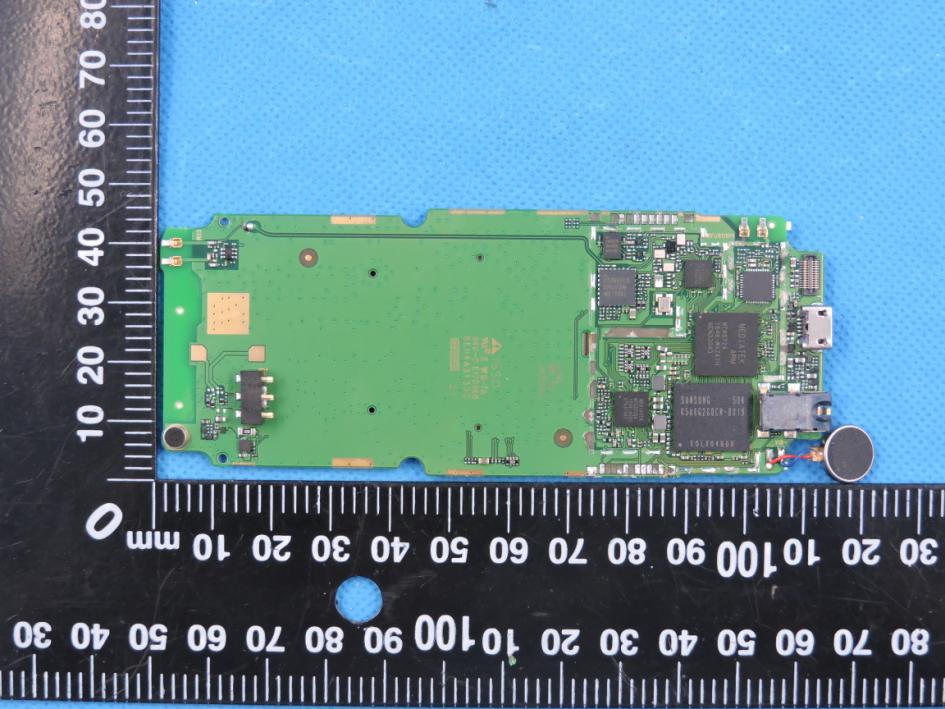

| internal Photo | Internal Photos | 2017-05-02 | PDF 1 MB |
| External Photo | External Photos | 2017-05-02 | PDF 3.2 MB |
| Label | ID Label/Location Info | 2017-05-02 | PDF 164.4 KB |
| SAR Test setup photo | RF Exposure Info | 2017-05-02 | PDF 588 KB |

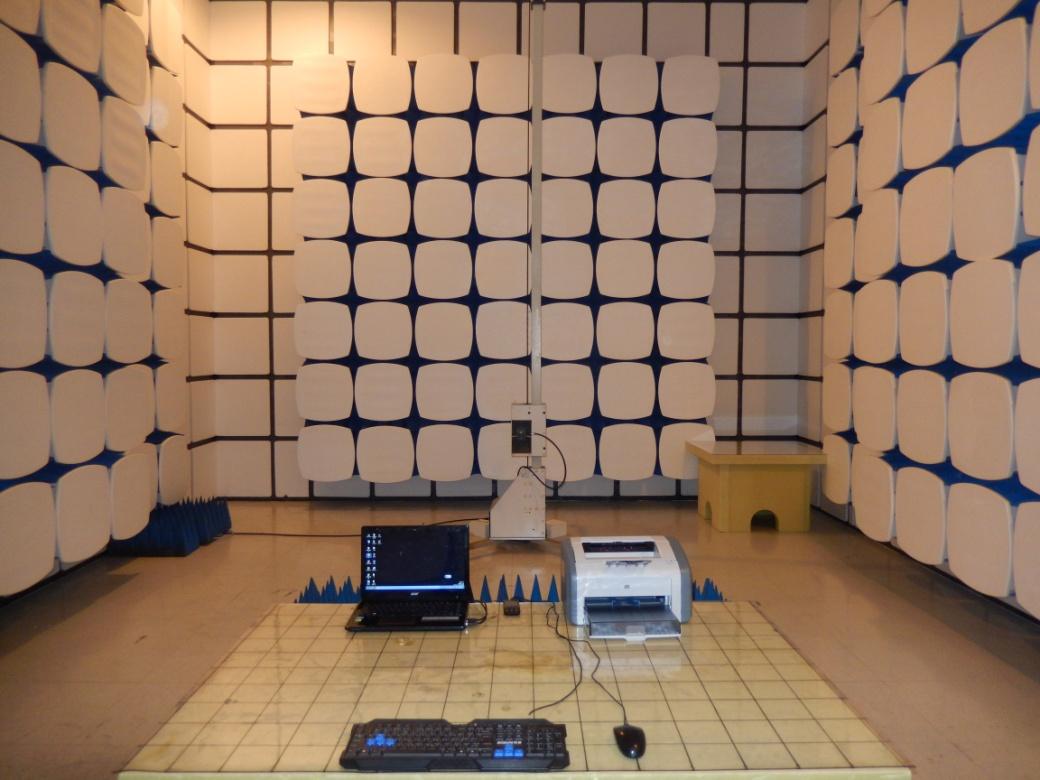

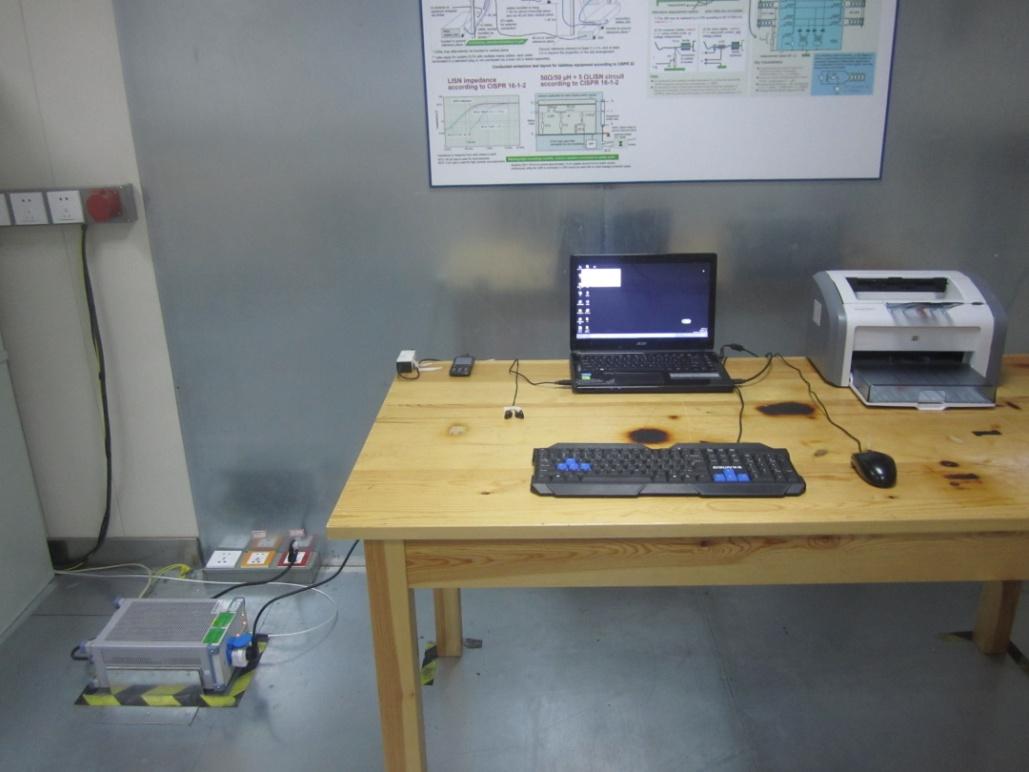

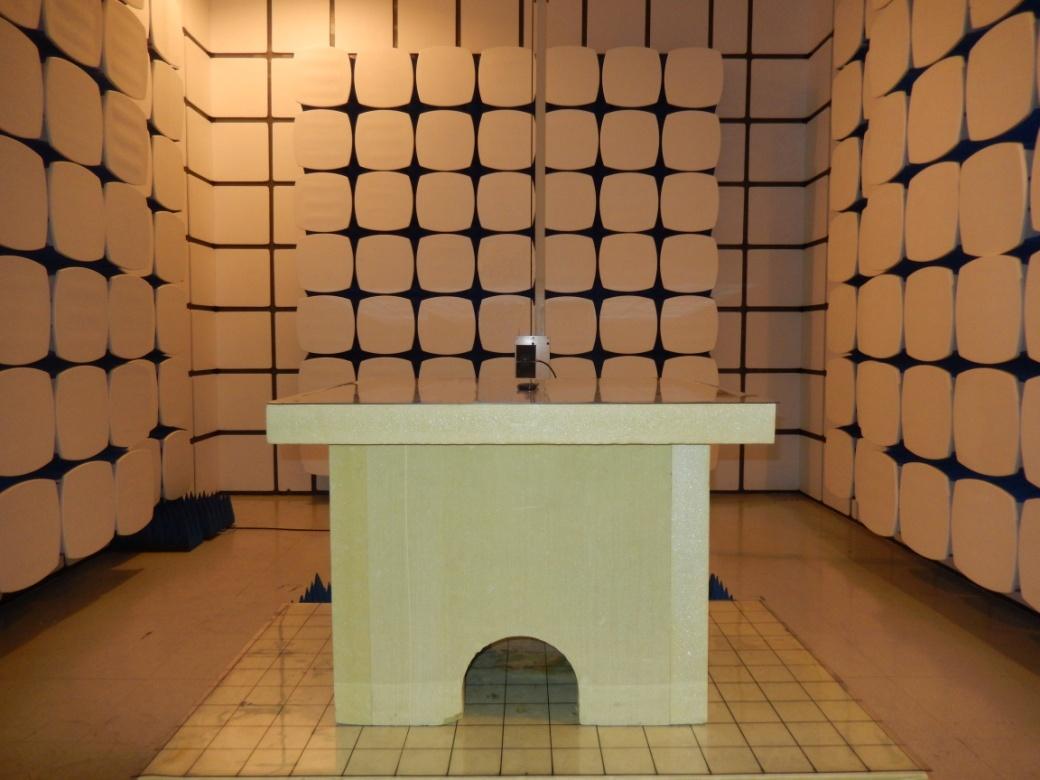

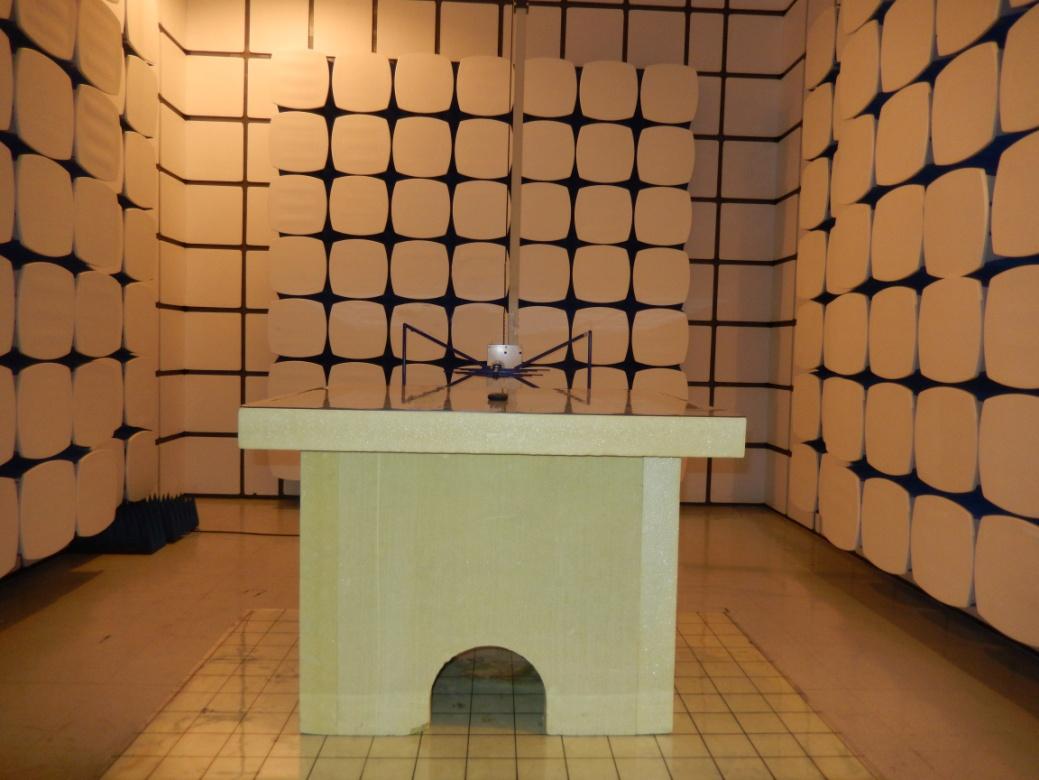

| setup photo | Test Setup Photos | 2017-05-02 | PDF 302.5 KB |
| setup photo | Test Setup Photos | 2017-05-02 | PDF 234.1 KB |
| setup photo | Test Setup Photos | 2017-05-02 | PDF 318.6 KB |
| SAR Test Report | RF Exposure Info | 2017-05-02 | PDF 3.6 MB |
| Test Report | Test Report | 2017-05-02 | PDF 976.6 KB |
| Test Report | Test Report | 2017-05-02 | PDF 4 MB |
| Test Report 4.0 | Test Report | 2017-05-02 | PDF 1.4 MB |
| Test Report WiFi | Test Report | 2017-05-02 | PDF 2.8 MB |
| Test report | Test Report | 2017-05-02 | PDF 2.7 MB |
| AuthorizationLetter | Cover Letter(s) | 2017-05-02 | PDF 9.1 KB |
| Chip Declaration Letter | Cover Letter(s) | 2017-05-02 | PDF 34.7 KB |
| Long Term Confidentiality Request Letter | Cover Letter(s) | 2017-05-02 | PDF 14.1 KB |
| SAR Calibration Report | RF Exposure Info | 2017-05-02 | PDF 1.2 MB |
| Block Metadata only | Block Diagram | PDF 10.1 KB | |
| SCH Metadata only | Schematics | PDF 2.7 MB | |
| Operational Description Metadata only | Operational Description | PDF 159.5 KB | |
| BOM Metadata only | Parts List/Tune Up Info | PDF 77.7 KB | |
| Tune Up Procedure Metadata only | Parts List/Tune Up Info | PDF 138.1 KB |
Application Information
| Application ID | kPUDKLEcna9Z+ae+d2MlkA== |
|---|---|
| Final Action Date | 2017-05-02 |
| Application Purpose | Original Equipment |
| Applicant FRN | 0023967144 |
| Model | XB52U |
| Frequency Range | 824.2-848.8 MHz |
| Equipment Class | PCE - PCS Licensed Transmitter held to ear |
| Device Description | 3G Featurephone |
| Responsible Party | Xu Leander, Manager, Leander.Xu@mobiwire.com.cn , (+86) 0574 88916450 |
| Technical Contact | Bruce Zhang, BZT Testing Technology Co., Ltd, bruce@bzt.org.cn  , 86-0755-33071680 |
| Test Firm | Bruce Zhang, BZT Testing Technology Co., Ltd., bruce@bzt.org.cn , (86)-0755-33071680 |
| TCB Email | tcbinfo@metlabs.com  |
| TCB Scope | B1: Commercial mobile radio services equipment in the following 47 CFR Parts 20, 22 (cellular), 24,25 (below 3 GHz) & 27 |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | Yes |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | Yes |
| Composite Part | No |
| Cognitive Radio | No |
| Authorization Waiver | No |
| Authorization Waiver Approved | No |
| Section 5301 Certification | Yes |
| Related OET Knowledge DataBase Inquiry | No |
| Grant Comments | Output power listed is ERP for frequencies below 1 GHz and EIRP for frequencies above 1 GHz. This device contains functions that are not operational in U.S. Territories; this filing is applicable only for the operations described in this filing. Highest reported SAR for Head, Body, product specific (wireless router), simultaneous transmit are: 1.31 W/kg, 1.24 W/kg, 1.24W/kg, 1.53 W/kg |
Applications
| Application ID | Date | Purpose |
|---|---|---|
| kPUDKLEcna9Z+ae+d2MlkA== | 2017-05-02 | Original Equipment |
| j2WmgJo86FzfD0Gqc9yyaA== | 2017-05-02 | Original Equipment |
| b3osmKxeUMBCE8MWiU/KeA== | 2017-05-02 | Original Equipment |
| 5MgQkgf3V/UMP+q+7btxwg== | 2017-05-02 | Original Equipment |
Equipment Authorization
| Frequency | Output | Tolerance | Emission | Rules | Grant Notes |
|---|---|---|---|---|---|
| 15B | CC | ||||
| 824.2-848.8 MHz | 1.714 | 0.35ppm | 320KGXW | 22H | |
| 824.2-848.8 MHz | 1.667 | 0.406ppm | 318KG7W | 22H | |
| 826.4-846.6 MHz | 0.153 | 0.429ppm | 4M69F9W | 22H | |
| 1850.2-1909.8 MHz | 1.112 | 0.018ppm | 317KGXW | 24E | |
| 1850.2-1909.8 MHz | 1.076 | 0.019ppm | 319KG7W | 24E | |
| 1852.4-1907.6 MHz | 0.155 | 0.019ppm | 4M69F9W | 24E | |
| 2402-2480 MHz | 0.0070000 | 15C | CC | ||
| 2402-2480 MHz | 0.001 | 15C | CC | ||
| 2412-2462 MHz | 0.075 | 15C | CC |
Grants
TCB Grant - Application kPUDKLEcna9Z+ae+d2MlkA==
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
Eurofins Electrical and Electronic Testing NA, Inc 914 W. Patapsco Avenue Baltimore, MD 21230-3432 |
Date of Grant: 05/02/2017 Application Dated: 05/02/2017 |
| MOBIWIRE MOBILES (NINGBO) CO.,LTD |
| No.999,Dacheng East Road,Fenghua,Zhejiang,China |
| Fenghua, China |
| Attention: Xu Leander , Manager |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | 2ADA4XB52U |
| Name of Grantee: | MOBIWIRE MOBILES (NINGBO) CO.,LTD |
| Equipment Class: | PCS Licensed Transmitter held to ear |
| Notes: | 3G Featurephone |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 22H | 824.2 - 848.8 | 1.714 | 0.35 PM | 320KGXW | |
| 22H | 824.2 - 848.8 | 1.667 | 0.406 PM | 318KG7W | |
| 24E | 1850.2 - 1909.8 | 1.112 | 0.018 PM | 317KGXW | |
| 24E | 1850.2 - 1909.8 | 1.076 | 0.019 PM | 319KG7W | |
| 22H | 826.4 - 846.6 | 0.153 | 0.429 PM | 4M69F9W | |
| 24E | 1852.4 - 1907.6 | 0.155 | 0.019 PM | 4M69F9W |
| Output power listed is ERP for frequencies below 1 GHz and EIRP for frequencies above 1 GHz. This device contains functions that are not operational in U.S. Territories; this filing is applicable only for the operations described in this filing. Highest reported SAR for Head, Body, product specific (wireless router), simultaneous transmit are: 1.31 W/kg, 1.24 W/kg, 1.24W/kg, 1.53 W/kg |
EAS Grant - Application kPUDKLEcna9Z+ae+d2MlkA==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
MOBIWIRE MOBILES (NINGBO) CO.,LTD No.999,Dacheng East Road,Fenghua,Zhejiang,China Fenghua, China |
Date of Grant: 05/02/2017 Application Dated: 05/02/2017 |
| Attention: Xu Leander , Manager |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | 2ADA4XB52U |
| Name of Grantee: | MOBIWIRE MOBILES (NINGBO) CO.,LTD |
| Equipment Class: | PCS Licensed Transmitter held to ear |
| Notes: | 3G Featurephone |
| Modular Type: | Does not apply |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 22H | 824.2 - 848.8 | 1.714 | 0.35 PM | 320KGXW | |
| 22H | 824.2 - 848.8 | 1.667 | 0.406 PM | 318KG7W | |
| 24E | 1850.2 - 1909.8 | 1.112 | 0.018 PM | 317KGXW | |
| 24E | 1850.2 - 1909.8 | 1.076 | 0.019 PM | 319KG7W | |
| 22H | 826.4 - 846.6 | 0.153 | 0.429 PM | 4M69F9W | |
| 24E | 1852.4 - 1907.6 | 0.155 | 0.019 PM | 4M69F9W |
| Output power listed is ERP for frequencies below 1 GHz and EIRP for frequencies above 1 GHz. This device contains functions that are not operational in U.S. Territories; this filing is applicable only for the operations described in this filing. Highest reported SAR for Head, Body, product specific (wireless router), simultaneous transmit are: 1.31 W/kg, 1.24 W/kg, 1.24W/kg, 1.53 W/kg |
| Mail To: | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
Eurofins Electrical and Electronic Testing NA, Inc 914 W. Patapsco Avenue Baltimore, MD 21230-3432 |
Date of Grant: 05/02/2017 Application Dated: 05/02/2017 |
| MOBIWIRE MOBILES (NINGBO) CO.,LTD |
| No.999,Dacheng East Road,Fenghua,Zhejiang,China |
| Fenghua, China |
| Attention: Xu Leander , Manager |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | 2ADA4XB52U |
| Name of Grantee: | MOBIWIRE MOBILES (NINGBO) CO.,LTD |
| Equipment Class: | Digital Transmission System |
| Notes: | 3G Featurephone |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| CC | 15C | 2402.0 - 2480.0 | 0.001 | ||
| CC | 15C | 2412.0 - 2462.0 | 0.075 |
| Output Power listed is conducted. Highest reported SAR for Head, Body, product specific (wireless router), simultaneous transmit are: 0.21W/kg, 0.10W/kg, 0.10 W/kg, 1.53 W/kg The device support 20MHz and 40MHz bandwidth. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
EAS Grant - Application j2WmgJo86FzfD0Gqc9yyaA==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
MOBIWIRE MOBILES (NINGBO) CO.,LTD No.999,Dacheng East Road,Fenghua,Zhejiang,China Fenghua, China |
Date of Grant: 05/02/2017 Application Dated: 05/02/2017 |
| Attention: Xu Leander , Manager |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | 2ADA4XB52U |
| Name of Grantee: | MOBIWIRE MOBILES (NINGBO) CO.,LTD |
| Equipment Class: | Digital Transmission System |
| Notes: | 3G Featurephone |
| Modular Type: | Does not apply |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| CC | 15C | 2402.0 - 2480.0 | 0.001 | ||
| CC | 15C | 2412.0 - 2462.0 | 0.075 |
| Output Power listed is conducted. Highest reported SAR for Head, Body, product specific (wireless router), simultaneous transmit are: 0.21W/kg, 0.10W/kg, 0.10 W/kg, 1.53 W/kg The device support 20MHz and 40MHz bandwidth. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| Mail To: | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
Eurofins Electrical and Electronic Testing NA, Inc 914 W. Patapsco Avenue Baltimore, MD 21230-3432 |
Date of Grant: 05/02/2017 Application Dated: 05/02/2017 |
| MOBIWIRE MOBILES (NINGBO) CO.,LTD |
| No.999,Dacheng East Road,Fenghua,Zhejiang,China |
| Fenghua, China |
| Attention: Xu Leander , Manager |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | 2ADA4XB52U |
| Name of Grantee: | MOBIWIRE MOBILES (NINGBO) CO.,LTD |
| Equipment Class: | Part 15 Class B Computing Device Peripheral |
| Notes: | 3G Featurephone |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| CC | 15B | - |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
EAS Grant - Application b3osmKxeUMBCE8MWiU/KeA==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
MOBIWIRE MOBILES (NINGBO) CO.,LTD No.999,Dacheng East Road,Fenghua,Zhejiang,China Fenghua, China |
Date of Grant: 05/02/2017 Application Dated: 05/02/2017 |
| Attention: Xu Leander , Manager |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | 2ADA4XB52U |
| Name of Grantee: | MOBIWIRE MOBILES (NINGBO) CO.,LTD |
| Equipment Class: | Part 15 Class B Computing Device Peripheral |
| Notes: | 3G Featurephone |
| Modular Type: | Does not apply |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| CC | 15B | - |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| Mail To: | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
Eurofins Electrical and Electronic Testing NA, Inc 914 W. Patapsco Avenue Baltimore, MD 21230-3432 |
Date of Grant: 05/02/2017 Application Dated: 05/02/2017 |
| MOBIWIRE MOBILES (NINGBO) CO.,LTD |
| No.999,Dacheng East Road,Fenghua,Zhejiang,China |
| Fenghua, China |
| Attention: Xu Leander , Manager |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | 2ADA4XB52U |
| Name of Grantee: | MOBIWIRE MOBILES (NINGBO) CO.,LTD |
| Equipment Class: | Part 15 Spread Spectrum Transmitter |
| Notes: | 3G Featurephone |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| CC | 15C | 2402.0 - 2480.0 | 0.007 |
| Output Power listed is conducted. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
EAS Grant - Application 5MgQkgf3V/UMP+q+7btxwg==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
MOBIWIRE MOBILES (NINGBO) CO.,LTD No.999,Dacheng East Road,Fenghua,Zhejiang,China Fenghua, China |
Date of Grant: 05/02/2017 Application Dated: 05/02/2017 |
| Attention: Xu Leander , Manager |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | 2ADA4XB52U |
| Name of Grantee: | MOBIWIRE MOBILES (NINGBO) CO.,LTD |
| Equipment Class: | Part 15 Spread Spectrum Transmitter |
| Notes: | 3G Featurephone |
| Modular Type: | Does not apply |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| CC | 15C | 2402.0 - 2480.0 | 0.007 |
| Output Power listed is conducted. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| Mail To: |
