FCC ID 2ADCB-BLMF1
Bluetooth Low Energy Beacon
by Acuity Brands Lighting, Inc.
Grantee Code: 2ADCB Product Code: BLMF1
Latest application date: 2016-06-03
Device Images
FCC ID Device Details
| FCC ID | 2ADCB-BLMF1 |
|---|---|
| Mirrors | fcc.id | gov | fccid.ai |
| Grantee Code | 2ADCB |
| Product Code | BLMF1 |
| Applicant Business | Acuity Brands Lighting, Inc. 🇺🇸 |
| Related Domains |  acuitybrands.com |
| Equipment Class | Bluetooth Low Energy Beacon |
| Test Firm | TUV SUD America, Inc. |
Operating Frequencies
| Frequency Range | Application Purpose | Final Action Date |
|---|---|---|
| 2402-2480 MHz | Class II permissive change or modification of presently authorized equipment | 2016-06-03 |
| 2402-2480 MHz | Original Equipment | 2015-09-28 |
Exhibits
| Document | Type | Available | File |
|---|---|---|---|
| Manual | Users Manual | 2016-06-03 | PDF 160.9 KB |
| Manual | Users Manual | 2015-09-28 | PDF 374.2 KB |
| Internal Photos | Internal Photos | 2015-09-28 | PDF 312.5 KB |
| External Photos | External Photos | 2016-06-03 | PDF 1.3 MB |
| External Photos | External Photos | 2015-09-28 | PDF 832.2 KB |
| Label Information | ID Label/Location Info | 2015-09-28 | PDF 172.3 KB |

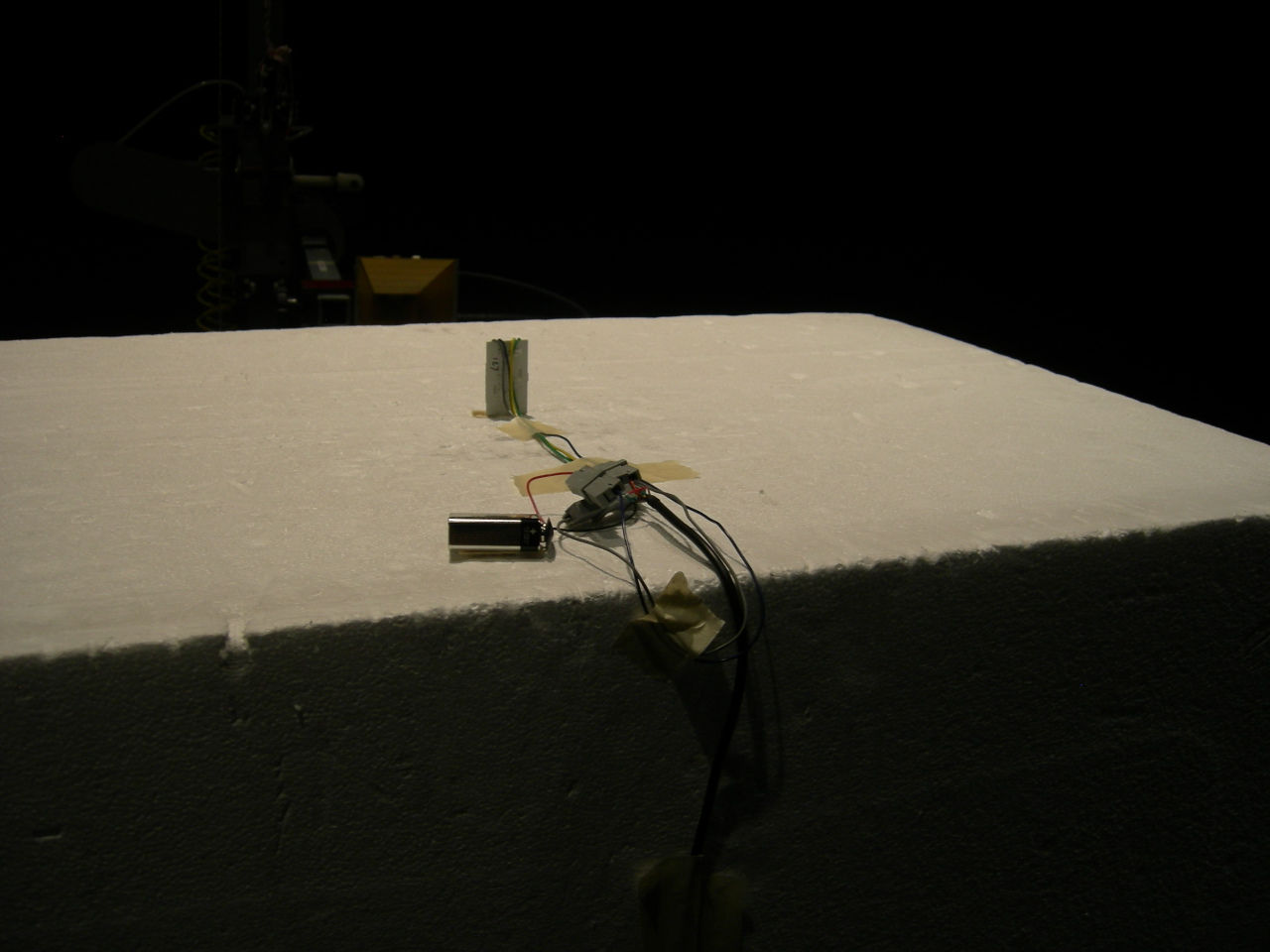

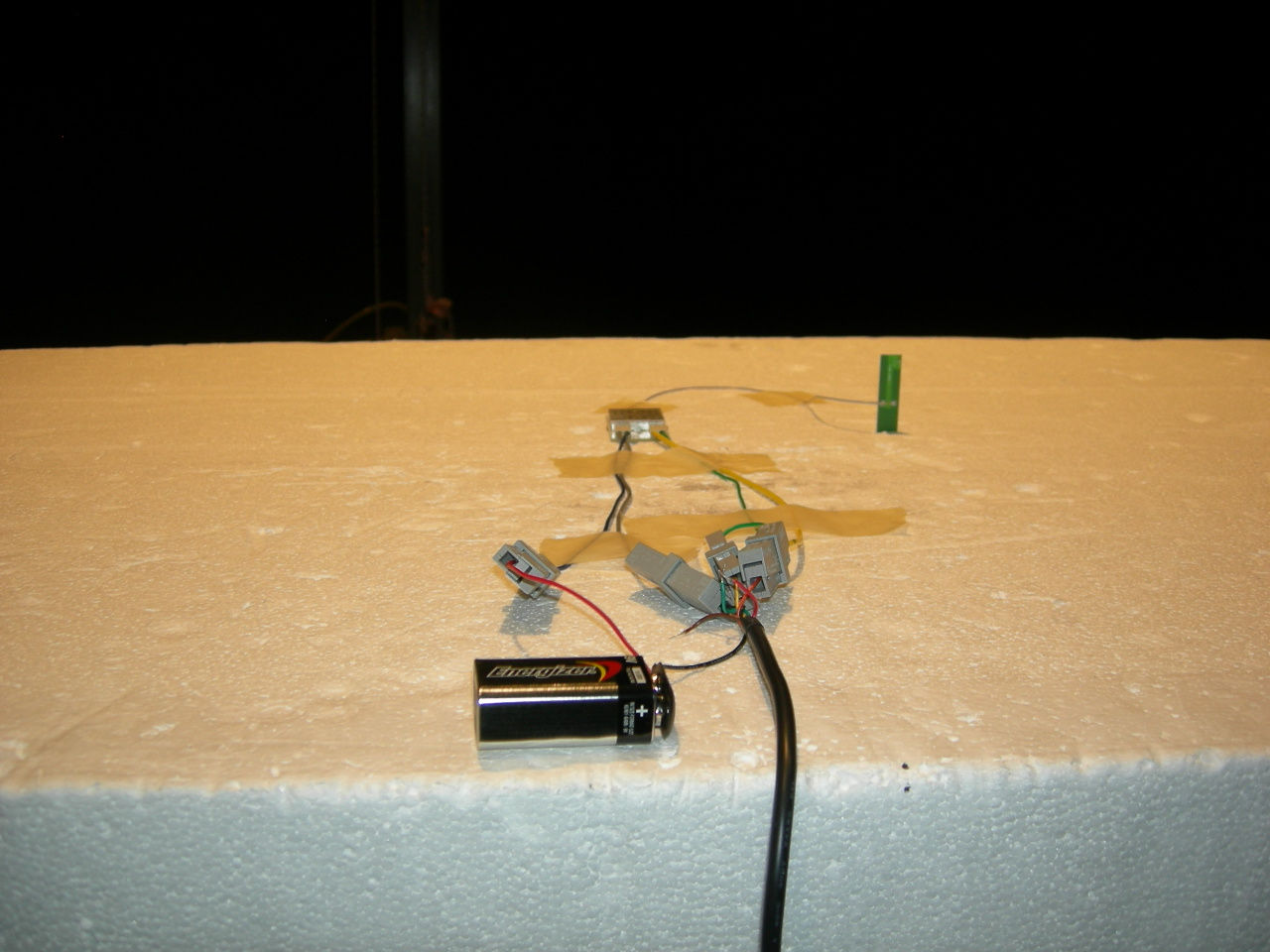

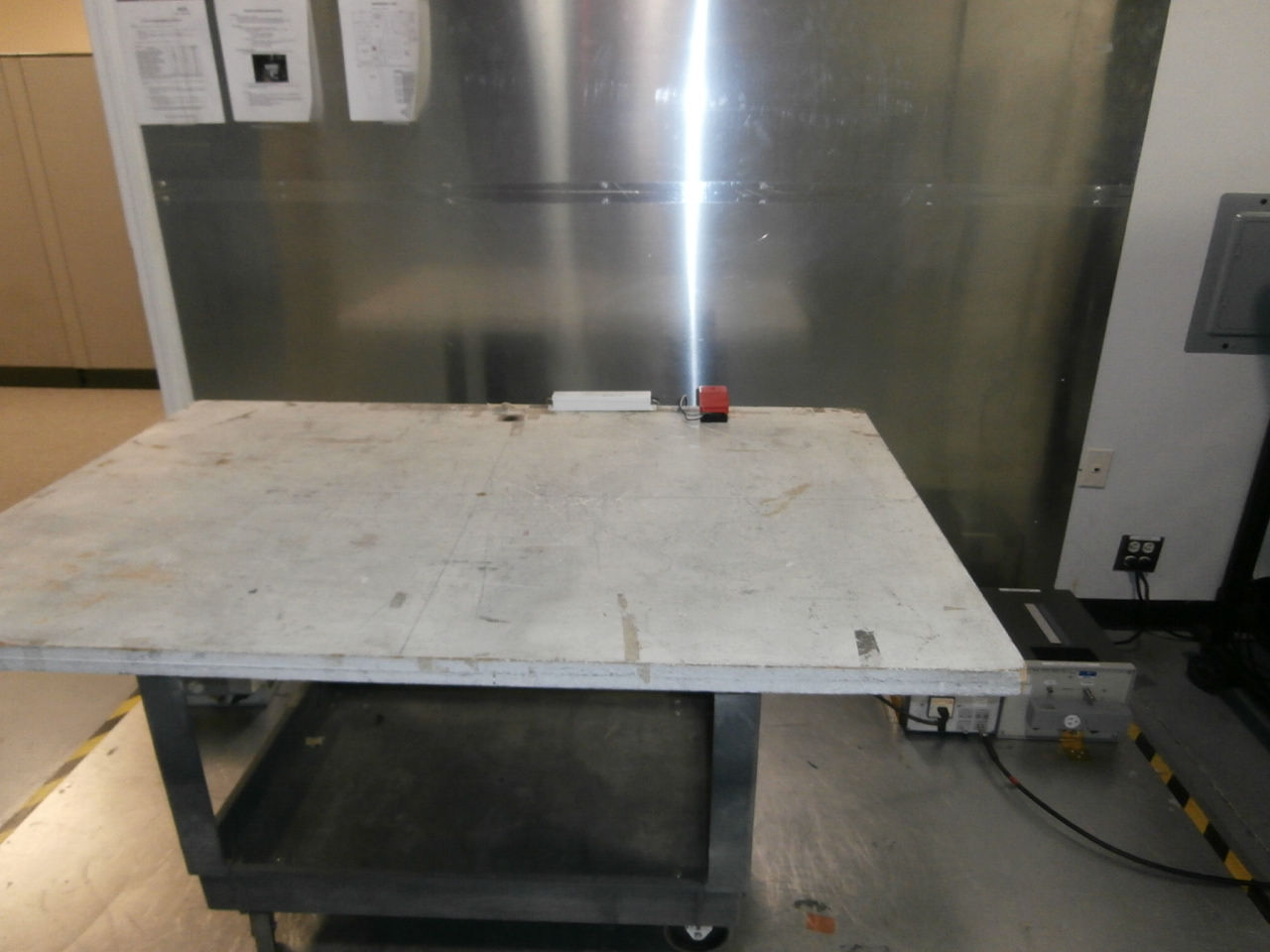

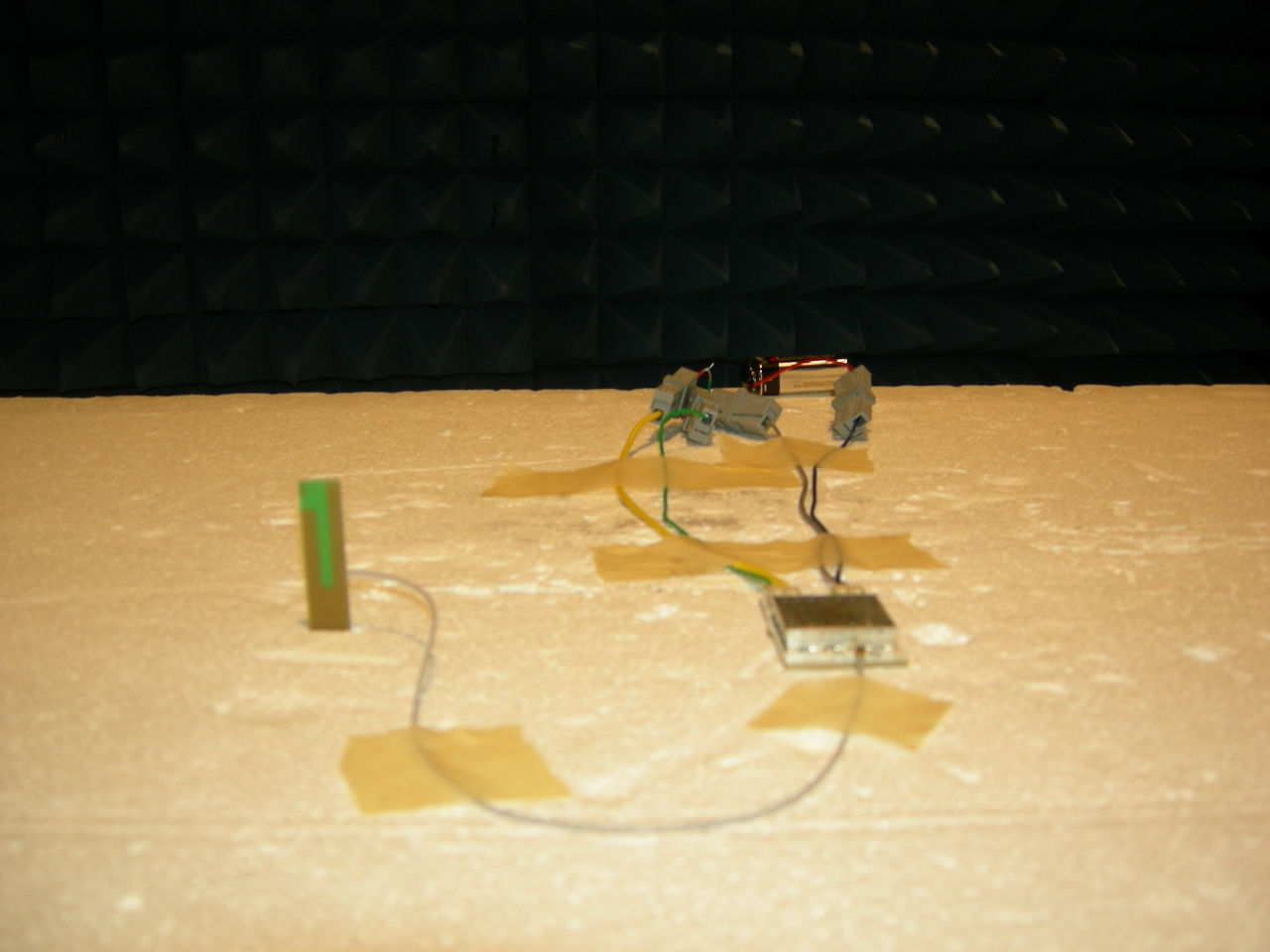

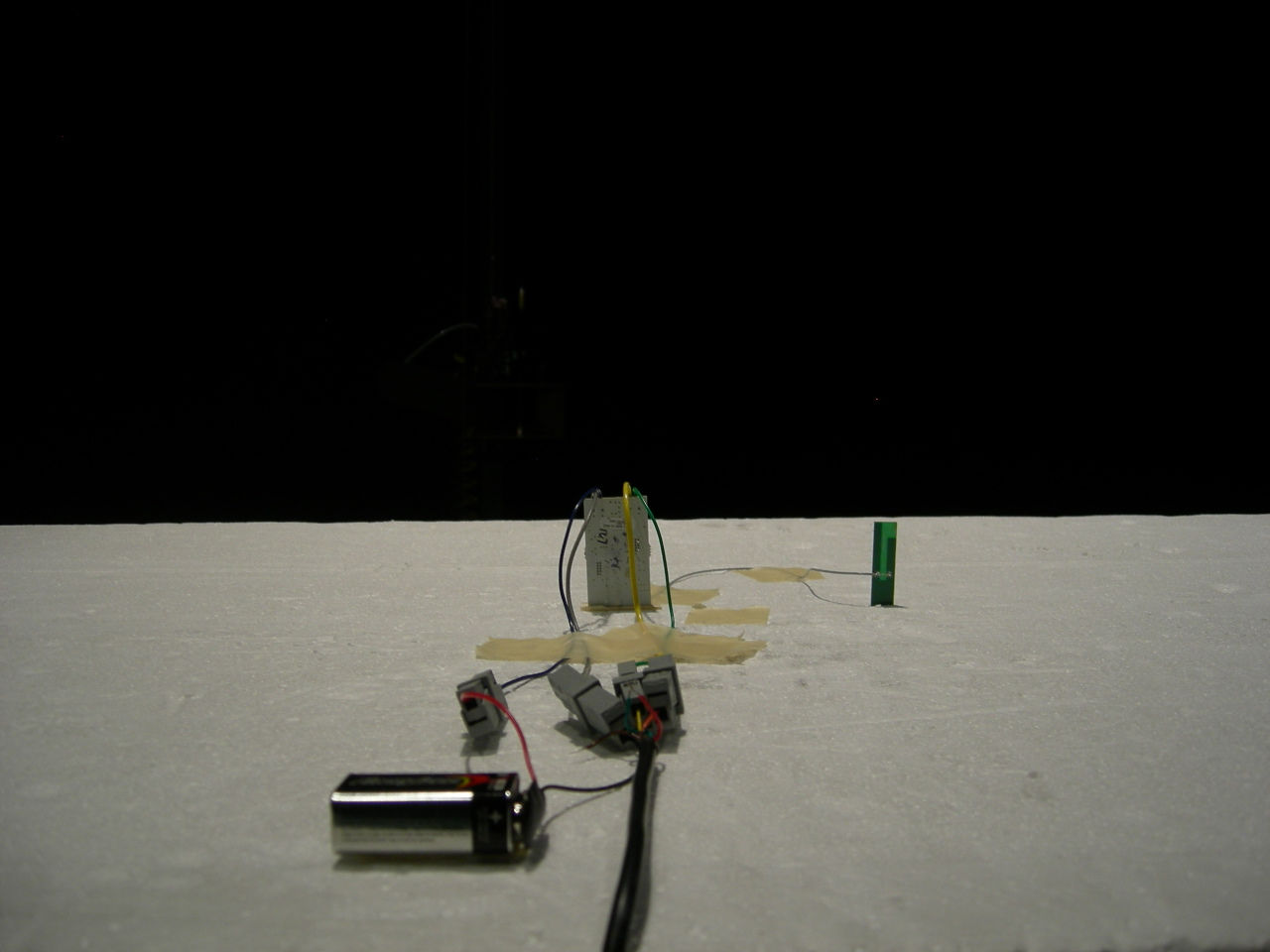

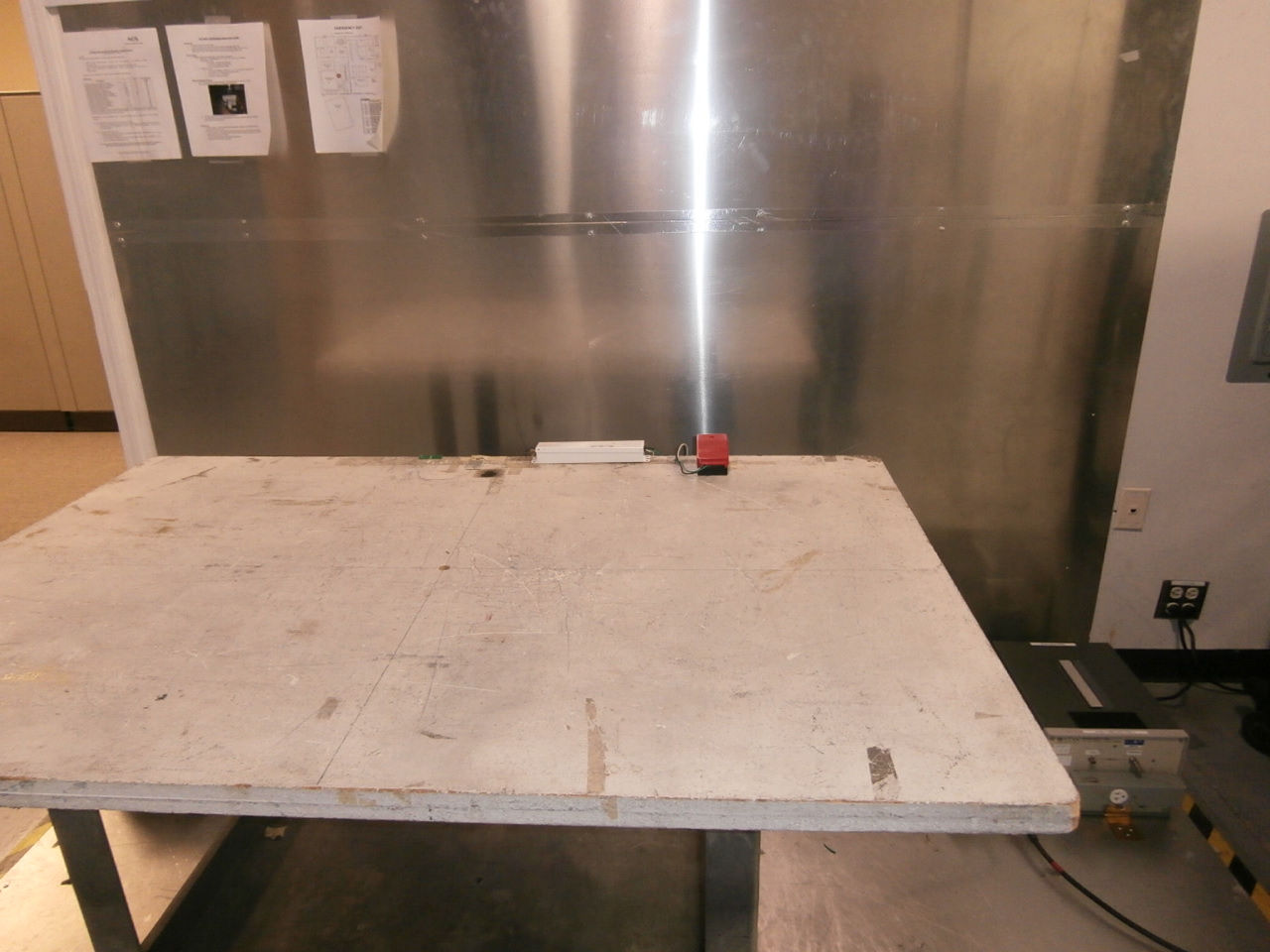

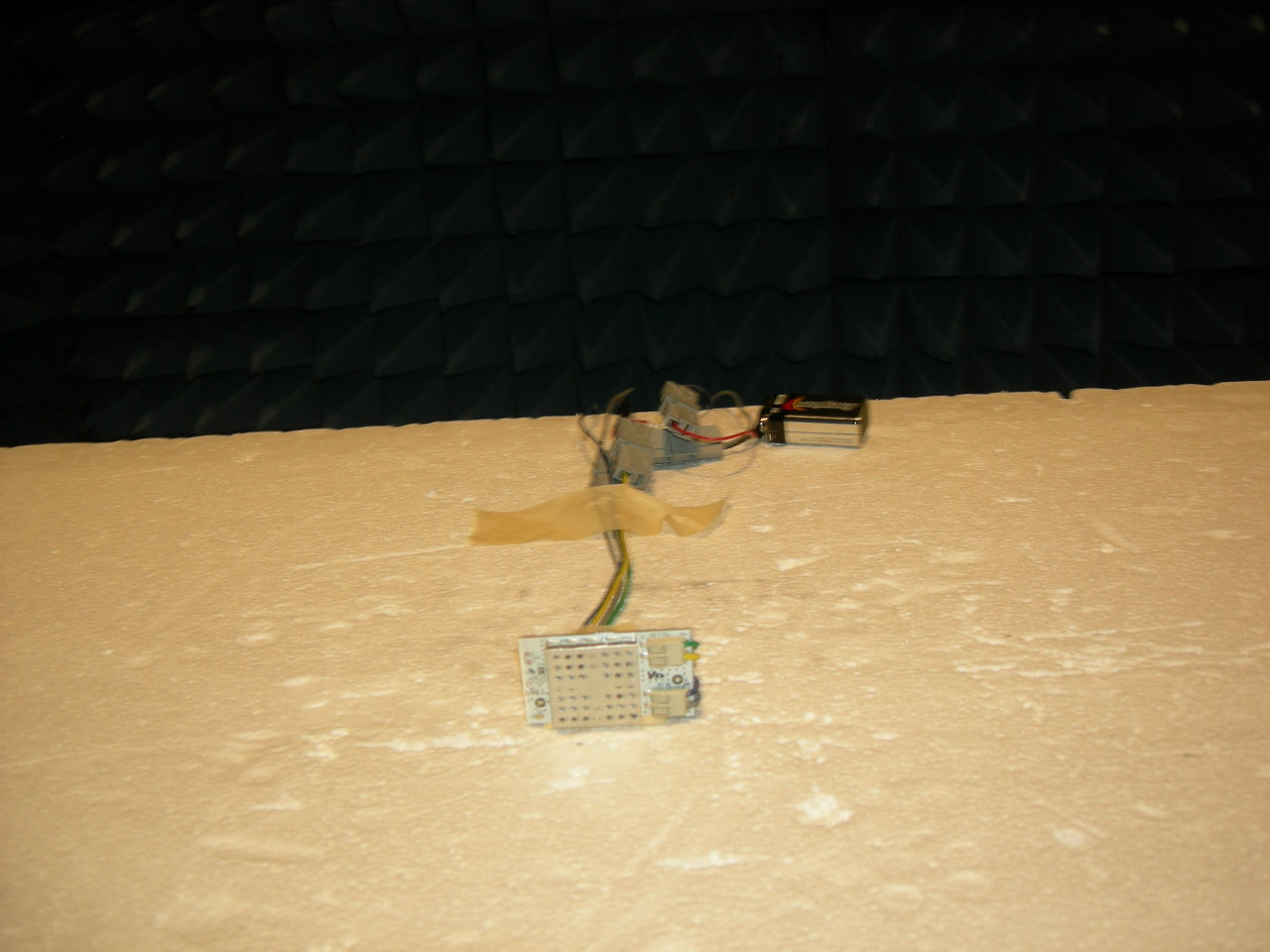

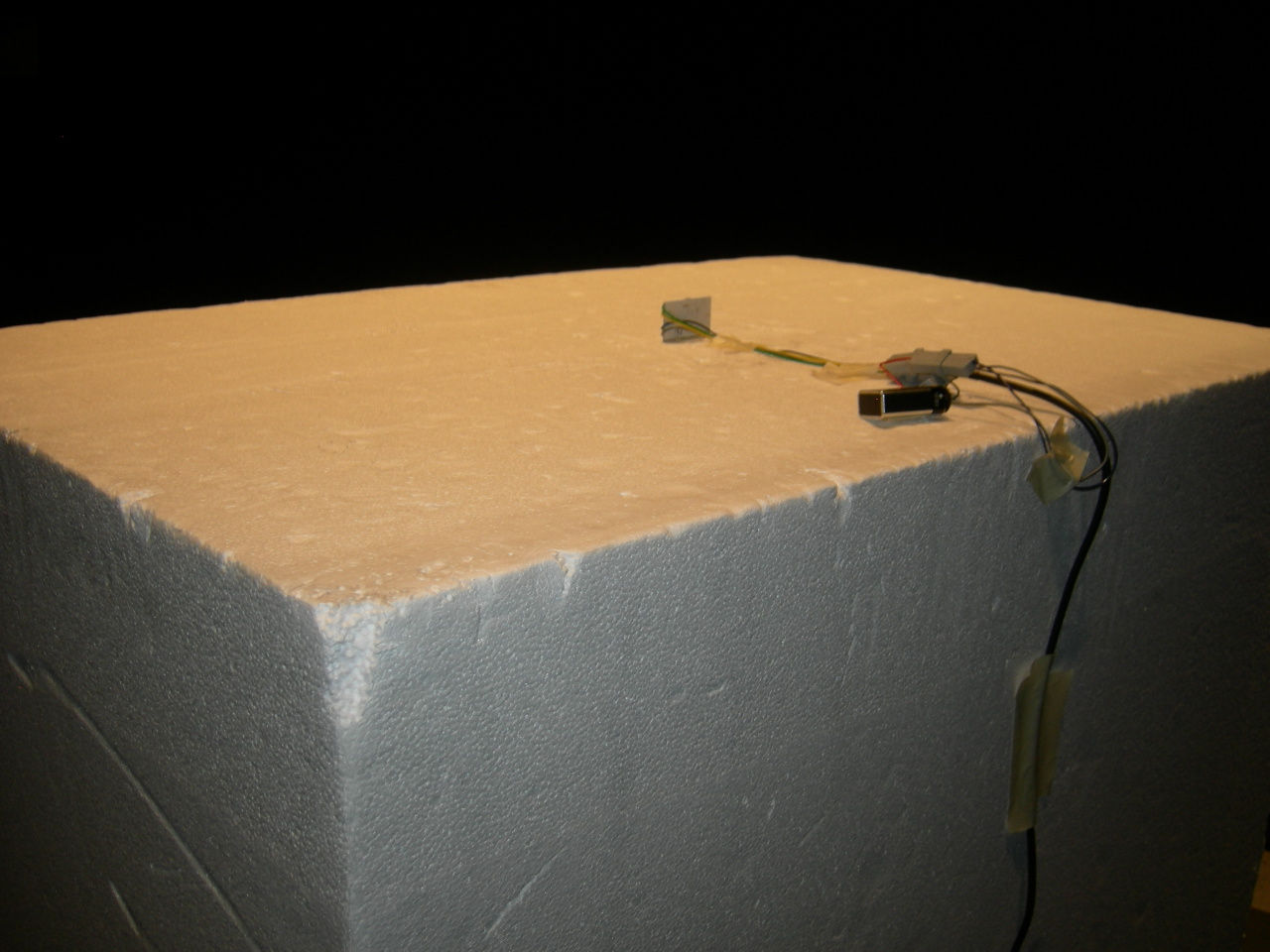

| Test Setup Photos | Test Setup Photos | 2016-06-03 | PDF 703.8 KB |
| Test Setup Photos | Test Setup Photos | 2015-09-28 | PDF 1.9 MB |
| Test Report | Test Report | 2016-06-03 | PDF 259.6 KB |
| Test Report | Test Report | 2015-09-28 | PDF 1.1 MB |
| Agency Agreement | Cover Letter(s) | 2016-06-03 | PDF 171.8 KB |
| Confidentiality Request | Cover Letter(s) | 2016-06-03 | PDF 175.4 KB |
| FCC Cover Letter | Cover Letter(s) | 2016-06-03 | PDF 57.7 KB |
| Agency Agreement | Cover Letter(s) | 2015-09-28 | PDF 111.3 KB |
| Confidentiality Request | Cover Letter(s) | 2015-09-28 | PDF 116.7 KB |
| FCC Cover Letter | Cover Letter(s) | 2015-09-28 | PDF 12.8 KB |
| Modular Approval Letter | Cover Letter(s) | 2015-09-28 | PDF 401.5 KB |
| RF Exposure | RF Exposure Info | 2016-06-03 | PDF 89.8 KB |
| RF Exposure | RF Exposure Info | 2015-09-28 | PDF 42.6 KB |
| Block Diagram Metadata only | Block Diagram | PDF 118.9 KB | |
| Block Diagram Metadata only | Block Diagram | PDF 87.8 KB | |
| Schematics Metadata only | Schematics | PDF 151.1 KB | |
| Theory of Operation Metadata only | Operational Description | PDF 726.4 KB | |
| Theory of Operation Metadata only | Operational Description | PDF 948.2 KB | |
| Bill Of Materials Metadata only | Parts List/Tune Up Info | PDF 57.1 KB | |
| Parts List Metadata only | Parts List/Tune Up Info | PDF 350.5 KB |
Application Information
| Application ID | 5inrqWwkY6MtFGOkODCyMg== |
|---|---|
| Final Action Date | 2016-06-03 |
| Application Purpose | Class II permissive change or modification of presently authorized equipment |
| Applicant FRN | 0023988462 |
| Model | BLMF1 |
| Frequency Range | 2402-2480 MHz |
| Equipment Class | DTS - Digital Transmission System |
| Device Description | Bluetooth Low Energy Beacon |
| Responsible Party | Fred Carpenter, fred.carpenter@acuitybrands.com , 7708602184 |
| Agent | Sam Sam Sam, Advanced Compliance Solutions, Inc. |
| Test Firm | Sam Wismer, TUV SUD America, Inc., swismer@tuvam.com  , 678-341-5924 |
| TCB Email | jwoods@acstestlab.com  |
| TCB Scope | A4: UNII devices & low power transmitters using spread spectrum techniques |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | Yes |
| Grant Deferral | No |
| Modular Equipment | Single Modular Approval |
| Composite Device | No |
| Composite Part | No |
| Cognitive Radio | No |
| Authorization Waiver | No |
| Authorization Waiver Approved | No |
| Section 5301 Certification | Yes |
| Related OET Knowledge DataBase Inquiry | No |
| Grant Comments | Modular Approval. Power listed is conducted. The transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not transmit simultaneously with any other antenna or transmitter, except in accordance with FCC multi-transmitter product procedures. Grantee must provide installation and operating instructions for complying with FCC multi-transmitter product procedures. Installers and end-users must be provided with transmitter operation conditions for satisfying RF exposure compliance. Device must operate with a source-based, time-averaged duty cycle not to exceed 0.376%. Class II Change to add new higher gain antenna. |
Applications
| Application ID | Date | Purpose |
|---|---|---|
| 5inrqWwkY6MtFGOkODCyMg== | 2016-06-03 | Class II permissive change or modification of presently authorized equipment |
| nXeZuQWTP7ZWSdaToJ7M/Q== | 2015-09-28 | Original Equipment |
Equipment Authorization
| Frequency | Output | Rules |
|---|---|---|
| 2402-2480 MHz | 0.0020000 | 15C |
Grants
TCB Grant - Application nXeZuQWTP7ZWSdaToJ7M/Q==
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
TUV SUD America Inc. 401 Edgewater Place Suite #500 Wakefield, MA 01880 |
Date of Grant: 09/28/2015 Application Dated: 09/28/2015 |
| Acuity Brands Lighting, Inc. |
| One Lithonia Way |
| Conyers, GA 30012 |
| Attention: Fred Carpenter |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | 2ADCB-BLMF1 |
| Name of Grantee: | Acuity Brands Lighting, Inc. |
| Equipment Class: | Digital Transmission System |
| Notes: | Bluetooth Low Energy Beacon |
| Modular Type: | Single Modular |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 15C | 2402.0 - 2480.0 | 0.002 |
| Modular Approval. Power listed is conducted. The transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not transmit simultaneously with any other antenna or transmitter, except in accordance with FCC multi-transmitter product procedures. Grantee must provide installation and operating instructions for complying with FCC multi-transmitter product procedures. Installers and end-users must be provided with transmitter operation conditions for satisfying RF exposure compliance. Device must operate with a source-based, time-averaged duty cycle not to exceed 0.376%. |
EAS Grant - Application nXeZuQWTP7ZWSdaToJ7M/Q==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
Acuity Brands Lighting, Inc. One Lithonia Way Conyers, GA 30012 United States |
Date of Grant: 09/28/2015 Application Dated: 09/28/2015 |
| Attention: Fred Carpenter |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | 2ADCB-BLMF1 |
| Name of Grantee: | Acuity Brands Lighting, Inc. |
| Equipment Class: | Digital Transmission System |
| Notes: | Bluetooth Low Energy Beacon |
| Modular Type: | Single Modular |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 15C | 2402.0 - 2480.0 | 0.002 |
| Modular Approval. Power listed is conducted. The transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not transmit simultaneously with any other antenna or transmitter, except in accordance with FCC multi-transmitter product procedures. Grantee must provide installation and operating instructions for complying with FCC multi-transmitter product procedures. Installers and end-users must be provided with transmitter operation conditions for satisfying RF exposure compliance. Device must operate with a source-based, time-averaged duty cycle not to exceed 0.376%. |
| Mail To: | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
TUV SUD America Inc. 401 Edgewater Place Suite #500 Wakefield, MA 01880 |
Date of Grant: 06/03/2016 Application Dated: 06/03/2016 |
| Acuity Brands Lighting, Inc. |
| One Lithonia Way |
| Conyers, GA 30012 |
| Attention: Fred Carpenter |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | 2ADCB-BLMF1 |
| Name of Grantee: | Acuity Brands Lighting, Inc. |
| Equipment Class: | Digital Transmission System |
| Notes: | Bluetooth Low Energy Beacon |
| Modular Type: | Single Modular |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 15C | 2402.0 - 2480.0 | 0.002 |
| Modular Approval. Power listed is conducted. The transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not transmit simultaneously with any other antenna or transmitter, except in accordance with FCC multi-transmitter product procedures. Grantee must provide installation and operating instructions for complying with FCC multi-transmitter product procedures. Installers and end-users must be provided with transmitter operation conditions for satisfying RF exposure compliance. Device must operate with a source-based, time-averaged duty cycle not to exceed 0.376%. Class II Change to add new higher gain antenna. |
EAS Grant - Application 5inrqWwkY6MtFGOkODCyMg==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
Acuity Brands Lighting, Inc. One Lithonia Way Conyers, GA 30012 United States |
Date of Grant: 06/03/2016 Application Dated: 06/03/2016 |
| Attention: Fred Carpenter |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | 2ADCB-BLMF1 |
| Name of Grantee: | Acuity Brands Lighting, Inc. |
| Equipment Class: | Digital Transmission System |
| Notes: | Bluetooth Low Energy Beacon |
| Modular Type: | Single Modular |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 15C | 2402.0 - 2480.0 | 0.002 |
| Modular Approval. Power listed is conducted. The transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not transmit simultaneously with any other antenna or transmitter, except in accordance with FCC multi-transmitter product procedures. Grantee must provide installation and operating instructions for complying with FCC multi-transmitter product procedures. Installers and end-users must be provided with transmitter operation conditions for satisfying RF exposure compliance. Device must operate with a source-based, time-averaged duty cycle not to exceed 0.376%. Class II Change to add new higher gain antenna. |
| Mail To: |
