FCC ID 2ADGA-WT4100
WT4100 series Long Range Wireless Transmitters
by Schneider Electric Industries SAS
Grantee Code: 2ADGA Product Code: WT4100
Latest application date: 2015-12-01
Device Images
FCC ID Device Details
| FCC ID | 2ADGA-WT4100 |
|---|---|
| Mirrors | fcc.id | gov | fccid.ai |
| Grantee Code | 2ADGA |
| Product Code | WT4100 |
| Applicant Business | Schneider Electric Industries SAS 🇫🇷 |
| Related Domains |  schneider-electric.com |
| Equipment Class | WT4100 series Long Range Wireless Transmitters |
| Test Firm | Element Materials Technology Warwick Ltd |
Operating Frequencies
| Frequency Range | Application Purpose | Final Action Date |
|---|---|---|
| 153.103 MHz | Original Equipment | 2015-12-01 |
Exhibits
| Document | Type | Available | File |
|---|---|---|---|
| Users Manual | Users Manual | 2015-12-01 | PDF 3.1 MB |
| Internal Photos | Internal Photos | 2015-12-01 | PDF 481.7 KB |

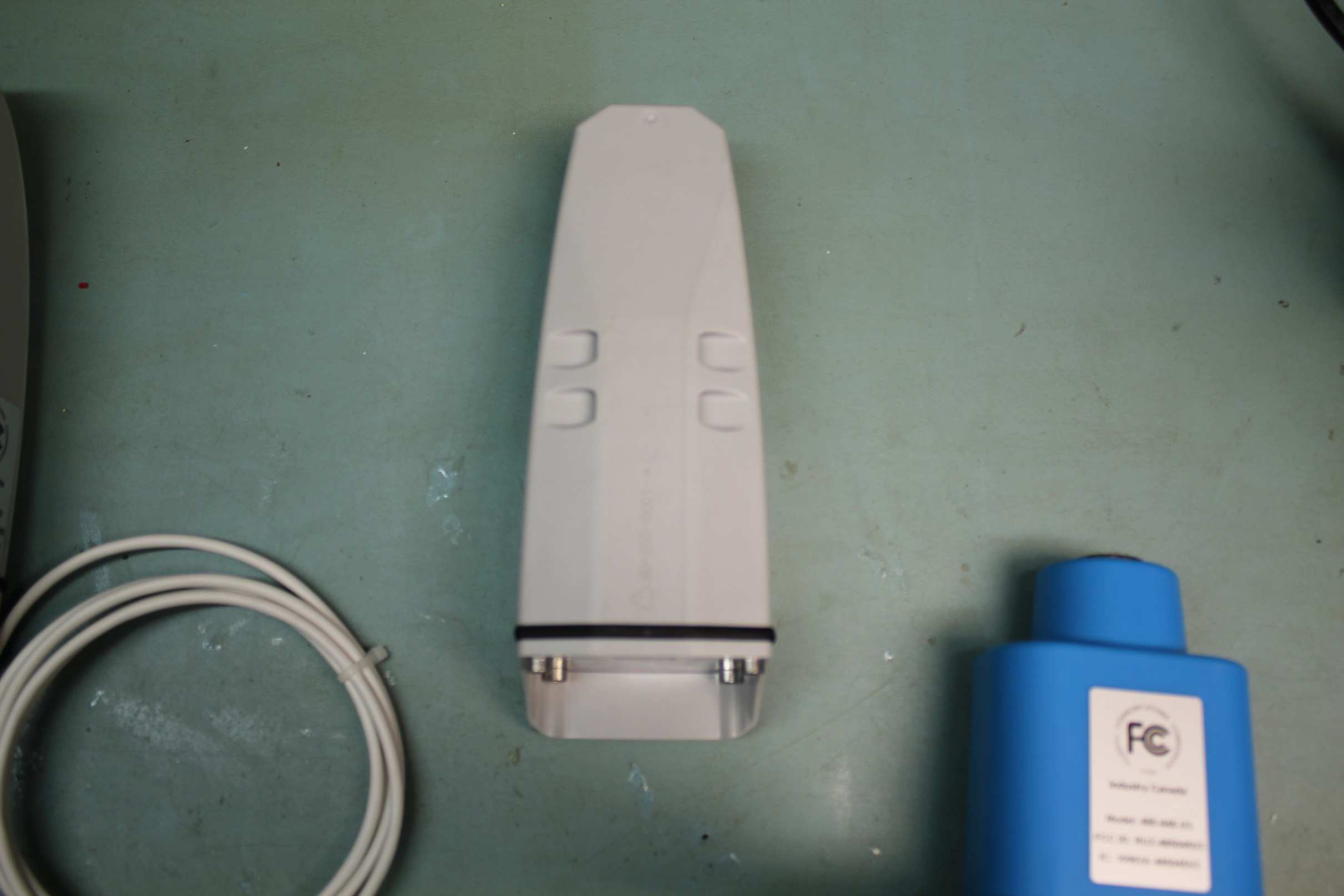

| External Photographs | External Photos | 2015-12-01 | PDF 793.7 KB |
| ID Label | ID Label/Location Info | 2015-12-01 | PDF 1.3 MB |
| Label Location | ID Label/Location Info | 2015-12-01 | PDF 793.7 KB |

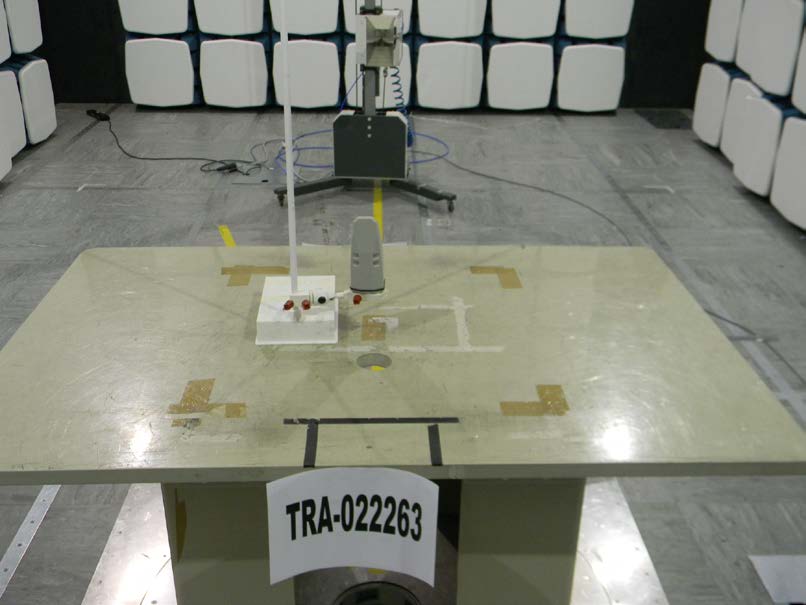

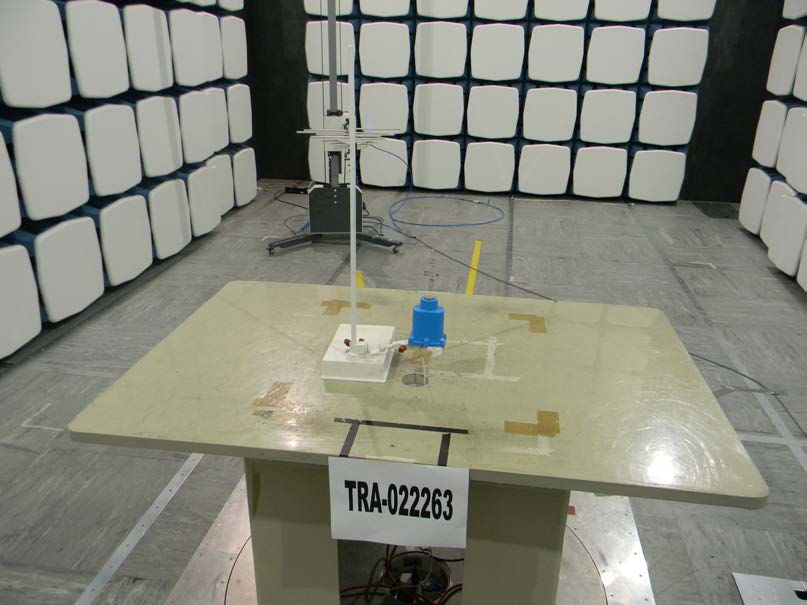

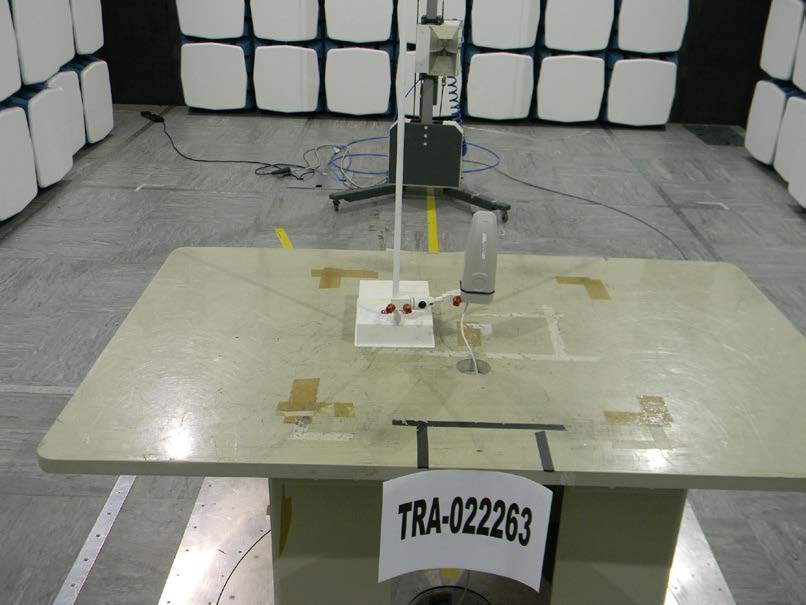

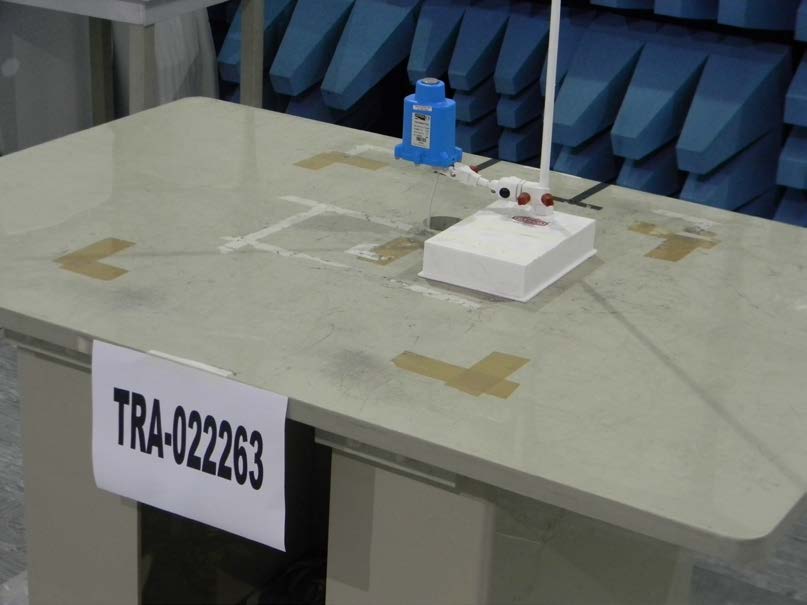

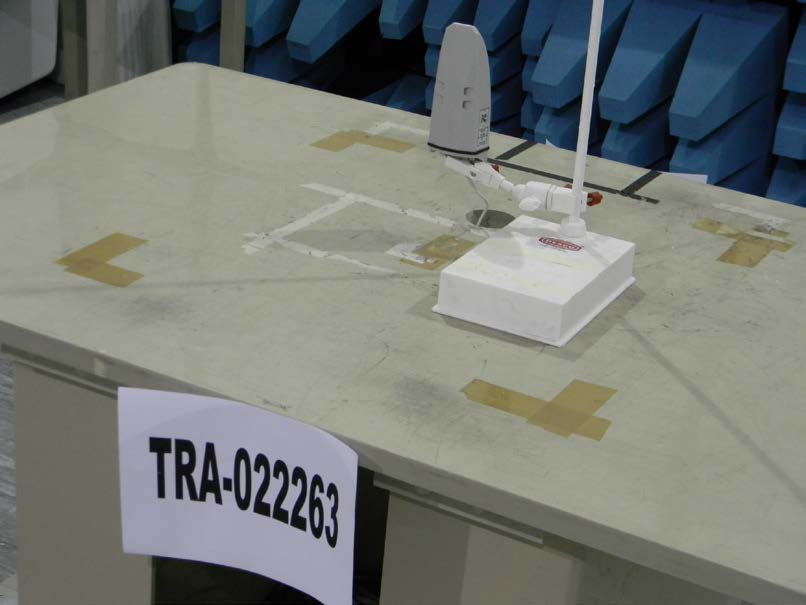

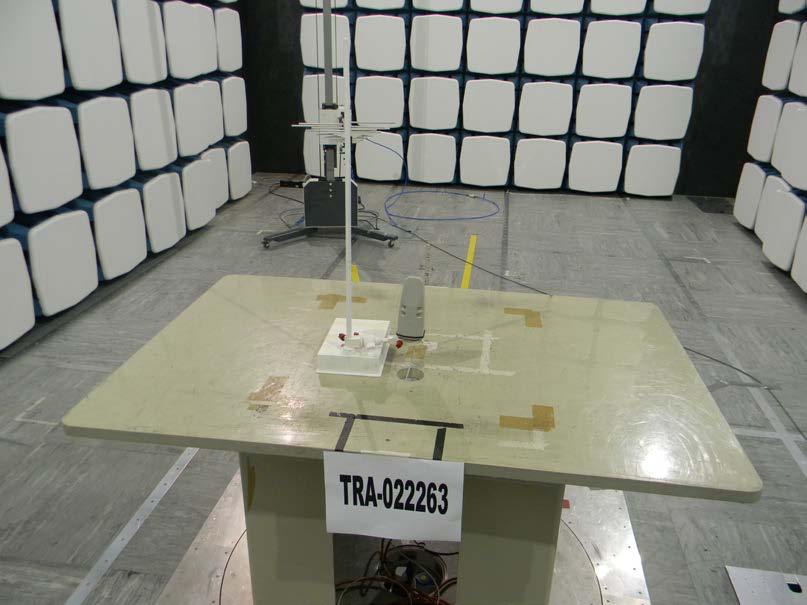

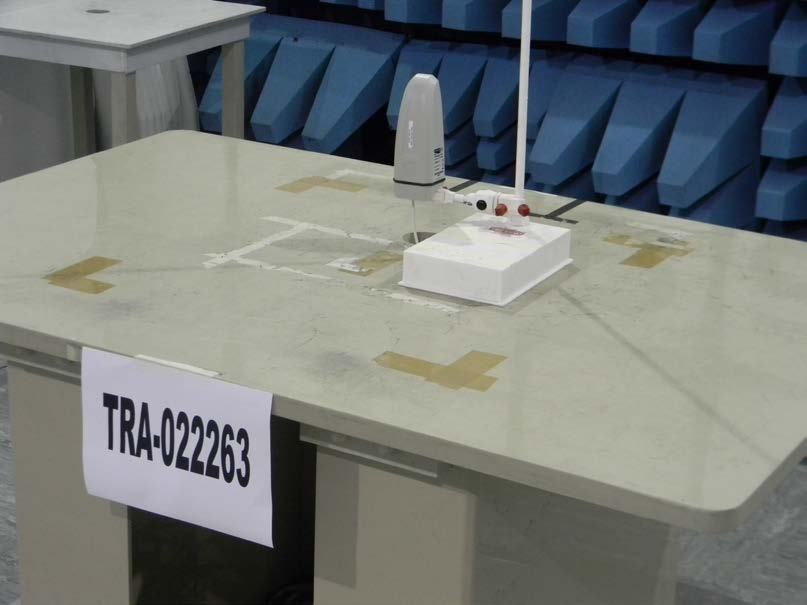

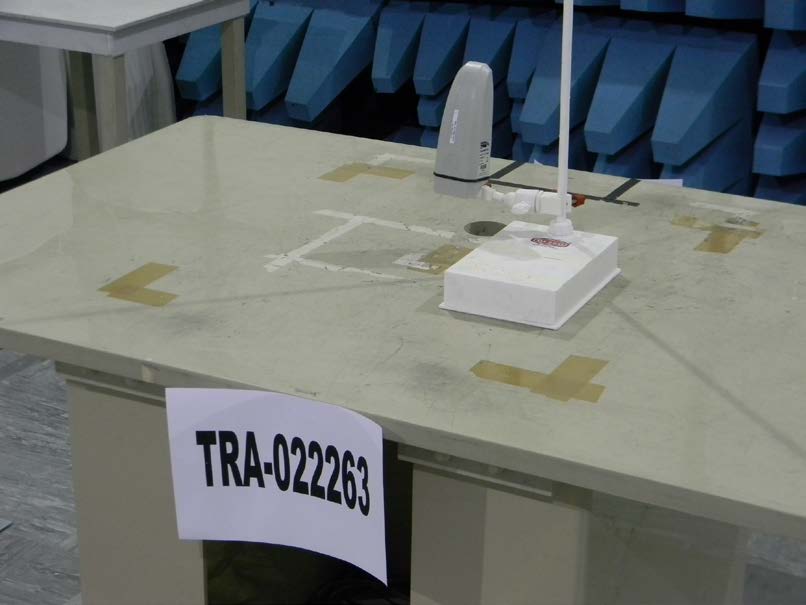

| Test Setup Photos | Test Setup Photos | 2015-12-01 | PDF 349.9 KB |
| Test Report | Test Report | 2015-12-01 | PDF 946 KB |
| Declaration of Similarity | Attestation Statements | 2015-12-01 | PDF 271.6 KB |
| Letter of Agency | Attestation Statements | 2015-12-01 | PDF 104.9 KB |
| Letter of Confidentiality | Cover Letter(s) | 2015-12-01 | PDF 169.9 KB |
| Block Diagram Metadata only | Block Diagram | PDF 15 KB | |
| RT0485 P1 SCHEMATIC Metadata only | Schematics | PDF 50.8 KB | |
| RT0485 P2 SCHEMATIC Metadata only | Schematics | PDF 47.4 KB | |
| SE-485-0006-A (UNIVERSAL ANALOG BOARD 0-10V VARIANT) Metadata only | Schematics | PDF 413.2 KB | |
| Operational Description Metadata only | Operational Description | PDF 10.1 KB | |
| BOM-2_GP-485-0021-A PULSE TX USA VHF 153MHZ Metadata only | Parts List/Tune Up Info | PDF 49.4 KB | |
| BOM-3_GP-485-0023-A DUAL PULSE TX USA VHF 153MHZ Metadata only | Parts List/Tune Up Info | PDF 53.1 KB | |
| BOM-4_GP-485-0026-A DUAL STATUS TX USA VHF 153MHZ Metadata only | Parts List/Tune Up Info | PDF 48.5 KB | |
| TRA-022263-06_BP-485-0002-B USA STANDARD PCB (T-RT0485-USA) Metadata only | Parts List/Tune Up Info | PDF 48.5 KB | |
| TRA-022263-06_GP-485-022-A INTERNAL TEMP TX USA 153MHZ IN V2 CASE Metadata only | Parts List/Tune Up Info | PDF 43.8 KB | |
| TRA-022263-06_GP-485-033-B DUAL ANALOGUE 0-10V TX USA 153MHZ IN V2 CASE Metadata only | Parts List/Tune Up Info | PDF 44.6 KB |
Application Information
| Application ID | LUfkeWCLZ7jmKOLLi0JSCg== |
|---|---|
| Final Action Date | 2015-12-01 |
| Application Purpose | Original Equipment |
| Applicant FRN | 0024020976 |
| Model | WT4100 |
| Frequency Range | 153.103 MHz |
| Equipment Class | TNB - Licensed Non-Broadcast Station Transmitter |
| Device Description | WT4100 series Long Range Wireless Transmitters |
| Responsible Party | Michael Falconet, michael.falconet@schneider-electric.com , 0033476822838 |
| Test Firm | Stewart Barrowclough, Element Materials Technology Warwick Ltd, stewart.barrowclough@element.com  , 01695556666 |
| TCB Email | Roy.ediss@element.com |
| TCB Scope | B2: General Mobile Radio And Broadcast Services equipment in the following 47 CFR Parts 22 (non-cellular) 73, 74, 90, 95, 97, & 101 (all below 3 GHz) |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | Yes |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | No |
| Composite Part | No |
| Cognitive Radio | No |
| Authorization Waiver | No |
| Authorization Waiver Approved | No |
| Section 5301 Certification | Yes |
| Related OET Knowledge DataBase Inquiry | No |
| Grant Comments | This Grant covers models: WT4111, WT4112, WT4122, WT4132, WT4141. |
