FCC ID 2ADINNUUM2

FCC ID 2ADINNUUM2 External-Photos, 2ADIN NUUM2, 2ADINNUUM2, 2AD1NNUUM2

Sun Cupid Technology (HK) Ltd. Mobile phone NUUM2


An FCC ID is the product ID assigned by the FCC to identify wireless products in the market. The FCC chooses 3 or 5 character "Grantee" codes to identify the business that created the product. For example, the grantee code for FCC ID: 2ADINNUUM2 is 2ADIN. The remaining characters of the FCC ID, NUUM2, are often associated with the product model, but they can be random. These letters are chosen by the applicant. In addition to the application, the FCC also publishes internal images, external images, user manuals, and test results for wireless devices. They can be under the "exhibits" tab below.

Purchase on Amazon: Mobile phone

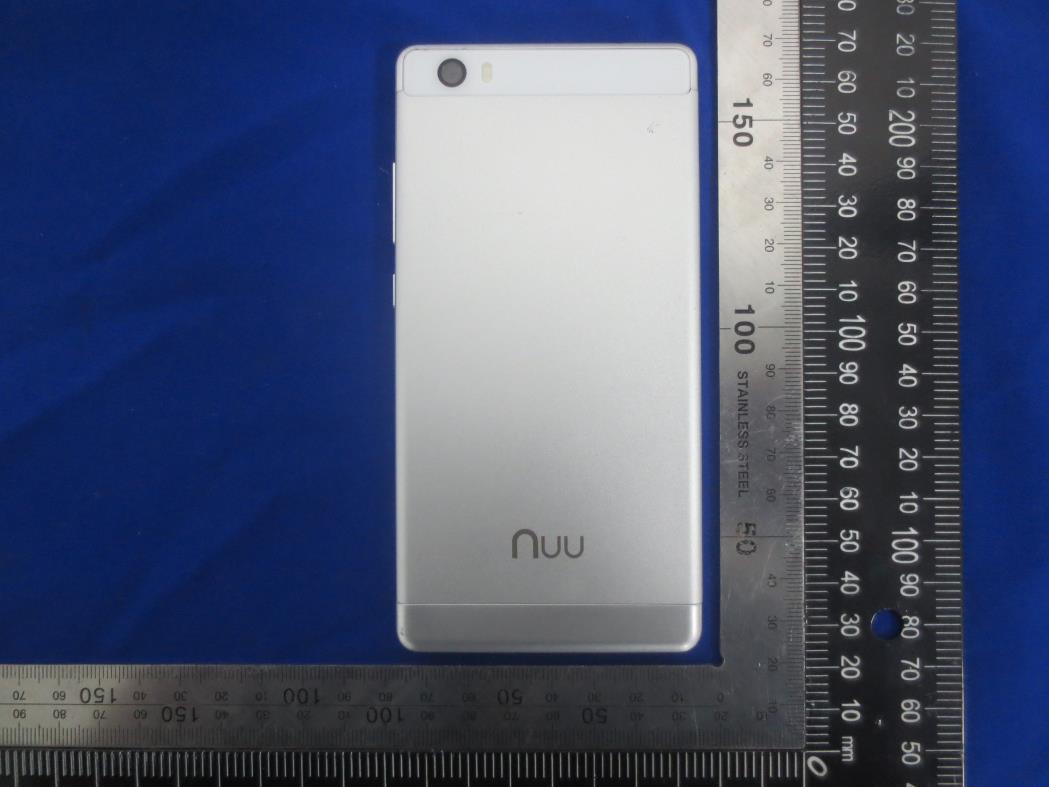

FCC ID 2ADINNUUM2 External-Photos
FCC ID 2ADINNUUM2 External-Photos
FCC ID 2ADINNUUM2 External-Photos
FCC ID 2ADINNUUM2 External-Photos
FCC ID 2ADINNUUM2 External-Photos
FCC ID 2ADINNUUM2 External-Photos
FCC ID 2ADINNUUM2 External-Photos
FCC ID 2ADINNUUM2 External-Photos

*Please Check Individual Documents for more images

App # Purpose Date Unique ID
1 Original Equipment 2017-01-11 48xrV15LwSX8AoSot6/bRw==
2 Original Equipment 2017-01-11 PyAsibjzr+Fkuf+jFHc4LQ==
3 Original Equipment 2017-01-11 WLC9bk+xy62jqyzQlAR4SA==

Operating Frequencies

Device operates within approved frequencies overlapping with the following cellular bands: LTE 41,TD 2500 DOWN | LTE 7,2600 UP | UMTS CH 7 UP |
Frequency RangePower OutputToleranceEmission DesignatorRule Parts App #
699.7-715.3 MHz127.6 mW0.25ppm1M10W7D27 1.2
699.7-715.3 MHz108.9 mW0.18ppm1M10G7D27 1.19
704-711 MHz153.8 mW0.22ppm9M16G7D27 1.17
704-711 MHz155.6 mW0.26ppm9M16W7D27 1.18
706.5-713.5 MHz150 mW0.24ppm4M54G7D27 1.23
706.5-713.5 MHz153.8 mW0.29ppm4M52W7D27 1.24
709-711 MHz143.2 mW0.26ppm9M16G7D27 1.21
709-711 MHz157.8 mW0.22ppm9M12W7D27 1.22
1.7107-1.7543 GHz179.5 mW0.1ppm1M11G7D27 1.11
1.7107-1.7543 GHz233.9 mW0.1ppm1M10W7D27 1.12
1.72-1.745 GHz248.9 mW0.09ppm18M0W7D27 1.1
1.72-1.745 GHz258.2 mW0.1ppm18M1G7D27 1.9
1.8502-1.9098 GHz254.7 mW0.09ppm246KGXW24E 1.3
1.8507-1.9093 GHz571.5 mW0.1ppm1M10G7D24E 1.7
1.8507-1.9093 GHz601.2 mW0.07ppm1M10W7D24E 1.8
1.8524-1.9076 GHz96.8 mW0.1ppm4M24F9W24E 1.4
1.86-1.9 GHz340.4 mW0.09ppm18M1G7D24E 1.5
1.86-1.9 GHz256.4 mW0.09ppm17M9W7D24E 1.6
2.402-2.48 GHz Bluetooth3.04 mW15C 3.1
2.402-2.48 GHz Bluetooth0.64 mW15C 2.3
2.412-2.462 GHz 2.4 GHz WiFi40.6 mW15C 2.1
2.422-2.452 GHz 2.4 GHz WiFi22.9 mW15C 2.2
2.5025-2.5675 GHz167.1 mW0.07ppm4M54G7D27 1.15
2.5025-2.5675 GHz162.2 mW0.06ppm4M52W7D27 1.16
2.51-2.56 GHz161.1 mW0.07ppm18M1G7D27 1.13
2.51-2.56 GHz385.5 mW0.06ppm18M0W7D27 1.14
