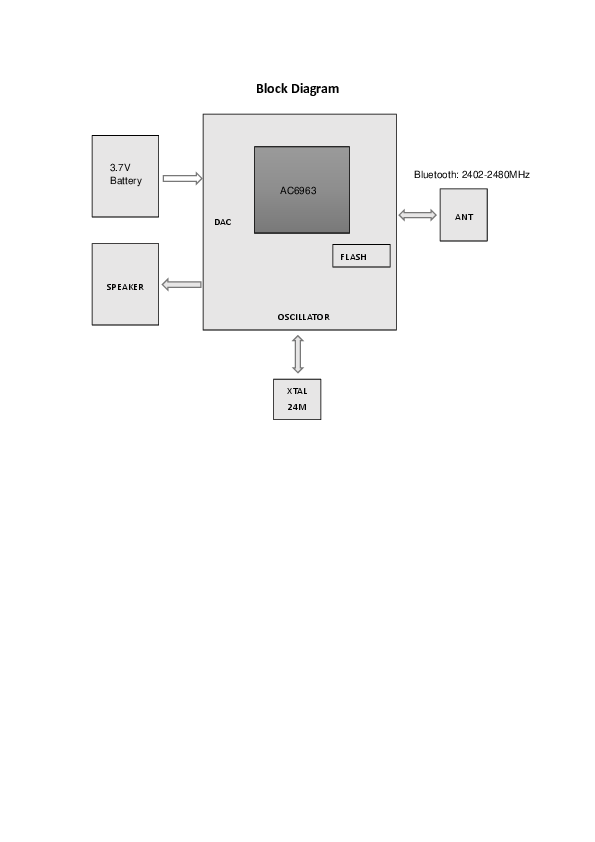

EP0644L TWS VOLT EARBUDS Block Diagram - FCC ID 2ADM5-EP-0644L

FCC ID 2ADM5-EP-0644L

Block Diagram

TWS VOLT EARBUDS

by Zeeva International Limited

Document preview loads when visible.

Document Details

FCC ID2ADM5-EP-0644L
Document ID5449975
Document TypeBlock Diagram
DescriptionBlock Diagram
ApplicantZeeva International Limited
Equipment ClassTWS VOLT EARBUDS
Product CodeEP0644L
Application IDMp8SsleO0fydxoNlS7jbNA==
Application PurposeOriginal Equipment
Application Date2021-09-15
Frequency Range2402-2480 MHz
FRN0024102113
Test FirmBay Area Compliance Laboratories Corp. (Shenzhen)
Certified ByAkshay P Butani
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartYes
Submitted2021-09-15
Available2021-09-15
Created2020-12-03
Modified2020-12-03
Pages1
File TypeAdobe Acrobat PDF
File Size38217
File SHA-2563406b8f8fa001c814990d71df0e1231325ebd4e276a67f972df3031d7f177d9f
PDF Metadata Authorvanos
PDF Metadata ProducerWPS 文字
FCC.gov SourcesFCC.gov 5449975
