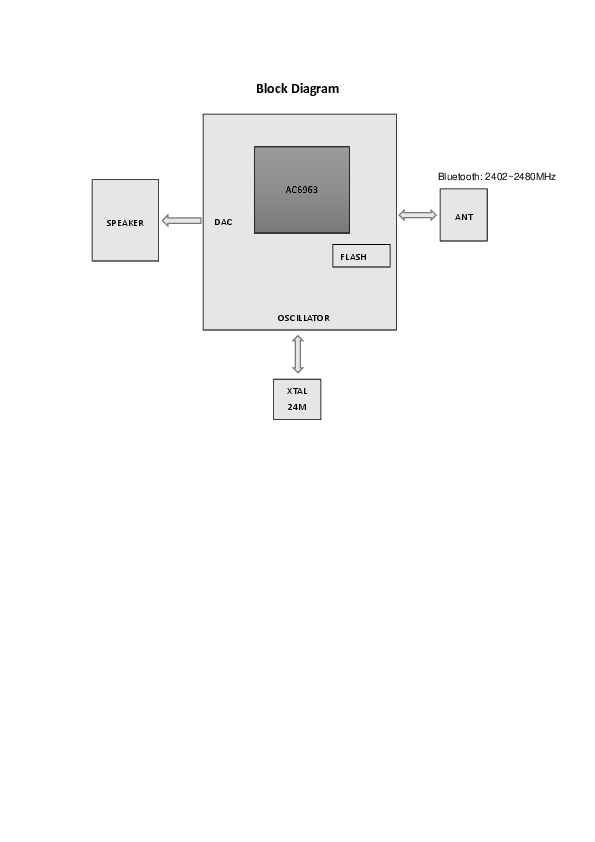

EP0656 TWS ALL OVER METER Block Diagram - FCC ID 2ADM5-EP-0656

FCC ID 2ADM5-EP-0656

Block diagram

TWS ALL OVER METER

by Zeeva International Limited

Document preview loads when visible.

Document Details

FCC ID2ADM5-EP-0656
Document ID5652524
Document TypeBlock Diagram
DescriptionBlock diagram
ApplicantZeeva International Limited
Equipment ClassTWS ALL OVER METER
Product CodeEP0656
Application IDelfaOED85iFJLBcMnat2wA==
Application PurposeOriginal Equipment
Application Date2022-01-24
Frequency Range2402-2480 MHz
FRN0024102113
Test FirmShenzhen Accurate Technology Co., Ltd.
Certified ByAkshay P Butani
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2022-01-24
Available2022-01-24
Created2021-12-06
Modified0002-01-01
Pages1
File TypeAdobe Acrobat PDF
File Size54285
File SHA-2562f2c3bf537280afe710258e80950ba75d4dc26e999745d401e89edbed6e4bc24
PDF Metadata Authorvanos
PDF Metadata Producervanos
FCC.gov SourcesFCC.gov 5652524
