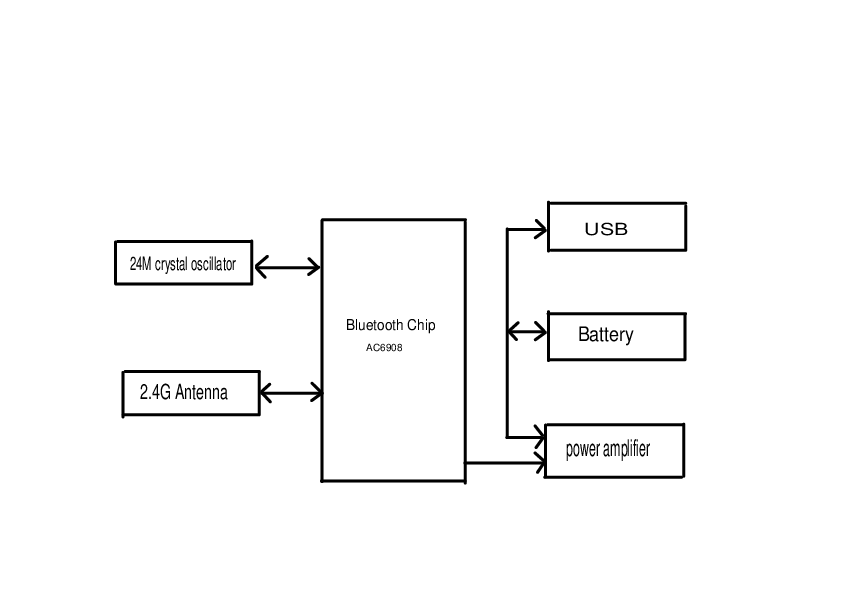

SP0511 Wireless Speaker Block Diagram - FCC ID 2ADM5-SP-0511

FCC ID 2ADM5-SP-0511

Block Diagram

Wireless Speaker

by Zeeva International Limited

Document preview loads when visible.

Document Details

FCC ID2ADM5-SP-0511
Document ID3833550
Document TypeBlock Diagram
DescriptionBlock Diagram
Document TitleCAMTASTIC
ApplicantZeeva International Limited
Equipment ClassWireless Speaker
Product CodeSP0511
Application IDqKWCJJkZM+jv/Hfxi+1vJg==
Application PurposeOriginal Equipment
Application Date2018-04-28
Frequency Range2402-2480 MHz
FRN0024102113
Test FirmBay Area Compliance Laboratories Corp. (Shenzhen)
Certified ByAkshay P Butani
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2018-04-28
Available2018-04-28
Created2017-06-14
Modified2018-04-29
Pages1
File TypeAdobe Acrobat PDF
File Size13068
File SHA-256530c73d679ed9b0bc3f7a27b3fc6336156cdbeaeda94fbb12f0e8a85f3c4fba5
FCC.gov SourcesFCC.gov 3833550
